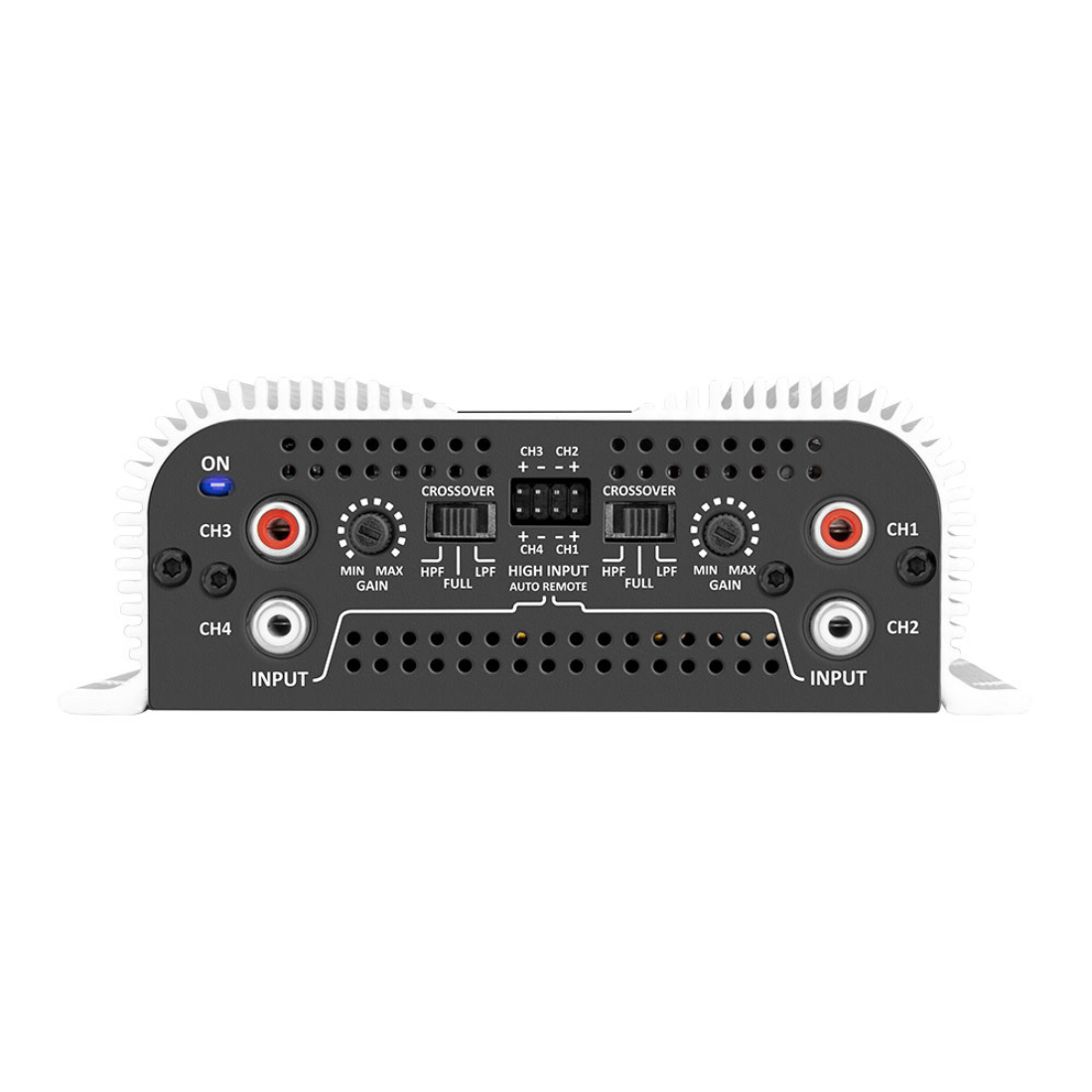

Taramps TS 800X4 2 Ohms 4-Channel 800W RMS Class-D Full-Range Car Amplifier

Taramps TS 800X4 2 Ohms 4-Channel 800W RMS Class-D Full-Range Car Amplifier

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

TARAMPS TS 800X4 2 OHMS

4-Channel 800 Watts RMS Class-D Full-Range Car Audio Amplifier

Taramps created the new TS 800×4 2 Ohms with 4-channel high-level individual input and automatic activation. This feature makes it ideal for this type of application, eliminating the need for adapters. With 800 watts of Power distributed in 4 channels and the possibility of connection in Bridge, it can be used with the most varied models of speakers, drivers, and super tweeters.
In addition, it has the traditional RCA inputs, gain adjustment, and fixed Crossover (HPF, LPF and Full), typical features of Taramps products.
Another point to be highlighted is the new power and output connector, which, in addition to being robust, ensures more practicality and safety in the installation.
All this and much more, so that your pleasure in listening to music is even greater.

Key Features:

  • 2 Ohms VERSION: Nominal Power @14.4VDC
  • 2 Ohms: 800W RMS: (4 x 200W RMS)
  • 4 Ohms: 544W RMS: (4 x 136W RMS)
  • 2 Bridged Channels: 4 Ohms: 800 W RMS (2 x 400W RMS)
  • Number of Channels: 04
  • Input Sensitivity: (RCA): 4V (min.) / 250mV (max.) / (WIRE): >10V (min.) / 3V (max.)
  • Signal to Noise Ratio: >90dB
  • Frequency Response: 10Hz ~ 20KHz (-3dB)
  • Crossover high pass (HPF): 90Hz (-12dB/8ª) Fixed
  • Crossover low pass (LPF): 90Hz (-12dB/8ª) Fixed
  • Input Impedance: 10K Ohms (RCA)
  • Output Impedance: 2 Ohms
  • protection system: Output Short Circuit
  • Minimum Supply Voltage: 9VDC
  • Maximum Supply Voltage: 16VDC
  • Consumption at rest: 0.9A
  • Maximum music consumption: 38A
  • Maximum consumption in sinusoidal signal: 76A
  • Dimensions (WxHxD): 5.43" x 1.89" x 6.89" (138 x 48 x 175mm)
  • Weight: 1.91lb (0.87Kg)
  • EAN: 7898556849043
