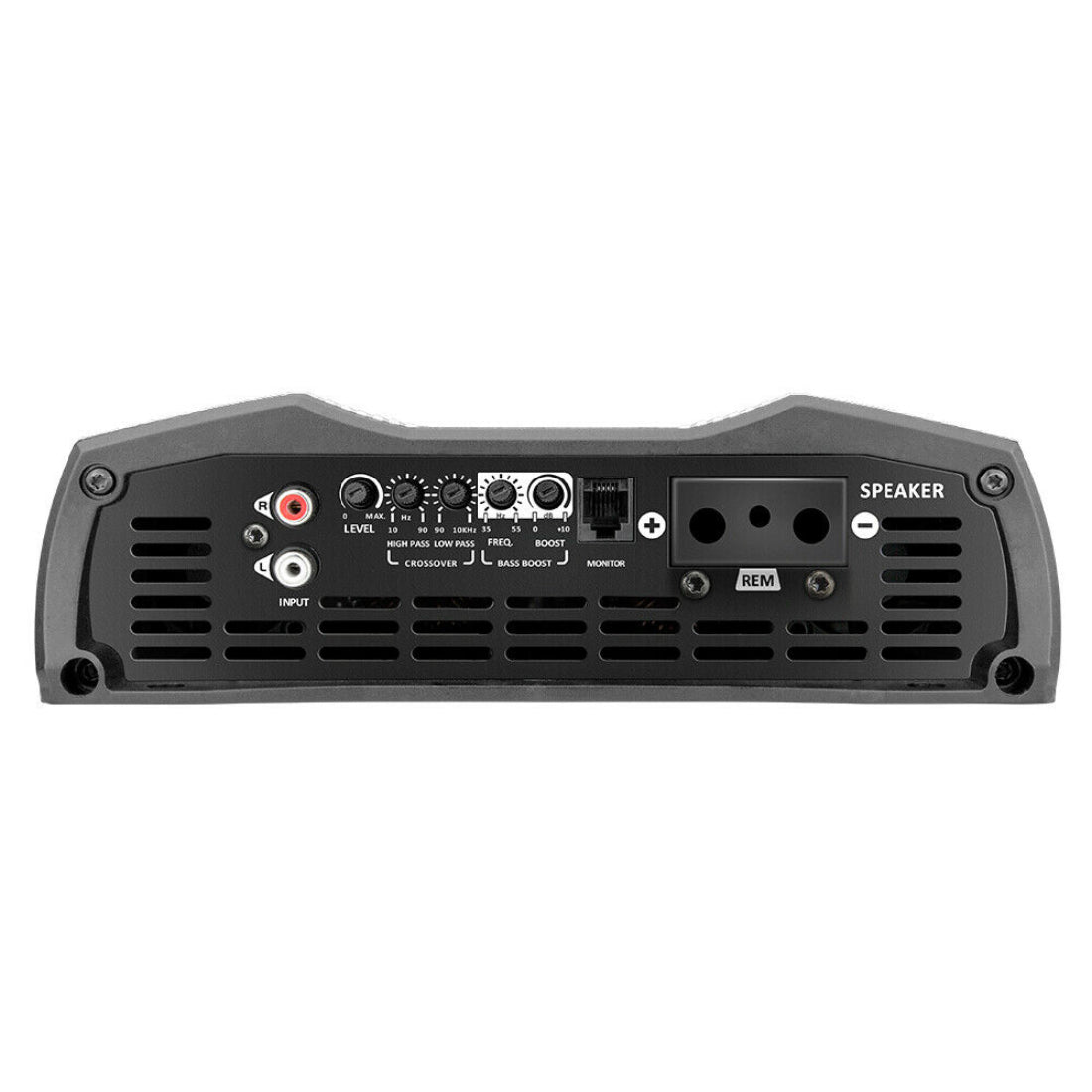

Taramps MD5000.1 - 2 Ohms 5000 Watts RMS Monoblock Car Audio Amplifier

Brand New

Taramps MD5000.1

5000 Watts 2 Ohm 1 Channel Amplifier

Key Features:

Operation Class Class D

Number of channels 1

Maximum power

@ 12,6 VDC - 2 OHMS: 5000W RMS

@ 12,6 VDC - 4 OHMS: 3200W RMS

Input sensitivity 220mV

Signal to noise ratio 90 dB

Frequency response 10Hz to 18KHz (-3dB)

Crossover High Pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable

Crossover Low Pass (LPF) 90Hz ~ 18Khz (-12dB/8ª) Variable

Efficiency 86%

 Thermal management Smart Cooler(fan controlled by temperature or audio, with 3 speeds)

Bass boost 0 ~ 10dB (50Hz) Variable Frequency (35 ~ 55)

Input impedance 15K ohms

Output impedance 2 Ohms

Protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, low/high supply voltage and Thermal protection.

Mininum supply voltage 9 VDC

Maximum power supply voltage 16 VDC

Consumption at rest 1.40 A

Maximum music comnsumption 230.5 A

Maximum consumption in sinusoidal signal 461 A

Dimensions (HxWxD) 8.98" x 2.76" x 12.87" |22,8cm x 7cm x 32,7cm

Weight 9.28 lb | 148.48 Ounces
