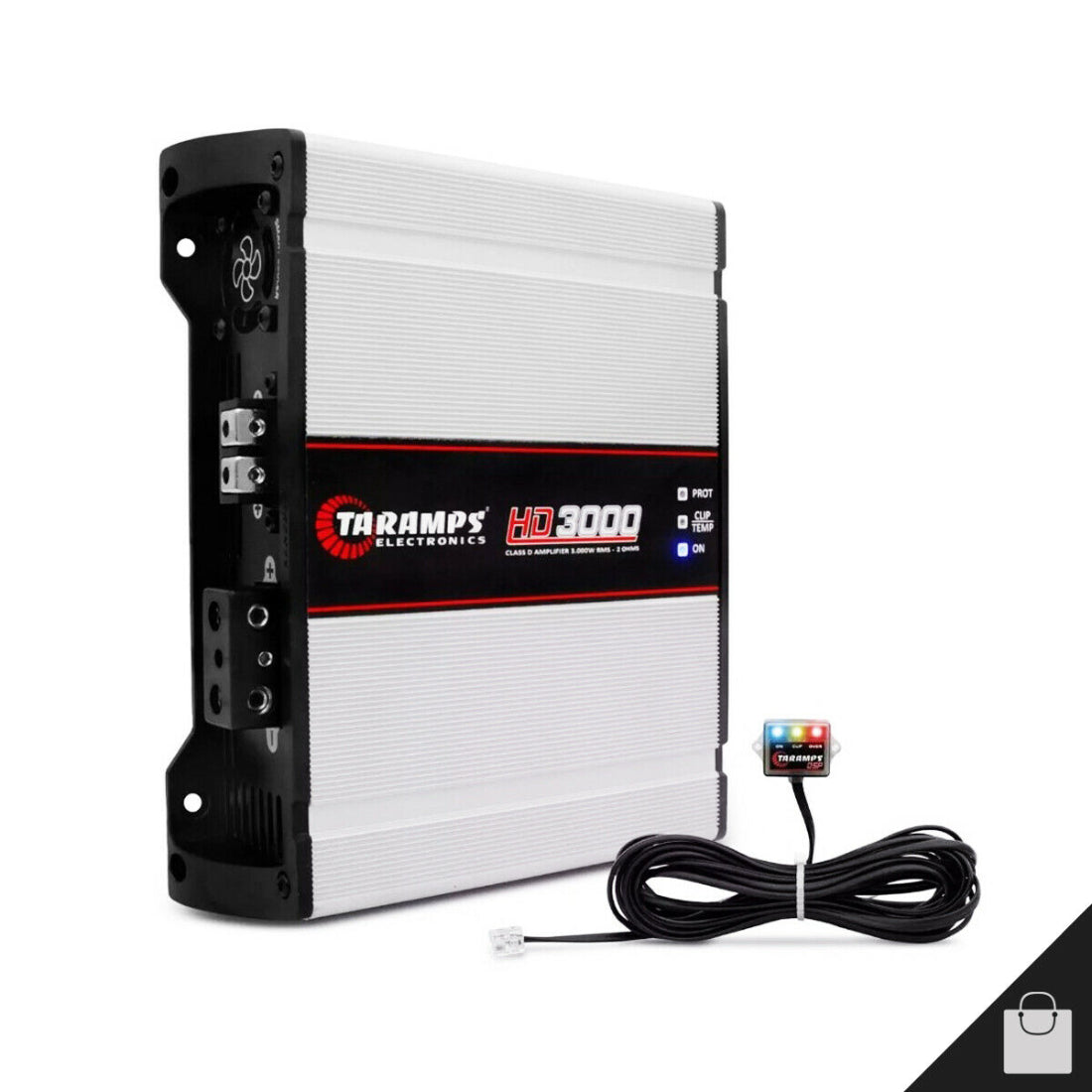

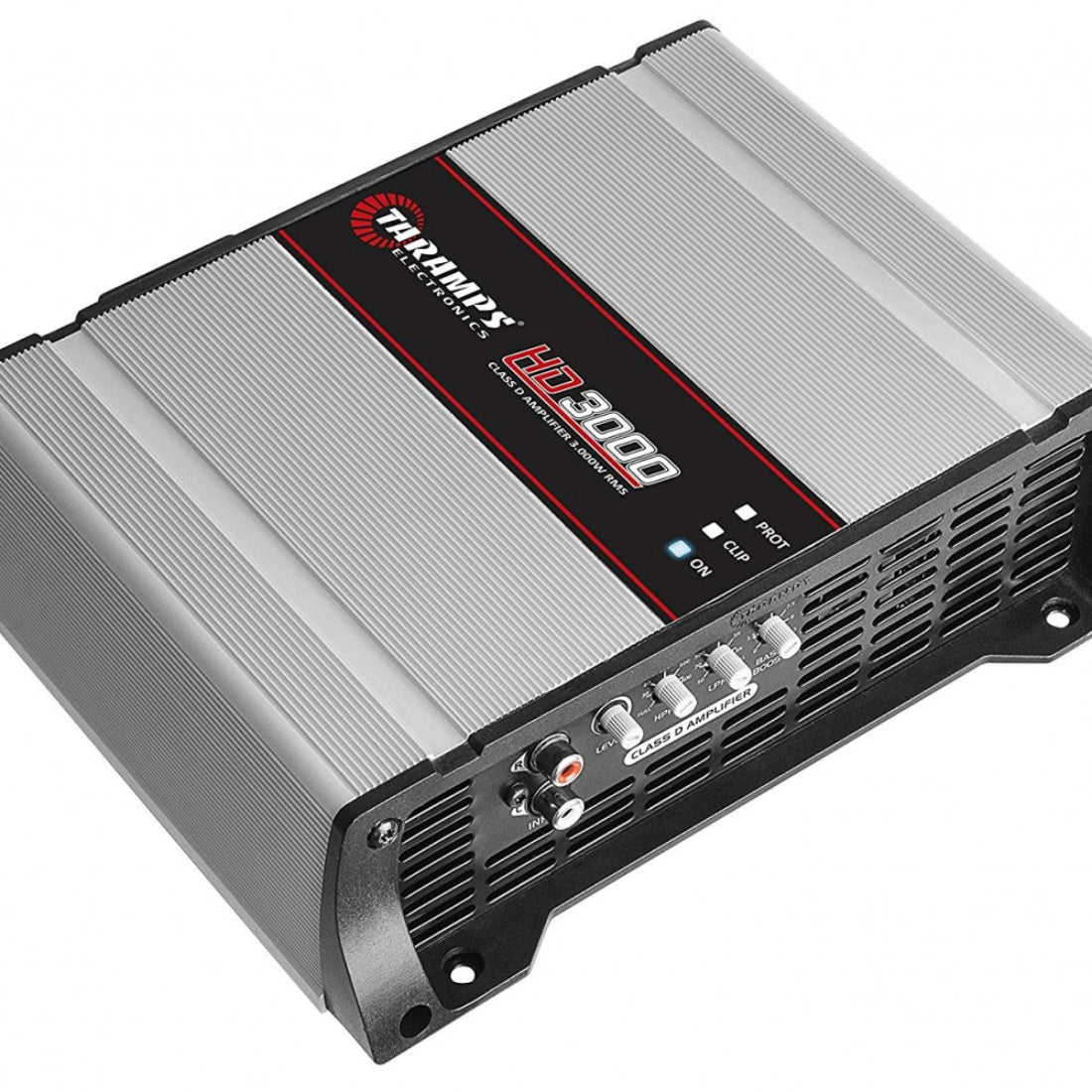

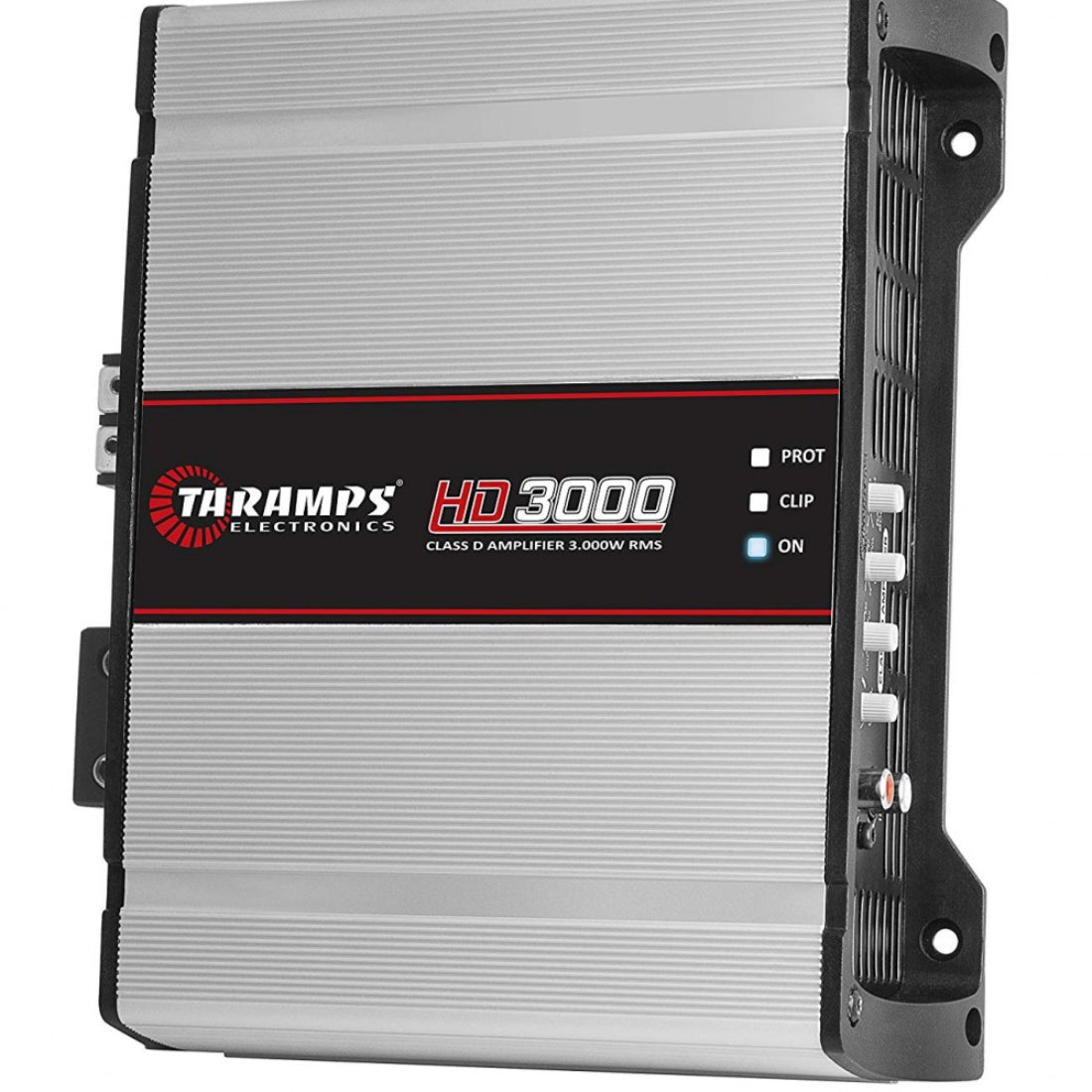

TARAMPS HD3000-1 1 OHM AMPLIFIER HD3000 3000 WATTS

Brand New

TARAMPS HD 3000

1 OHM AMPLIFIER HD3000 3000 WATTS

Key Features

Operation Class: D

• Number of Channels: 01

• Maximum Power:

@ 13.8 VDC - 1 OHM: 3575W RMS

@ 13.8 VDC - 2 OHMS: 2355W RMS

@ 13.8 VDC - 4 OHMS: 1365W RMS

@ 12.6 VDC - 1 OHM: 3000W RMS

@ 12.6 VDC - 2 OHMS: 2025W RMS

@ 12.6 VDC - 4 OHMS: 1140W RMS

• Input Sensitivity: 230mV

• Signal to Noise Ratio: > 89dB

• Frequency Response: (Full Range): 10Hz to 20kHz

• Crossover High Pass (HPF): Variable: 10Hz to 80Hz (-12dB / 8th)

• Crossover Low Pass (LPF): Variable: 80 Hz to FULL

• Bass Boost: 0 to 10dB (50Hz)

• Input Impedance: 18K OHMS

• Short / Short Supply Protection System / High / Low Supply Voltage

• Maximum Supply Voltage: 16 VDC

• Consumption at rest: 1,80 Amp.

• Maximum Musical Power: @ 12.6VDC: 150.5A

• Maximum Sine Signal Consumption: @ 12.6 VDC: 301A

• Dimensions (WxHxD): 229 x 65 x 186mm (9 x 2.6 x 7.3 inches)

• Weight: 5.2 lbs/83.2
