Sundown Audio

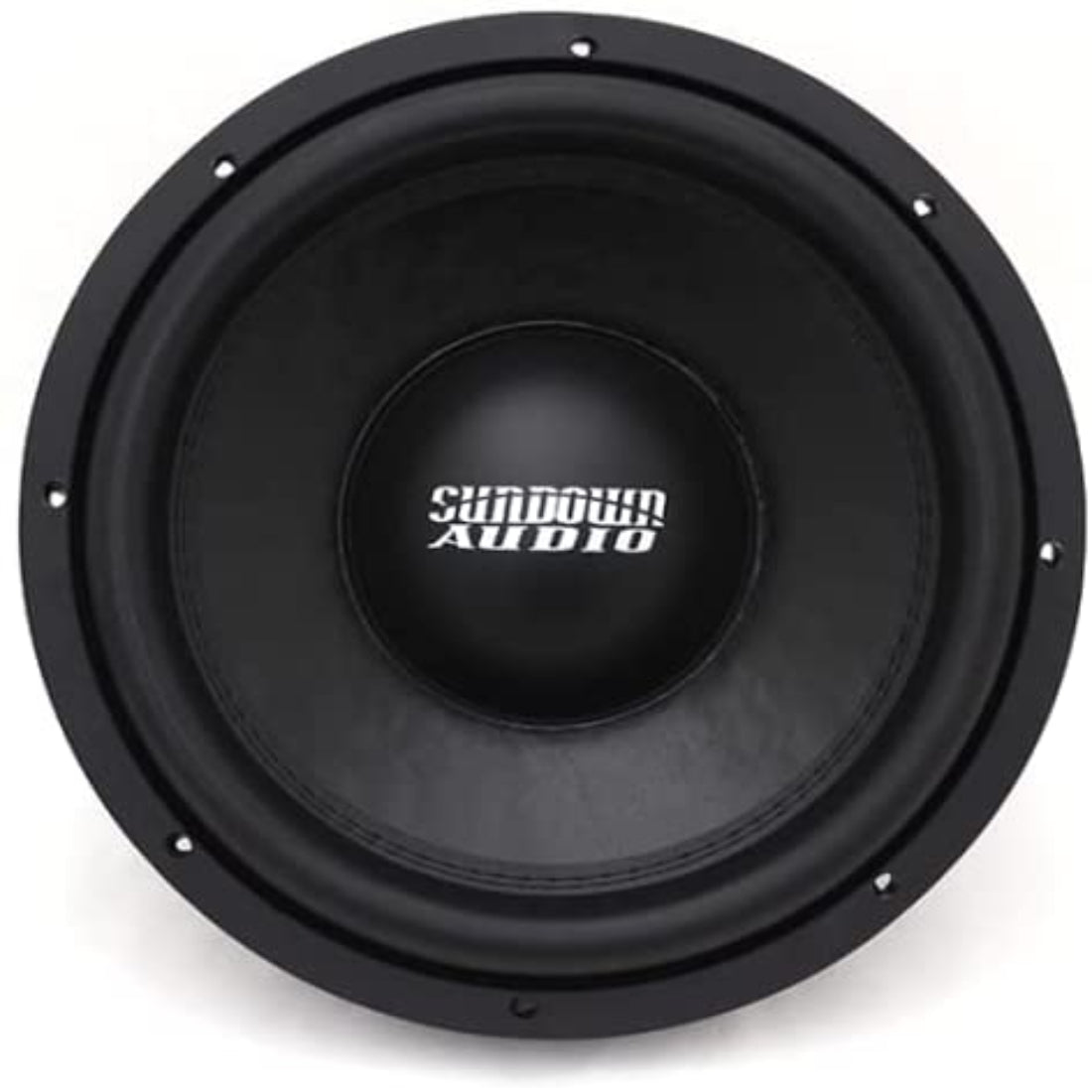

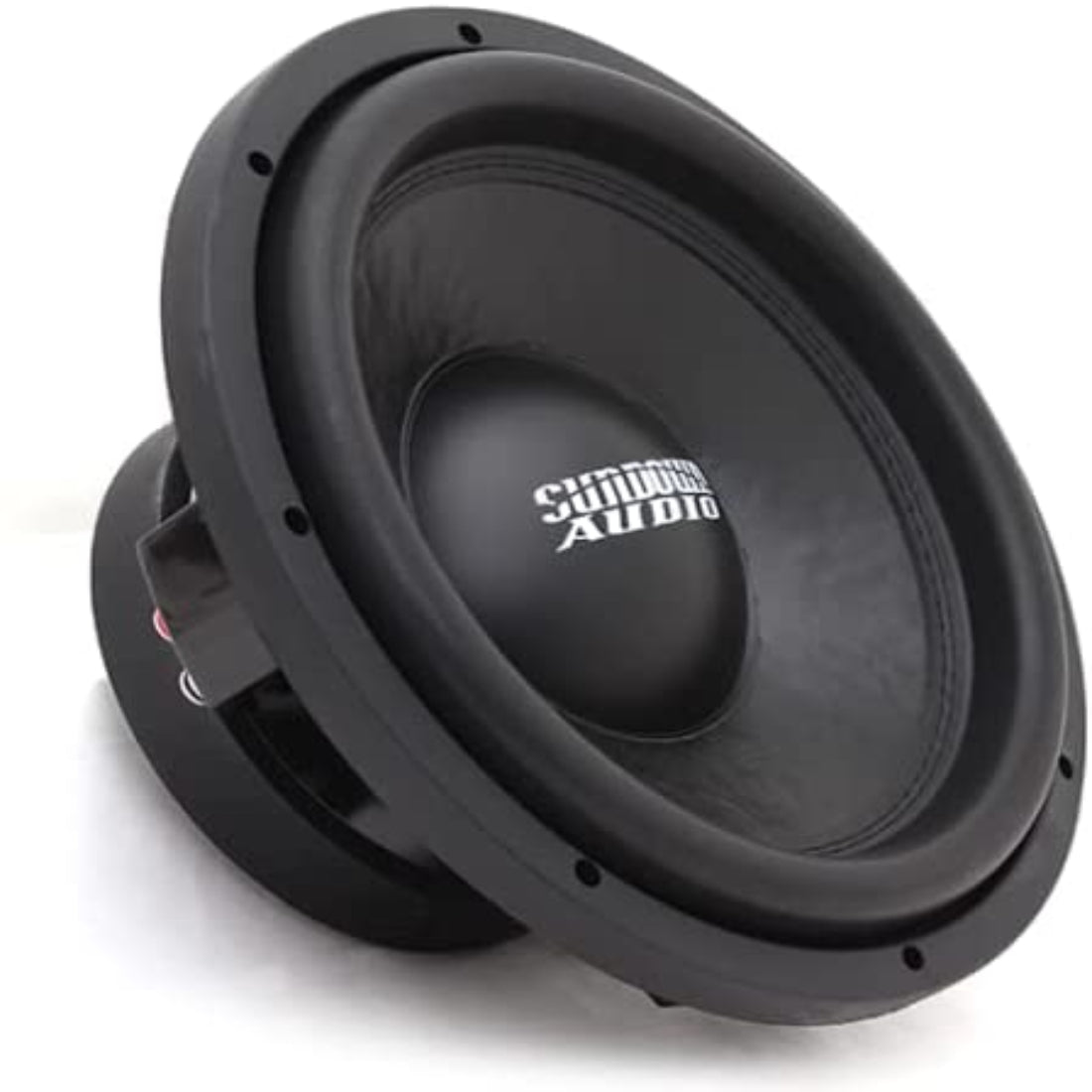

Sundown Audio SLD-12 D4 12" 600W RMS Dual 4-Ohm Voice Coil DVC Shallow Subwoofer
Sundown Audio SLD-12 D4 12" 600W RMS Dual 4-Ohm Voice Coil DVC Shallow Subwoofer
Regular price
$259.99 USD
Regular price
Sale price
$259.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
SUNDOWN AUDIO SLD-12 D4
SLD Series 12-Inch 600 Watts Max Power Dual 4-Ohm Voice Coil DVC Stereo Car Audio Subwoofer
Key Features:
- Xmax = 12mm one-way by 70% BL
- Xmech is a hard limit of 25mm one-way (being over 2x the Xmax it is a very generous limit)
- RMS Power = 600-watts
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High-Temperature 4-Layer copper voice coil wire
- Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
- Solid Pole with high-velocity vent channels machined around the OD
- Vented, EMD Cut, Top-Plate Design
- Bolt-through motor design to ensure maximum longevity and ruggedness against mechanical failures
- ** This motor is bolted through the top so the bolts are not visible from the back like several other models.
- Magnet ID shorting ring
Specifications:
- RE (ohms): 6.85
- FS (Hz): 45.142
- Vas (L): 29.481
- Qes: 0.619
- Qms: 2.298
- Qts: 0.487
- BL (NA): 23.025
- Mms (Grams): 168.773
- Cms (uM/N): 73.652
- Sens (1w/1m): 88.3
Enclosure Specs:
- Sealed Enclosure: 1.0 cu ft
- Ported Enclosure: 1.5 cu ft
- Recommended Tuning: 35Hz
- Recommended Port Area: 26 sq in
- Displacement: N/A
- Depth: 5.45″
- Outside Diameter: 12.625″
- Cut-Out: 11.125″
