Sundown Audio

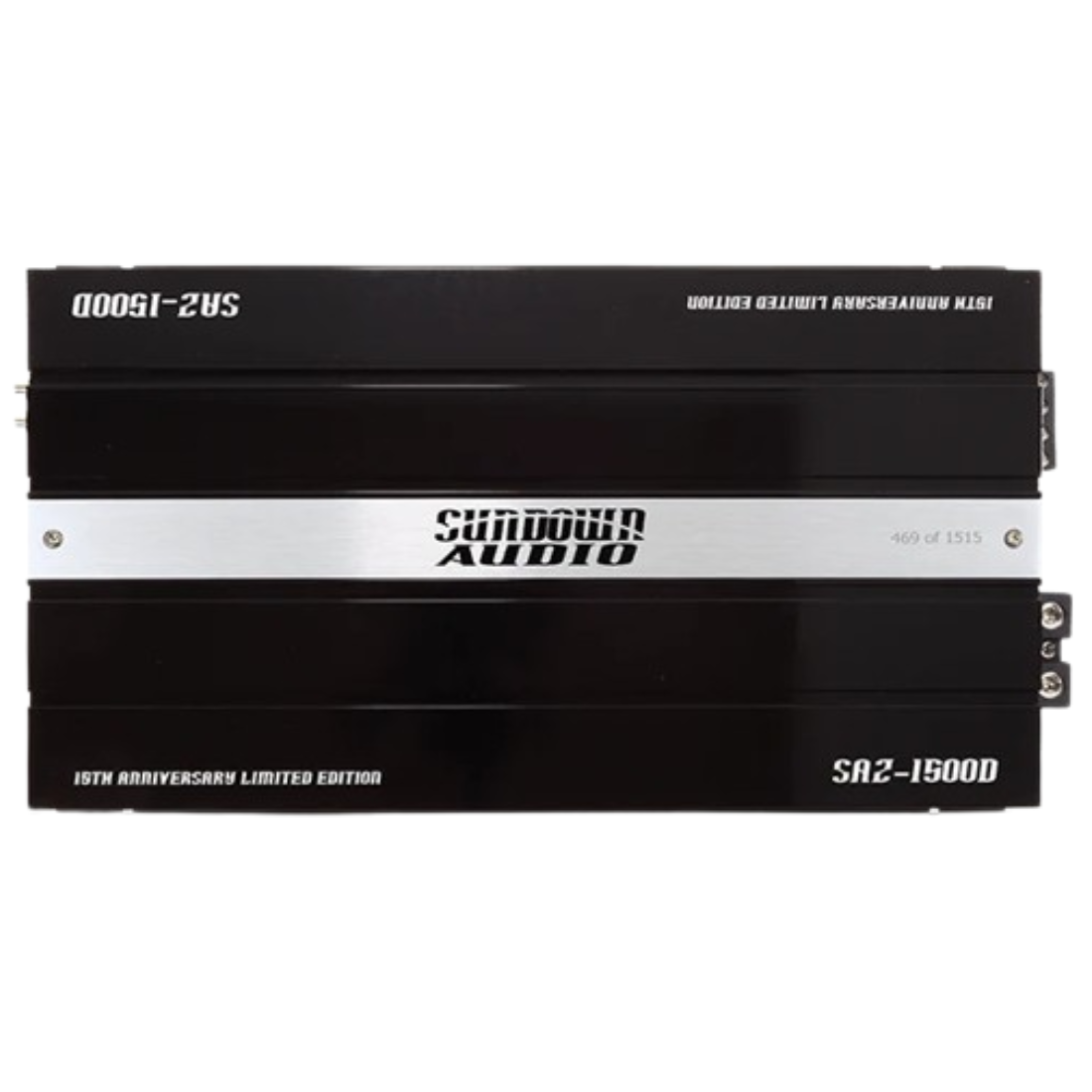

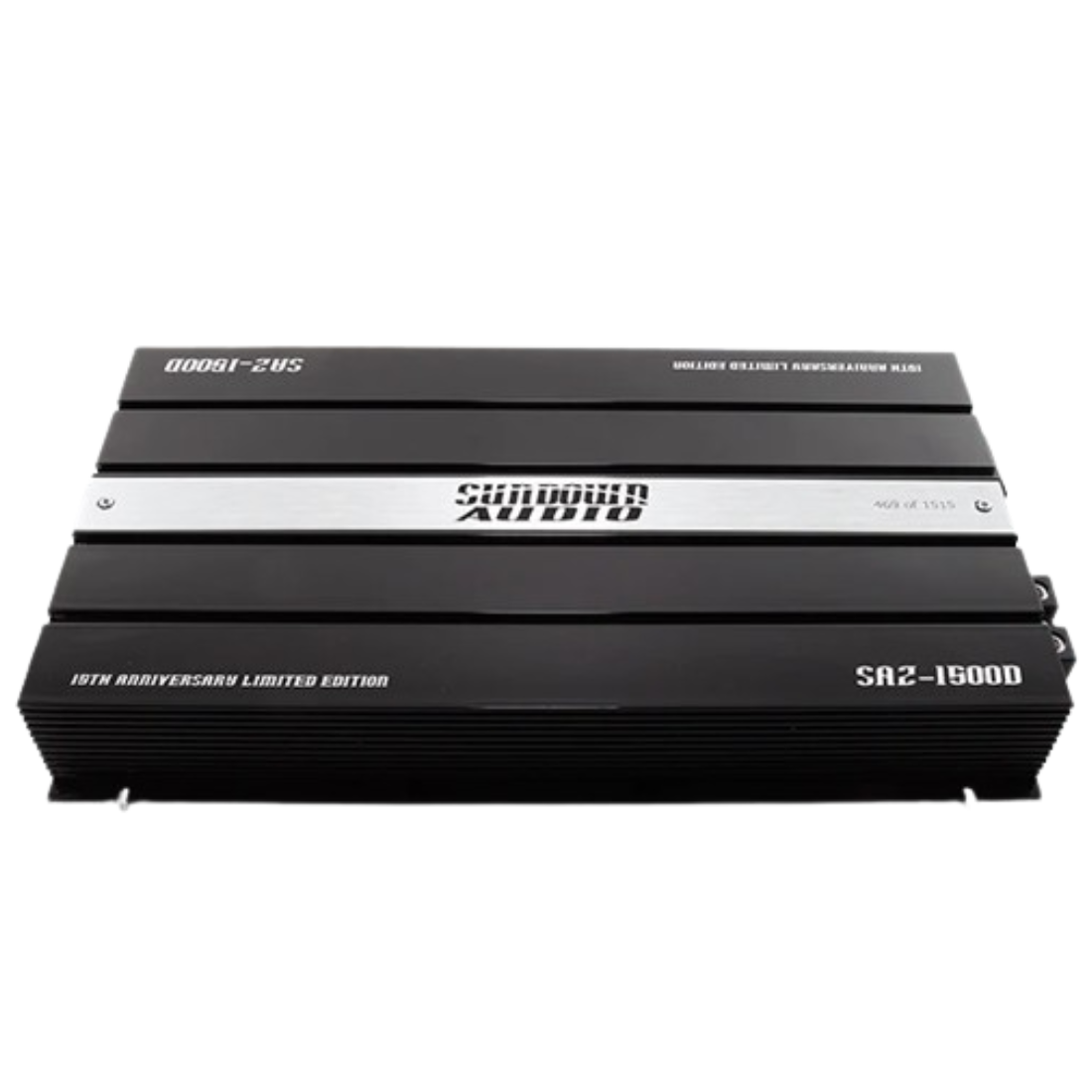

Sundown Audio SAZ-1500D Limited Edition Monoblock 1500W RMS Class-D Amplifier
Sundown Audio SAZ-1500D Limited Edition Monoblock 1500W RMS Class-D Amplifier
Regular price
$489.99 USD
Regular price
Sale price
$489.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
SUNDOWN AUDIO SAZ-1500D
15th Anniversary Edition Monoblock 1500 Watts RMS Class-D Car Amplifier
Key Features:
- Digital class-D linkable/dual monoblock amplifier
- Dual MOS-FET PWM power supply
- Stable into 1-Ohmload
- 24dB/oct, variable low pass filter
- 24dB/oct, variable subsonic filter
- 9dB/oct, variable bass boost
- 180 Variable phase shift
- 4 ways protection circuit
- (thermal, voltage, speaker short and DC)

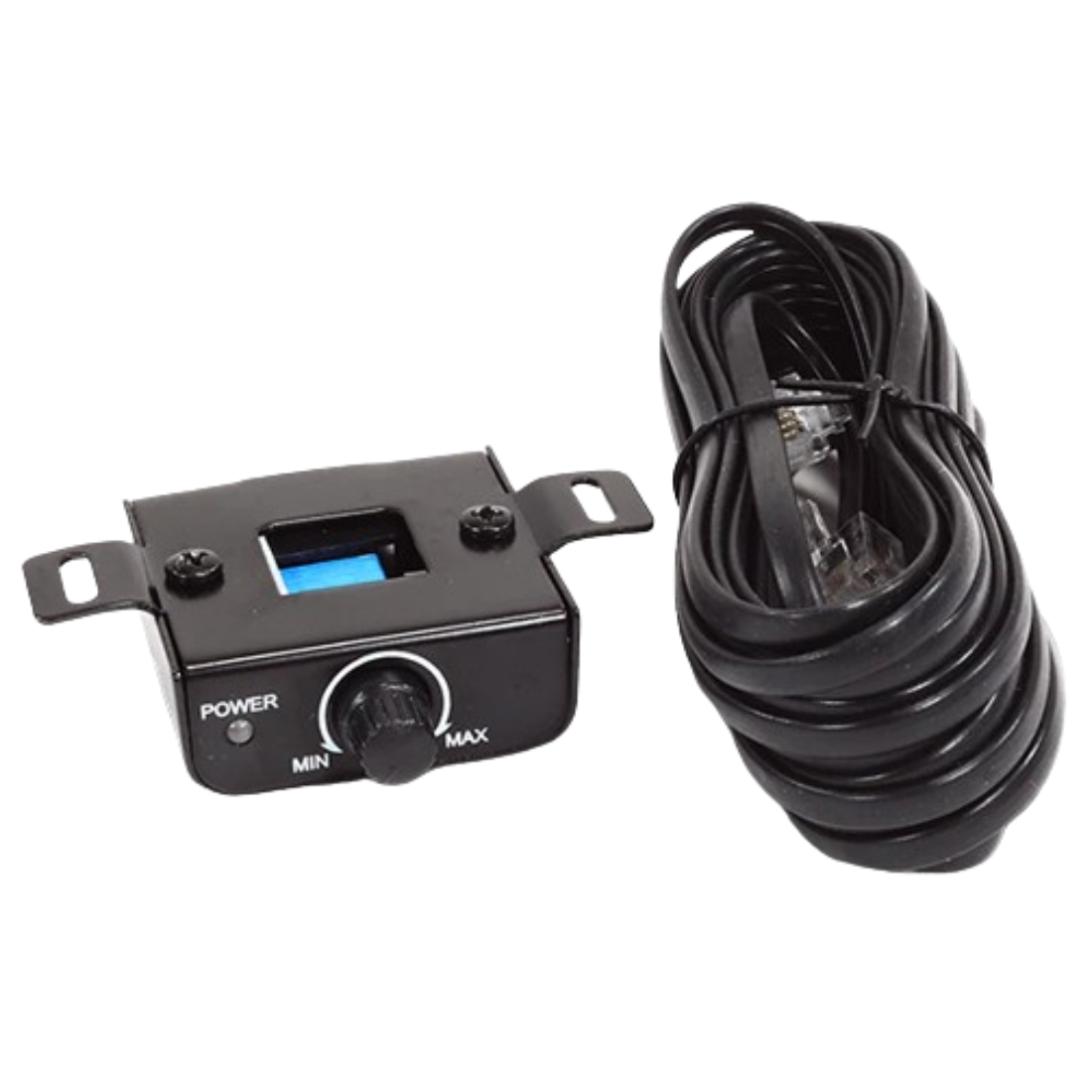

- Wired remote control included
Specifications:
- Power Ratings:
- 1 ohm - 1500W
- 2 ohm - 800W
- 4 ohm - 400W
- Double Sided Through Hole Epoxy PCB
- 1 Ohm Stable Circuit
- Daisy Chair Through Output RCA
- Two Amp Linkable Function:
- Output Master And Input Slave
- Efficiency: 86% @ 4 Ohm at 100Hz
- 24dB/Oct Variable Crossover
- Multi-way Protection Circuitry
- (Thermal/Over Current/Speaker Short/Speaker DC Protection)
- RCA Input and RCA Master Output to RCA Slave Input
- Input Sensitivity: 200mV ~ 6v
- Subsonic Filter: 10Hz - 60Hz
- Variable Bass Boost 0 - 60dB
- Variable Low Pass Filter: 35Hz - 300Hz
- Variable Phase Shift: 0 - 180 Degrees

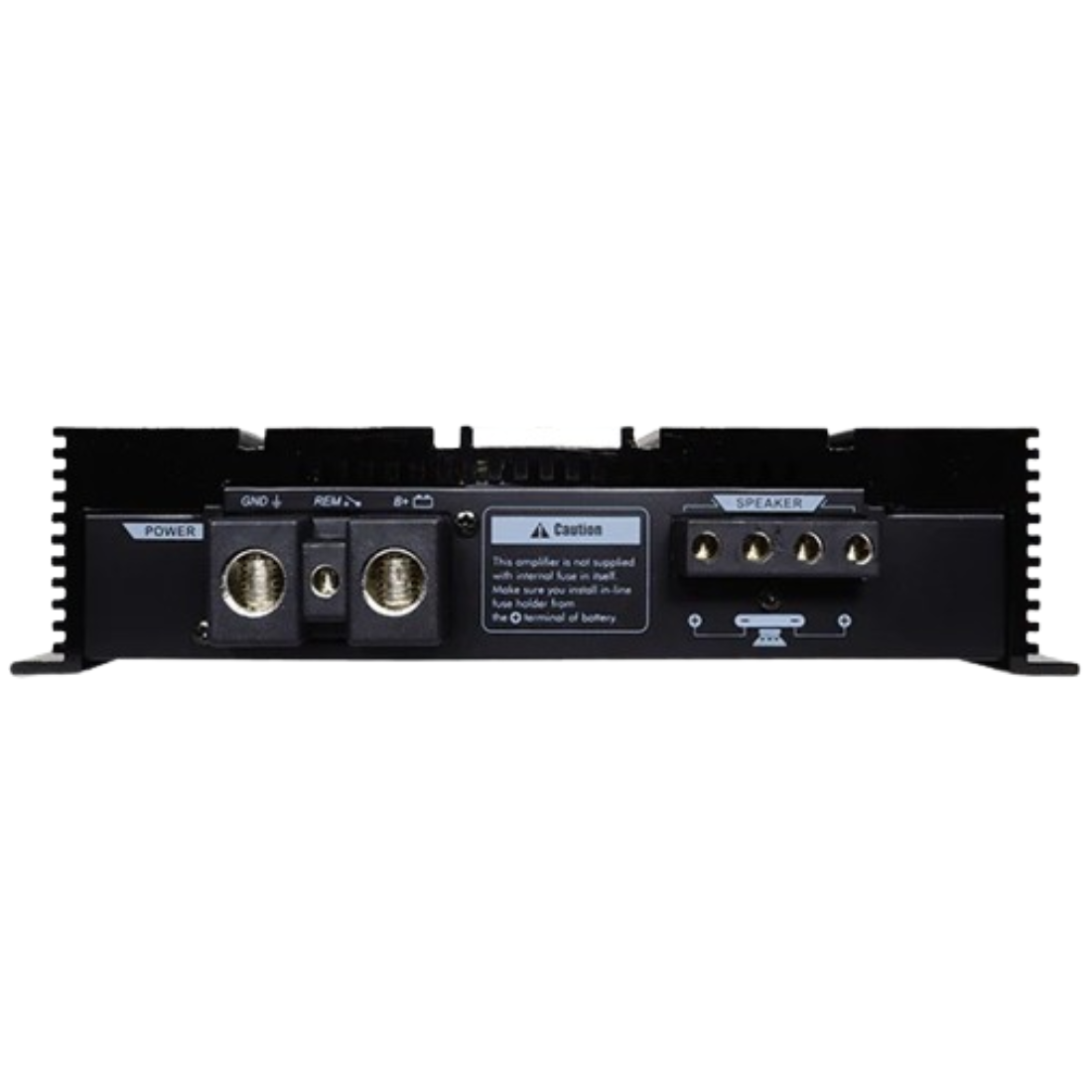

- 1/0 Gauge Power Supply Connectors
- Signal/Noise Ratio: >90dB
- Dampening Factor: +350
- Tested Voltage & THD: 14.4v & Less Than 1% THD
- Operating Voltage: 10v - 18v Power Input
- Wired Remote Controller (Optional)
- 0 Gauge Power & Ground Supply Connectors
- 8 Gauge Speaker Connectors
- Dimensions: 18.5" L x 10" W x 2.25" H
- Weight: 17lbs
