BRAND NEW
SUNDOWN AUDIO SA-12 D2 CLASSIC
Key Features:
- Xmax = 19mm one-way by 70% BL
- RMS Power = 750-watts
- * Vented magnetic gap
- * Optimized high-velocity pole vent
- * Innovative high-velocity vented frame spacer ring
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High-temperature copper voice coil wire
- Large aluminum faraday ring (Magnet ID)
- Spring Loaded Terminals

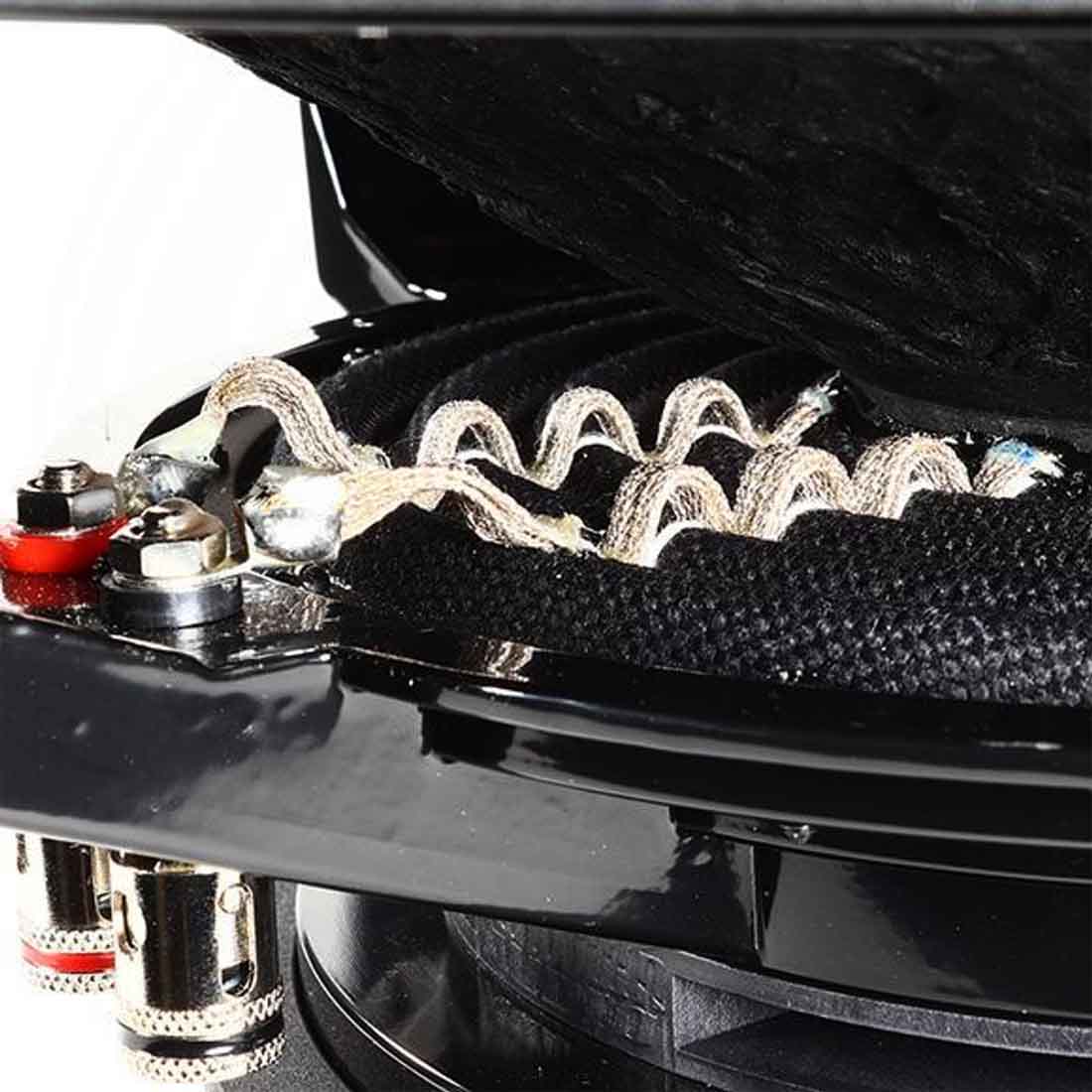

- Stitched-On “XL” Tinsel Leads to prevent fatigue and failure
- High-strength cast aluminum frame
- Optimized for small ported, sealed, & band-pass enclosures
- * These features combine to create the optimized coil ventilation system.
T/S Specs:
- RE (Ohms) 4.57
- FS (Hz) 33.71
- VAS (L) 21.21
- Qes 0.58
- Qms 5.34
- Qts 0.52
- Le (mH) 3.40
- BL (NA) 21.64
- Mms (Grams) 280
- Cms (uM/N) 79.43
- Sens (dB @ 1w/1m) 83.21
Enclosure Specifications:
- Sealed Enclosure: 1.0 cu ft
- Ported Enclosure: 1.75 cu ft
- Recommended Tuning: 35Hz
- Recommended Port Area: 26 sq in
- Displacement: 0.14 cu ft
- Depth: 6.5″
- Outside Diameter: 12.625″
- Cut-Out: 11.125″
