Sundown Audio

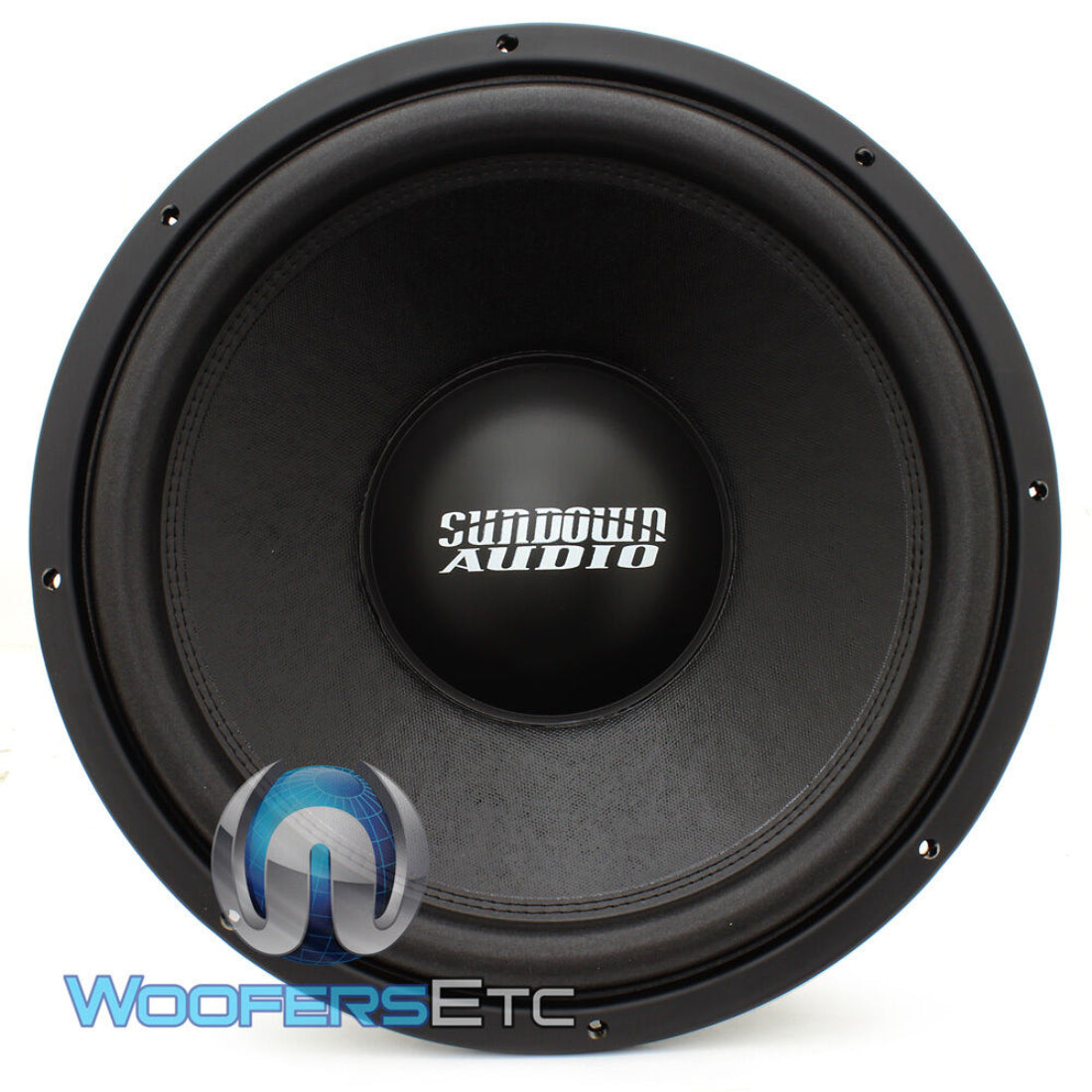

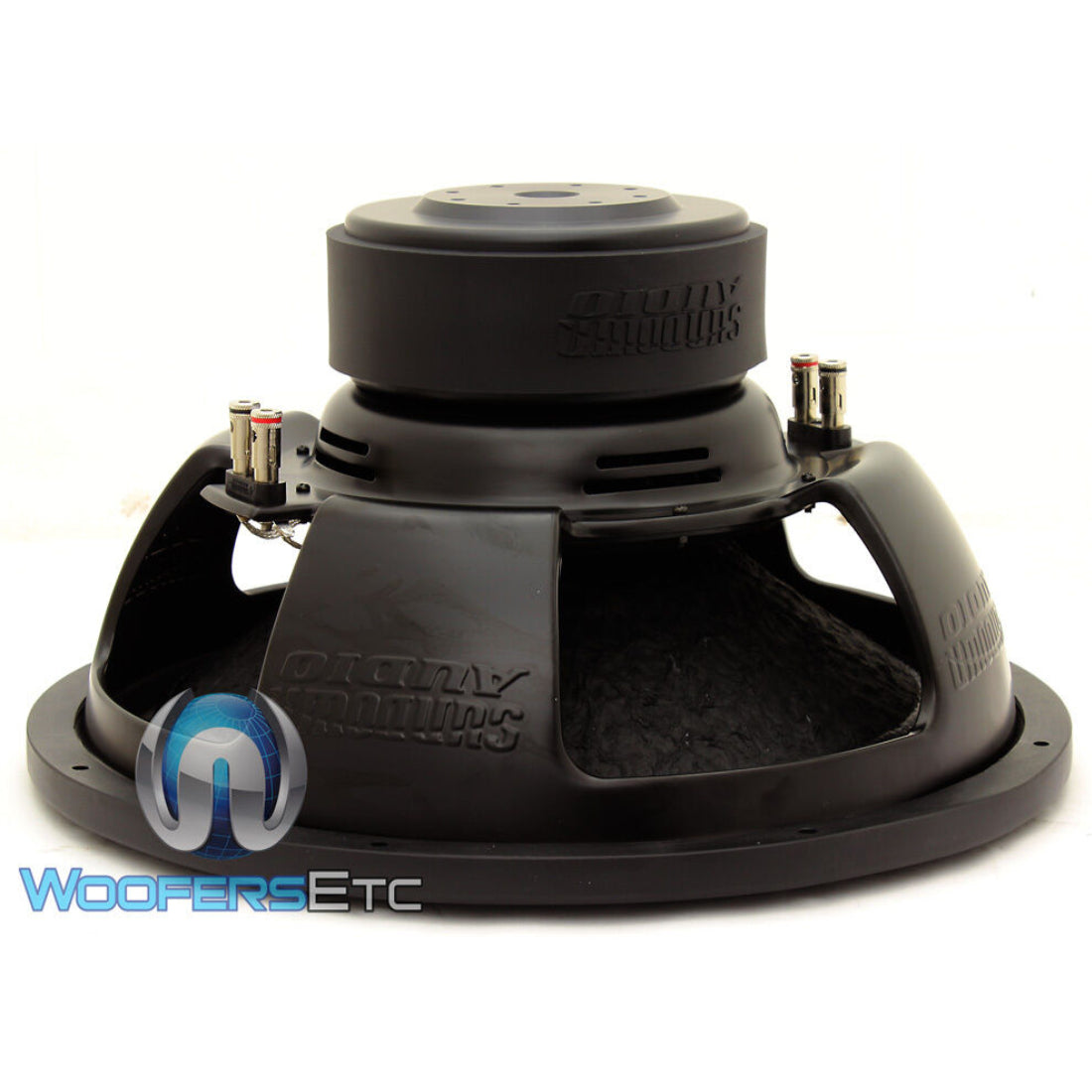

Sundown Audio E-15 V.4 D2 15" 500 Watts RMS DUAL 2-OHM CAR Subwoofer Bass Speaker
Sundown Audio E-15 V.4 D2 15" 500 Watts RMS DUAL 2-OHM CAR Subwoofer Bass Speaker
Regular price
$219.99 USD
Regular price
Sale price
$219.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Brand New
SUNDOWN AUDIO E-15 V.4 D2
D2 15" 500 Watts RMS DUAL 2-OHM CAR Subwoofer Bass Speaker
Key Features:
- RMS Power = 500-watts
- Xmax = 14mm one-way by 70% BL
- Vented magnetic gap
- Vented pole piece with optimized geometry
- Black Aluminum 2.5” voice coil former for superior heat dissipation
- High Temperature 4-Layer copper voice coil wire
- Spring Loaded Terminals
- Stitched-On “Mini-XL” Tinsel Leads to prevent fatigue and failure
- DC Resistance (Re): 4.0 Ω
- Resonance Frequency (Fs): 32.2 Hz
- Equivalent Volume (Vas): 75.1 L
- Electrical Q Factor (Qes): 0.53
- Mechanical Q Factor (Qms): 4.79
- Total Q Factor (Qts): 0.48
- Force Factor (BL): 21.8 NA
- Moving Mass (incl. Air Load) (Mms): 312.9 g
- Suspension Compliance (Cms): 0.08 mm/N
- Sensitivity: 88.6 dB 1w / 1m
Box Recommendations:
- Sealed: 2.5 ft^3
- Ported: 3.25 ft^3
- Displacement: 0.14 ft^3
- Depth: 7 1/4"
- Outside Diameter: 15 1/8"
- Cut-Out: 13 7/8"
- Recommended Tuning: 32hz
- Recommended Port Area: 52 in^2
- Package Dimensions: Approx. 18 x 18 x 12 inches
- Weight: Approx. 22 lbs / 352 oz
