Planet Audio MB2000.1D 1-CH Monoblock 2000W Peak Class-D MOSFET Car Amplifier
Planet Audio MB2000.1D 1-CH Monoblock 2000W Peak Class-D MOSFET Car Amplifier
Regular price
$169.99 USD
Regular price
Sale price
$169.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
PLANET AUDIO MB2000.1D
1-CH Monoblock 2000W Peak Class-D MOSFET Car Audio Amplifier
Key Features:
- 1 Ohm Stable: Amplifier supports 1-ohm load, providing maximum power. Requires a robust electrical system with low gauge wire.
- Class D Amps: High efficiency, low heat, and power consumption. Used in monoblock amplifiers for clean, powerful bass in a compact design.
- Fixed High Pass Filter: Filters frequencies passing to full-range speakers from a fixed point.
- High and Low-Level Inputs: Flexibility for connecting to factory or aftermarket source units. High-level (speaker) and low-level (RCA) inputs supported.
- Protection: Thermal protection and short-circuit protection to prevent damage. Automatically cuts output when necessary for safety.
- Subsonic Filter: Optimizes bass response for subwoofers, ensuring efficient low-frequency performance.
- Subwoofer Level Control: Adjusts subwoofer level when connected to the subwoofer pre-amp output.
- Switchable Input Sensitivity: Matches amp to source unit output, ensuring proper volume control and compatibility.
- Variable Bass Boost: Adjusts low bass to preferred levels within a set boost range.
- Variable Gain Control: Balances amp output with speakers or subs, preventing distortion or clipping.
- Variable Low Pass Filter: Controls frequencies passing to the subwoofer for optimized performance.
Power Specifications - Subwoofer Channel:
- RMS Power @ 4 ohms: 375 watts x 1 channel
- RMS Power @ 2 ohms: 750 watts x 1 channel
- RMS Power @ 1 ohm: 1500 watts x 1 channel
- RMS Power @ .5 ohm: N/A
Amplifier Specifications:
- Series: MINI BANG Series
- Amplifier Class: D
- Number of Channels: 1 - Mono
- Total Peak Power Output: 2000 watts
- Total RMS Power Output: 1500 watts
- Maximum Input Gauge Size: 4 AWG
- Minimum Impedance Unbridged: 2 ohm
- Frequency Response: 15 - 250 Hz
- THD at Rated RMS Power: 0.01%
- Speaker Level Inputs: Yes
- Preamp Outputs: Mono output
- Built-in Crossover: Low-Pass (LP), Subsonic
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Subsonic Filter: 15 - 40 Hz
- Signal-to-Noise Ratio: 103 dB
- Bass Boost: 0 - 12 dB
- Remote bass/level controller: Yes
- Fuse Rating: 30A x 2
- Total Fuse Rating: 60A
- Strappable: No
- Amp Bluetooth Connectivity: No
- Hi-Res Certified: No

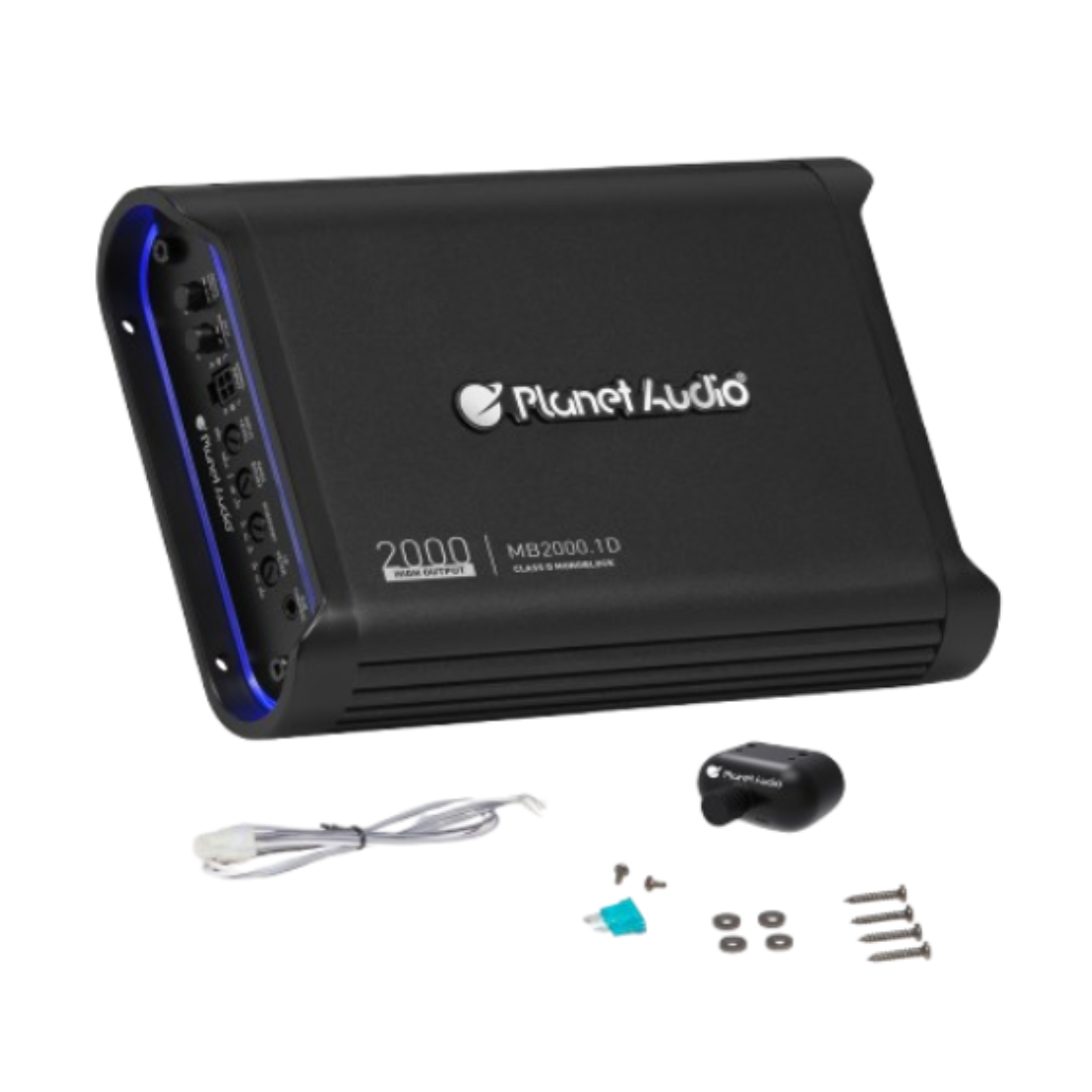

In the Box:
- User manual
- Amplifier
- Wireless remote
- Mounting screws (4)
- High-level input wiring harness w/ molex connector
- Other Accessories: N/A
