Pioneer

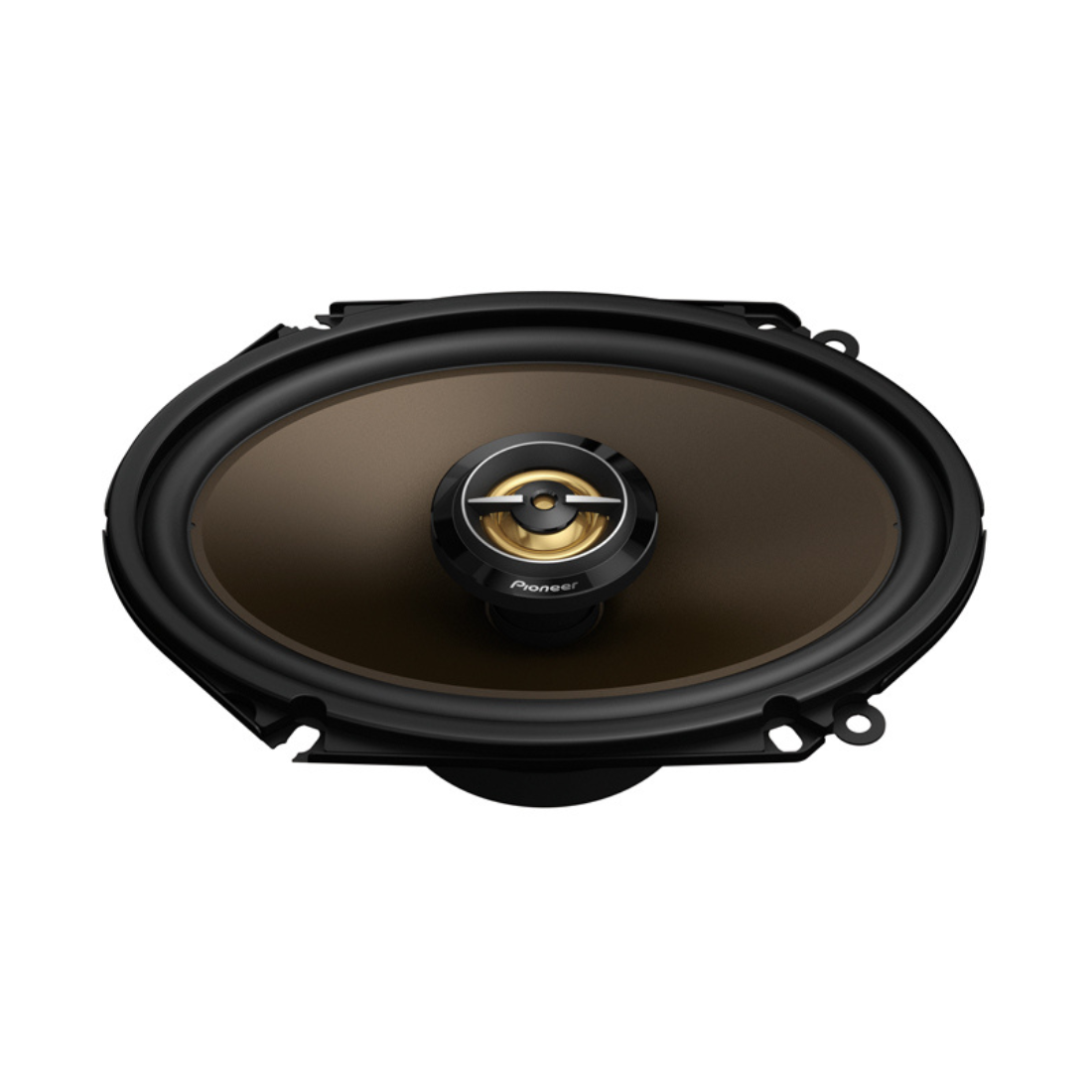

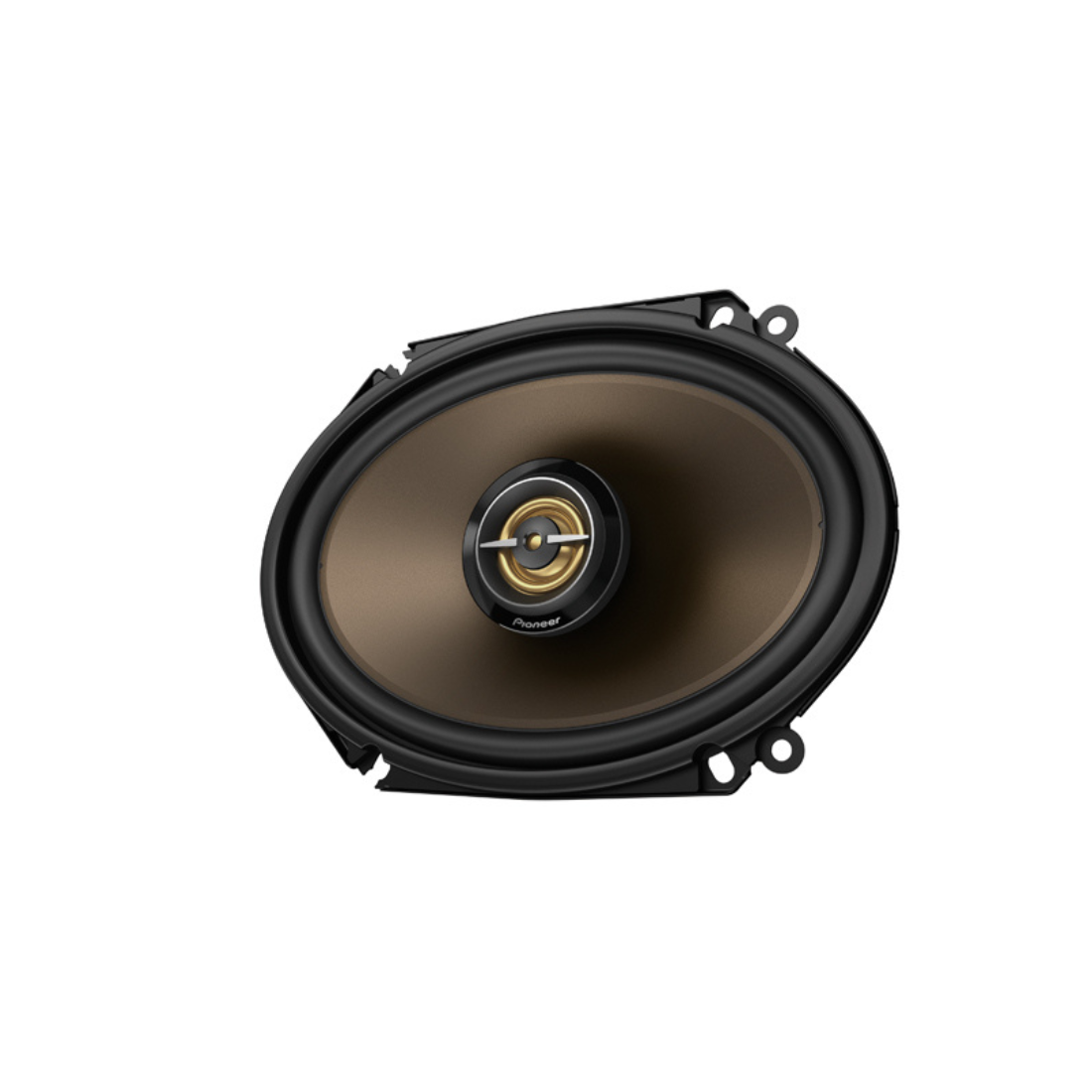

Pioneer TS-A683FH 6" x 8" 370W Max 2-Way 4-Ohms Car Audio Coaxial Speakers

Pioneer TS-A683FH 6" x 8" 370W Max 2-Way 4-Ohms Car Audio Coaxial Speakers

$99.99 USD
$99.99 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

PIONEER TS-A683FH

6 x 8-Inch 370 Watts Max 2-Way 4-Ohms Coaxial Speakers

Key Features:

  • 370 Watts Max Power (85 Watts Nominal)
  • 20mm Polyetherimide (PEI) hard dome tweeter
  • 34 Hz to 49 kHz Frequency Range

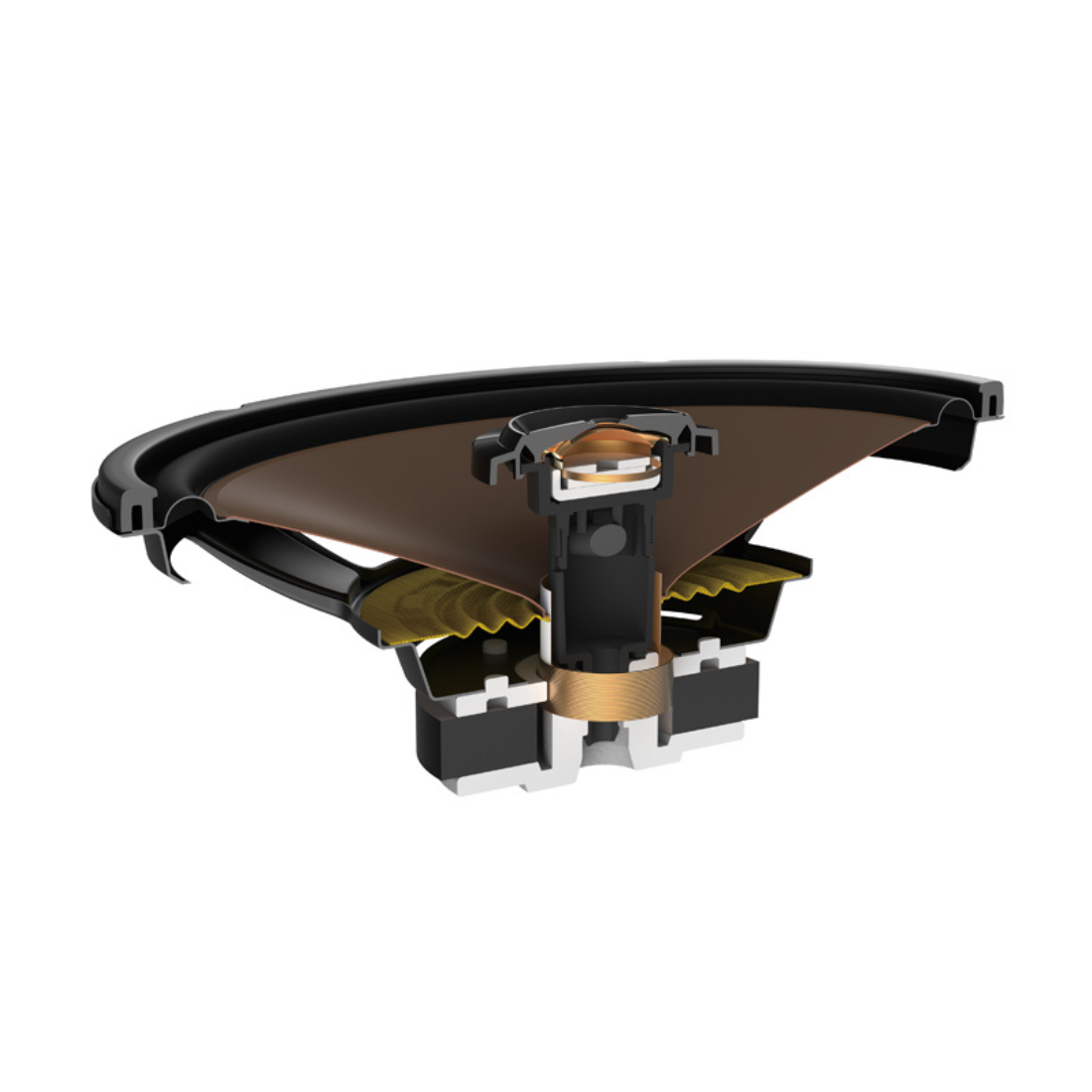

  • 6" x 8" Aramid fiber reinforced Injection Molded Polypropylene (IMPP) cone construction
  • Pioneer patented P.F.S.S. (Progressive Flex Suspension System) (U.S. Patent #20,120,106,777)
System Specs:

  • System Type: Coaxial 2-Way
  • Sound Pressure Level (Sensitivity): 90 dB (+- 1.5dB)
  • Frequency Range: 34 Hz to 49 kHz
  • Continuous Power Handling (RMS): 85 Watts
  • Maximum Peak Power Handling: 370 Watts
  • Nominal Impedance: 4 ohms
Woofer Specs:

  • Diameter: 6" x 8"
  • Cone Material: Aramid fiber-reinforced IMPP
  • Surround Material: Elastic Polymer
  • Basket Material: Iron Plate Press
  • Magnet Material: Ferrite
  • Magnet Weight: 7.41 oz
  • Voice Coil Bobbin: Glass Imide
  • Voice Coil wire: Copper
  • Mounting Depth: 2-1/2" (Shallow basket)
Tweeter Specs:

  • Type: Polyetherimide (PEI) hard dome tweeter
  • Diameter: 20 mm
  • Diaphragm Material: Film (PEI)
  • Magnet Material: Neodymium
  • Magnet Weight: 0.17
What’s in the Box:

  • Two 6"x8" 2-way coaxial speakers
  • Two mounting brackets
  • Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
  • Eight 1" Screws
  • Warranty information
  • Specs and template on box
