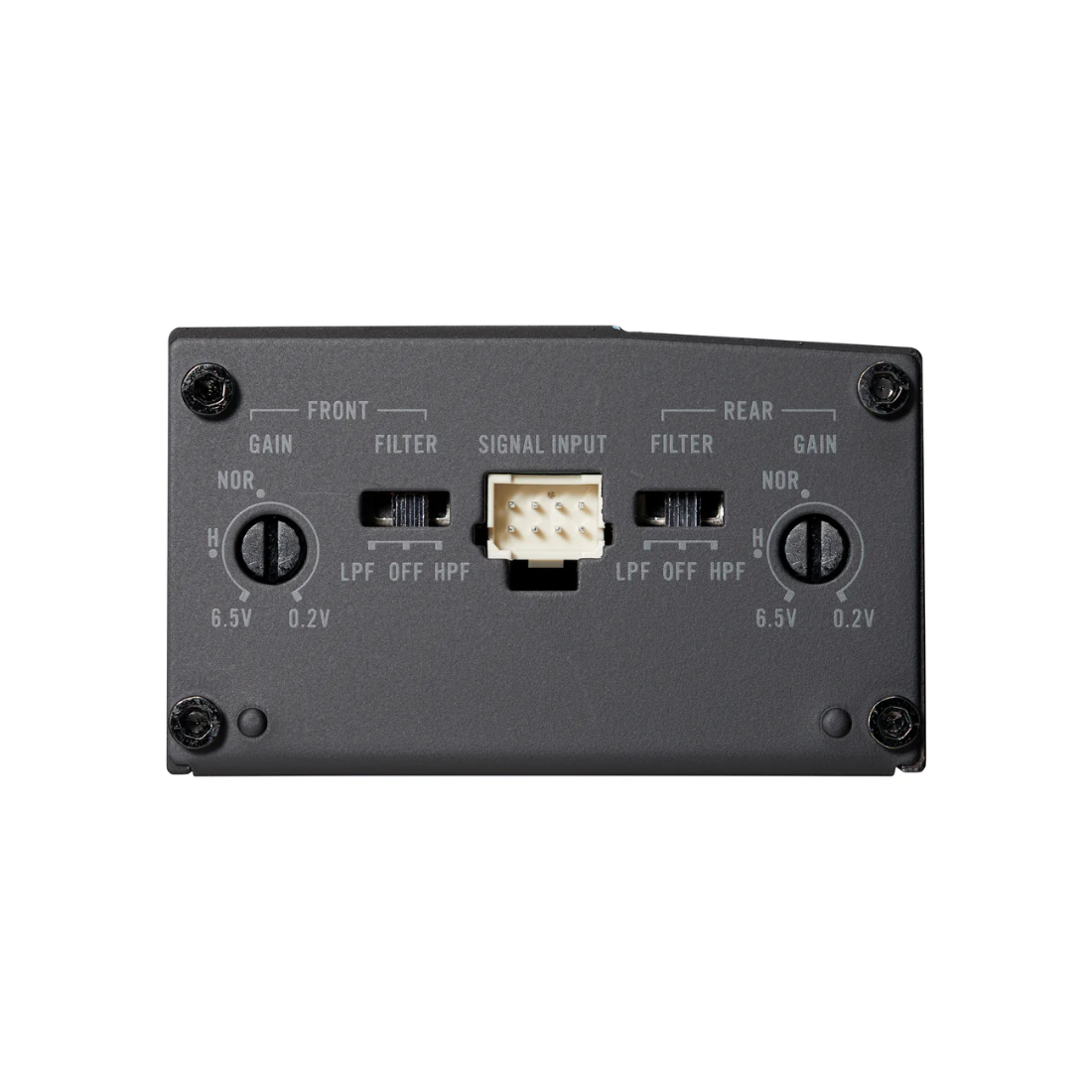

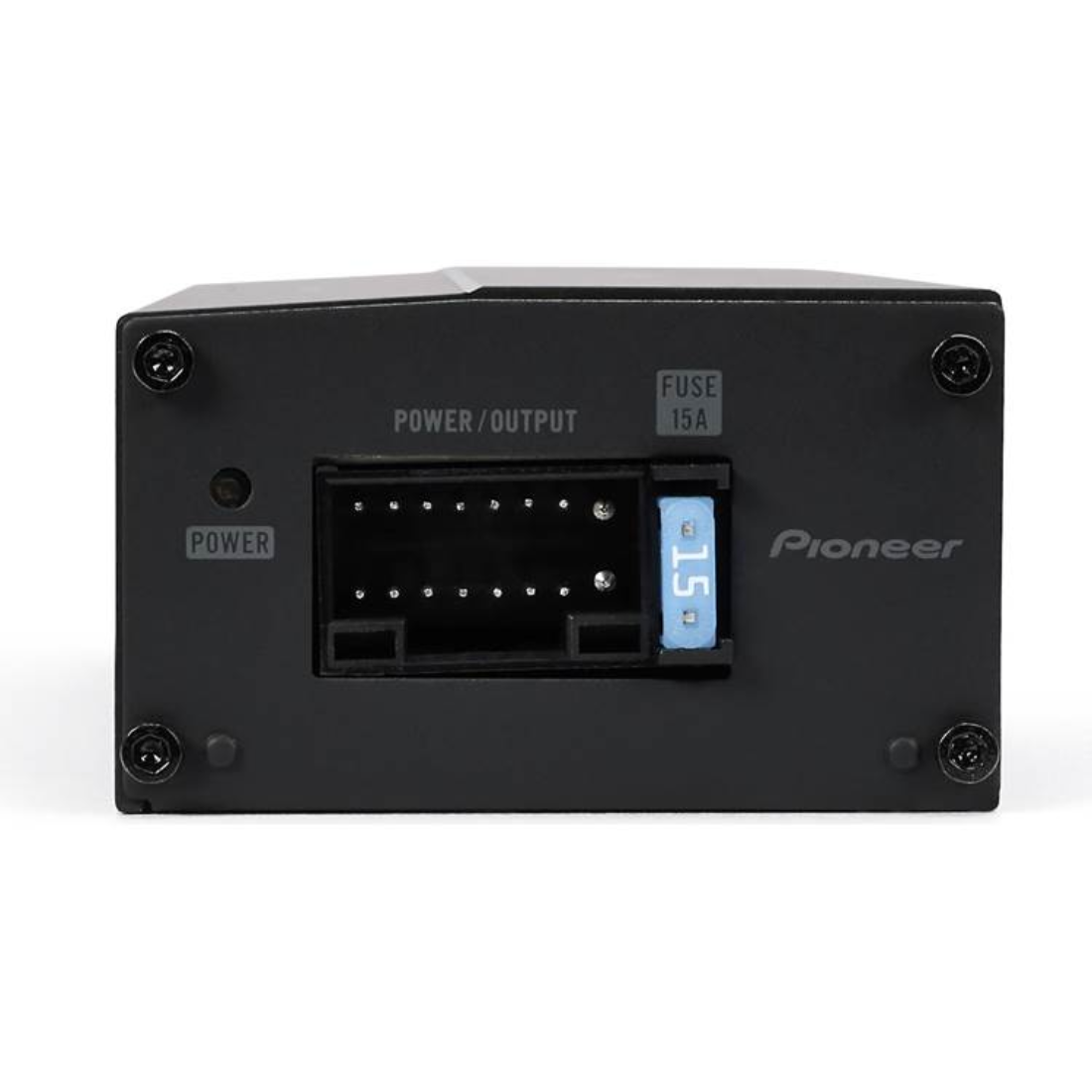

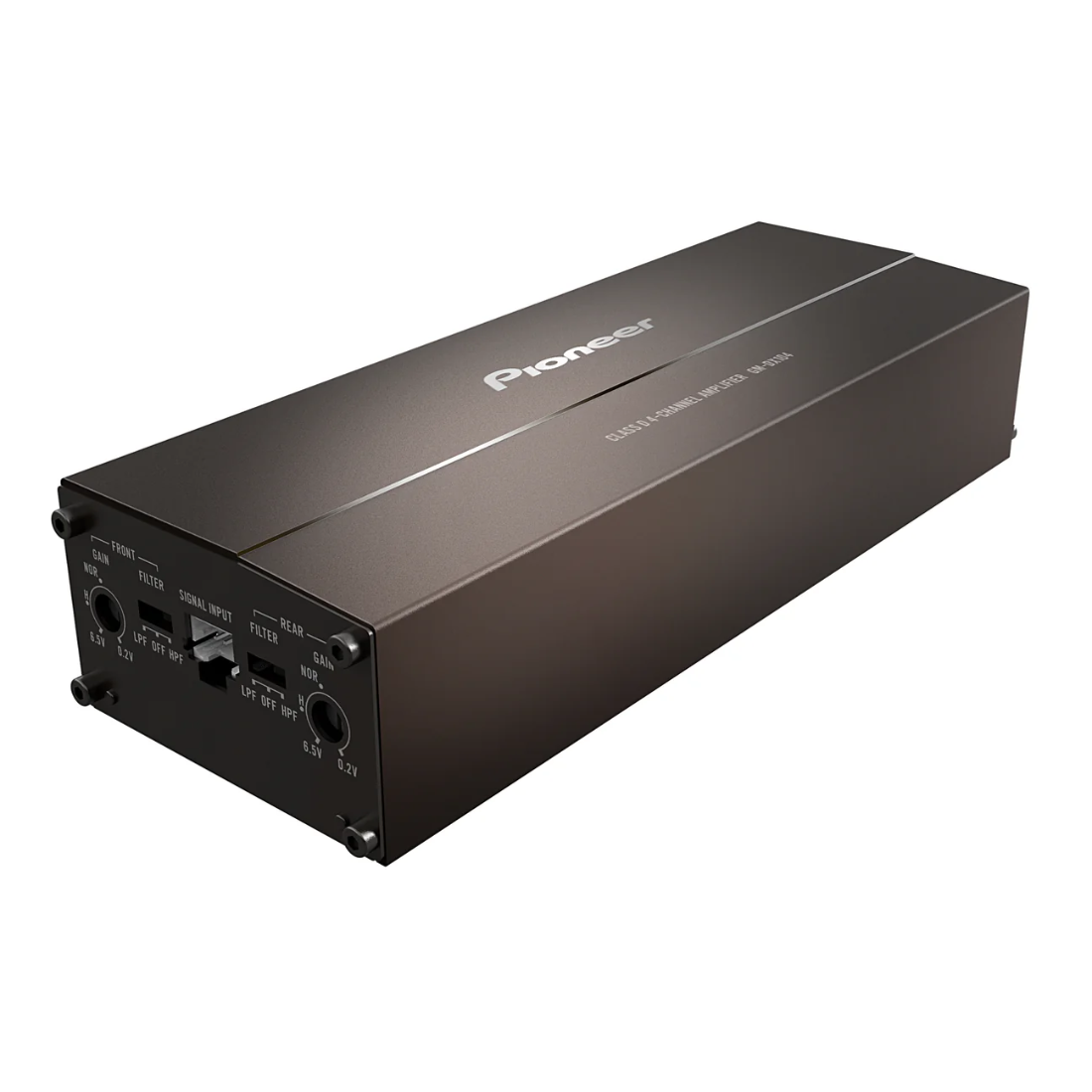

Pioneer GM-DX104 4-Channel 400W Max Class-D Car Audio Ultra Compact Amplifier
Pioneer GM-DX104 4-Channel 400W Max Class-D Car Audio Ultra Compact Amplifier
Regular price
$199.99 USD
Regular price
Sale price
$199.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
PIONEER GM-DX104
4-Channel 400 Watts Max Class-D Ultra Compact Amplifier
Key Features:
- No. of Channels: 4
- Max Power: 400 Watts
- Bridgable: Yes
- Class: D
- Grounding System: Negative
- Power Source: 14.4 V DC (10.5 V to 16.0 V)
- Protection Control System: Yes
- Terminal Type: Removable
- Unit Weight: 1.3 lbs
Specifications:
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch):
- 1.6 A (4 Ohms x 4ch)
- 1.6 A (2 Ohms x 4ch)
- 1.6 A (4 Ohms x 2ch Bridged)
- Continuous Power Output:
- 45 W x 4-Channel - 4 Ohm
- 45 W x 4-Channel - 2 Ohm
- 90 W x 2-Channel - 4 Ohm Bridged
- Frequency Response Channel: 10Hz to 40kHz (+0dB, -3dB) A/B Ch
- Fuse Rating: 15 A
- High-Pass Crossover Frequency: 80 Hz (LPF/OFF/HPF)
- High-Pass Slope (dB/octave): -12 dB/oct
- Low-Pass Crossover Frequency: 80 Hz (LPF/OFF/HPF)
- Low-Pass Slope (dB/octave): -12 dB/oct
- Maximum Power Output:
- 100 W x 4-Channel (4 Ohm)
- 200 W x 2-Channel (4 Ohm Bridged)
- RCA Inputs: 4-Channel
- Speaker Line Input Sensor: Yes
