Orion

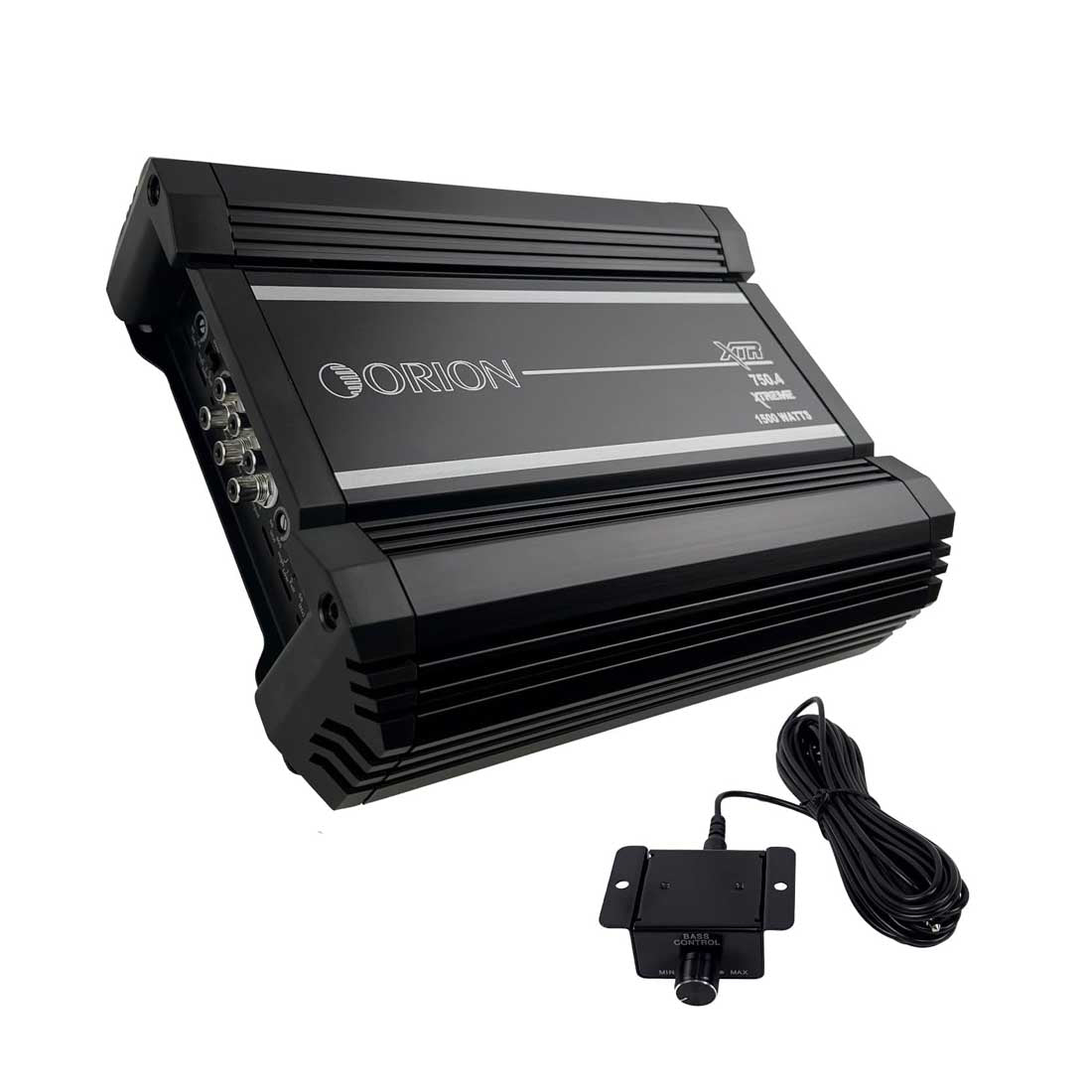

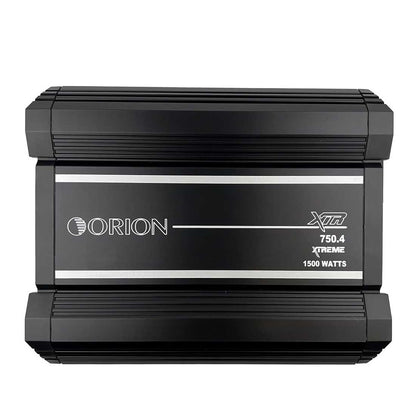

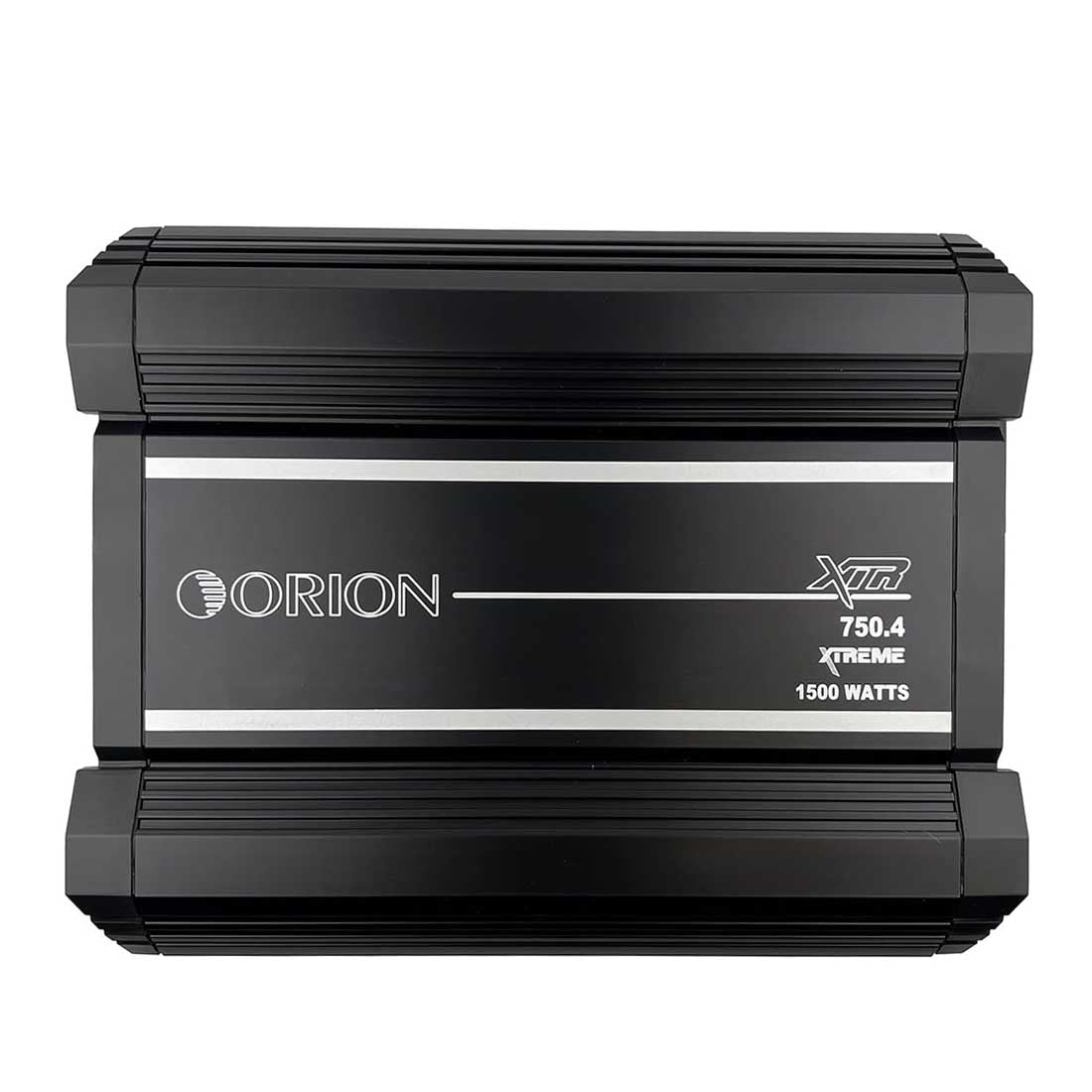

Orion XTR750.4 4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier
Orion XTR750.4 4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier
Regular price
$269.95 USD
Regular price
Sale price
$269.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION XTR750.4
4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier
Step into the realm of dynamic excellence with the ORION XTR750.4 XTR Series 750W RMS 4-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical sophistication. It's time to embrace sound in its purest form.
Key Features:
- Class AB Amplification
- 750 Watts RMS
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter

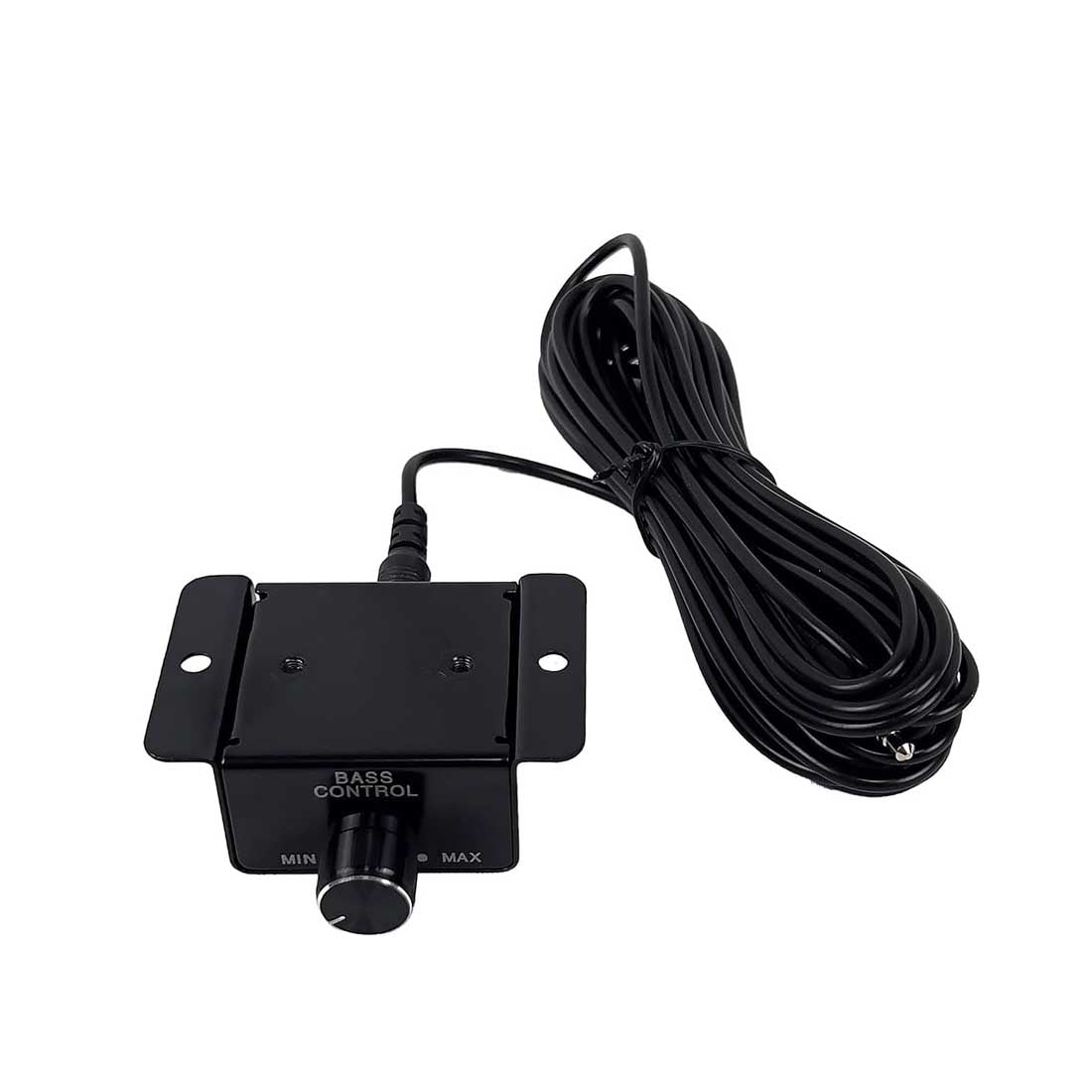

- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 135W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 188W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 375W

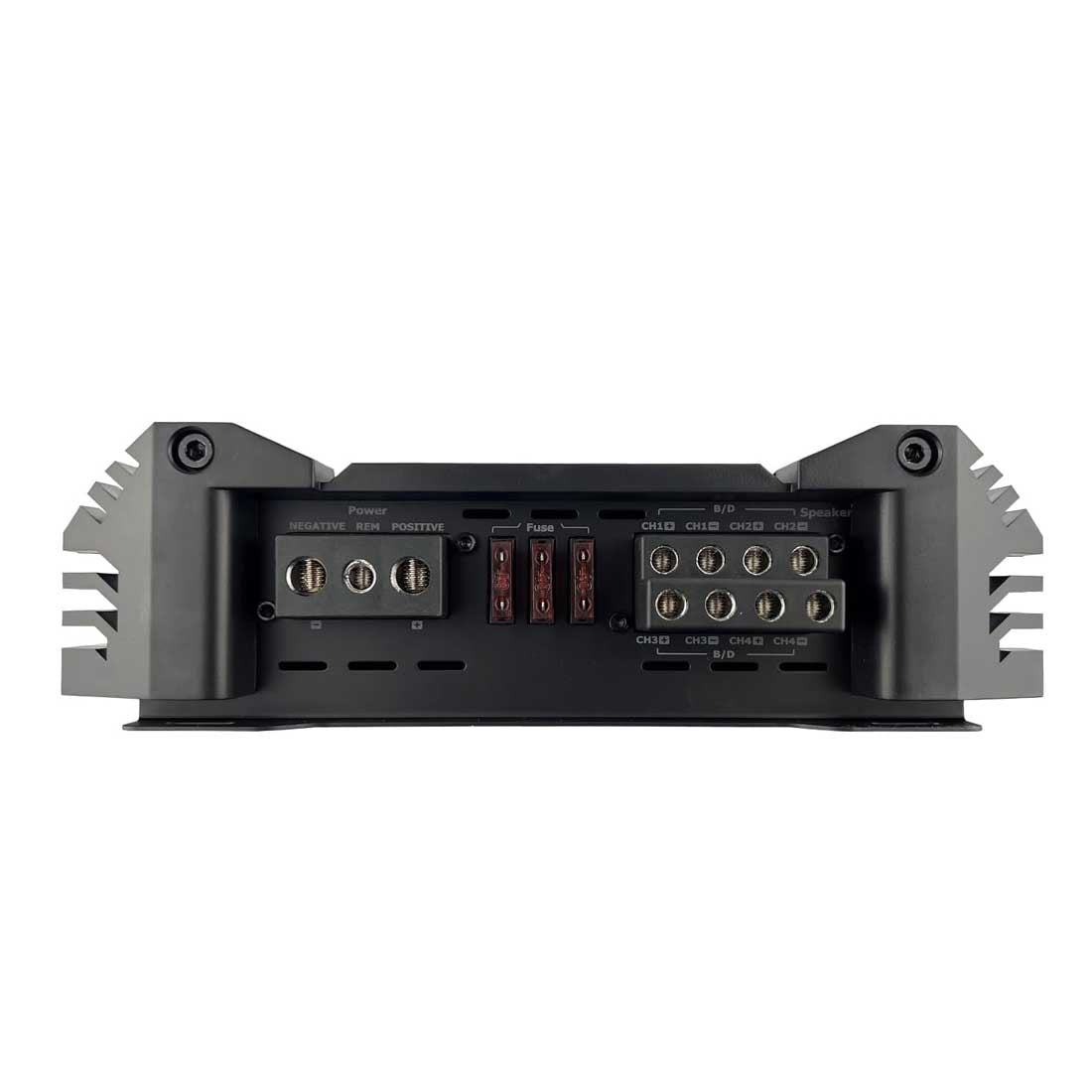

- Positive Terminals: 1 x 4 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
- Frequency Response: 20Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB

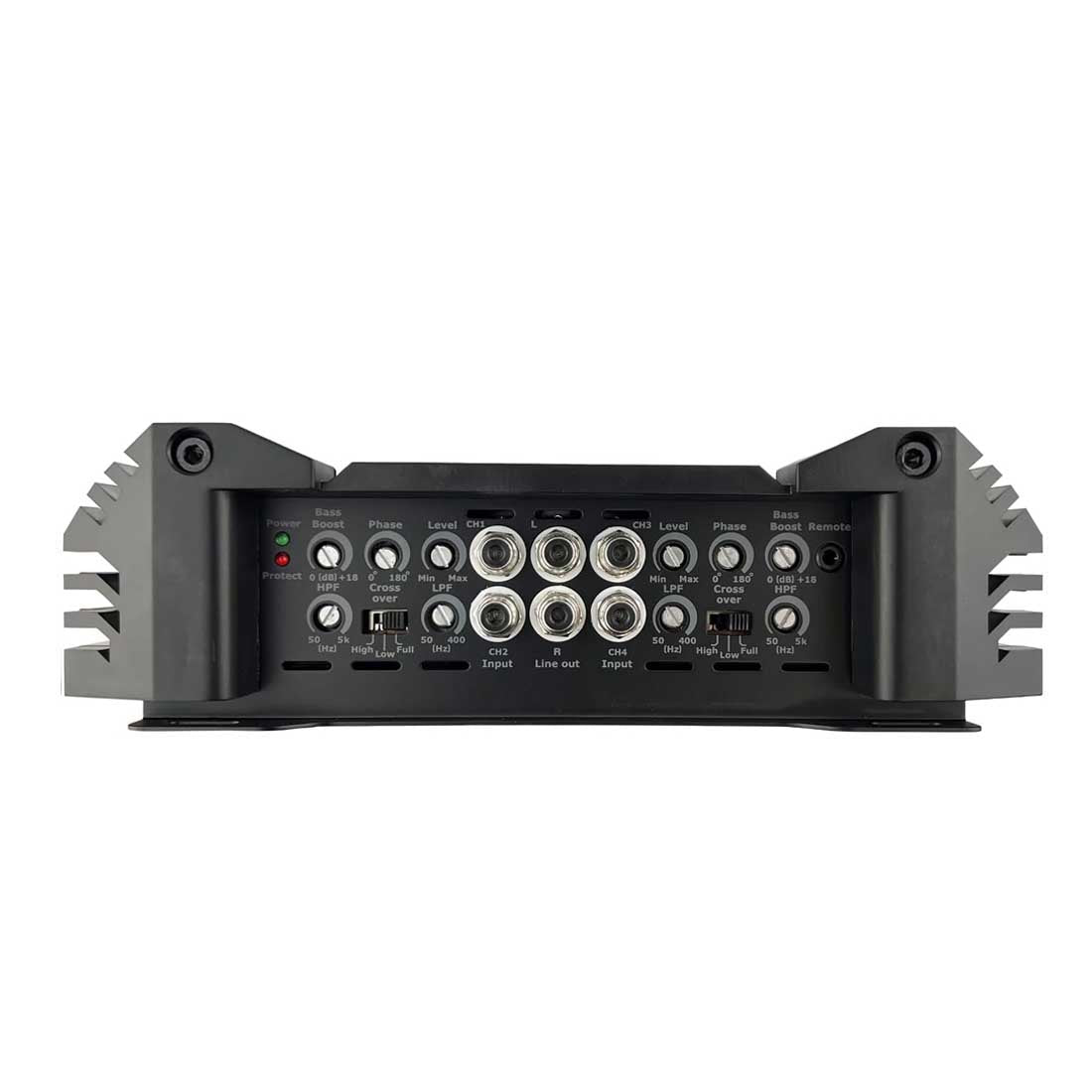

- High Pass Crossover Continuously variable (50-5kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 120A recommended (3 x 40A ATC Fuses)
- Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
