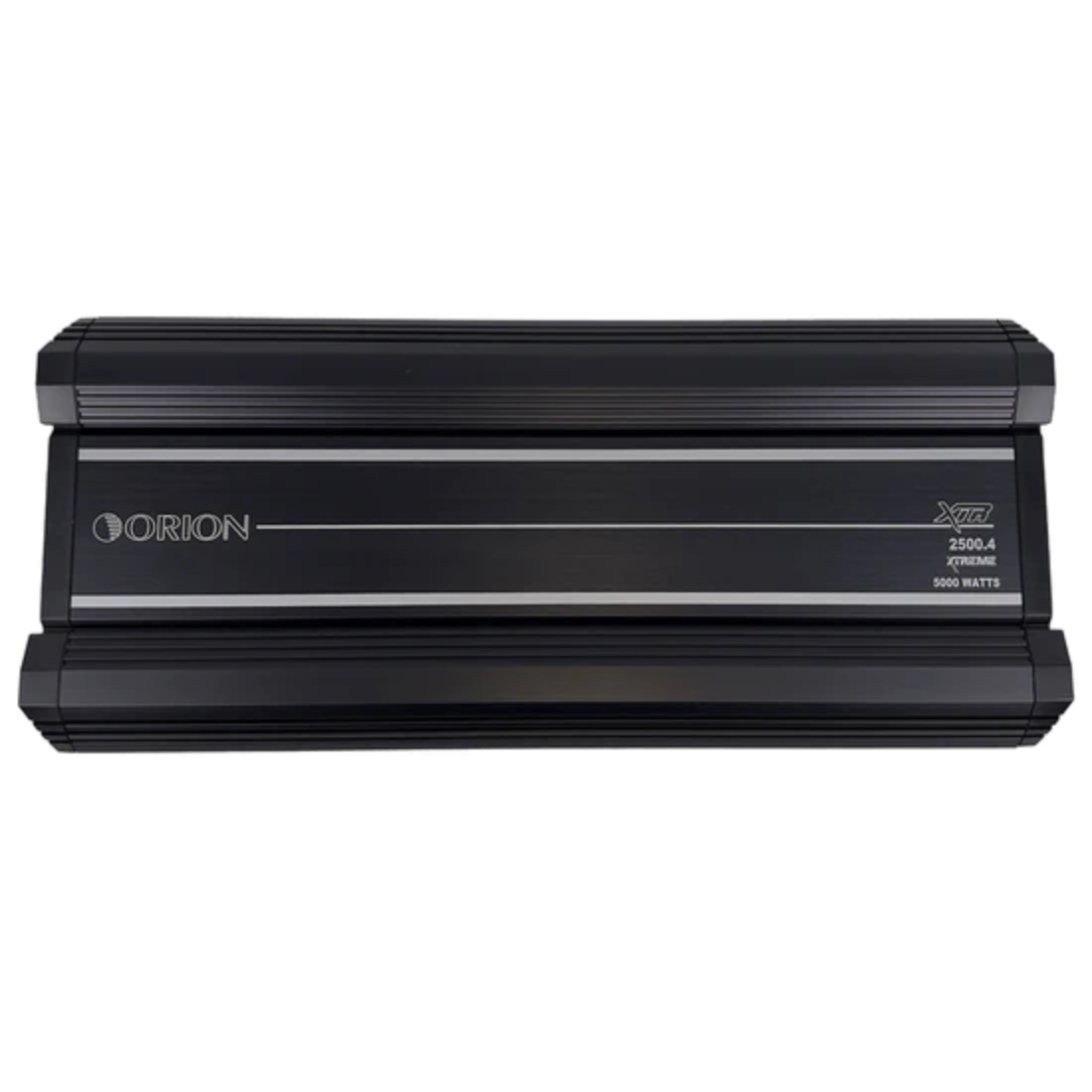

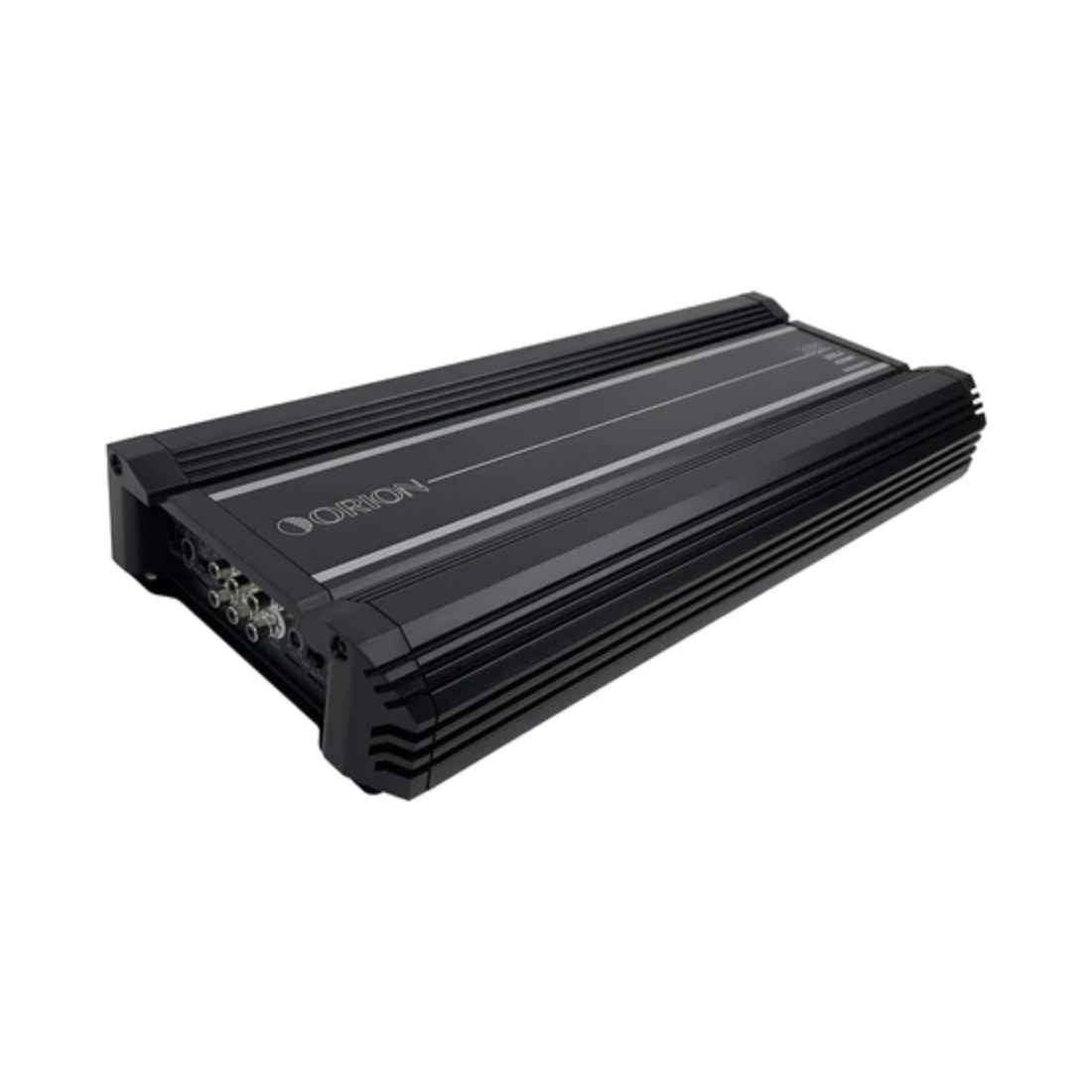

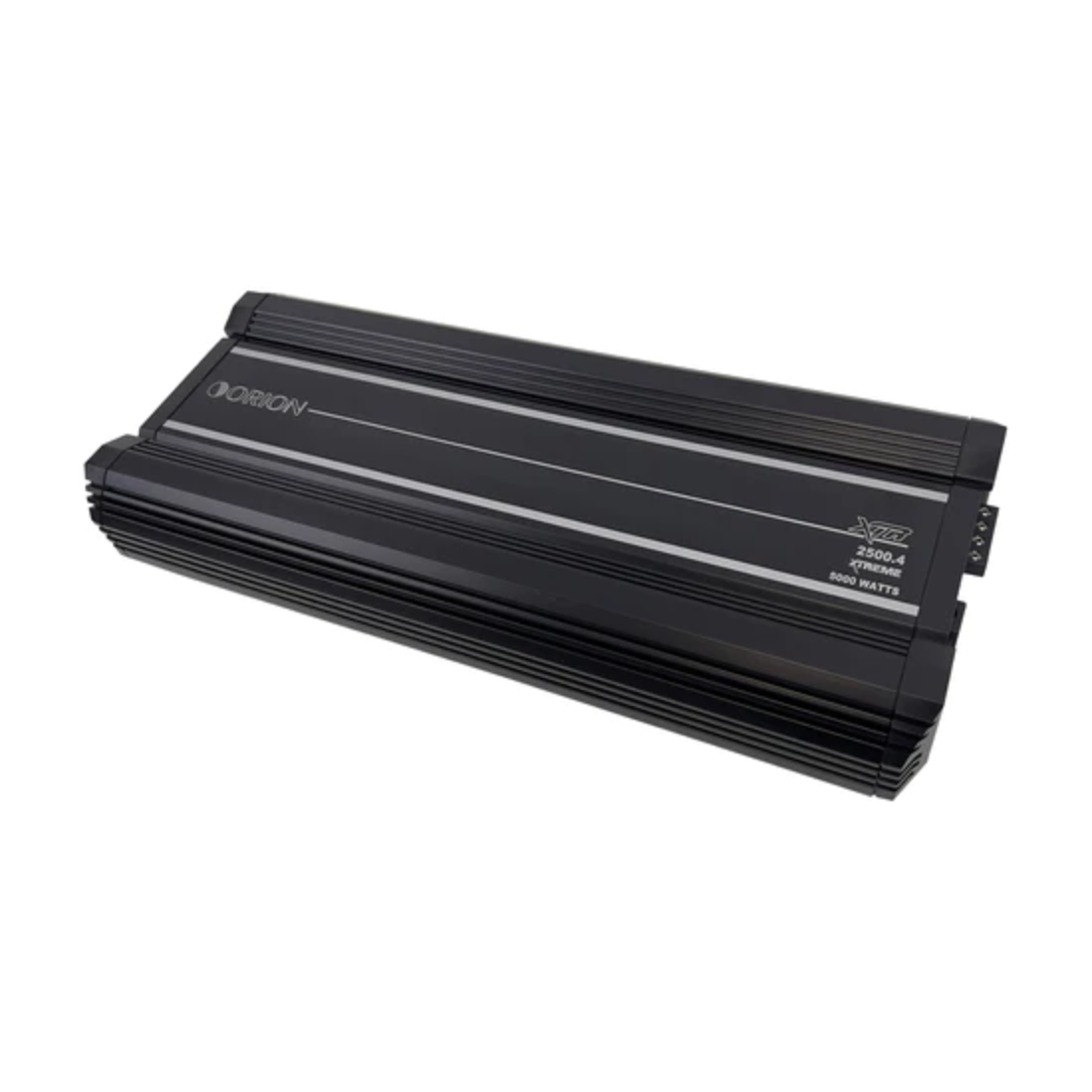

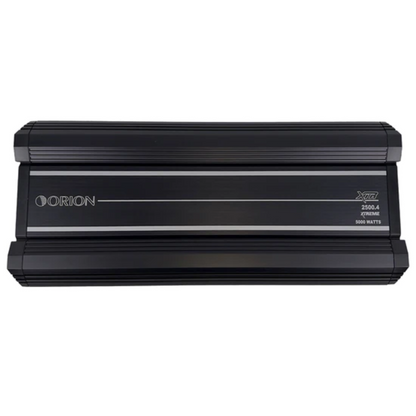

Orion XTR2500.4 XTR Series 4-Channel 2500W RMS Class-A/B Car Audio Amplifier
Orion XTR2500.4 XTR Series 4-Channel 2500W RMS Class-A/B Car Audio Amplifier
Regular price
$599.95 USD
Regular price
Sale price
$599.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION XTR2500.4
XTR Series 4-Channel 2500 Watts RMS Class-A/B Amplifier
Highlights:
- Class AB Amplification - Experience the pinnacle of efficiency and precision with Class AB amplification for supreme and accurate sound reproduction.
- 2500 Watts RMS - Immerse yourself in a world of supreme audio excellence with 2500 Watts RMS, delivering uncompromising and clear sound performance.
- Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
- Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
- Advanced Protection Measures - Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.
- Compact and Stylish Design - The amplifier's sleek design offers versatile installation options without compromising performance or aesthetics.
- Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
Key Features:
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter

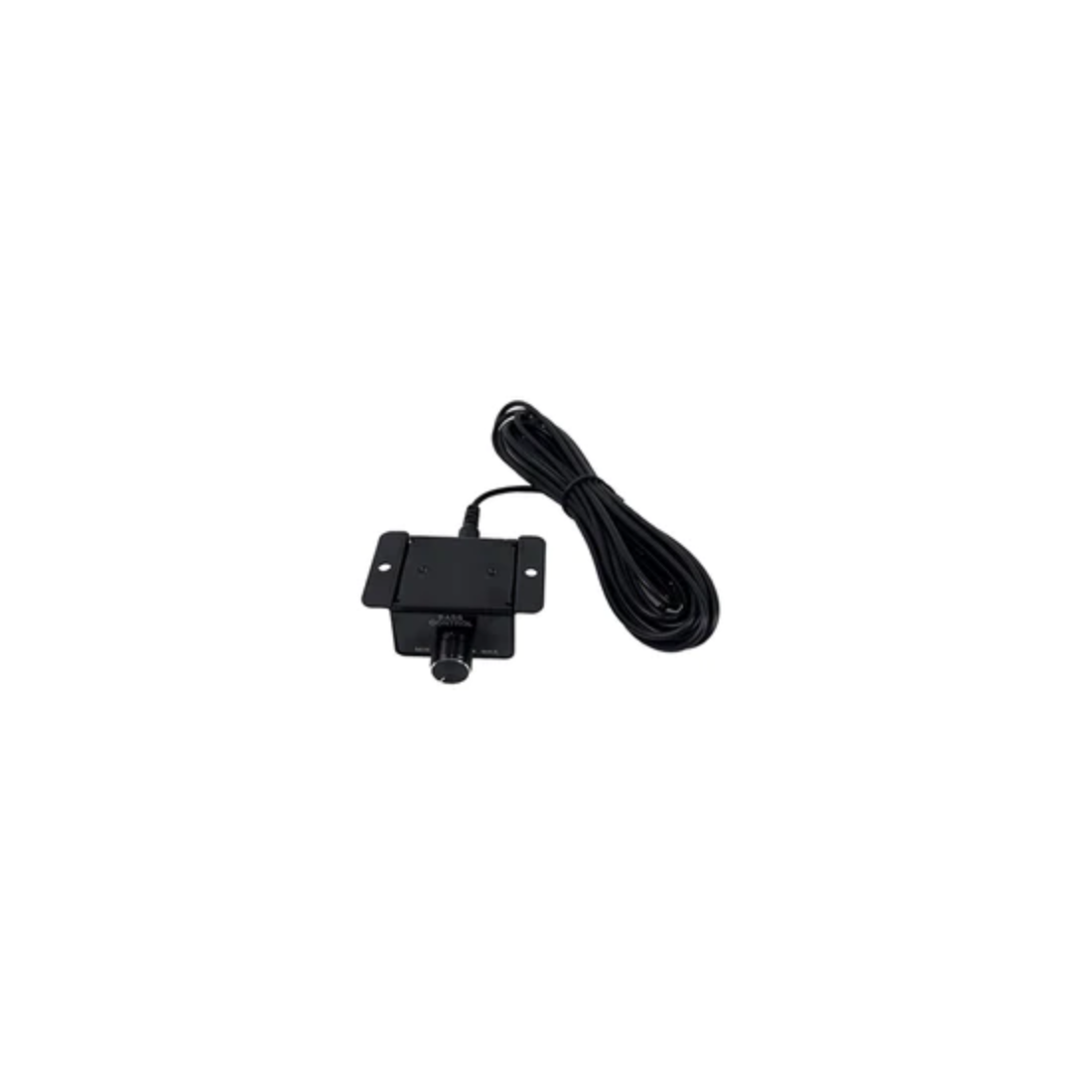

- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Power Ratings:
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 400W
- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 650W
- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 1250W
Specifications:
- Frequency Response: 20Hz - 35kHz
- Linear Bandwidth 20Hz to 65kHz +/- 3 dB
- High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)
- Low Pass Crossover Continuously variable (50-400Hz)
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >60%
- Damping Factor: 100dB
- Signal to Noise Ratio: >95dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 200A recommended
- Dimensions (L x W x H): 21.26" x 9.25" x 2.75" (540x235x70mm)

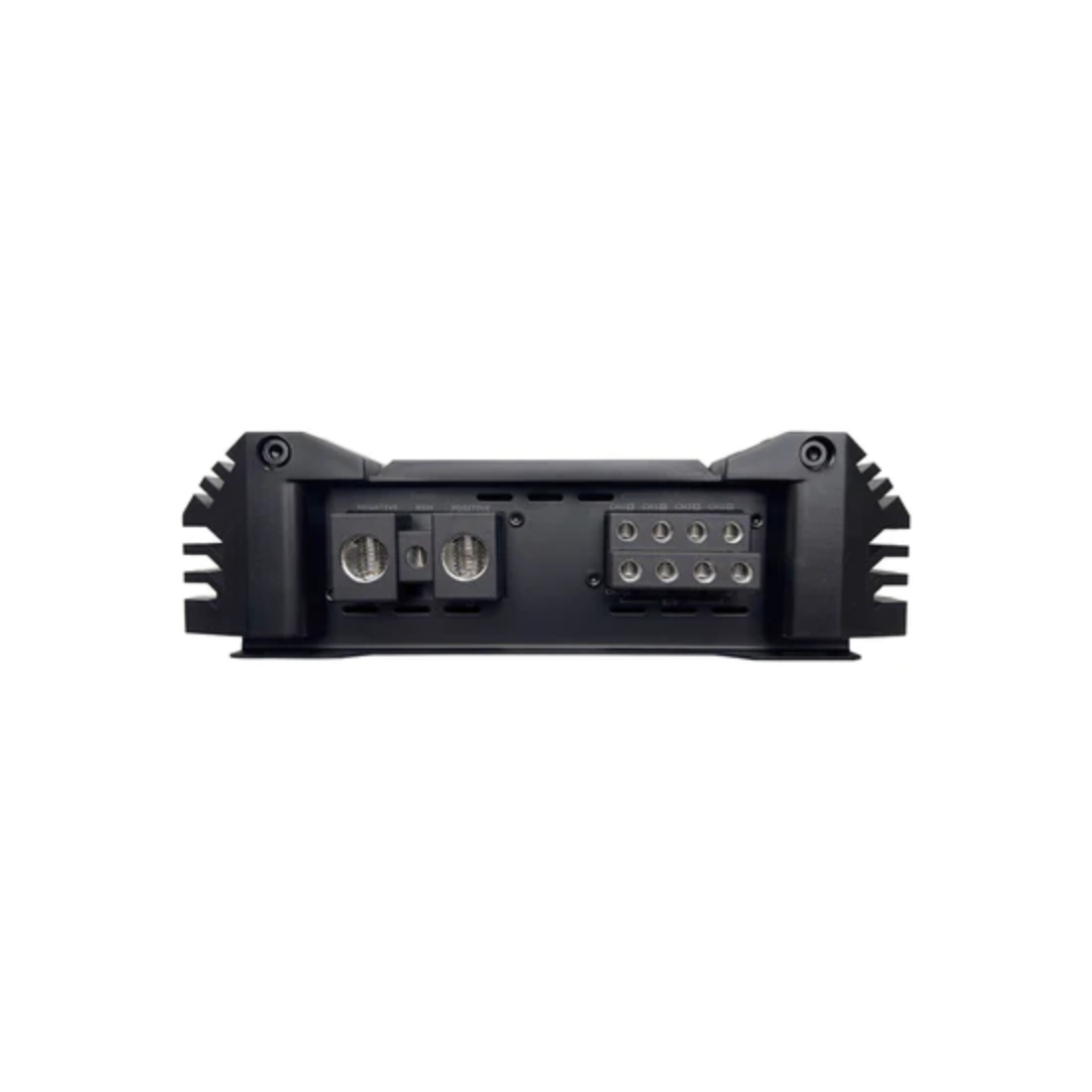

Power Terminal Management:
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 4 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 10 AWG.
