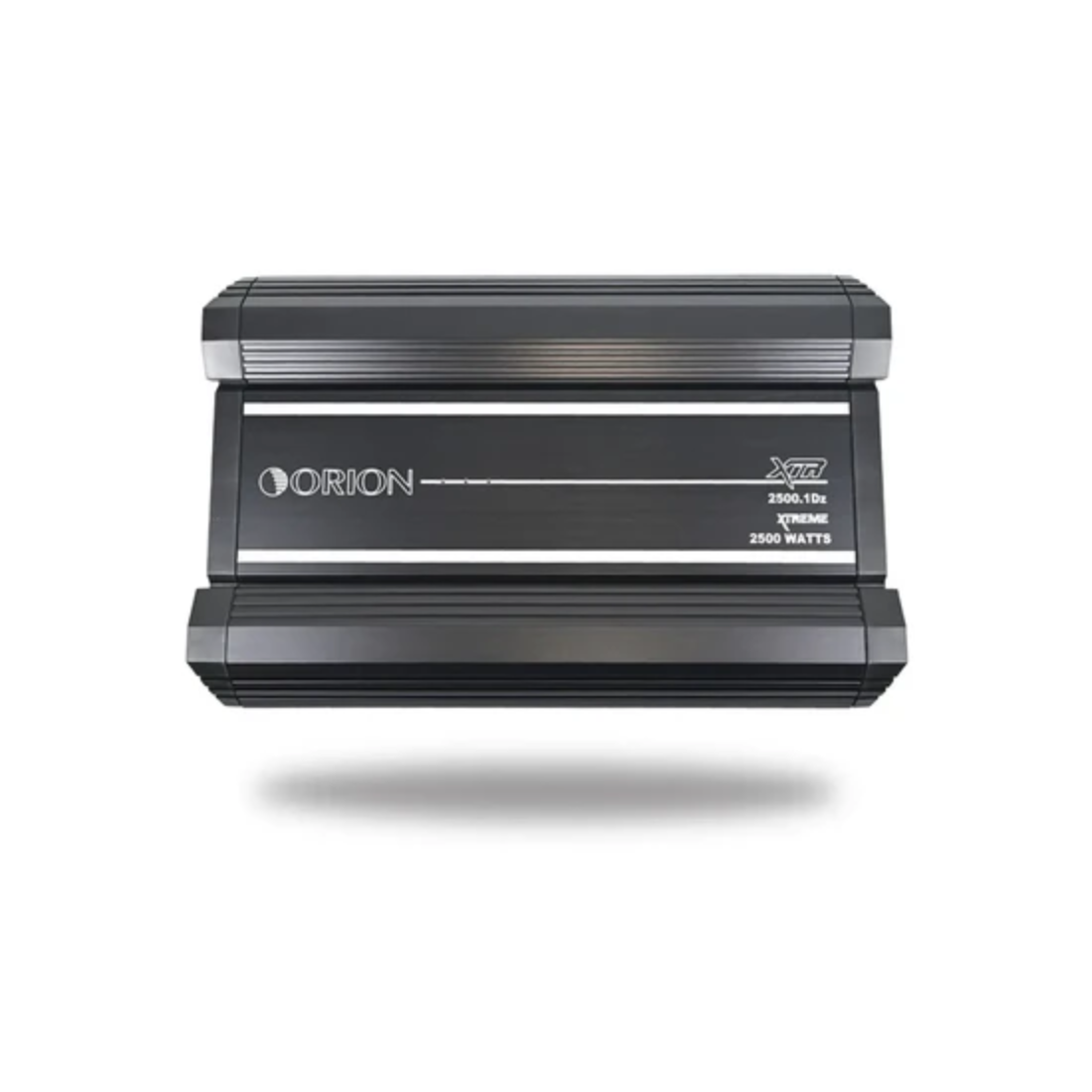

ORION XTR2500.1DZ

XTR SERIES | Monoblock 2500W RMS Class-D Amplifier

The ORION XTR2500.1Dz XTR Series 2500W RMS 1-Channel Class-D Amplifier raises the bar for audio performance. With advanced features and precision engineering, this amplifier transcends boundaries, delivering an unparalleled fusion of power, accuracy, and control to your car audio system.

Key Features:

  • Class D Amplification
  • 2500 Watts RMS
  • All MOSFET Power Supply & Output Stage
  • Heavy Gauge / High Current Custom Power and Speaker Terminals
  • 12dB Octave Low-Pass Filter
  • Remote Gain Controller Included
  • Electronic Crossover Network
  • Bass Boost Circuit
  • Power and Protection LED Indicators
  • Soft Turn-on/Turn-off Turn-On Delay
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:

  • RMS Power @ 4 Ohms @ 0.5% THD+N: 1250W
  • RMS Power @ 2 Ohms @ 0.5% THD+N: 1750W
  • RMS Power @ 1 Ohm @ 0.5% THD+N: 2500W
  • Linked with identical Amplifier
  • RMS Power @ 2 Ohms @ 0.5% THD+N: 3000W
  • Positive Terminals: 1 x 0 AWG.
  • Negative Terminals: 1 x 0 AWG.
  • Remote Turn-ON Signal: 10 AWG.
  • Speaker Output Terminals: 4 AWG.
  • Frequency Response: 20Hz - 250Hz
  • Low Pass Crossover: 30Hz - 300Hz
  • Supply Voltage: 9 - 16V
  • Amplifier Efficiency: >88%
  • Damping Factor: 200dB
  • Signal to Noise Ratio: >90dB
  • T.H.D. & Noise: 0.5%
  • Phase Shift: 0 - 180
  • Bass Boost: 0-18dB Variable
  • Subsonic Filter: Off / 25Hz
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: 250A recommended (not included)
  • Dimensions (L x W x H): 14.17" x 9.25" x 2.75" (360x235x70mm)
