BRAND NEW

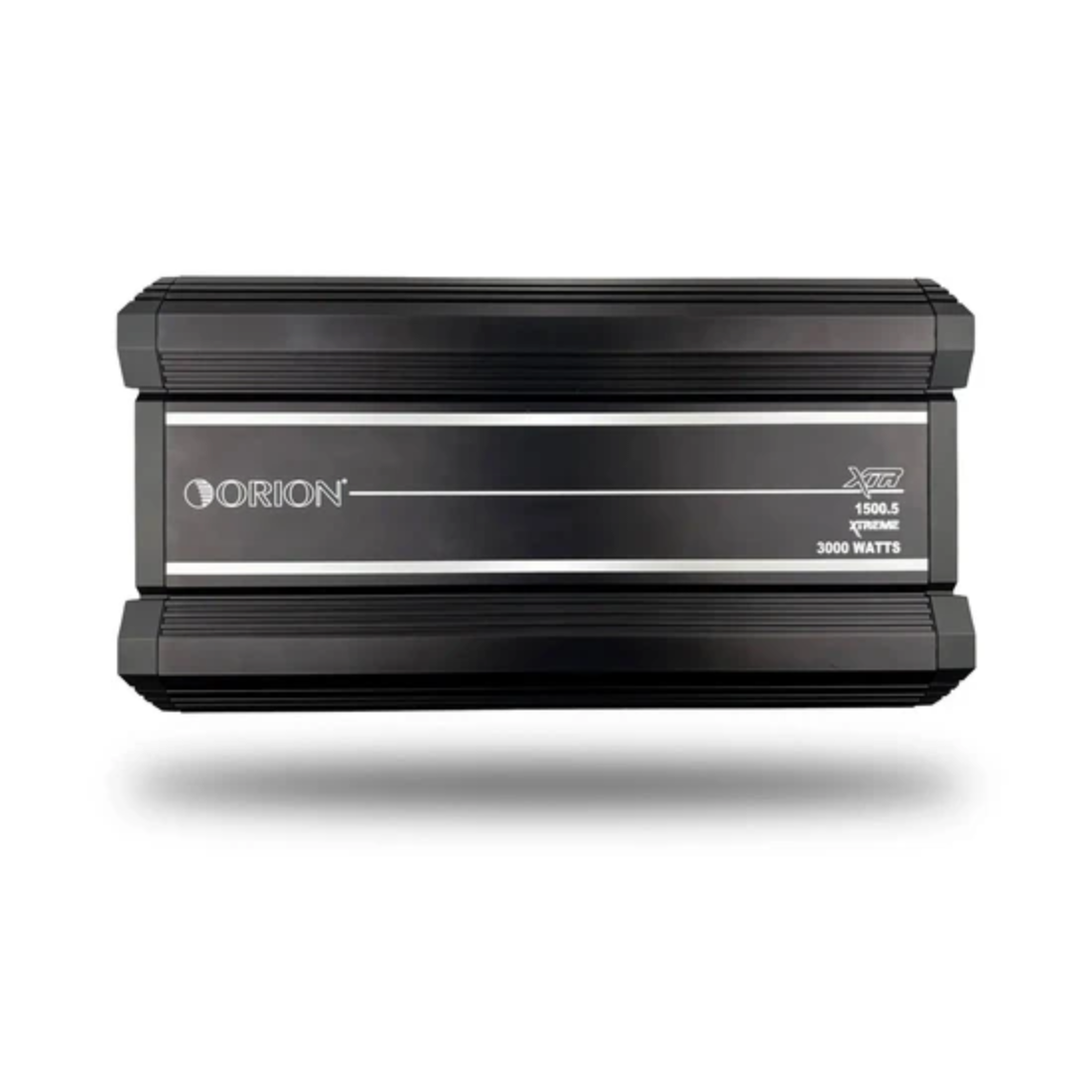

ORION XTR1500.5

XTR SERIES | 5-Channel 1500 Watts RMS Class-AB/D Car Amplifier

The ORION XTR1500.5 XTR Series 1500W RMS 5-Channel Class-AB/D Amplifier sets a new standard for audio excellence, delivering a perfect blend of power, precision, and efficiency. Crafted for audiophiles who demand the ultimate in sound quality, this amplifier elevates your audio experience to extraordinary heights.

Key Features:

  • Class AB/D Amplification
  • 1500 Watts RMS
  • All MOSFET Power Supply & Output Stage
  • Heavy Gauge / High Current Custom Power and Speaker Terminals
  • 12dB Octave Low-Pass Filter
  • Remote Gain Controller Included
  • Electronic Crossover Network
  • Bass Boost Circuit
  • Power and Protection LED Indicators
  • Soft Turn-on/Turn-off Turn-On Delay
  • Fault and Protection Monitoring
  • 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:

  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 90W + 1 x 380W
  • RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 125W + 1 x 650W
  • RMS WATTS @ 1 Ohms @ 0.5% THD+N: 4 x ***W + 1 x 1000W
  • RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 250W + 1 x 380W
  • Positive Terminals: 1 x 4 AWG.
  • Negative Terminals: 1 x 4 AWG.
  • Remote Turn-ON Signal: 10 AWG.
  • Speaker Output Terminals: 10 AWG.
  • Frequency Response: 20Hz - 350kHz
  • Linear Bandwidth 20Hz to 65kHz +/- 3 dB
  • High Pass Crossover Continuously variable Channel 1-4: (50-5kHz)
  • Low Pass Crossover Continuously variable Channel 1-4: (50-400Hz)
  • Low Pass Crossover Continuously variable Channel 5: (50-250Hz)
  • Supply Voltage: 9 - 16V
  • Amplifier Efficiency: >60%
  • Damping Factor: 200dB
  • Signal to Noise Ratio: >90dB
  • T.H.D. & Noise: 0.5%
  • Bass Boost: 0-18dB Variable
  • Variable Input Level Control: 0.2V - 6.0V
  • Fuses: ***A recommended (TBD)
  • Dimensions (L x W x H): 17.32" x 9.25" x 2.75" (440x235x70mm)
