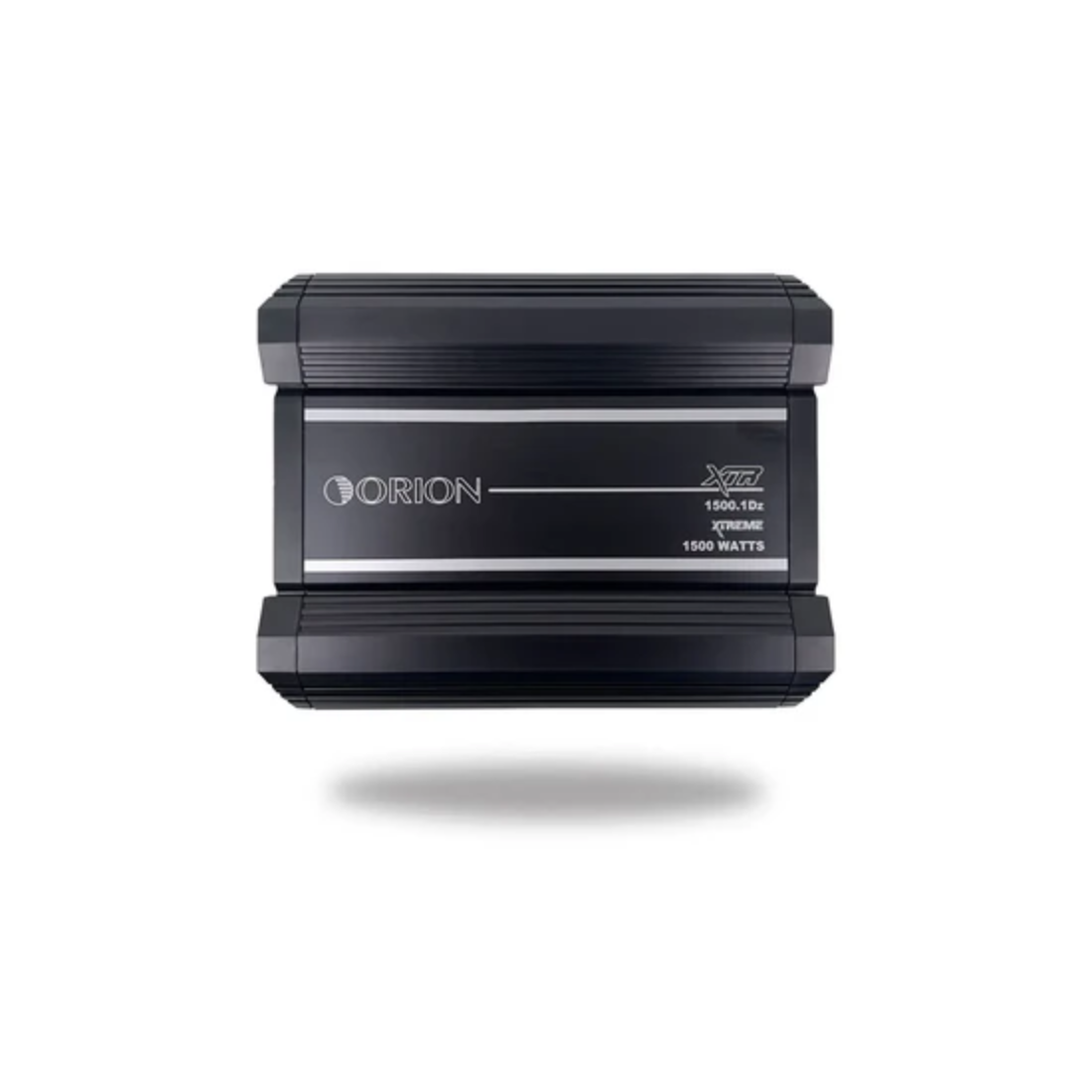

Orion XTR1500.1DZ 1-CH Monoblock 1500 Watts RMS Class-D Car Audio Amplifier
Orion XTR1500.1DZ 1-CH Monoblock 1500 Watts RMS Class-D Car Audio Amplifier
Regular price
$349.95 USD
Regular price
Sale price
$349.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
ORION XTR1500.1DZ
XTR SERIES | Monoblock 1500W RMS Class-D Amplifier
The ORION XTR1500.1Dz XTR Series 1500W RMS 1-Channel Class-D Amplifier redefines audio supremacy. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering an unrivaled fusion of power, accuracy, and control to your car audio system.
Key Features:
- Class D Amplification
- 1500 Watts RMS
- All MOSFET Power Supply & Output Stage
- Heavy Gauge / High Current Custom Power and Speaker Terminals
- 12dB Octave Low-Pass Filter
- Remote Gain Controller Included
- Electronic Crossover Network
- Bass Boost Circuit
- Power and Protection LED Indicators
- Soft Turn-on/Turn-off Turn-On Delay
- Fault and Protection Monitoring
- 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
Specifications:
- RMS Power @ 4 Ohms @ 0.5% THD+N: 750W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 1050W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 1500W
- Linked with identical Amplifier
- RMS Power @ 2 Ohms @ 0.5% THD+N: 3000W
- Positive Terminals: 1 x 0 AWG.
- Negative Terminals: 1 x 0 AWG.
- Remote Turn-ON Signal: 10 AWG.
- Speaker Output Terminals: 4 AWG.
- Frequency Response: 20Hz - 250Hz
- Low Pass Crossover: 30Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >88%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: Off / 25Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: 150A recommended (not included)
- Dimensions (L x W x H): 11.42" x 9.25" x 2.75" (290x235x70mm)
