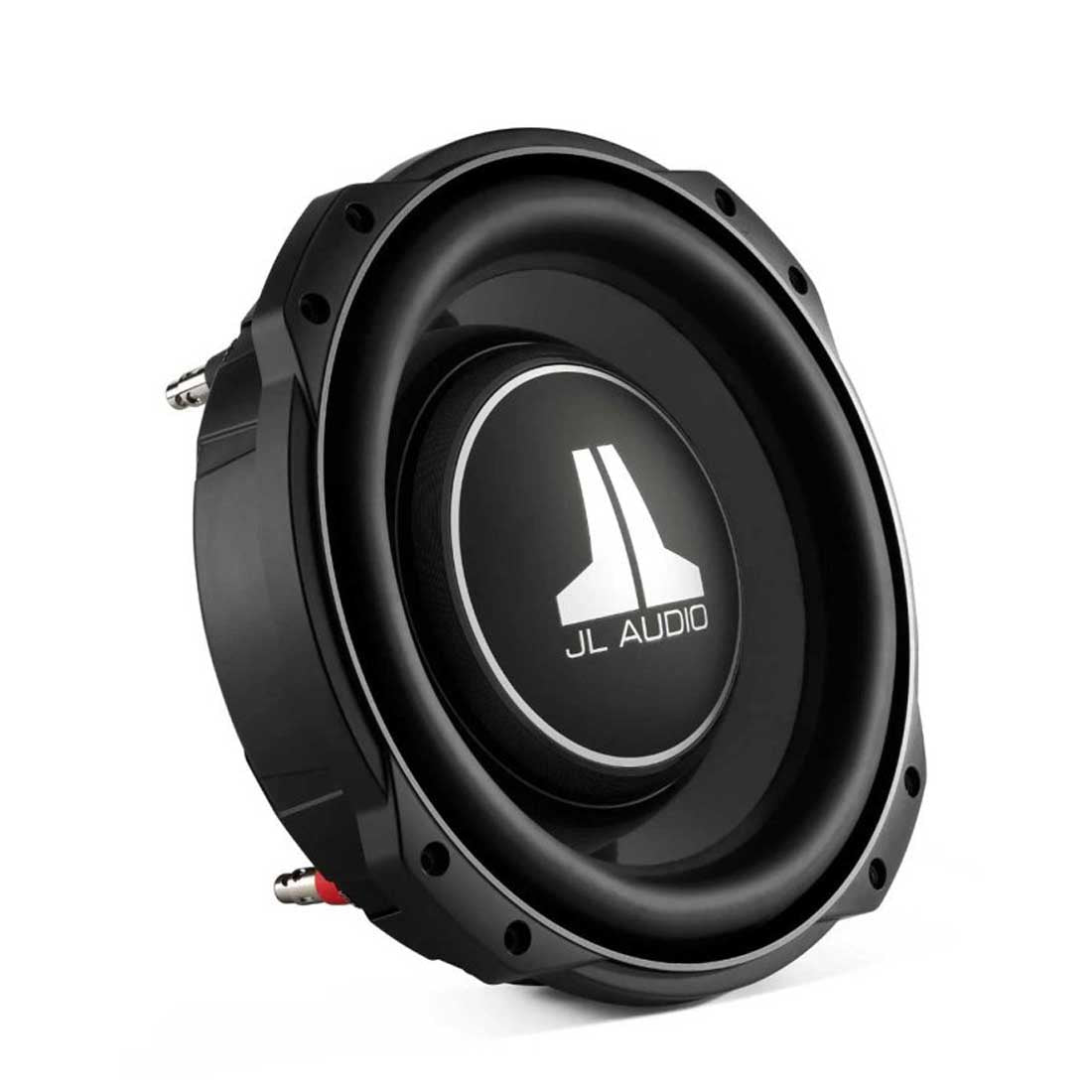

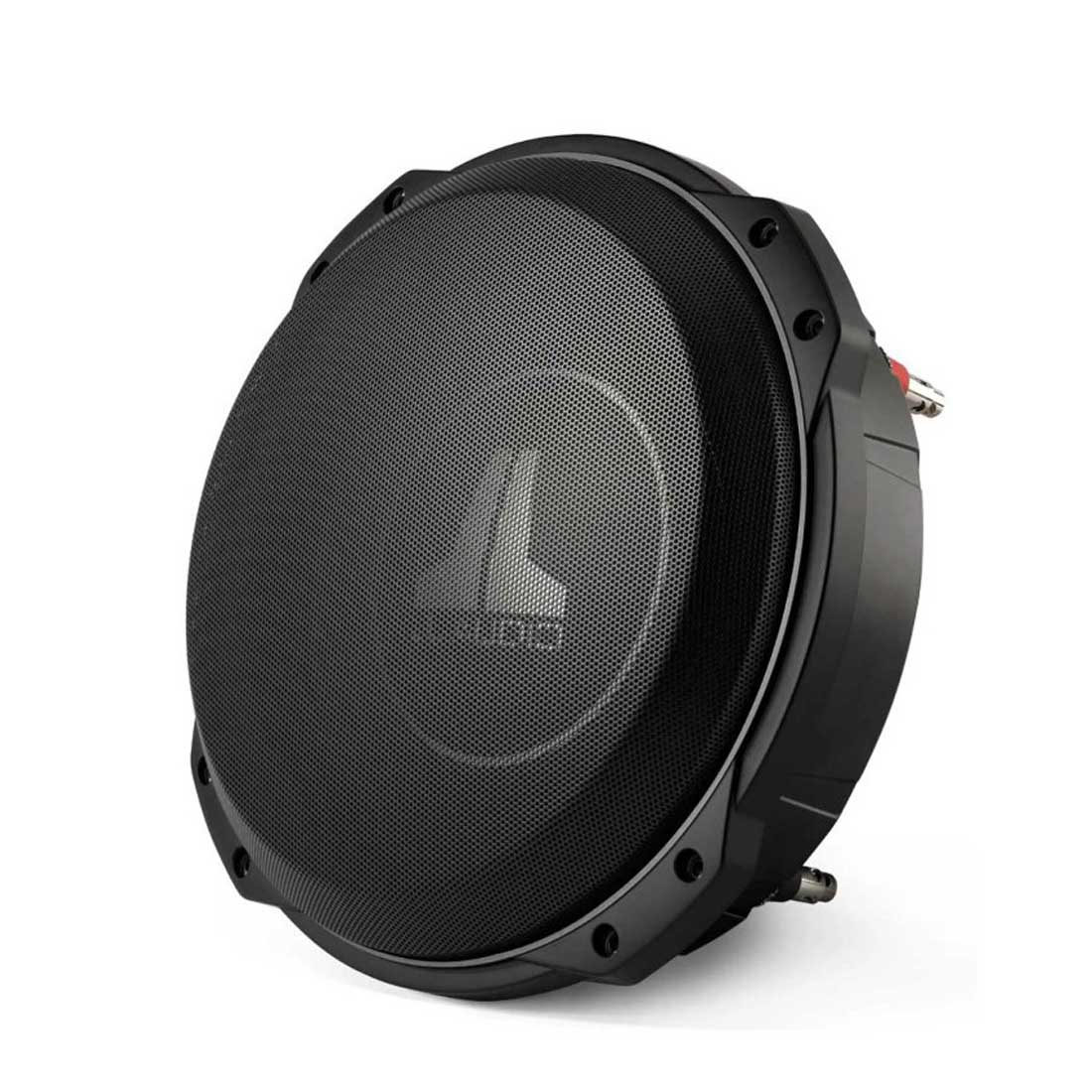

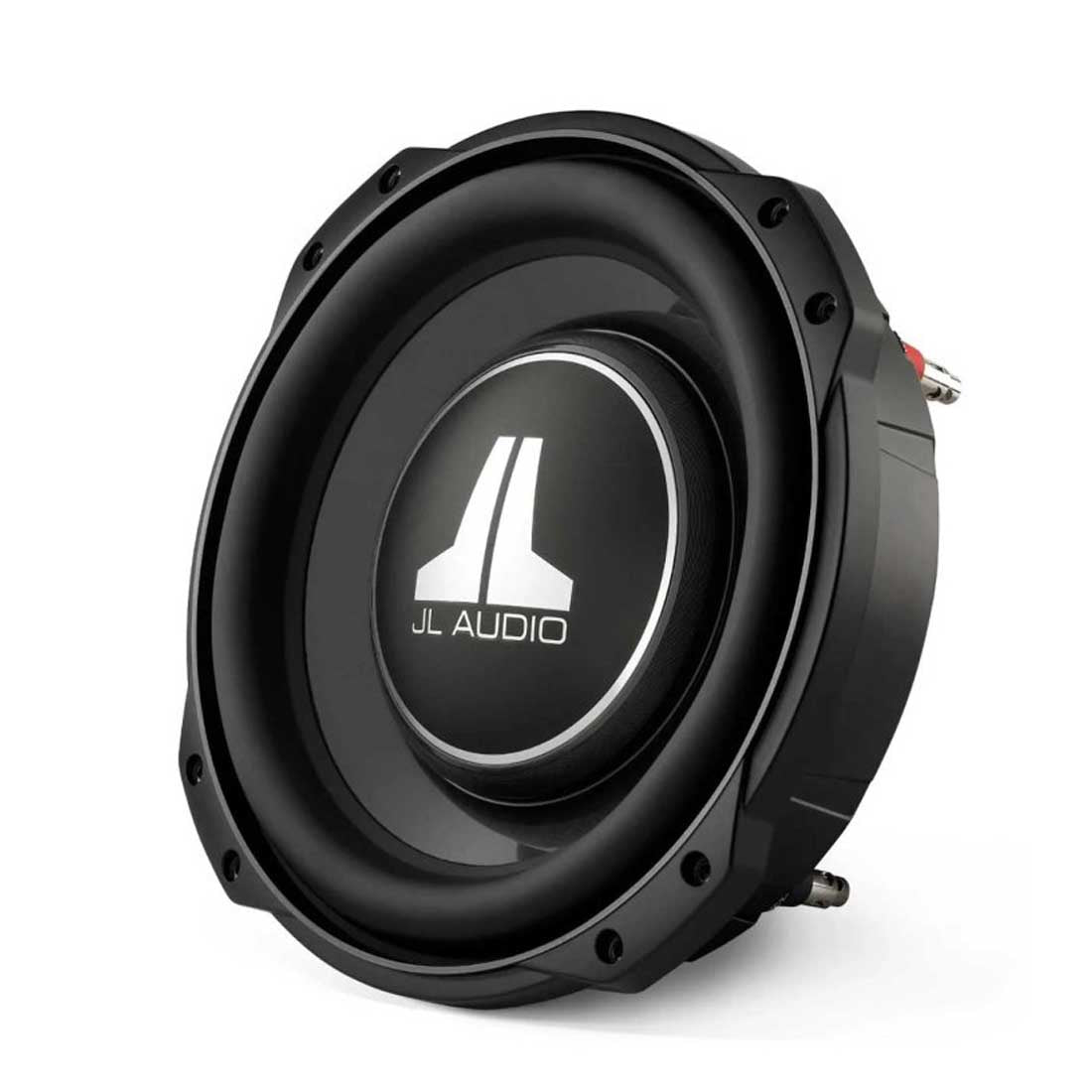

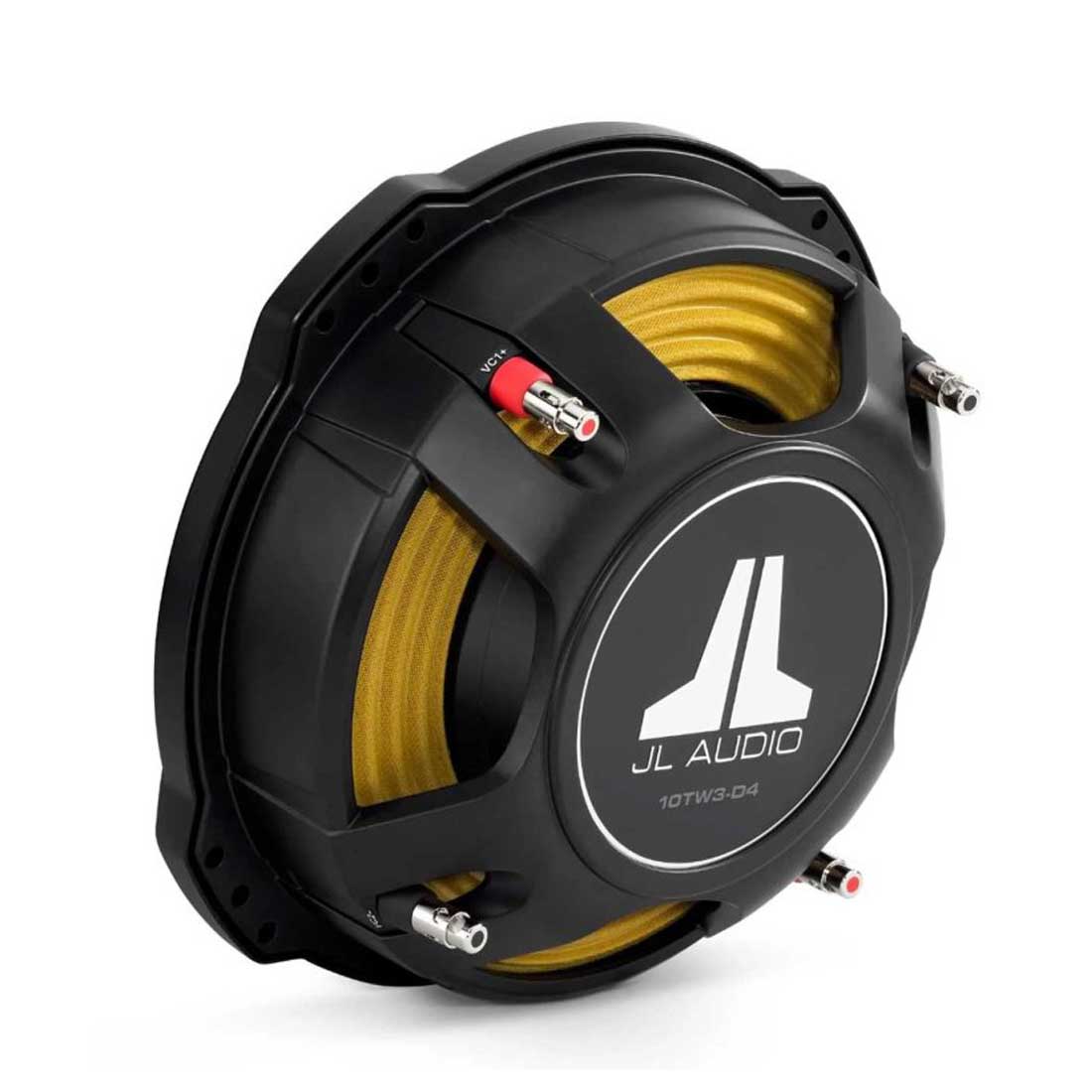

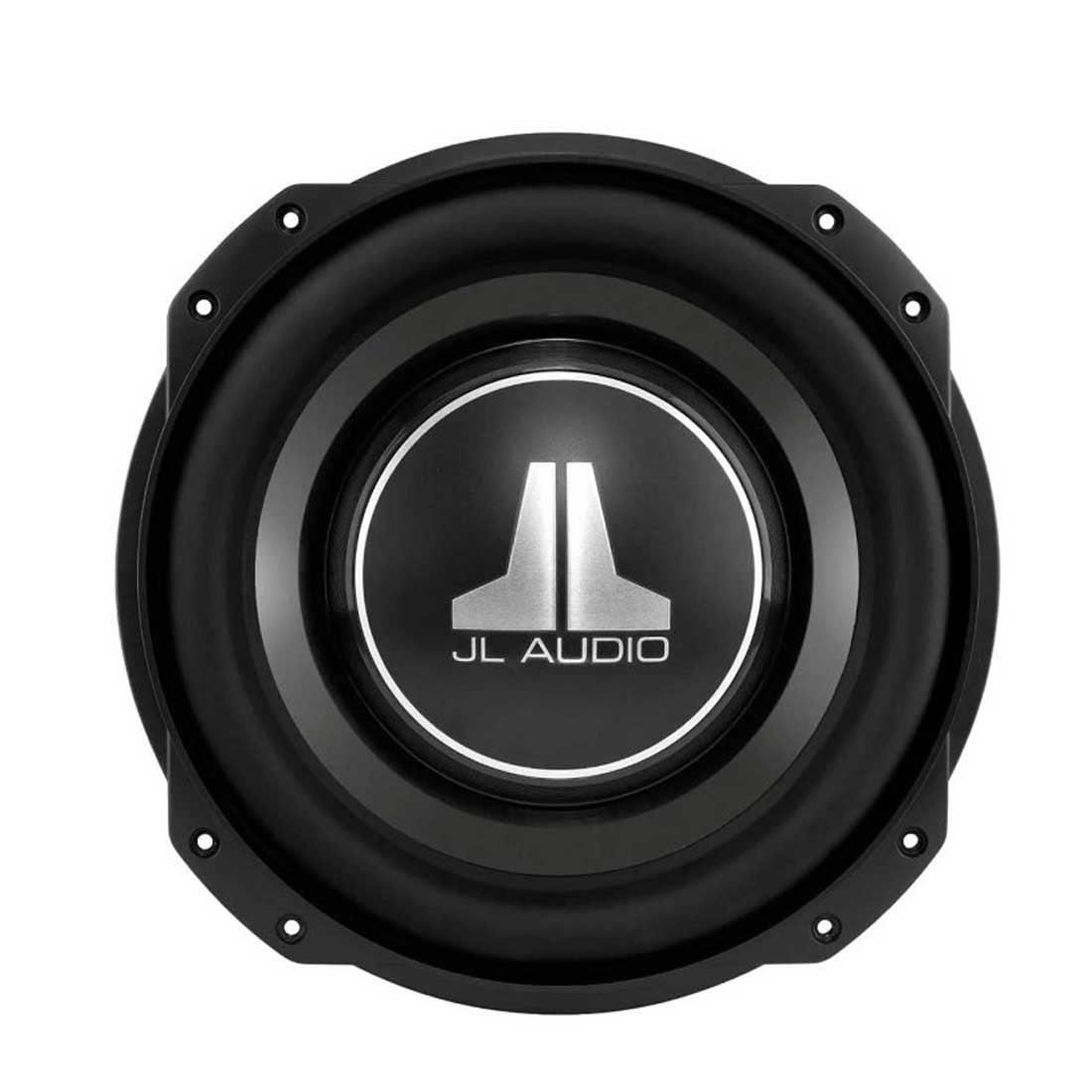

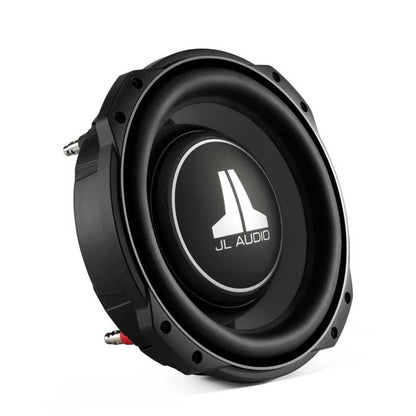

JL Audio 10TW3-D4 10" 400W RMS Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer

JL Audio 10TW3-D4 10" 400W RMS Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer

$436.05 USD
$436.05 USD
Sale Sold out
Shipping calculated at checkout.
JL AUDIO 10TW3-D4

10-Inch 400 Watts RMS Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer

TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability.

Key Features:

  • Very shallow mounting depth (3.25 / 3.50 Inches)
  • No pole vent: permits mounting close to the rear wall of the enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
  • DMA-optimized motor designs
  • “concentric tube” architecture
  • Patented “floating cone attach method” technology
  • Cast alloy frame
  • Injection-molded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audio’s Miramar, Florida factory with global components
Specifications:

  • Continuous Power Handling (RMS): 400 W
  • Recommended Amplifier Power (RMS): 200 - 400 W
  • Nominal Impedance (Znom): Dual 4 Ω
  • Free Air Resonance (Fs): 32.30 Hz
  • Electrical “Q” (Qes): 0.656
  • Mechanical “Q” (Qms): 11.35
  • Total Speaker “Q” (Qts): 0.62
  • Equivalent Compliance (Vas): 0.700 cu ft / 19.82 L
  • One-Way Linear Excursion (Xmax)*: 0.6 in / 15.2 mm
  • Reference Efficiency (no): 0.23%
  • Efficiency (1 W / 1 m)**: 82.10 dB SPL
  • Effective Piston Area (Sd): 56.532 sq in / 0.0365 sq m
  • DC Resistance (Re)***: 9.036 Ω
  • Nominal Diameter 10 in / 250 mm
  • Overall Diameter: 11.2 in / 284 mm
  • Mounting Hole Diameter: 9.625 in / 244 mm
  • Bolt Hole Circle Diameter: 10.5 in / 267 mm
  • Motor Outer Diameter: 5.1 in / 130 mm
  • Mounting Depth: 3.25 in / 83 mm
  • Driver Displacement: 0.019 cu ft / 0.54 L
  • Net Weight: 10.1 lb / 4.6 kg
