DS18 ZXI.5 5-Channel 5000W Peak 1-4 Ohm Stable Full-Range Class-D Car Amplifier

Name: DS18 ZXI.5 5-Channel 5000W Peak 1-4 Ohm Stable Full-Range Class-D Car Amplifier
Brand: DS18
SKU: ZXI.5
Price: 599.95 USD
Availability: OutOfStock

$599.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 ZXI.5

5-Channel 5000 Watts Peak 1-4 Ohm Stable Full-Range Class-D Amplifier

Key Features:

5 Channel Full Range
Class D
1 ~ 4 Ohm Stable
4 x 125 Watts @ 4 Ohm + 1 x 1000 Watts @ 1 Ohm
Built-in Crossover
Bass Control Knob

General Specs:

SKU: ZXI.5
Total Watts (Peak): 5000W
RMS Power @ 4 Ohm: 4 x 125W + 420W (SUB)
RMS Power @ 2 Ohm: 4 x 170W + 705W (SUB)
RMS Power @ 1 Ohm: 1000W (SUB)
RMS Power @ 4 Ohm Bridge: 2 x 340W

Features:

Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 5
Minimum Impedance: 2 ohm (Stereo) / 4 ohm (Bridge) / 1 ohm (SUB)
Led Indicator: Power/Protection/Clip
Power Input Terminal Size: 4ga
Fuse Size: 200A (External)

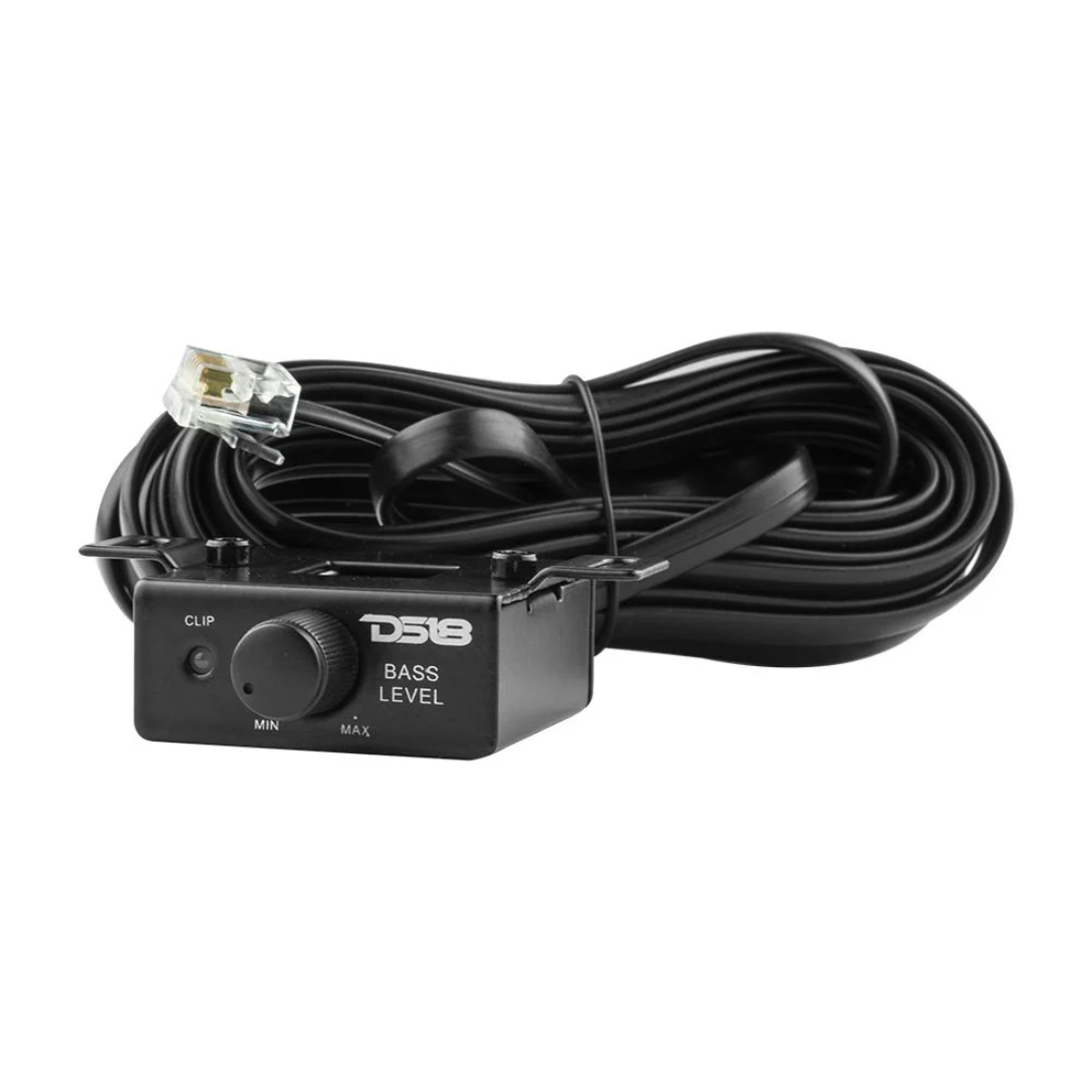

Remote Level Control: Yes
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes (>160?F / 71?C)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (8.5-16.8V)
Clipping Protection: Yes
Body Color / Finish: Black Aluminum Brush

Audio Features:

Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >90dB
Efficiency @ 4 Ohm: >85%
Damping Factor: >200
Total Harmonic Distortion (THD): <0.1%
Low-Level Input Range: 0.2 - 6v
High-Level Input: No
Selectable X-Over: LPF/FULL/HPF
X-Over Filter Range: 40Hz-4KHz (50-250Hz SUB)
Bass Boost Range: 0-18dB
Bass Boost Frequency: 45Hz
Infrasonic Filter: 10-55Hz
Phase Selector: No

Extra Features:

Tiffany RCA connectors: Yes
Input Selector: Yes (4ch/5ch)
Compact Size to easy Installation for Any Applications: Yes
Stable/Reliable Two Layers Traces PCB Design: Yes
Quality Control Verification using Audio Precision Instruments: Yes

Measurement:

Overall Length: 14.2" / 360.6mm
Overall Width: 5.66" / 144mm
Overall Height: 1.9" / 48.5mm
Heatsink Length: 13.4" / 340.6mm
Gross Single Unit Weight (Lb): 8
