DS18

DS18 ZR800.4D 3600W Max 4-Channel Class-D Full-Range Car Audio Amplifier

Name: DS18 ZR800.4D 3600W Max 4-Channel Class-D Full-Range Car Audio Amplifier
Brand: DS18
SKU: ZR800.4D
Price: 319.95 USD
Availability: InStock

$319.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 ZR800.4D

ZR SERIES | 3600 Watts Max 4-Channel Class-D Full-Range Amplifier

Key Features:

Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 ohms (Stereo) / 4 ohms (Bridge)
Led Indicator: clipping/protect/power

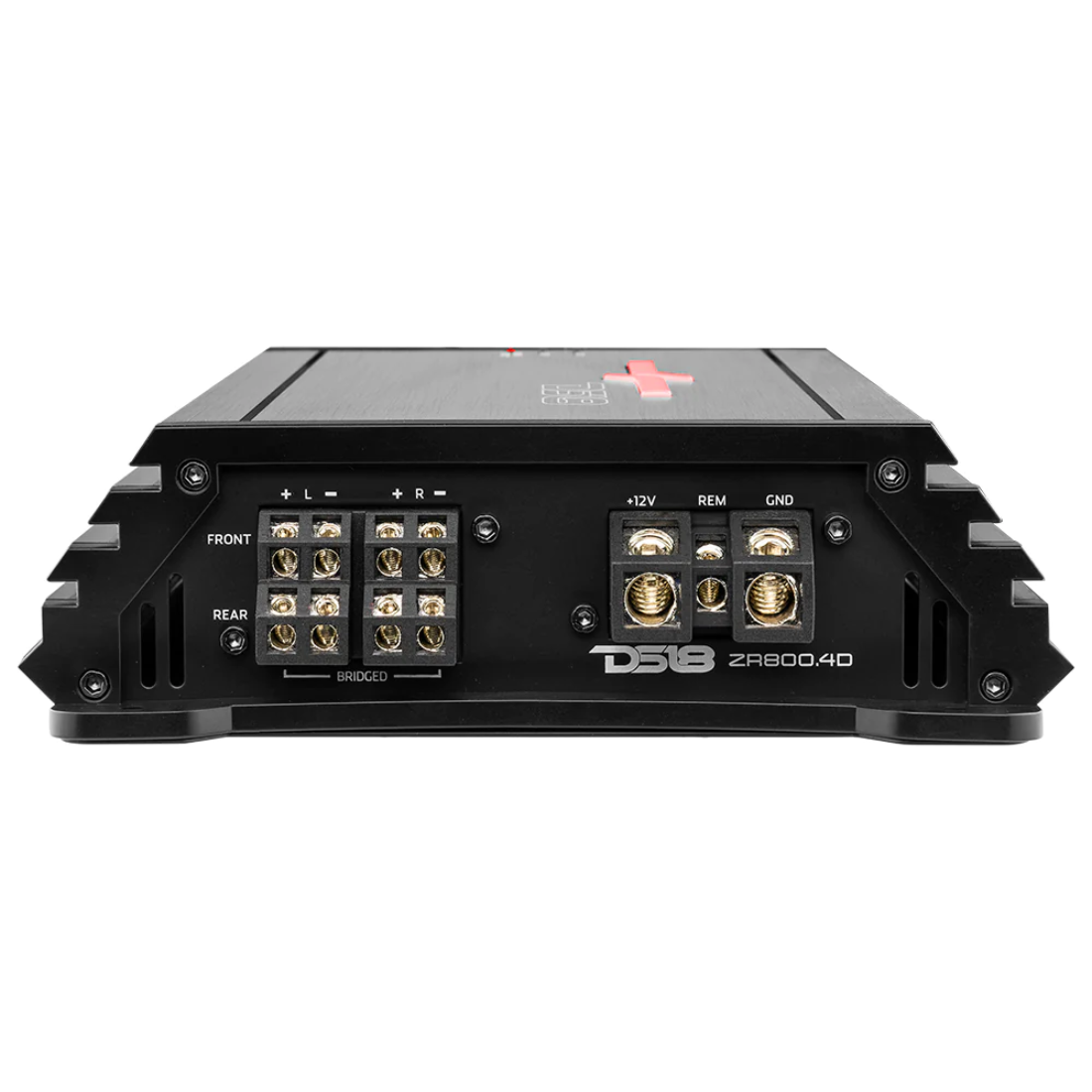

Power Input Terminal Size: 4 GA
Fuse Size: 120A
Remote Level Control: No
Cooling Fan: No
Voltmeter: No
Thermal Protection: Yes
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes <9 / >16 Volts
Clipping Protection: Yes
Body Color / Finish: Black Aluminum Brush

Power Features:

Total Watts (Peak): 3600W
RMS Power @ 4 ohm: 4 x 200W
RMS Power @ 2 ohm: 4 x 320W
RMS Power @ 4 ohm Bridge: 2 x 600W

Audio Features:

Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >90dB
Efficiency @ 4ohm: 88%
Damping Factor: 160
Input Impedance: 20K ohms
Channel Separation: 60dB
Total Harmonic Distortion (THD): 1.00%
Low-Level Input Range: 0.2-6V
High-Level Input: No

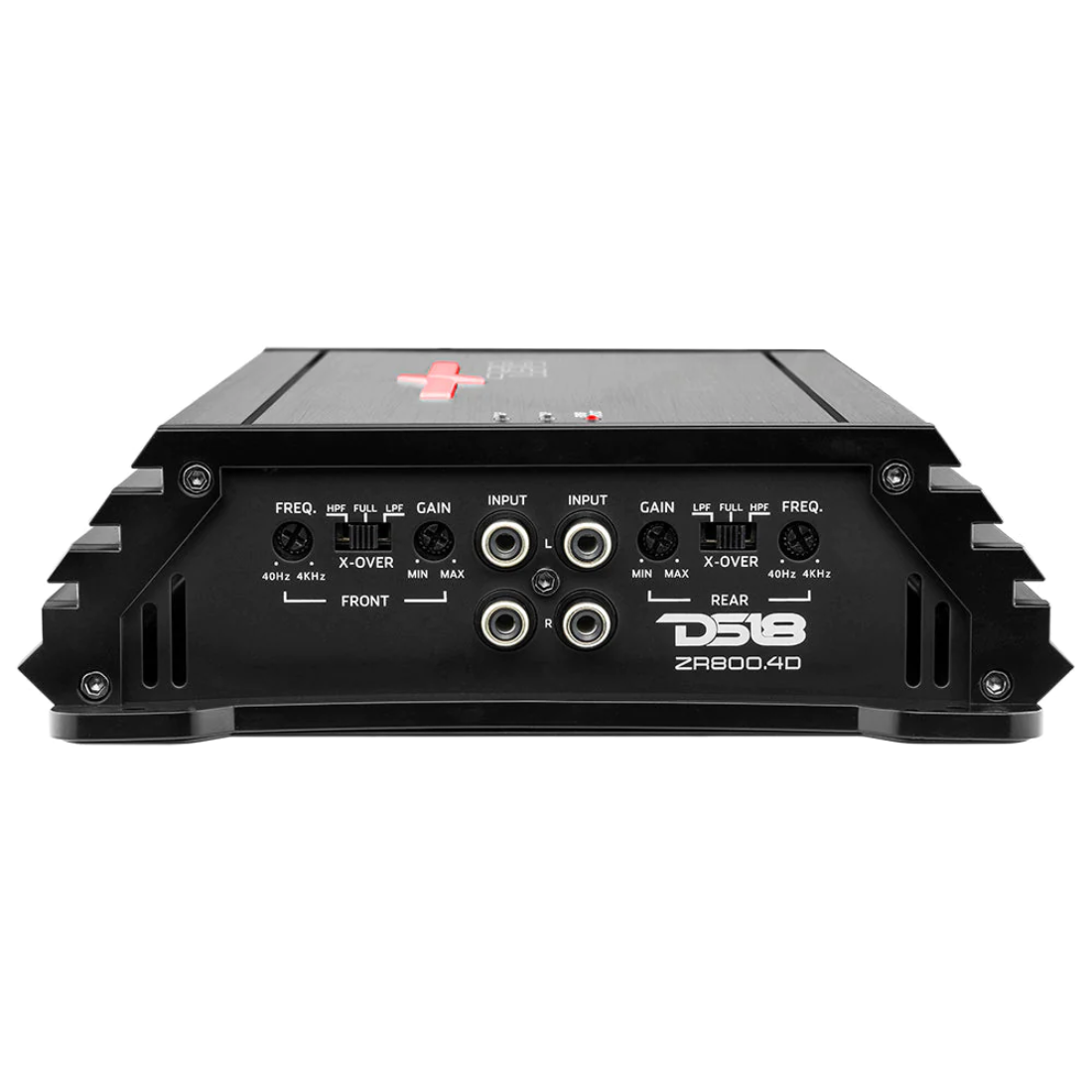

Selectable X-Over: FULL/LPF/HPF
X-Over Filter Range: 40Hz-4KHz
Bass Boost Range: No
Bass Boost Frequency: N/A
Infrasonic Filter: No
Phase Selector: No

Measurement:

Overall Length: 10" / 254mm
Overall Wide: 7.24" / 184mm
Overall Height: 2" / 53mm
Heatsink Length: 8.54" / 217mm
Gross Single Unit Weight: 5 LB
