DS18

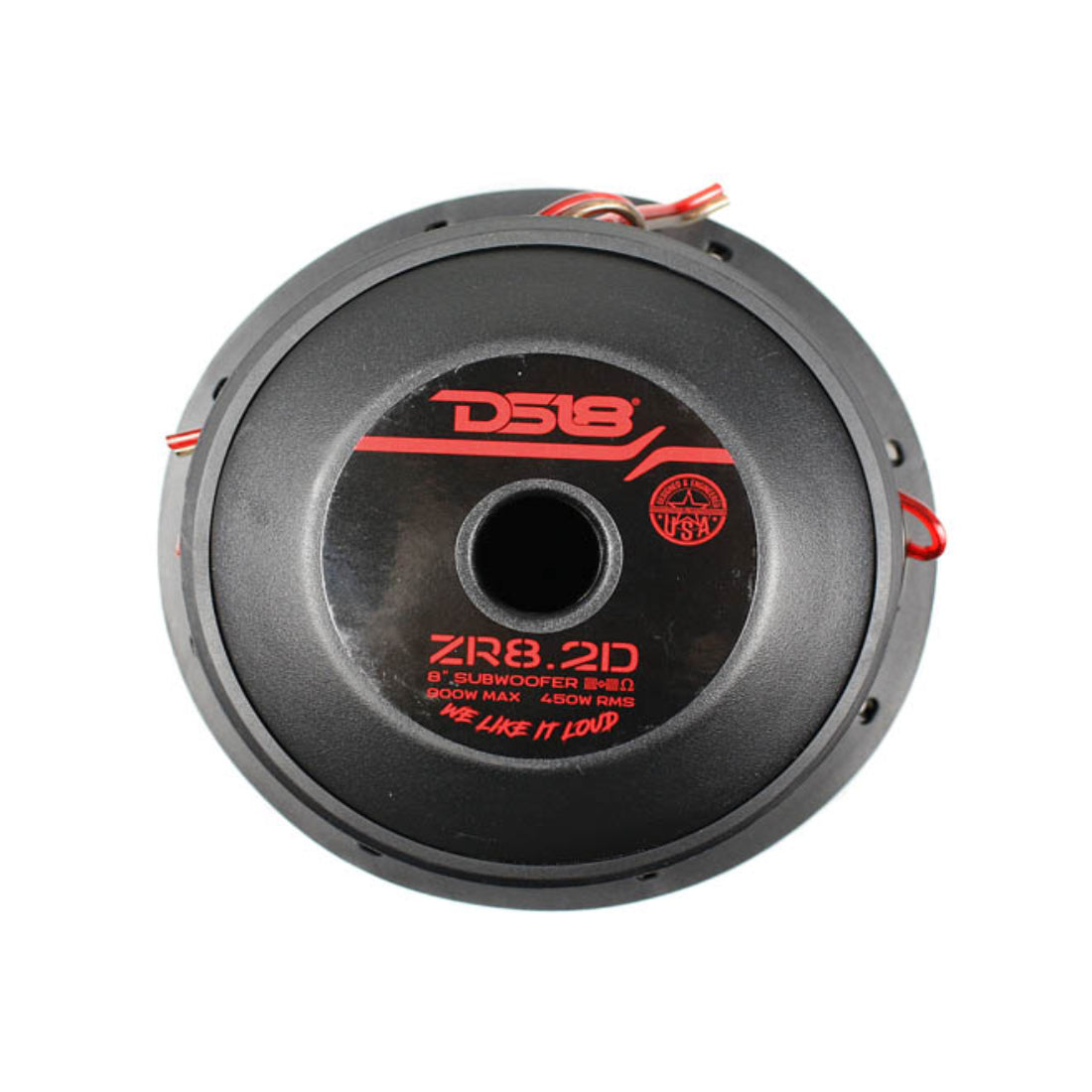

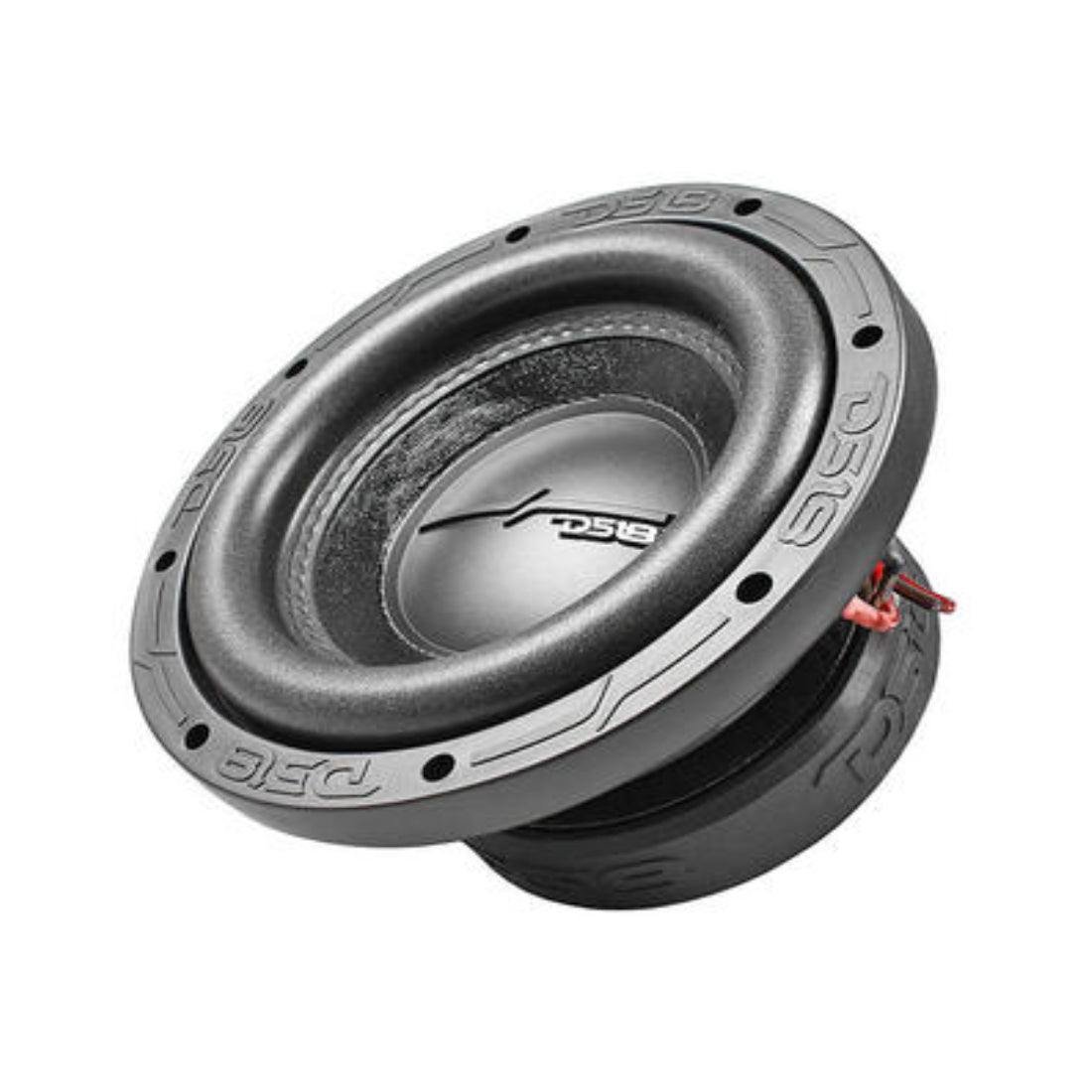

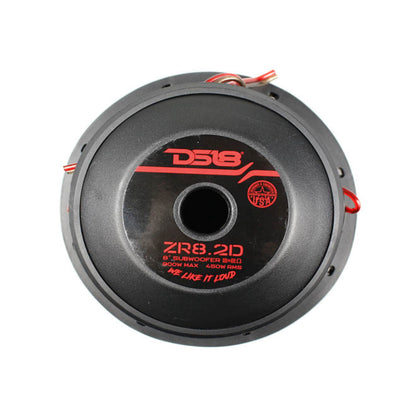

DS18 ZR8.2D 8" 900 W Max Dual 2 Ohm Voice Coil DVC Stereo Car Audio Subwoofer
DS18 ZR8.2D 8" 900 W Max Dual 2 Ohm Voice Coil DVC Stereo Car Audio Subwoofer
Regular price
$99.95 USD
Regular price
Sale price
$99.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 ZR8.2D
ELITE-Z 8-Inch 900 Watts Max Dual Voice Coil DVC 2-Ohm Car Stereo Subwoofer
Key Features:
- Large foam surround giving great xmax and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 450w RMS and 900w max through a high-strength 2-inch aluminum voice coil.
- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, motor, and dust cap.
- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
General Specifications:
- Nominal Diameter: 8"
- Nominal Impedance: 2+2 OHMS
- RMS Power Handling: 450W
- MAX Power Handling: 900W
- Sensitivity (1w/1m): 82 dB
- Frequency Response: 33Hz - 200 Hz
- Recommended Lo Pass Crossover: 120 Hz
Motor Specifications:
- Voice Coil Diameter: 2" / 50.8mm
- VC Former Material: Aluminum
- Winding Material: Copper
- Cone Material: Non Pressed Paper
- Dust Cap Material: PPI
- Surround Material: Foam
- Basket Material: Steel
- Basket Color/Finish: Matte Black
- Magnet Material: Ferrite
- Magnet Weight: 55 oz
- Displacement Volume: 0.03 ft3
Thiele & Small Parameters:
- Equivalent Volume: 5.74 L
- Excursion (one way): 18mm
- Free Air Resonance: 40Hz
- Mechanical Factor: 4.38
- Electrical Factor: 0.66
- Total Factor: 0.57
- Moving Mass: 112.72g
- Compliance: 105.133 m/N
- BL Factor: 6.67
- Voice Coil Inductance: .373.76m mH
- Cone Area: 196 Cm2
- DC Resistance: 1.8 + 1.8 ohm
- Efficiency Bandwidth Product: 60.6
Dimensions/Weight:
- Overall Diameter: 8.42" / 214mm
- Overall Depth: 5.3" / 134mm
- Front Mount Baffle Cutout: 7.24" / 184mm
- Mounting Depth: 4.4" / 111.4mm
- Motor Diameter: 5.7" / 145mm
- Package Dimensions: Approx. 9.49 x 9.29 x 6.5 inches
- Weight: Approx. 9.12lbs / 145.92oz
