DS18 ZR1600.4D 4-Channel 7200W Peak Class-D Full Range Car Audio Amplifier

DS18 ZR1600.4D 4-Channel 7200W Peak Class-D Full Range Car Audio Amplifier

$379.95 USD
$379.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 ZR1600.4D

ZR SERIES | 4-Channel 7200 Watts Peak Power Digital Class-D Full Range Car Amplifier

Key Features:

  • Digital Class D Full Range Amp
  • MAX Wattage: 7200w Peak
  • RMS Wattage: 2 x 1200 Watts RMS @ 4-Ohms Bridge, 4 x 680 Watts RMS @ 2-Ohms, 4 x 400 Watts RMS @ 4-Ohms
  • Frequency Response: 20Hz – 20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency at 4-Ohms: 82%
  • Total Harmonic Distortion: 1%
  • Input Range: 0.2v - 6v

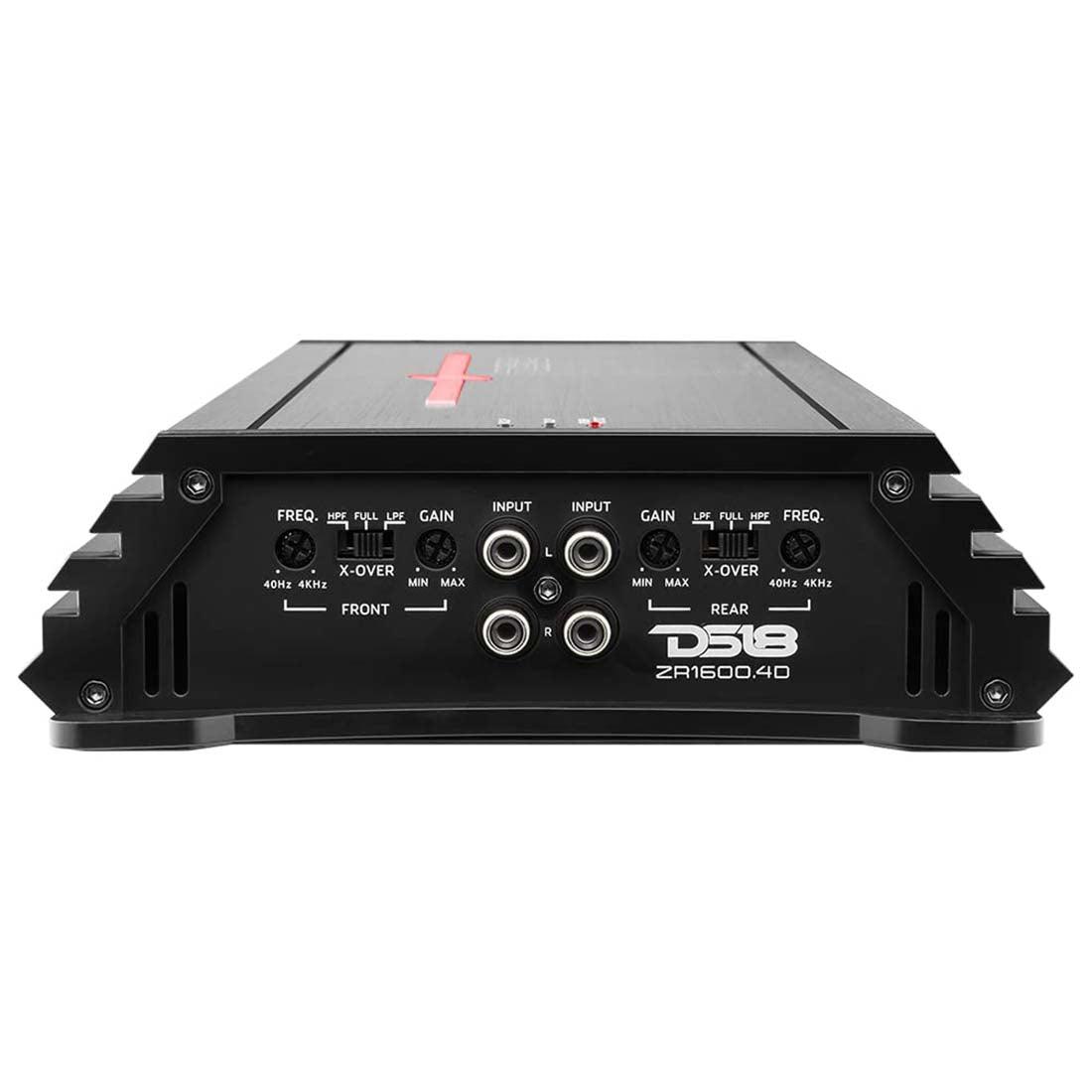

  • Selectable X-Over: FULL/LPF/HPF
  • LED Indicator: Clipping, Power, Protect

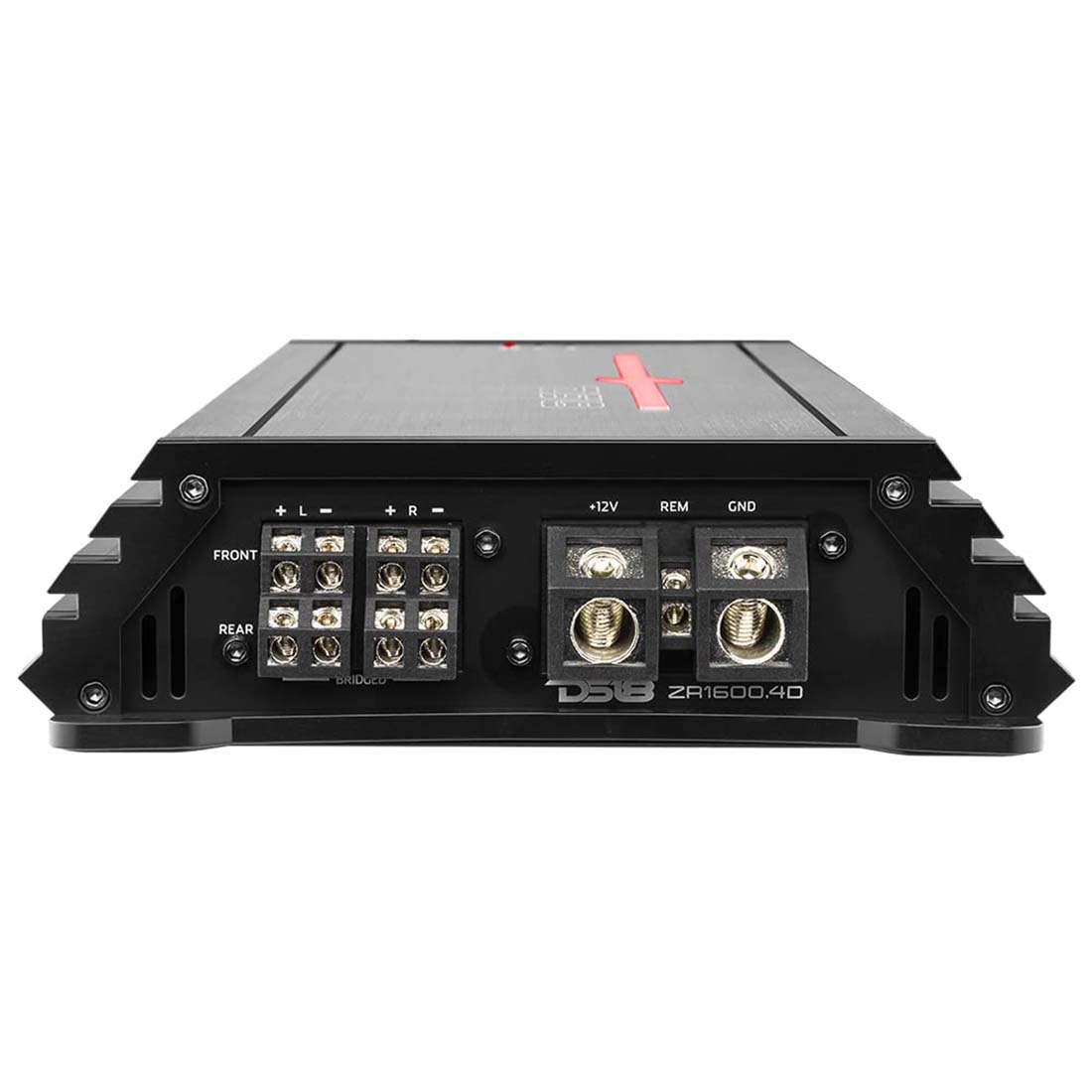

  • Power and Ground Terminal: 0 Ga
  • Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridge)
Specifications:

General:
  • Amplifier Class: Digital
  • Amplifier Type: Stereo Full Range
  • Number of Channels: 4
  • Minimum Impedance: 2 ohms (Stereo) / 4 ohms (Bridge)
  • Led Indicator: clipping/protect/power
  • Power Input Terminal Size: 0ga
  • Fuse Size: 280A
  • Remote Level Control: No
  • Cooling Fan: No
  • Voltmeter: No
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes <9 / >16 Volts
  • Clipping Protection: Yes
  • Body Color / Finish: Black Aluminum Brush
Power:
  • Total Watts (Peak): 7200W
  • RMS Power @ 4 ohm : 4 x 400W
  • RMS Power @ 2 ohm : 4 x 680W
  • RMS Power @ 4 ohm Bridge: 2 x 1200W
Audio:
  • Frequency Response: 20Hz-20KHz
  • Signal to Noise Ratio: >90dB
  • Efficiency @ 4ohm: 82%
  • Damping Factor: 160
  • Input Impedance: 20K ohms
  • Channel Separation: 60dB
  • Total Harmonic Distortion (THD): 1.00%
  • Low-Level Input Range: 0.2-6V
  • High-Level Input: No
  • Selectable X-Over: FULL/LPF/HPF
  • X-Over Filter Range: 40Hz-4KHz
  • Bass Boost Range: No
  • Bass Boost Frequency: N/A
  • Infrasonic Filter: No
  • Phase Selector: No
Measurement:
  • Overall Length: 12.83" / 326mm
  • Overall Wide: 7.24" / 184mm
  • Overall Height: 2" / 53mm
  • Heatsink Length: 11.45" / 291mm
  • Gross Single Unit Weight: 6.18 LB
