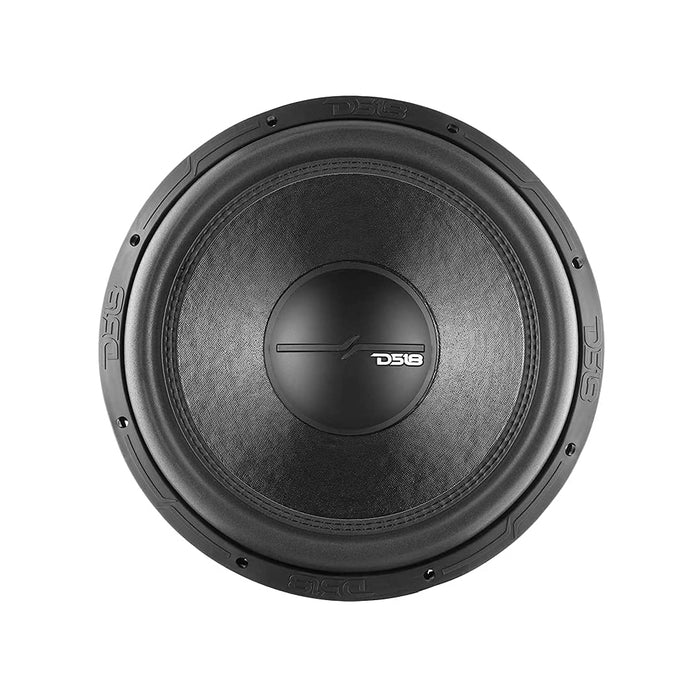

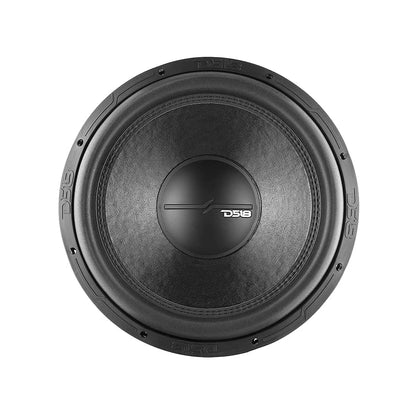

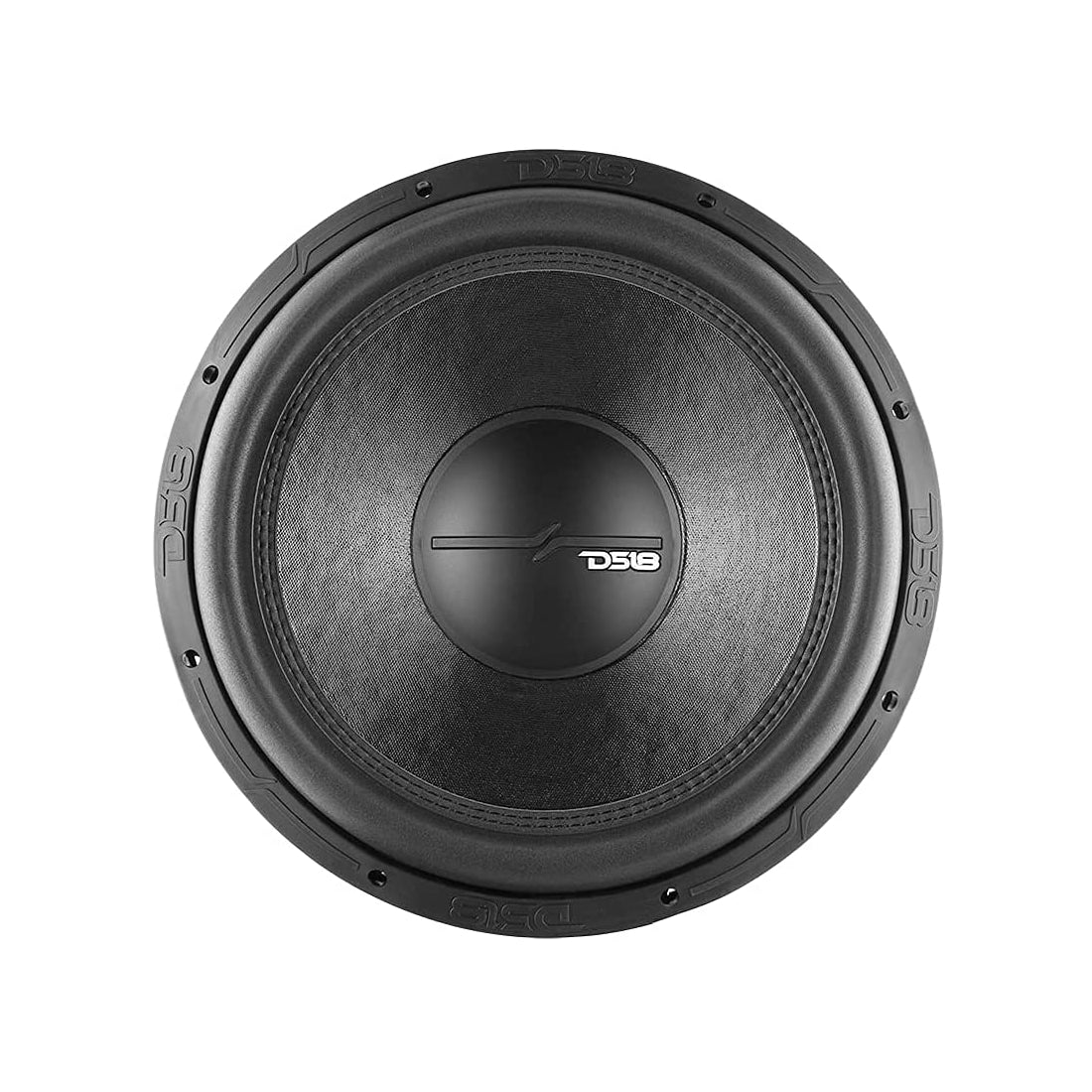

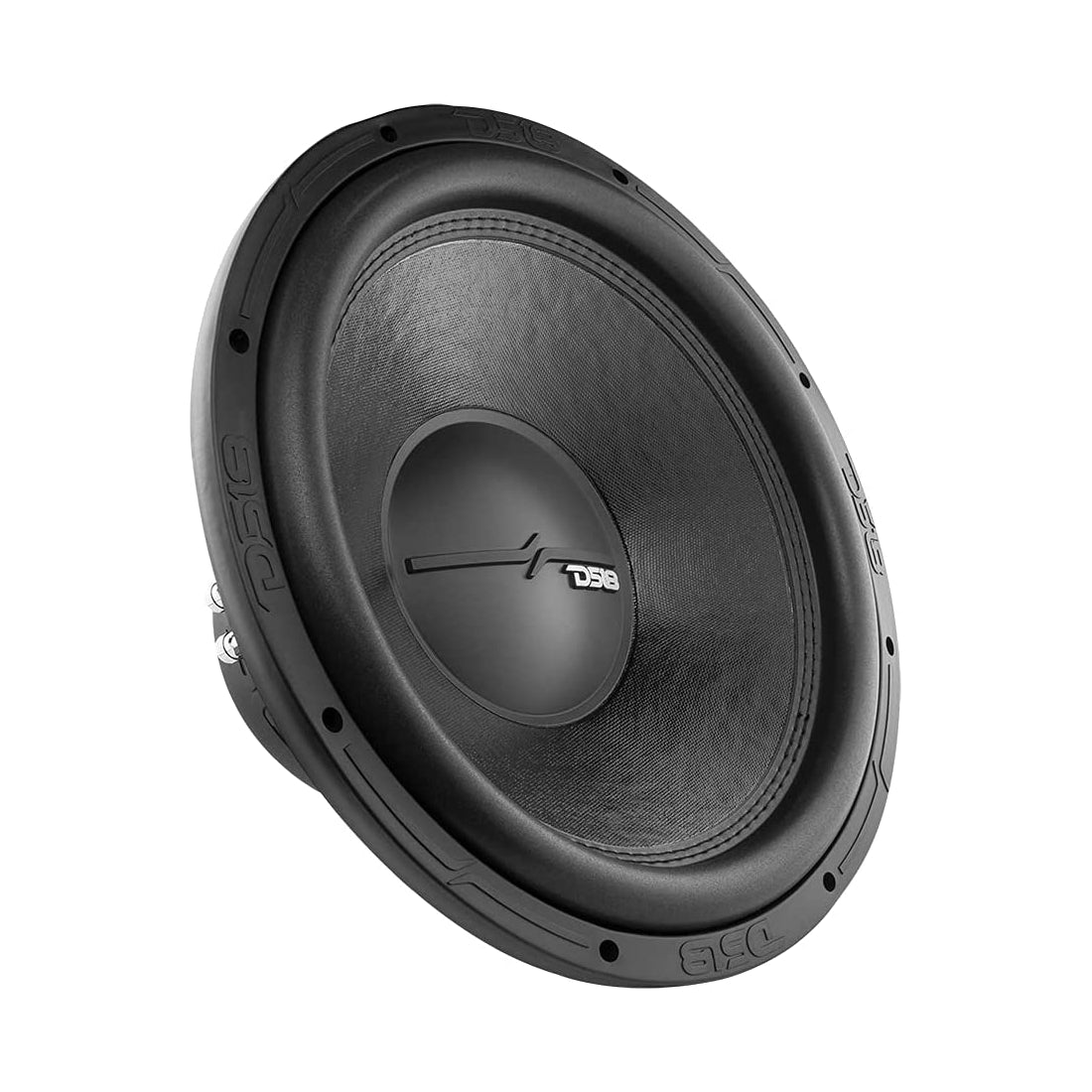

DS18 ZR15.4D 15" 1500 W Max Dual 4-Ohm Voice Coil DVC Stereo Car Audio Subwoofer

DS18 ZR15.4D 15" 1500 W Max Dual 4-Ohm Voice Coil DVC Stereo Car Audio Subwoofer

$189.95 USD
$189.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 ZR15.4D

ELITE-Z 15-Inch 1500 Watts Max Dual Voice Coil DVC 4-Ohm Car Stereo Subwoofer

Key Features:

  • Large foam surround giving great XMAX and bass precision while keeping great cone control when the subwoofer is close to maximum power.
  • Great power handling of 750w RMS and 1500w max through a high strength 2.5 inch aluminum voice coil.
  • Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, DS18 dust cap, and high quality push terminal connectors.
  • Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes making them highly versatile.
General Specifications:

  • Nominal Diameter: 15”
  • Nominal Impedance: 4+4 OHMS
  • RMS Power Handling: 750W
  • MAX Power Handling: 1500W
  • Sensitivity (1w/1m): 82 dB
  • Frequency Response: 21Hz - 200 Hz
  • Recommended Lo Pass Crossover: 80 Hz
Motor Specifications:

  • Voice Coil Diameter: 2.5" / 61.6mm
  • VC Former Material: Aluminum
  • Winding Material: Copper
  • Cone Material: Non Pressed Paper
  • Dust Cap Material: PPI
  • Surround Material: Foam
  • Basket Material: Steel
  • Basket Color/Finish: Matte Black
  • Magnet Material: Ferrite
  • Magnet Weight: 100 oz
  • Displacement Volume: 0.11 ft3
Thiele & Small Parameters:

  • Voice Coil Diameter: 2.5" / 61.6mm
  • VC Former Material: Aluminum
  • Winding Material: Copper
  • Cone Material: Non-Pressed Paper
  • Dust Cap Material: PPI
  • Surround Material: Foam
  • Basket Material: Steel
  • Basket Color/Finish: Matte Black
  • Magnet Material: Ferrite
  • Magnet Weight: 100 oz
  • Displacement Volume: 0.11 ft3
Measurements:

  • Overall Diameter: 15.35” / 391mm
  • Overall Depth: 8.41”/213.56mm
  • Front Mount Baffle Cutout: 13.95”/354.24mm
  • Mounting Depth: 7.39”/187.76mm
  • Motor Diameter: 6.1" / 155mm
