DS18

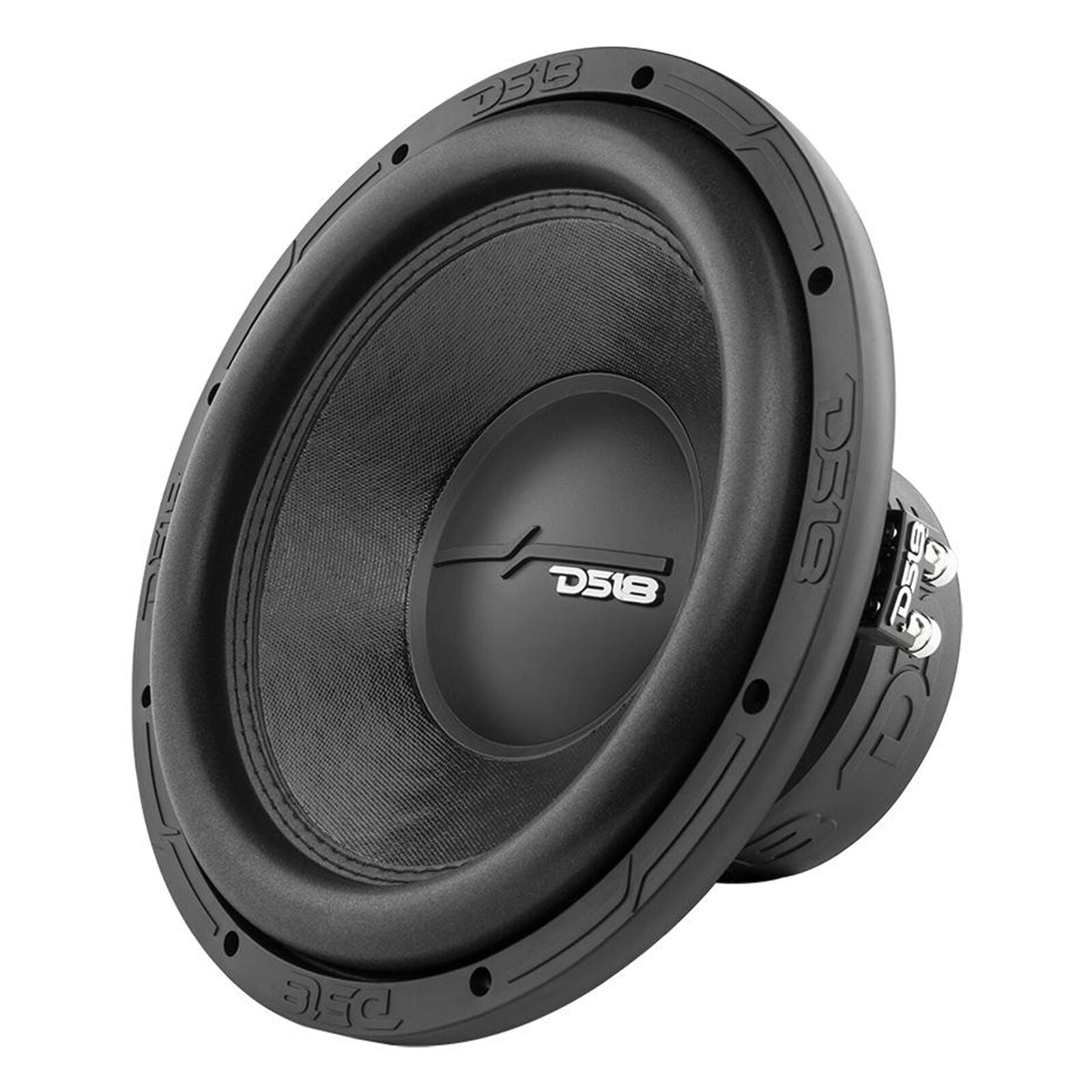

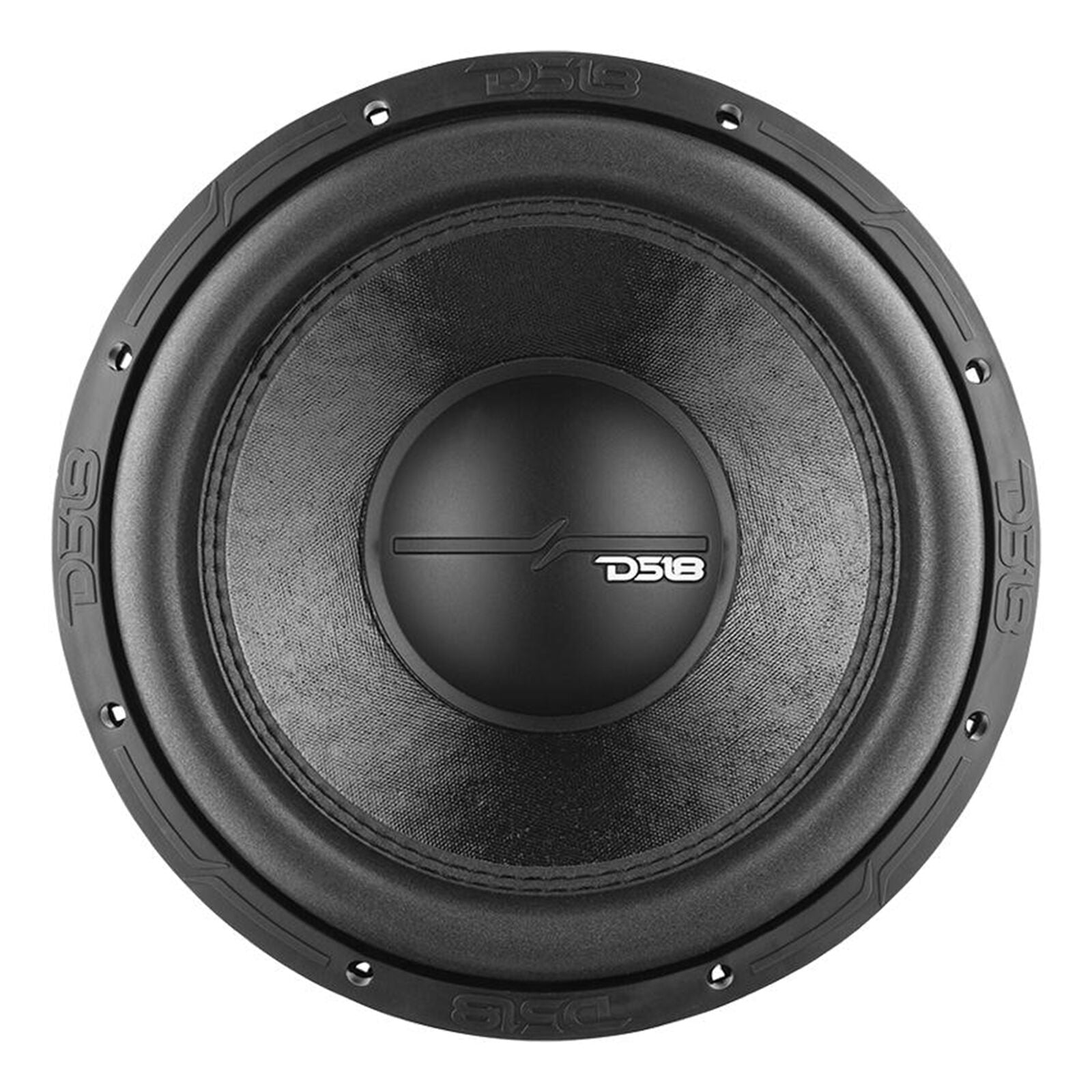

DS18 ZR12.4D 12" 1500 W Max Dual 4-Ohm Voice Coil DVC Stereo Car Audio Subwoofer

DS18 ZR12.4D 12" 1500 W Max Dual 4-Ohm Voice Coil DVC Stereo Car Audio Subwoofer

$164.95 USD
$164.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 ZR12.4D

Elite-Z 12" 1500 Watts Dual Voice Coil 4 Ohm Subwoofer

KEY FEATURES:

  • Nominal Diameter: 12"
  • Nominal Impedance: 4+4 OHMS
  • RMS Power Handling: 750W
  • MAX Power Handling: 1500W
  • Sensitivity (1w/1m): 82 dB
  • Frequency Response: 25Hz - 200 Hz
  • Recommended Lo Pass Crossover: 90 Hz
MOTOR SPECIFICATIONS:

  • Voice Coil Diameter: 2.5" / 61.6mm
  • VC Former Material: Aluminum
  • Winding Material: Copper
  • Cone Material: Non Pressed Paper
  • Dust Cap Material: PPI
  • Surround Material: Foam
  • Basket Material: Steel
  • Basket Color/Finish: Matte Black
  • Magnet Material: Ferrite
  • Magnet Weight: 100 oz
  • Displacement Volume: 0.07 ft3
THIELE & SMALL PARAMETERS:

  • Equivalent Volume: 22.7 L
  • Excursion (one way): 25mm
  • Free Air Resonance: 28Hz
  • Mechanical Factor: 5.08
  • Electrical Factor: 0.94
  • Total Factor: 0.79
  • Moving Mass: 268.1g
  • Compliance: 66.4µ m/N
  • BL Factor: 10.7
  • Voice Coil Inductance: 818.8m mH
  • Cone Area: 502.73 Cm2
  • DC Resistance: 3.4 + 3.4 ohm
  • Efficiency Bandwidth Product: 29.8
DIMENSIONS:

  • Overall Diameter: 12.44" / 316mm
  • Overall Depth: 7.7"/195.56mm
  • Front Mount Baffle Cutout: 11"/279.43mm
  • Mounting Depth: 6.6"/168mm
  • Motor Diameter: 6.1" / 155mm
  • Package dimensions: 14.48 x 13.66 x 9.92 inches
  • Product weight: 18.3 pounds/292.8 Ounces
