DS18 ZR10.4D 10" 1400W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer

Name: DS18 ZR10.4D 10" 1400W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer
Brand: DS18
SKU: ZR10.4D
Price: 149.95 USD
Availability: InStock

$149.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 ZR10.4D

10-inch 1400 Watts Max Dual 4-Ohm Voice Coil DVC Car Subwoofer

Key Features:

10" Subwoofer
MAX Power: 1400 Watts
RMS Power: 700 Watts
Impedance: 4-Ohm 2.5" DVC
Ferrite Magnet
81dB

Specifications:

SKU: ZR10.4D
Nominal Diameter: 10" / 254mm
Nominal Impedance: 4 + 4 Ohm
RMS Power Handling: 700W
Maximum Power Handling: 1400W
Sensitivity (1w/1m): 81 dB
Frequency Response: 27-200Hz
Recommended Lo Pass Crossover: 100Hz

Motor Specs:

Voice Coil Diameter 2.5" / 61.6mm
VC Former Material Aluminum
Winding Material Copper
Cone Material Non Pressed Paper
Dust Cap Material PPI
Surround Material Foam
Basket Material Steel
Basket Color/Finish Matte Black
Magnet Material Ferrite
Magnet Weight 100 oz
Displacement Volume 0.05 ft3

Thiele & Small Parameters:

Equivalent Volume 8.18 L
Excursion (one way) 25mm
Free Air Resonance 37Hz
Mechanical Factor 4.86
Electrical Factor 0.93
Total Factor 0.78
Moving Mass 216.3g
Compliance 52.8µ m/N
BL Factor 10.7
Voice Coil Inductance 823.5m mH
Cone Area 333.29 Cm2
DC Resistance 3.4 + 3.4 ohm
Efficiency Bandwidth Product 39.78

Measurements:

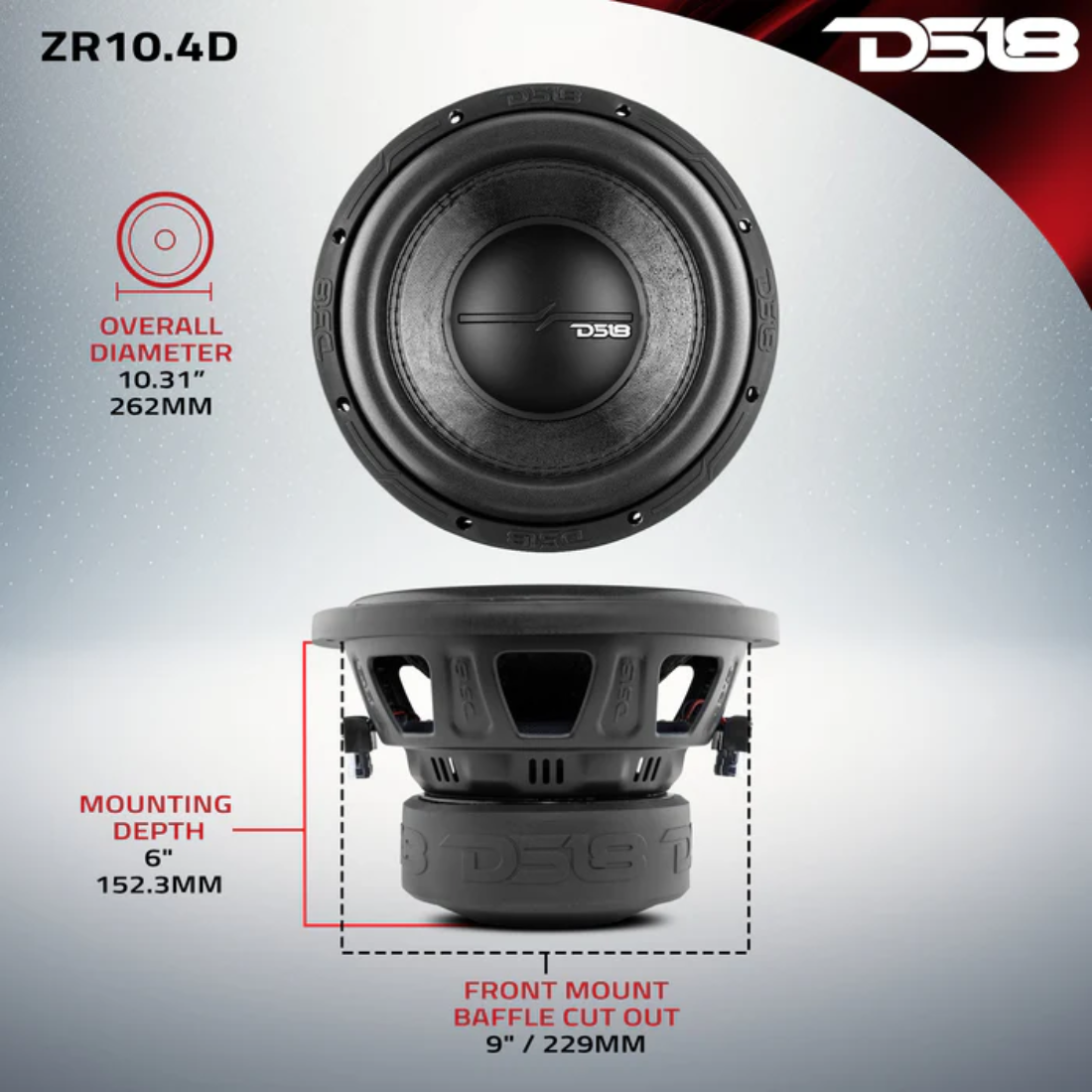

Overall Diameter 10.31” / 262mm
Overall Depth 6.92" / 176mm
Front Mount Baffle Cutout 9" / 229mm
Mounting Depth 6" / 152.3mm
Motor Diameter 6.1" / 155mm
Gross Single Unit Weight (lb): 17.5
Dimensions W x L x H (Inches): 11.5 x 11.5 x 8.25
