DS18 SXE-1500.1D/BK 1-CH Monoblock 1500W Peak Class-D Compact Amplifier (BLACK)

DS18 SXE-1500.1D/BK 1-CH Monoblock 1500W Peak Class-D Compact Amplifier (BLACK)

$169.95 USD
$169.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 SXE-1500.1D/BK

1-Channel / Monoblock 1500W Peak Class-D Compact Amplifier (BLACK)

With RMS power ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm, it delivers exceptional performance for any subwoofer setup. Designed in a compact size for easy installation, the SXE-1500.1D fits perfectly into all setups without sacrificing space. Its Class D digital design ensures high-efficiency amplification for clear, crisp sound at all volumes. The amplifier's robust 1-ohm stability guarantees reliable performance even under demanding conditions.

Key Features:

  • SKU: SXE-1500.1D
  • Total Watts (Peak): 1500W
  • RMS Power @ 4 ohm: 200W
  • RMS Power @ 2 ohm: 350W
  • RMS Power @ 1 ohm: 500W
  • Amplifier Class: Digital (D)
  • Amplifier Type: Monoblock Subwoofer
  • Number of Channels: 1
  • Minimum Impedance: 1 Ohm
  • Led Indicator: Power/Protect/Clip
  • Power Input Terminal Size: 4Ga
  • Fuse Size: 2 x 30A (60A)
  • Remote Level Control: Yes
  • Cooling Fan: No
  • Voltmeter: No
  • Thermal Protection: Yes (70°)
  • Over-Load Protection: Yes
  • DC Output Protection: Yes
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes (16.5v)
  • Clipping Protection: Yes
  • Body Color / Finish: Black Brushed Aluminum
Audio Features:

  • Frequency Response: 10Hz-250Hz
  • Signal to Noise Ratio: 90dB
  • Efficiency @ 4ohm: 80%
  • Damping Factor: 140
  • Input Impedance: 20kΩ
  • Channel Separation: N/A
  • Total Harmonic Distortion (THD): 0.05%
  • Low-Level Input Range: 200mV-5V
  • High-Level Input: No
  • Selectable X-Over: Fixed LPF
  • X-Over Filter Range: 50-250Hz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: 45Hz
  • Infrasonic Filter: 10-55Hz
  • Phase Selector: 0-180°
Extra Features:

  • Compact Size to easy Installation for Any Applications: Yes
  • Stable/Reliable Two or Four Layers Traces PCB Design: Yes
  • Surface Mount Component Technology: Yes
  • Quality Control Verification using Audio Precision Instruments: Yes

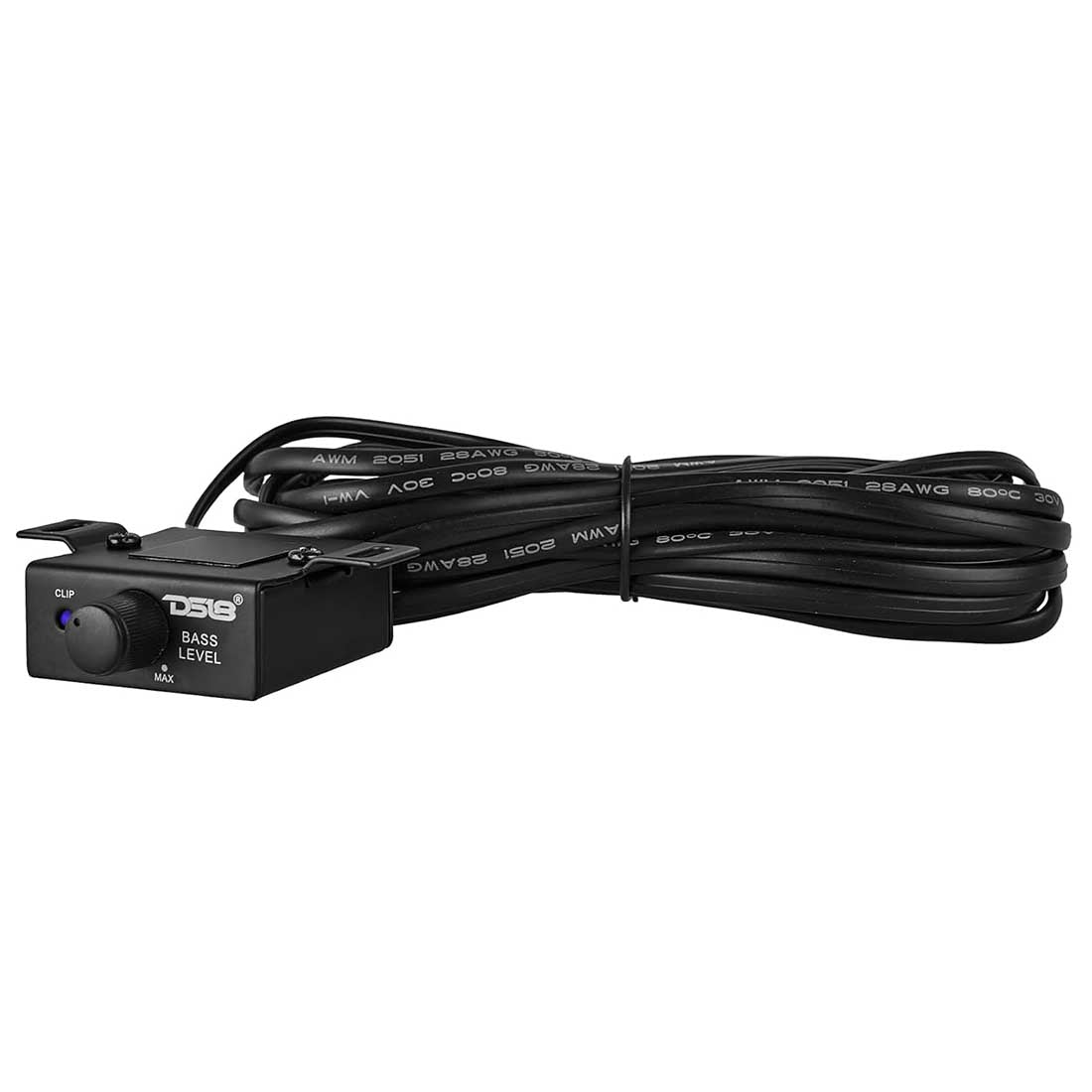

  • Remote Level Control with Clip Indicator: Yes
Measurement:

  • Overall Length: 7.68" / 195mm
  • Overall Width: 5.5" / 140mm
  • Overall Height: 1.8" / 48mm
  • Heatsink Length: 6.18" / 157mm
  • Gross Single Unit Weight: 1.4kg
