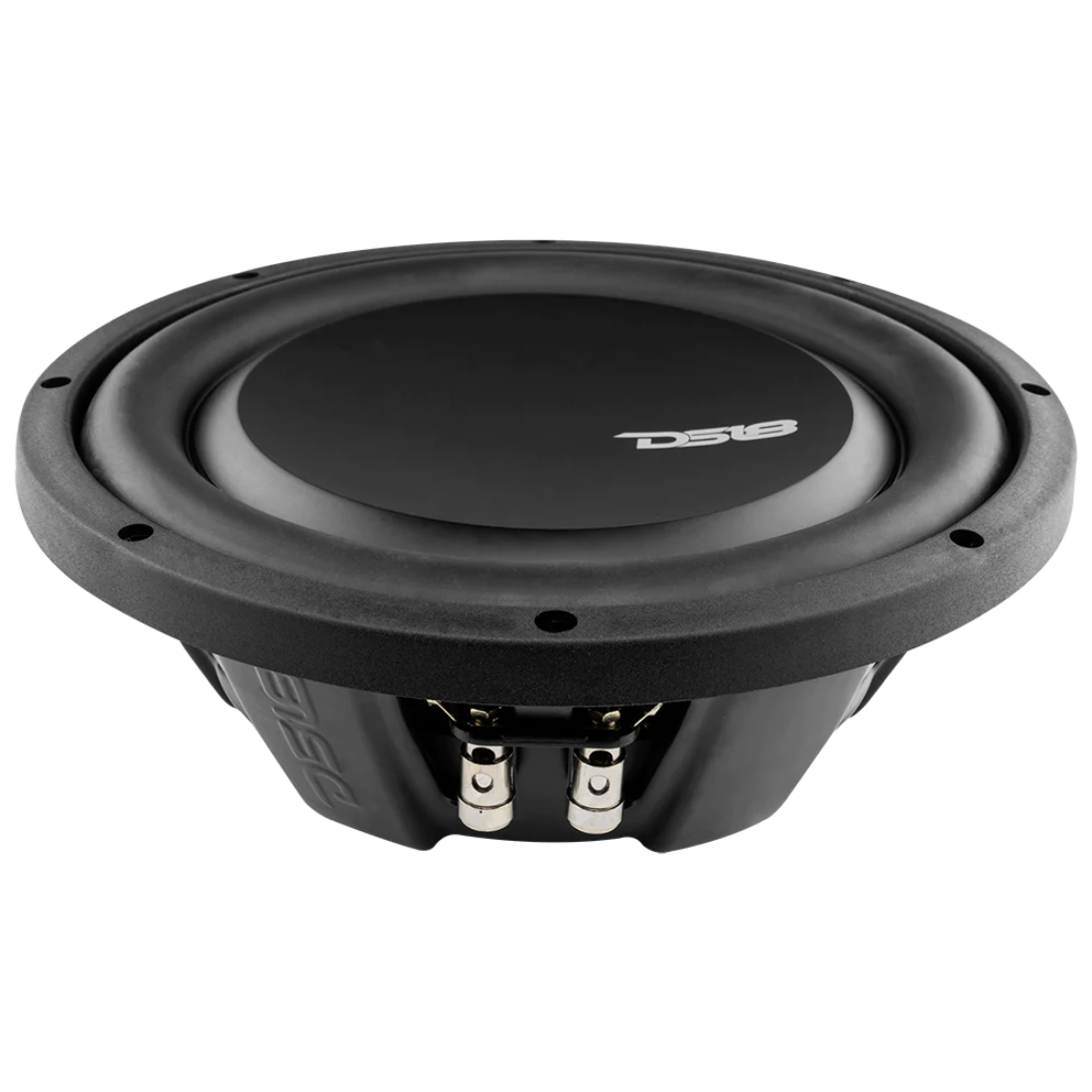

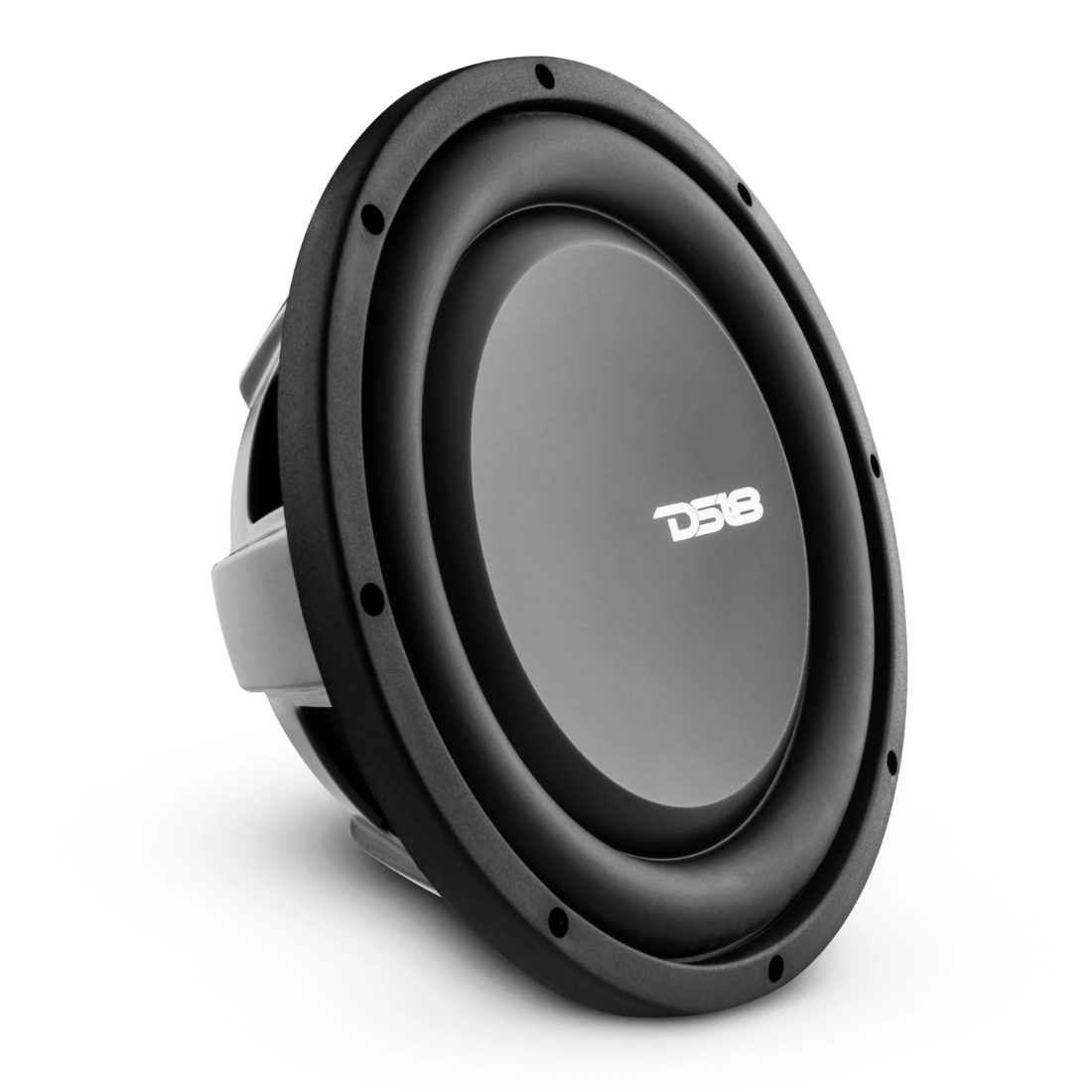

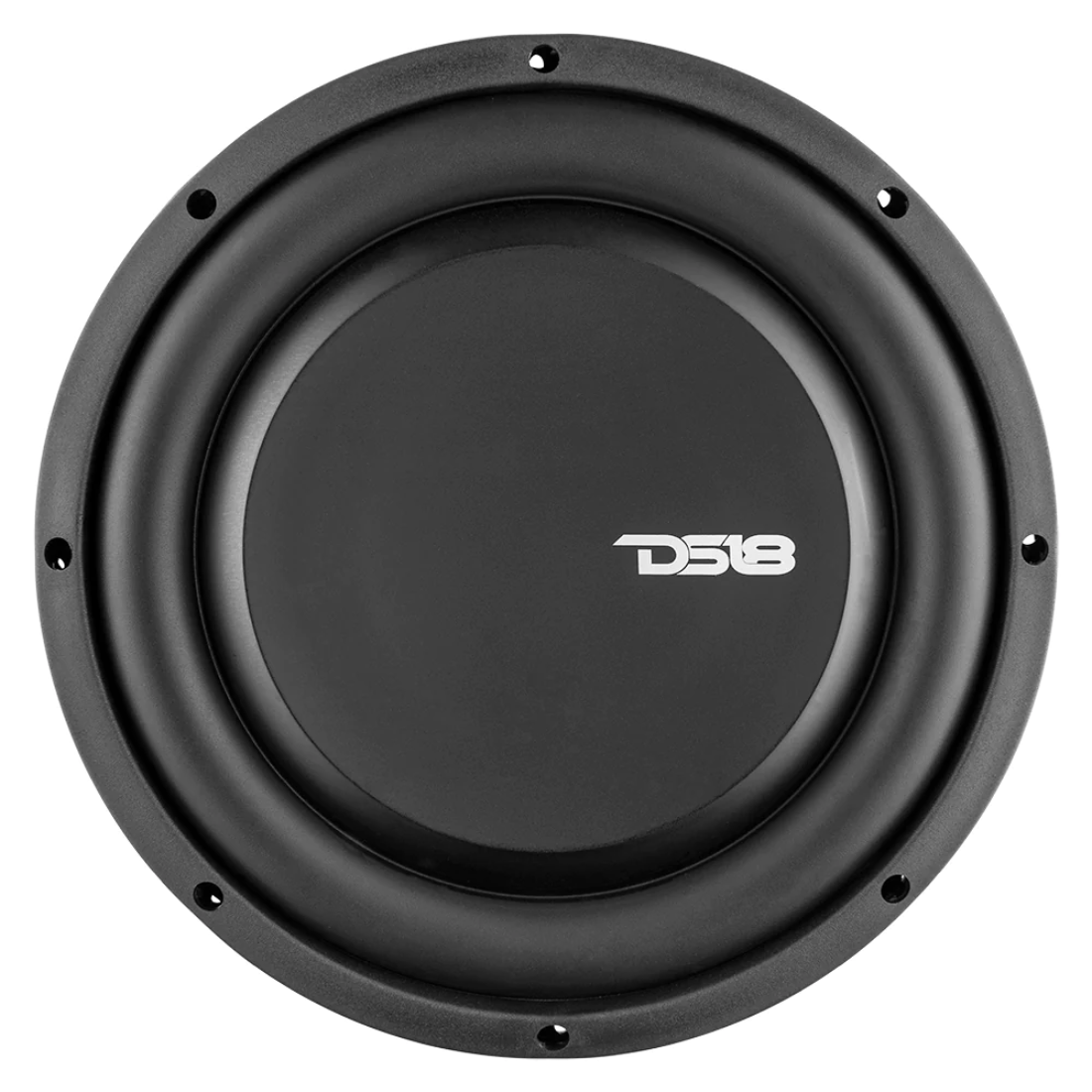

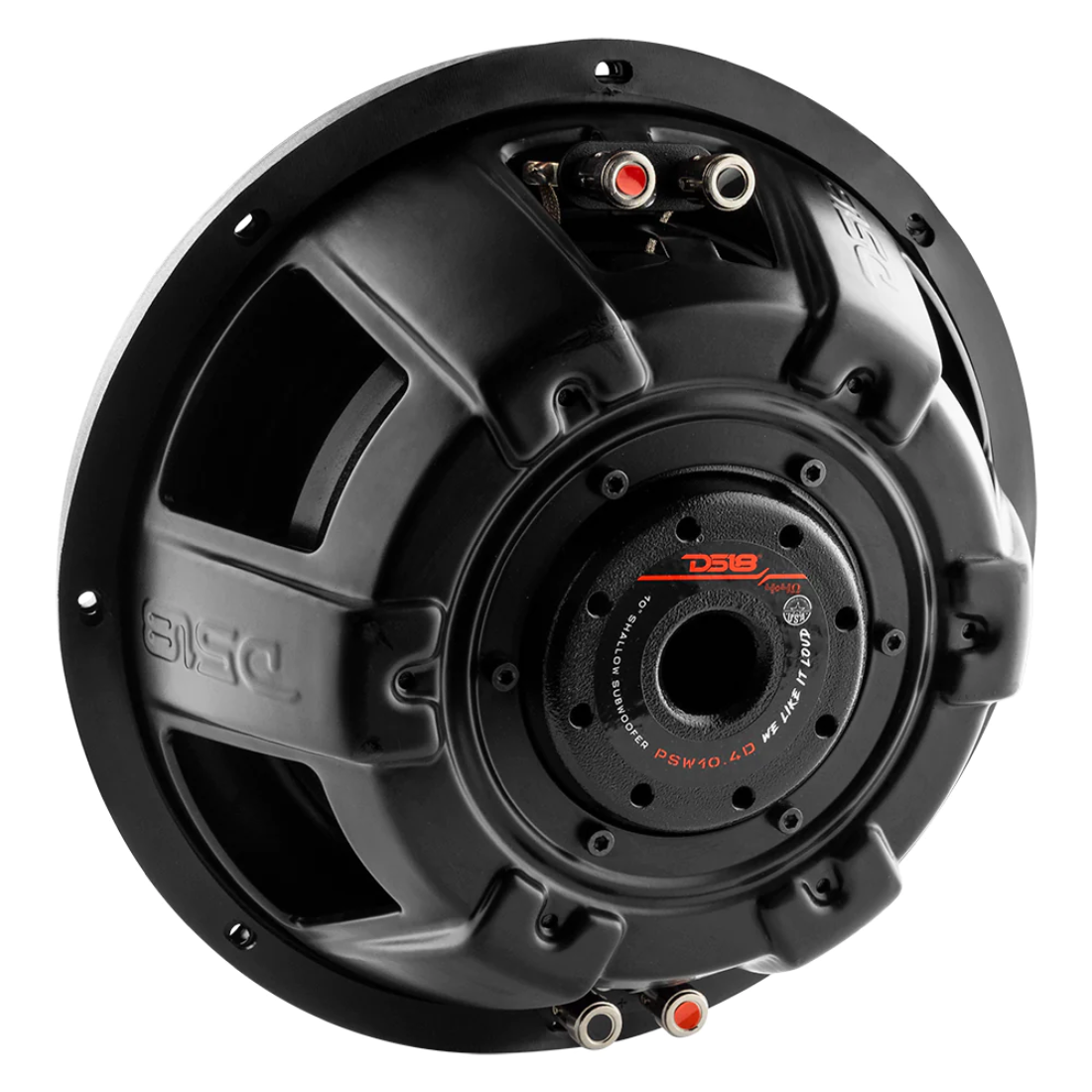

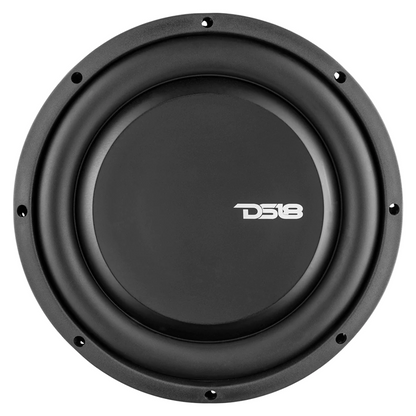

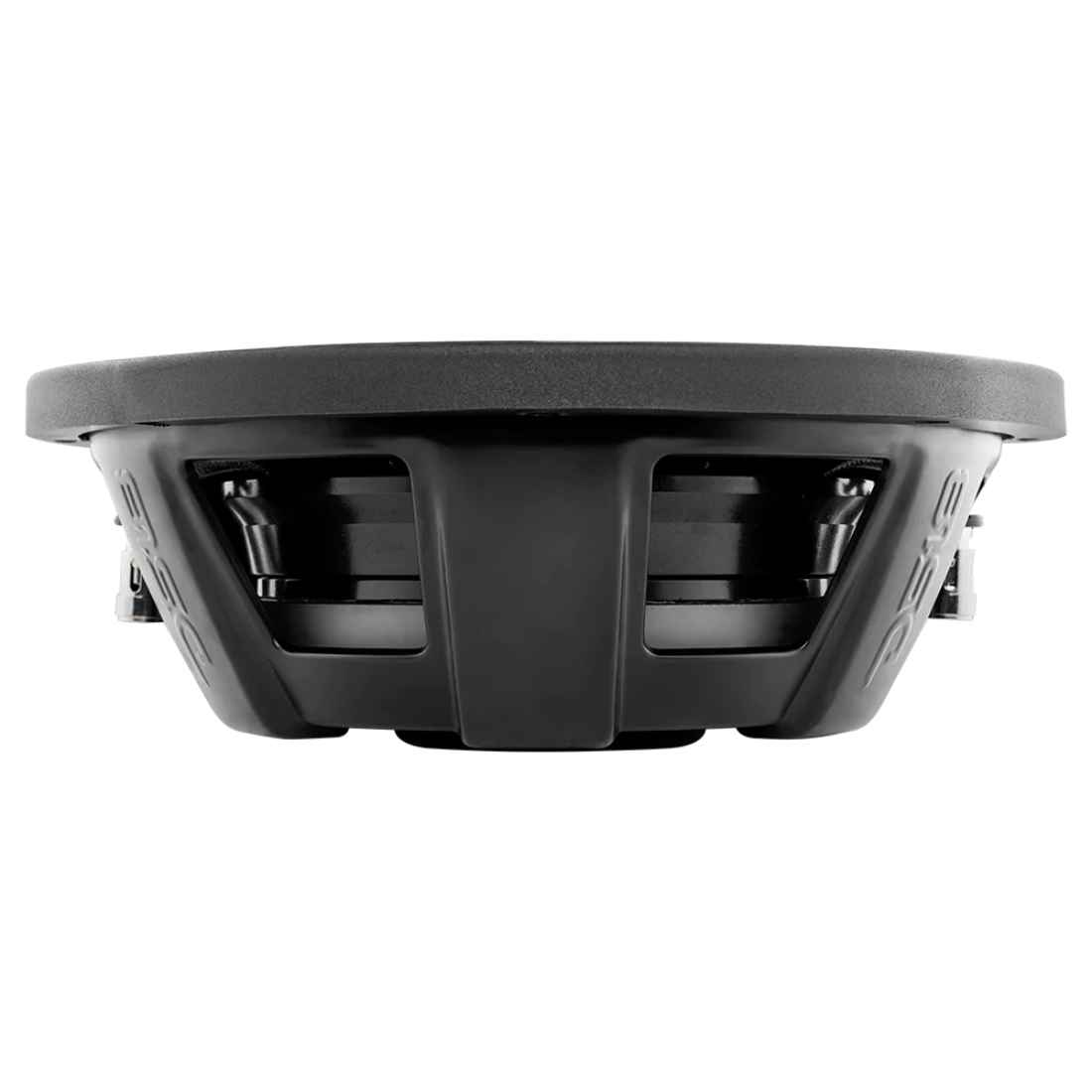

DS18 PSW10.4D 10" 1000W Max Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer

Name: DS18 PSW10.4D 10" 1000W Max Dual 4-Ohm Voice Coil DVC Shallow Mount Subwoofer
Brand: DS18
SKU: PSW10.4D
Price: 149.95 USD
Availability: InStock

$149.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 PSW10.4D

10-Inch 1000Watts Max Dual 4-Ohm DVC Car Audio Shallow Mount Subwoofer

Specifications:

SKU: PSW10.4D
Nominal Diameter: 10" / 254 mm
Nominal Impedance: 4 + 4 Ohms
RMS Power Handling: 500 W
Maximum Power Handling: 1000 W
Sensitivity (1w/1m): 84 dB
Frequency Response: 20 - 800 Hz
Recommended Lo Pass Crossover: 90 Hz

Motor Features:

Voice Coil Diameter: 2.5" / 63.5 mm
Voice Coil Former Material: Aluminum
Winding Material: Copper
Cone Material: Water Resistant PPI
Surround Material: Rubber
Basket Material: Steel
Basket Color/Finish: Matt Black
Magnet Material: Ferrite
Magnet Weight: 58 Oz
Displacement Volume: 0.8L / 0.028ft3

Thiele & Small Parameters:

Equivalent Volume Vas: 25.6L / 0.9ft3
Free Air Resonance Fs: 32 Hz
Mechanical Factor Qms: 3.612
Electrical Factor Qes: 0.76
Total Factor Qts: 0.63
Moving Mass Mms: 154 g
Compliance Cms: 0.161 mm/N
Bl Factor BI: 8.57
Voice Coil Inductance Le: 2.1 mH
Diaphragm Area Sd: 336.54 cm2
DC Resistance Re: 3.6+3.6 Ohms
Efficiency Bandwidth Product EBP: 42

Recommended Enclosures:

Sealed Internal Volume (minimum): 14.2L / 0.5ft3
Sealed Box Output Response F3: 44 Hz

Measurement:

Overall Diameter: 10.23" / 260 mm
Overall Depth: 3.6" / 92 mm
Front Mount Baffle Cutout: 9.2" / 234 mm
Mounting Depth: 3" / 78 mm
Motor Diameter: 6.5" / 165 mm
Gross Single Unit Weight (lb): 11.5
Single Unit Box Dimensions W x L x H (Inches): 12.25 x 11.5 x 4.75
Quantity of Units in Master Carton: 2
Gross Master Carton Weight (lb): 24
Master Carton Dimensions W x L x H (Inches): 12.5 x 12 x 10
