DS18

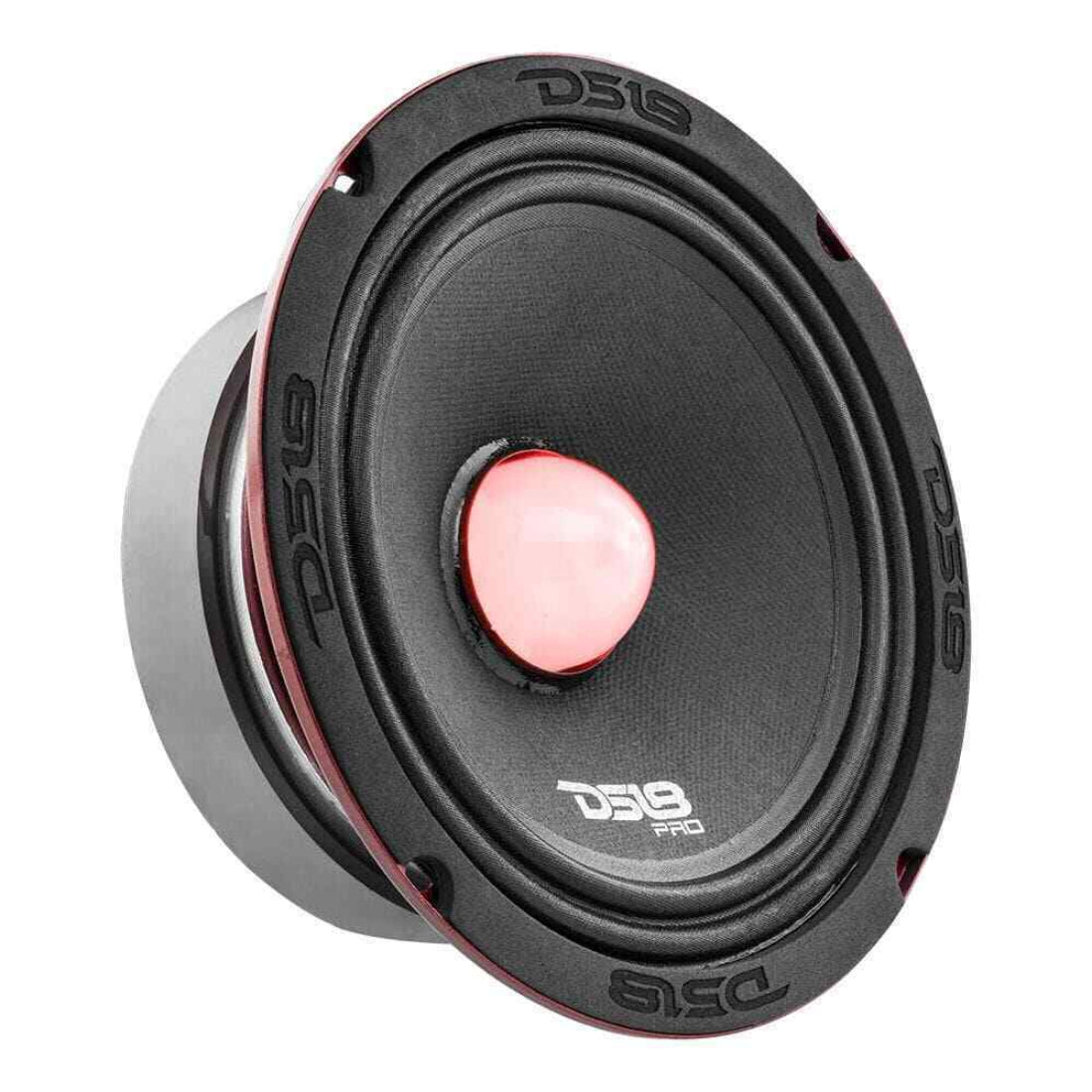

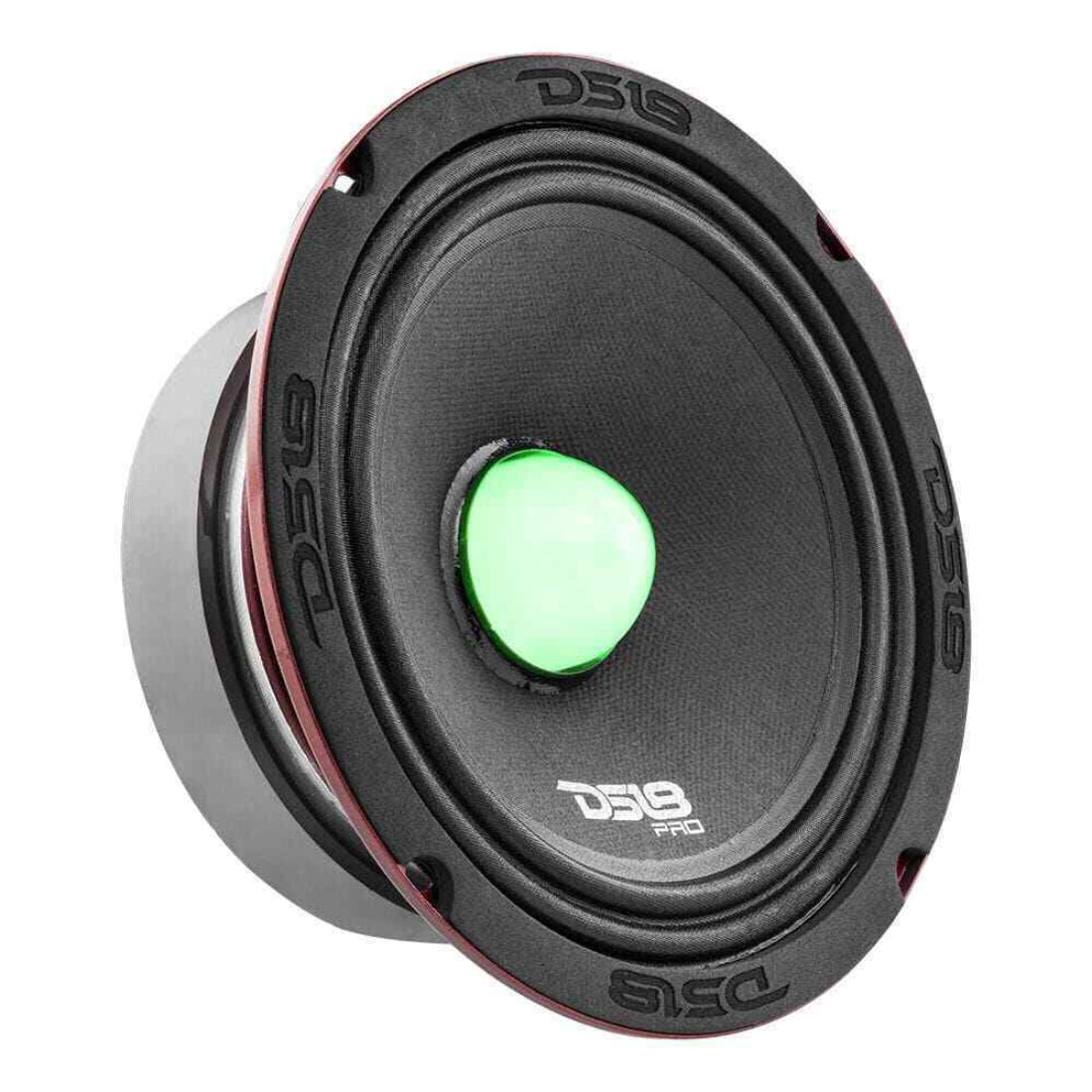

DS18 PRO-X6.4BMRGB 6.5" 500W Max 4-Ohm Car Mid-Range Speakers w/ RGB LED Lights
DS18 PRO-X6.4BMRGB 6.5" 500W Max 4-Ohm Car Mid-Range Speakers w/ RGB LED Lights
Regular price
$51.95 USD
Regular price
Sale price
$51.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 PRO-X6.4BMRGB
6.5-Inch 500 Watts Max 4 Ohms Car Audi Midrange Speakers with RGB LED Lights
Specifications:
- Nominal Diameter: 6.5"
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 250w
- MAX Power Handing: 500w
- Sensitivity (1w/1m): 94dB
- Frequency Response: 125Hz-12KHz
- Recommended HI Pass Crossover: 135 Hz
Motor:
- Voice Coil Diameter: 38.6mm / 1.5"
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Bullet Material: Translucid ABS with RGB LED
- Surround Material: Cloth
- Basket Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 30 Oz
- Displacement Volume: 0.032L
Thiele & Small Parameters:
- Equivalent Volume: Vas 2.349L
- Excursion (one way): Xmax 8.2mm
- Free Air Resonance: Fs 135Hz
- Mechanical Factor: Qms 7.707
- Electrical Factor: Qes 0.789
- Total Factor: Qts 0.716
- Mechanical Mass: Mms 10.718g
- Mechanical Compliance: Cms 0.094 m/N
- BL Factor: BL 6.689
- Voice Coil Inductance: Le 4.22mH
- Cone Area: Sd 132.73 mm2
- CD Resistance: Re 3.2 ohms
Measurements:
- Overall Diameter: 6.61" / 168mm
- Overall Depth: 2.83" / 72mm
- Front Mount Baffle Cutout: 5.70" / 145mm
- Mounting Depth: 2.64" / 67mm
- Motor Diameter: 4.68" / 119mm
