BRAND NEW

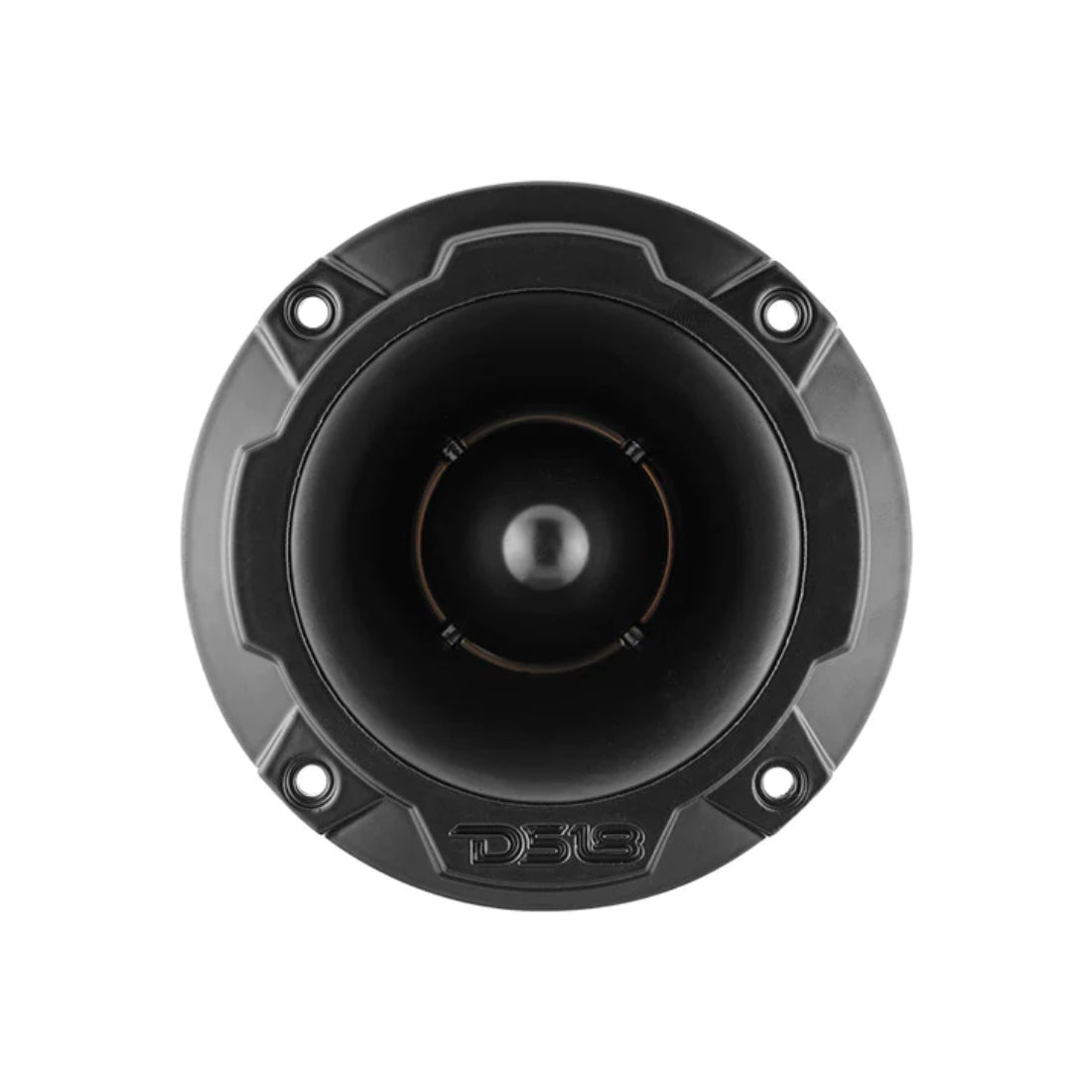

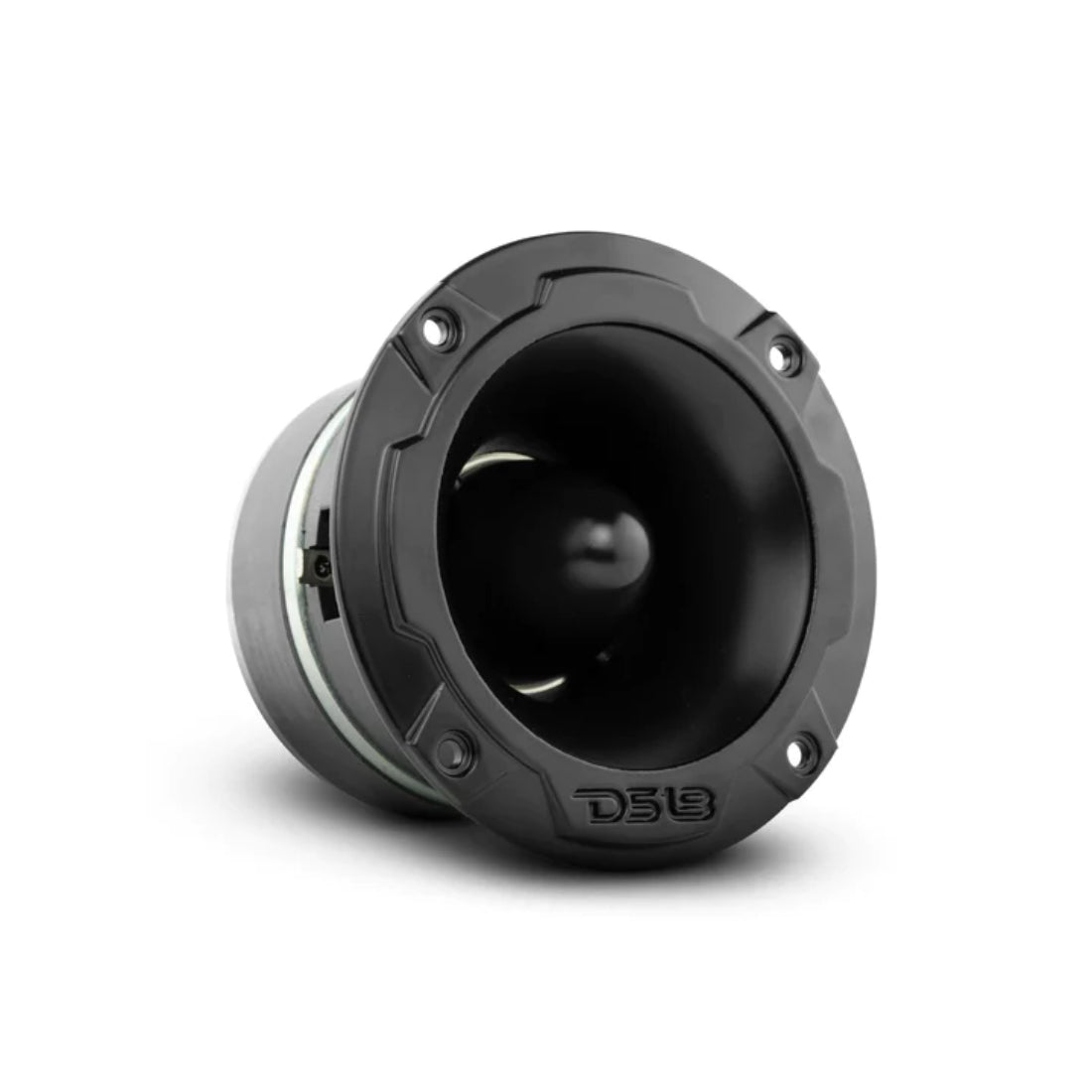

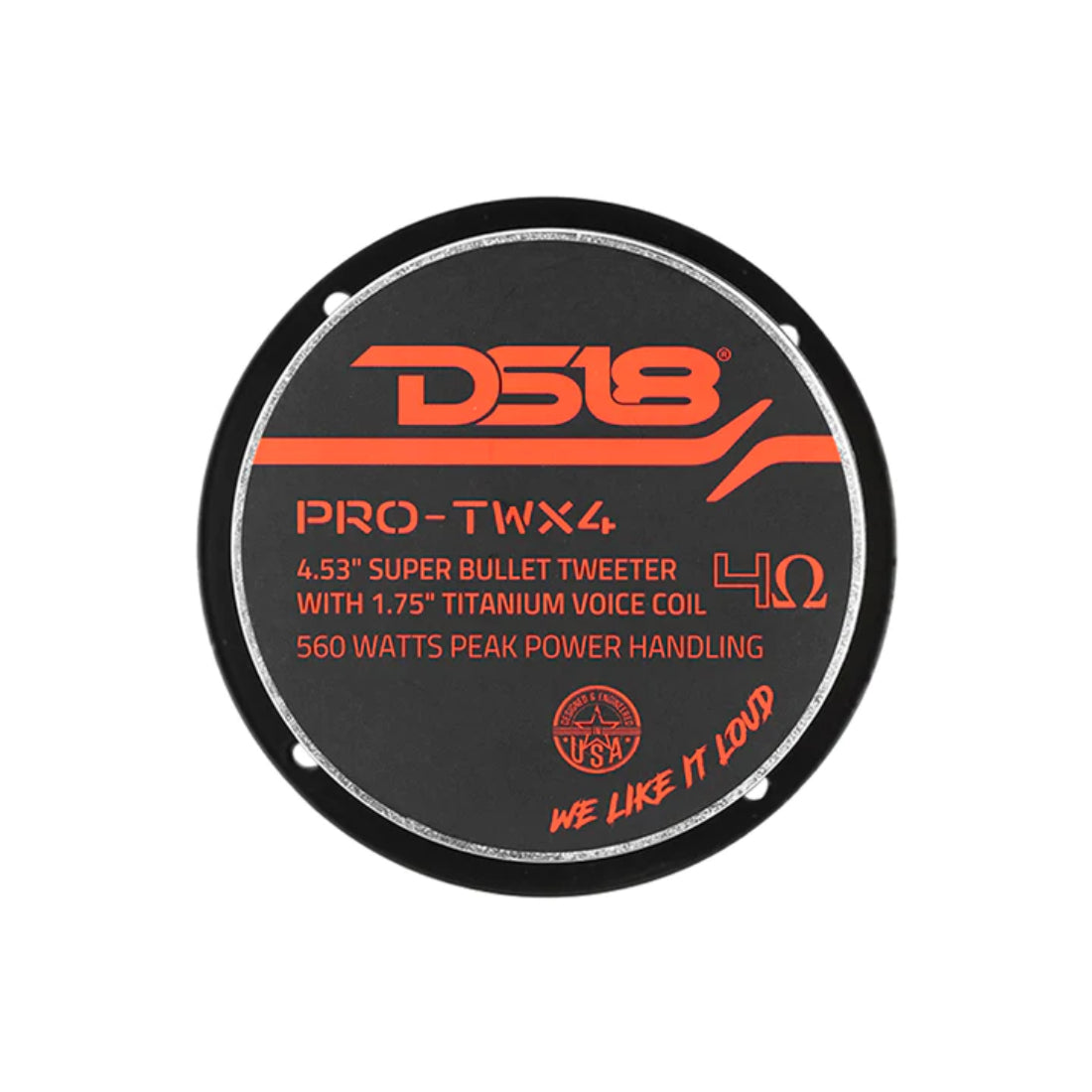

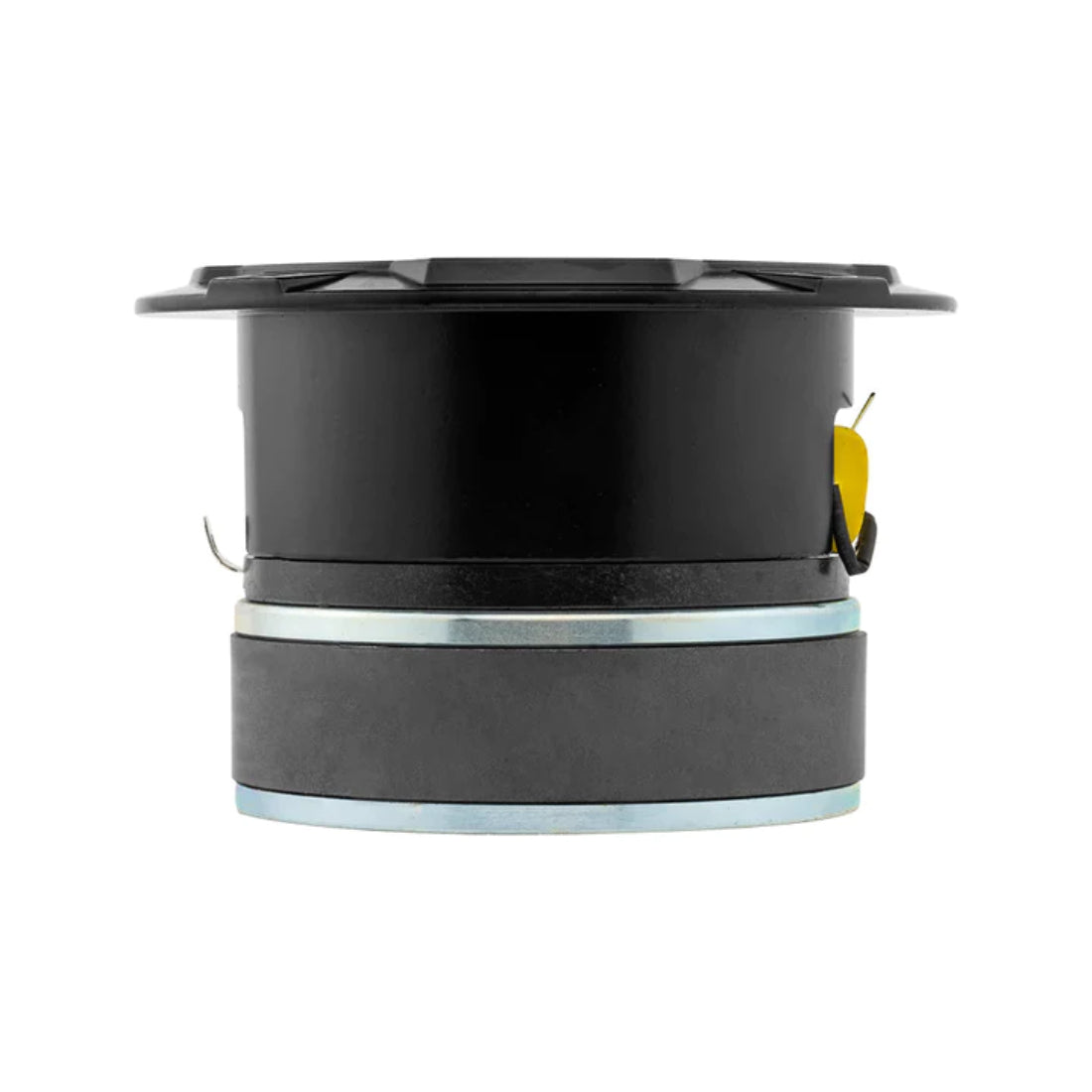

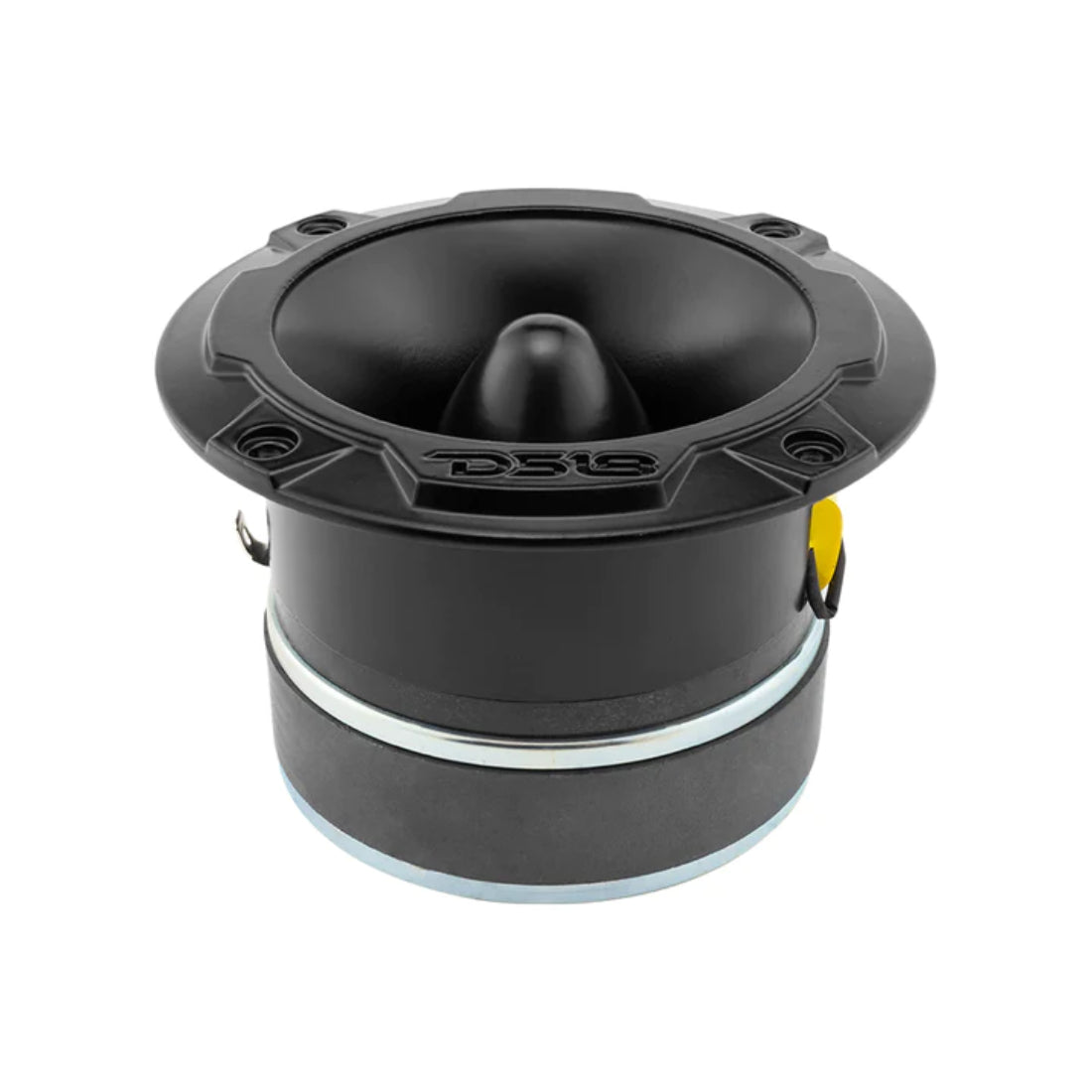

DS18 PRO-TWX4
PRO Series | 4.53-Inch 560 Watts Peak 1.75-Inch Titanium 4-Ohm VC Car Audio Super Bullet Tweeter
Key Features:
- Award-winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High-powered super tweeter made to emphasize extremely high notes with amazing precision and clarity.
- Easily disassembled so you can change your voice coil on the go in minutes.
- With a massive 1.75 inch 4 ohms voice coil, these monster tweeters have a Peak wattage of 520w for insane highs at extreme volumes.
Specifications:
- Nominal Diameter: 4.53” / 115mm
- Nominal Impedance: 4 Ohms
- AES Power Handling: 140W
- Program Power Handling: 280W
- Peak Power Handling: 560W
- Sensitivity (1w/1m): 108 dB
- Frequency Response: 1.5KHz-20KHz
- Recommended Hi Pass Crossover: 2KHz
- Pair or Single: Single
- Voice Coil Diameter: 1.75” / 44.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Diaphragm Material: Titanium
- Magnet Material: Ferrite
- Magnet Weight: 16 oz
- Body Material: Aluminum
- Bullet Material: Aluminum
- Overall Diameter: 4.53” / 115mm
- Overall Depth: 3.01“ / 76.5mm
- Front Mount Baffle Cutout: 3.62” / 92mm
- Mounting Depth: 2.76” / 70mm
- Motor Diameter: 3.56” / 90mm
