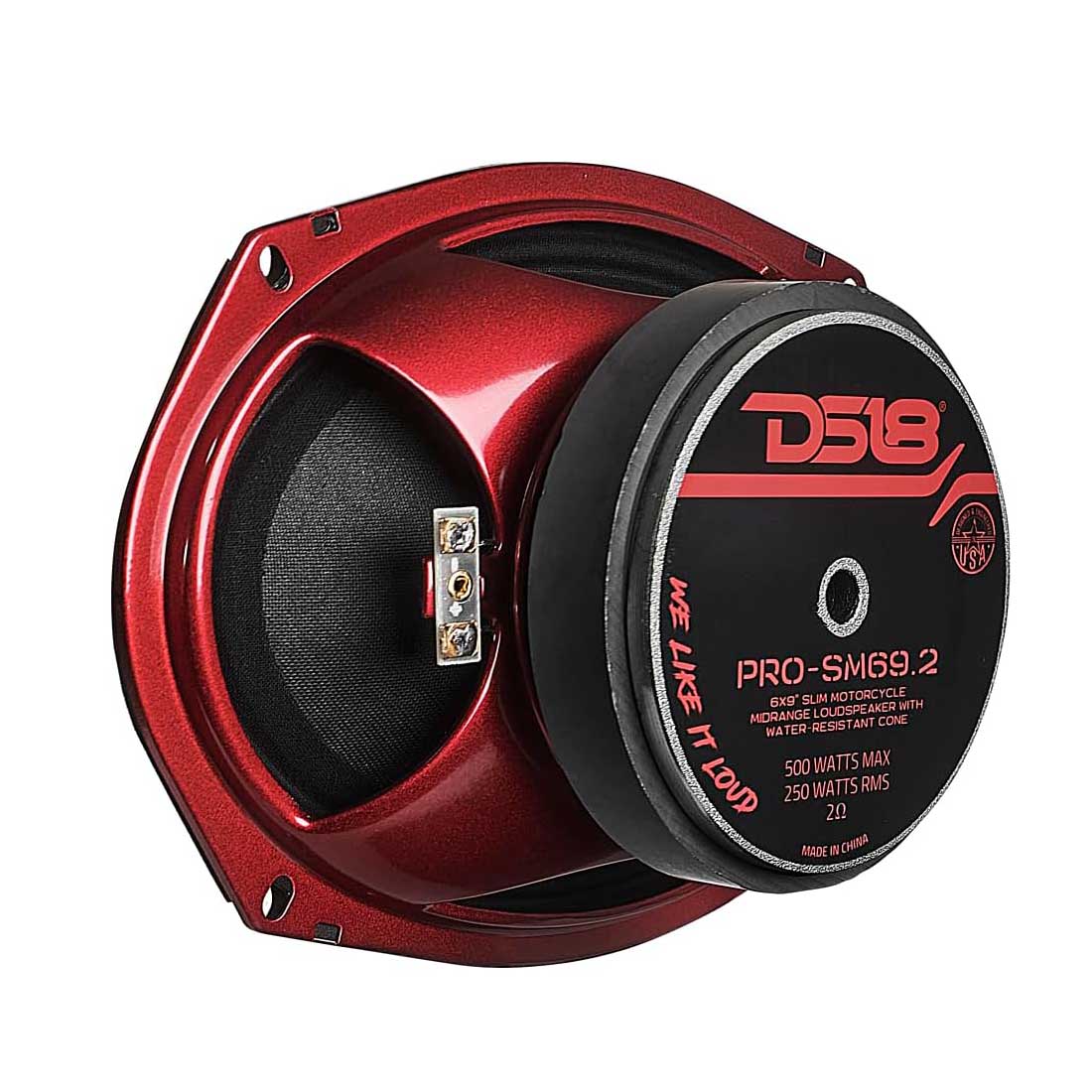

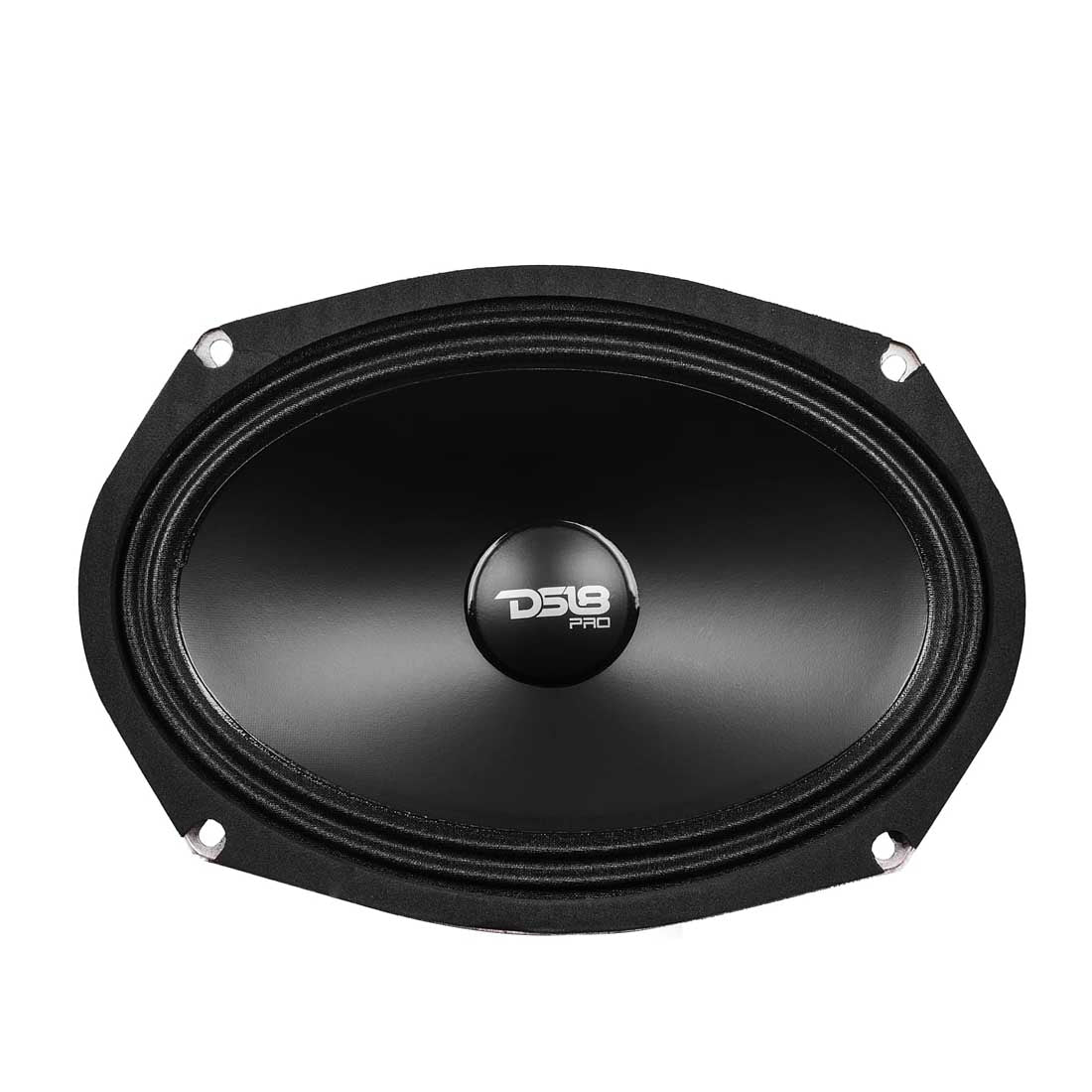

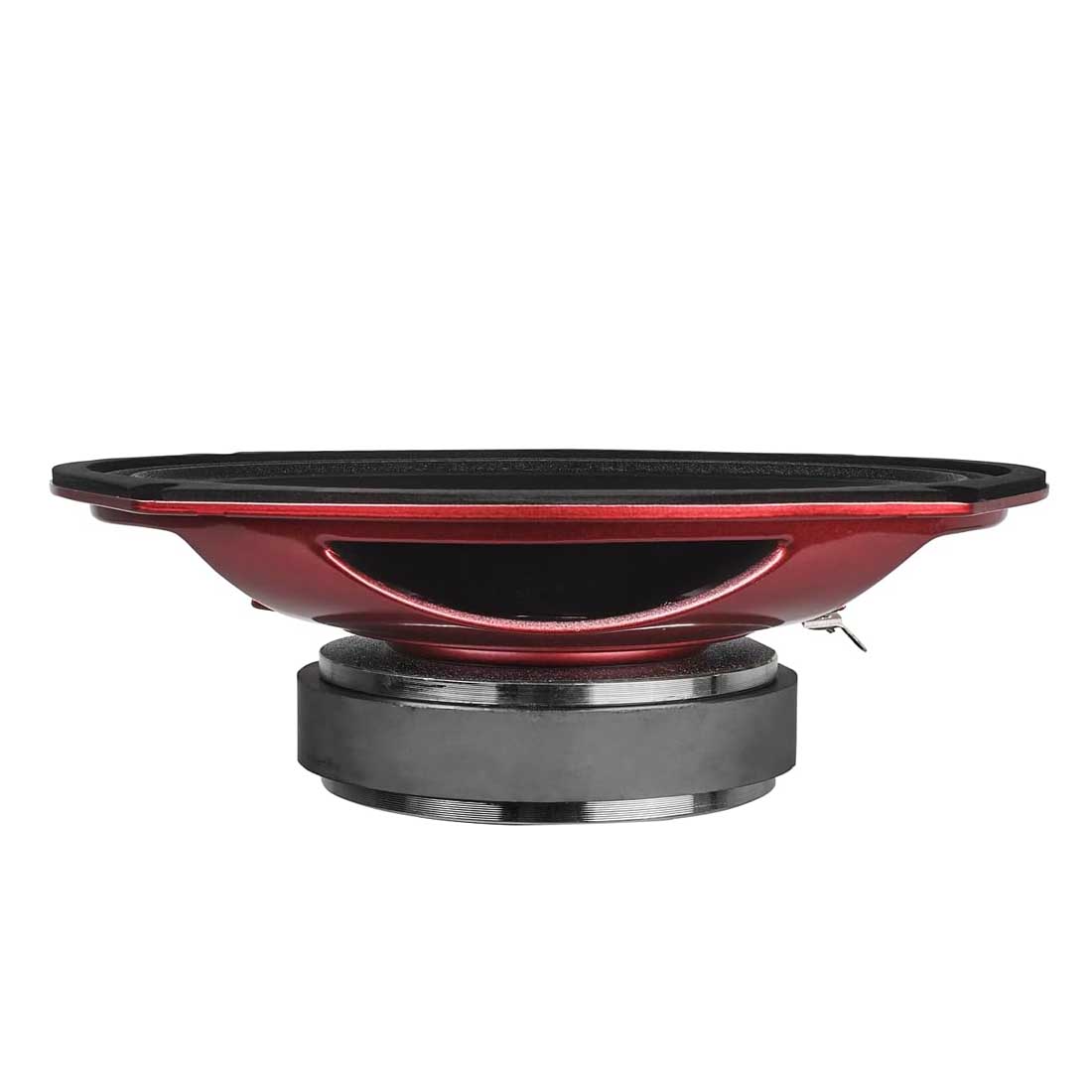

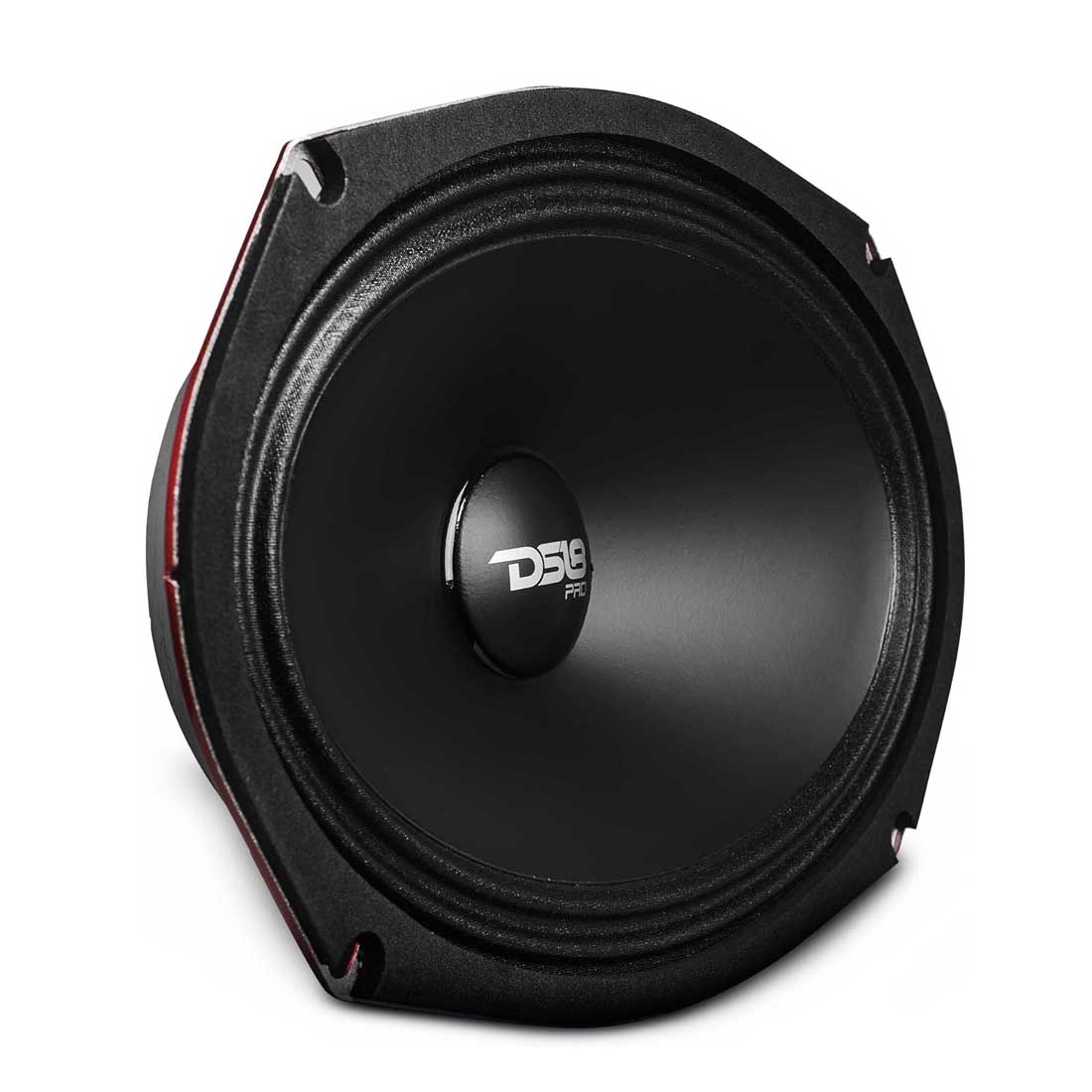

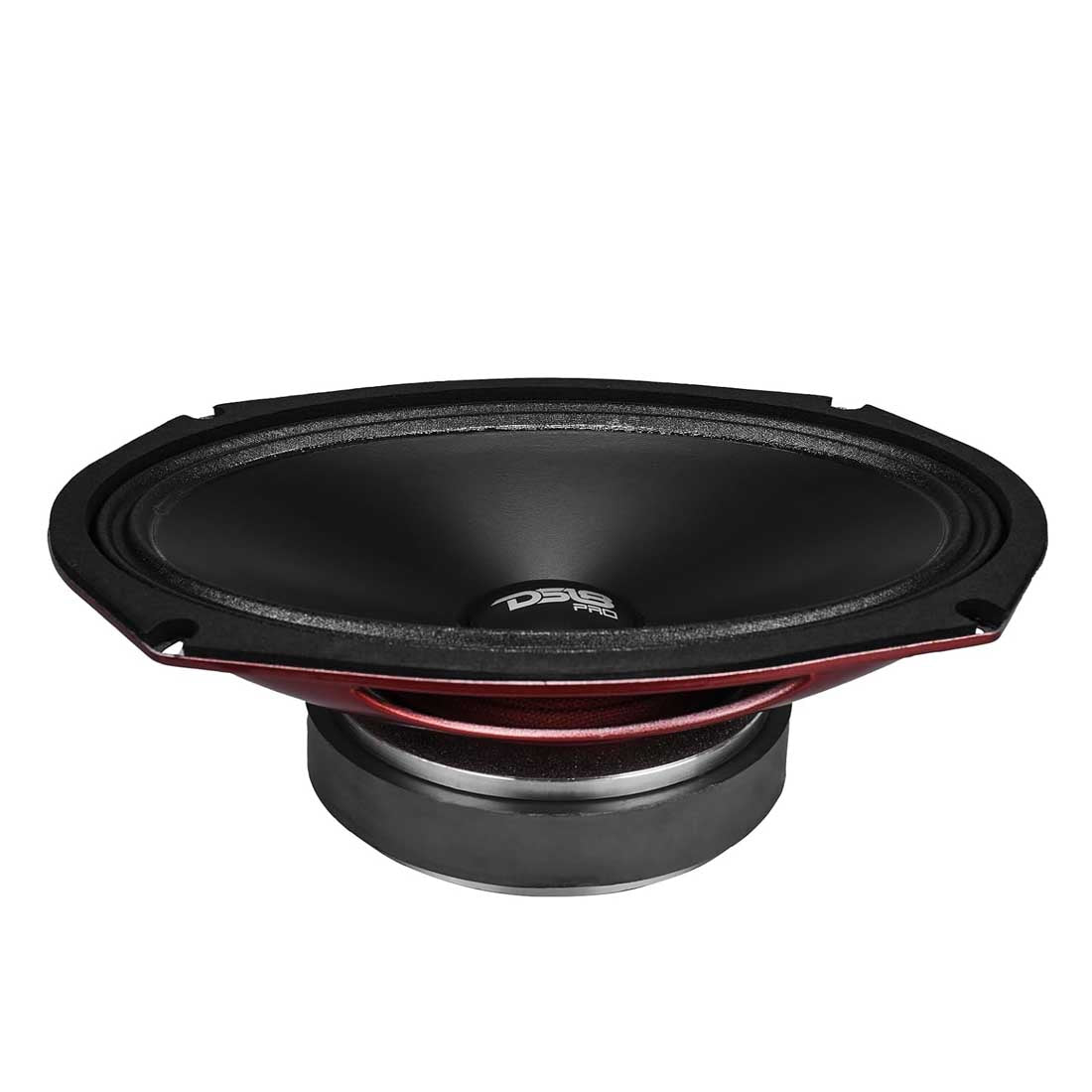

6" x 9" 500W Max Water Resistant Shallow Mid-Range Loudspeaker
Crafted with meticulous attention to detail, the PRO-SM69.2 features premium materials that contribute to its exceptional performance. It boasts a water-resistant cone, ensuring that rain or water splashes won't dampen your audio experience. The cloth edge surround enhances sound accuracy and durability, while the red steel basket provides a sturdy foundation for optimal sound reproduction.
Key Features:
SKU: PRO-SM69.2
Nominal Diameter: 6x9" / 152.4 mm x 228.6 mm
Nominal Impedance: 2 OHMS
RMS Power Handing: 250 Watts
Maximum Power Handing: 500 Watts
Sensitivity (1w/1m): 96 dB
Frequency Response: 60 Hz-5 Khz
Recommended Hi Pass Crossover: 120 Hz
Voice Coil Diameter: 1.5" / 38.1 mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Basket Material: Steel
Magnet Weight: 33 Oz
Thiele & Small Parameters:
Vas: 10.147 L
Xmax: 6.7 mm
Fs: 110 Hz
Qms: 7.358
Qes: 0.959
Qts: 0.848
Re: 2 OHMS
Measurements:
Overall Diameter: 9.25" x 6.57" / 235 mm x 167 mm
Front Mount Baffle Cutout: 8.6" x 6" / 220 mm x 152 mm
