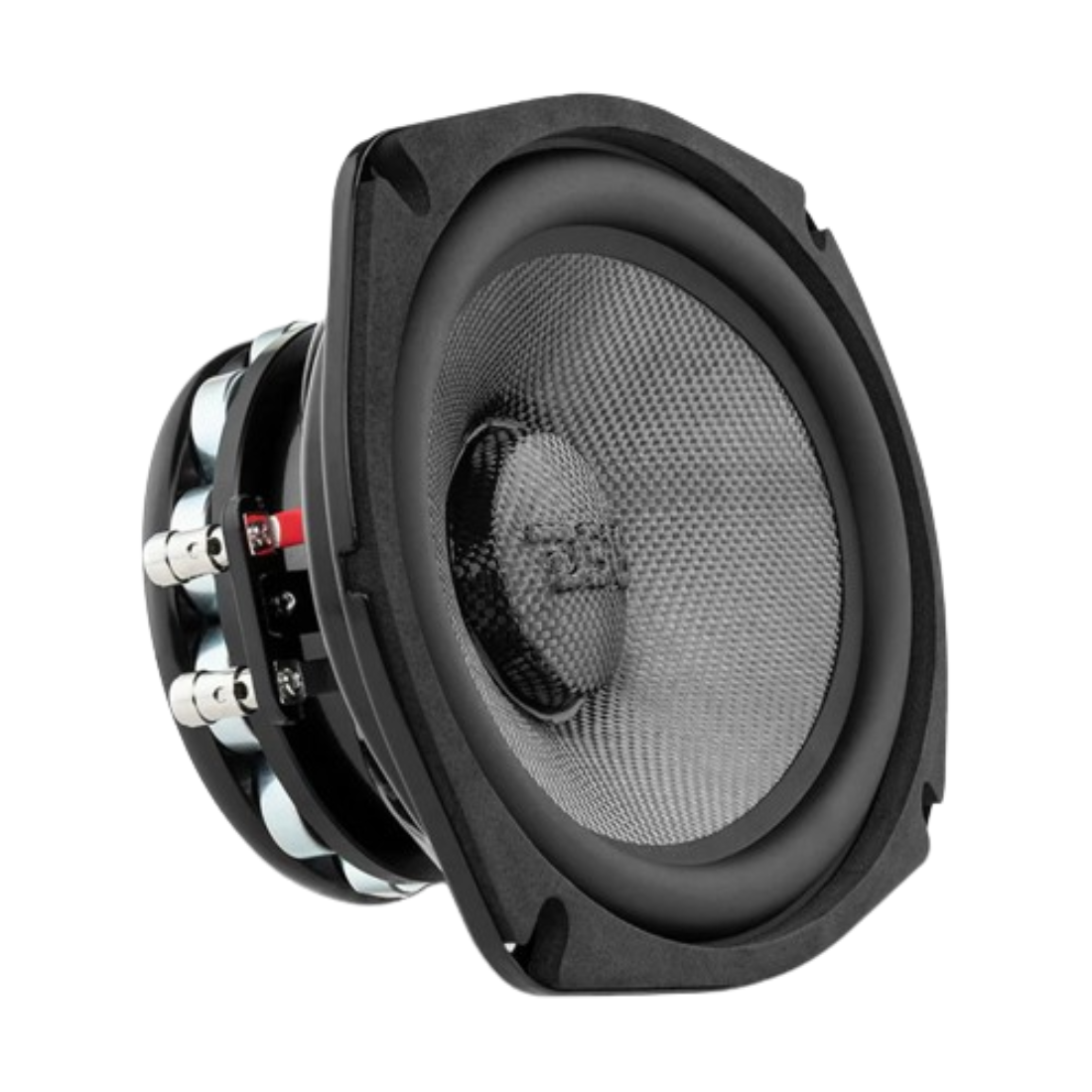

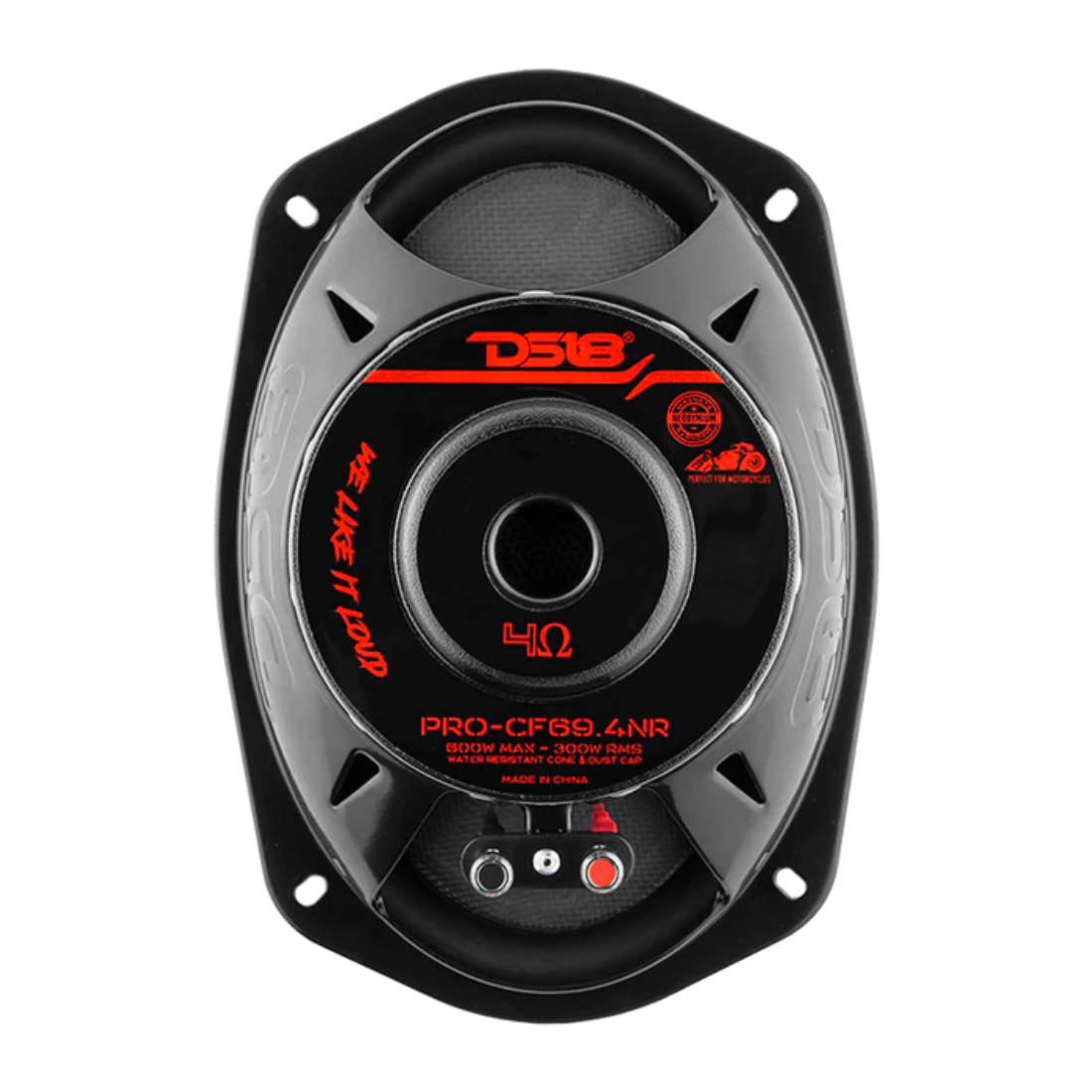

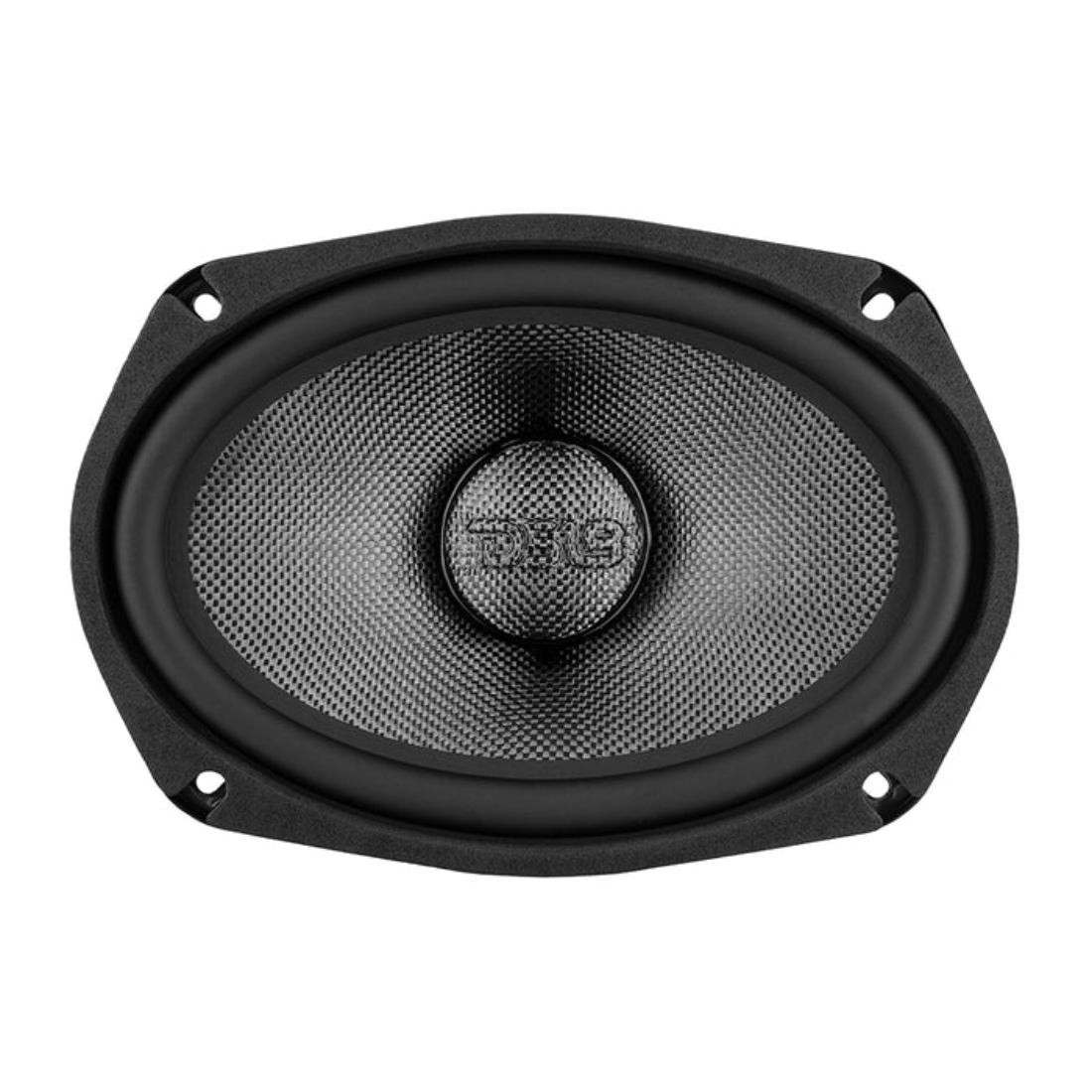

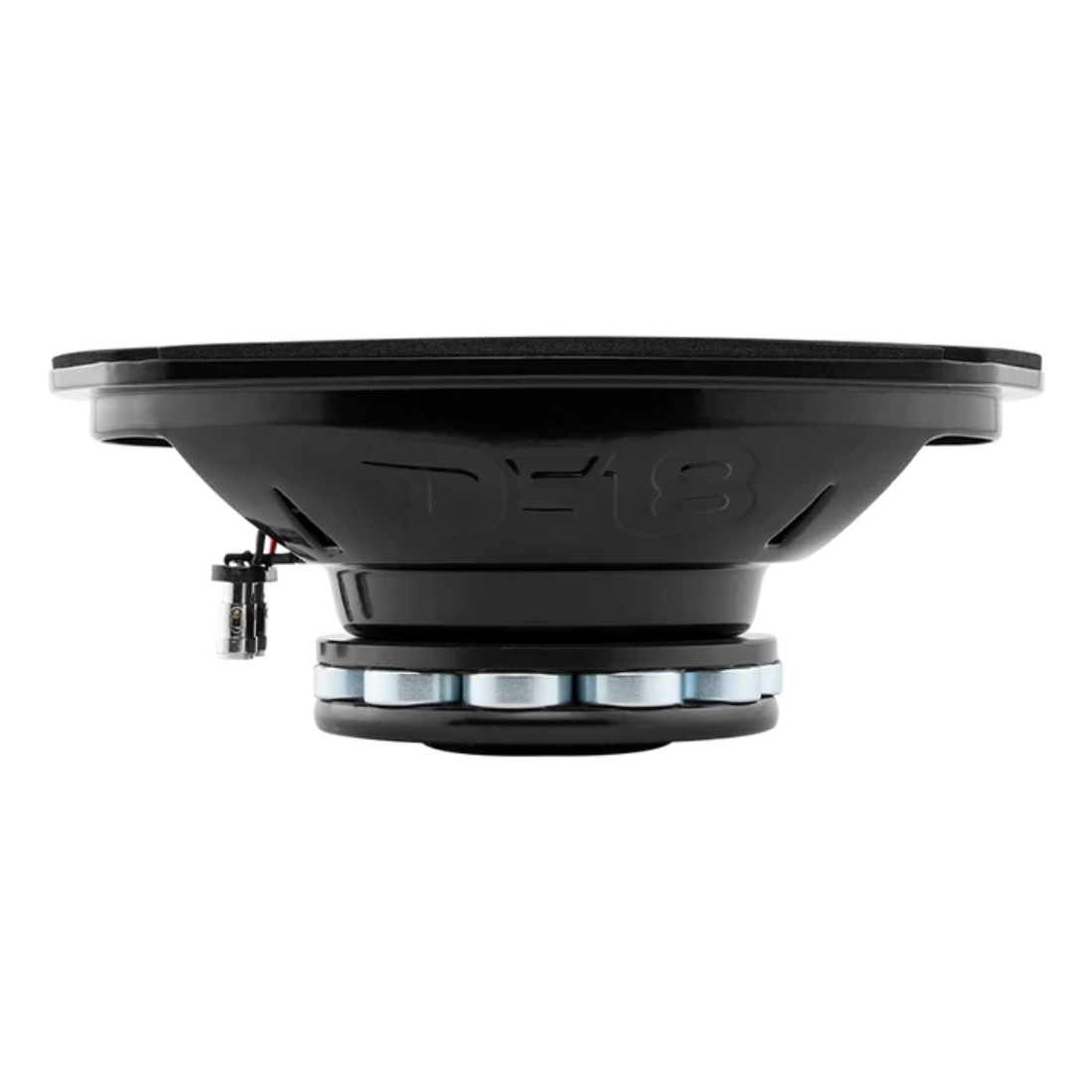

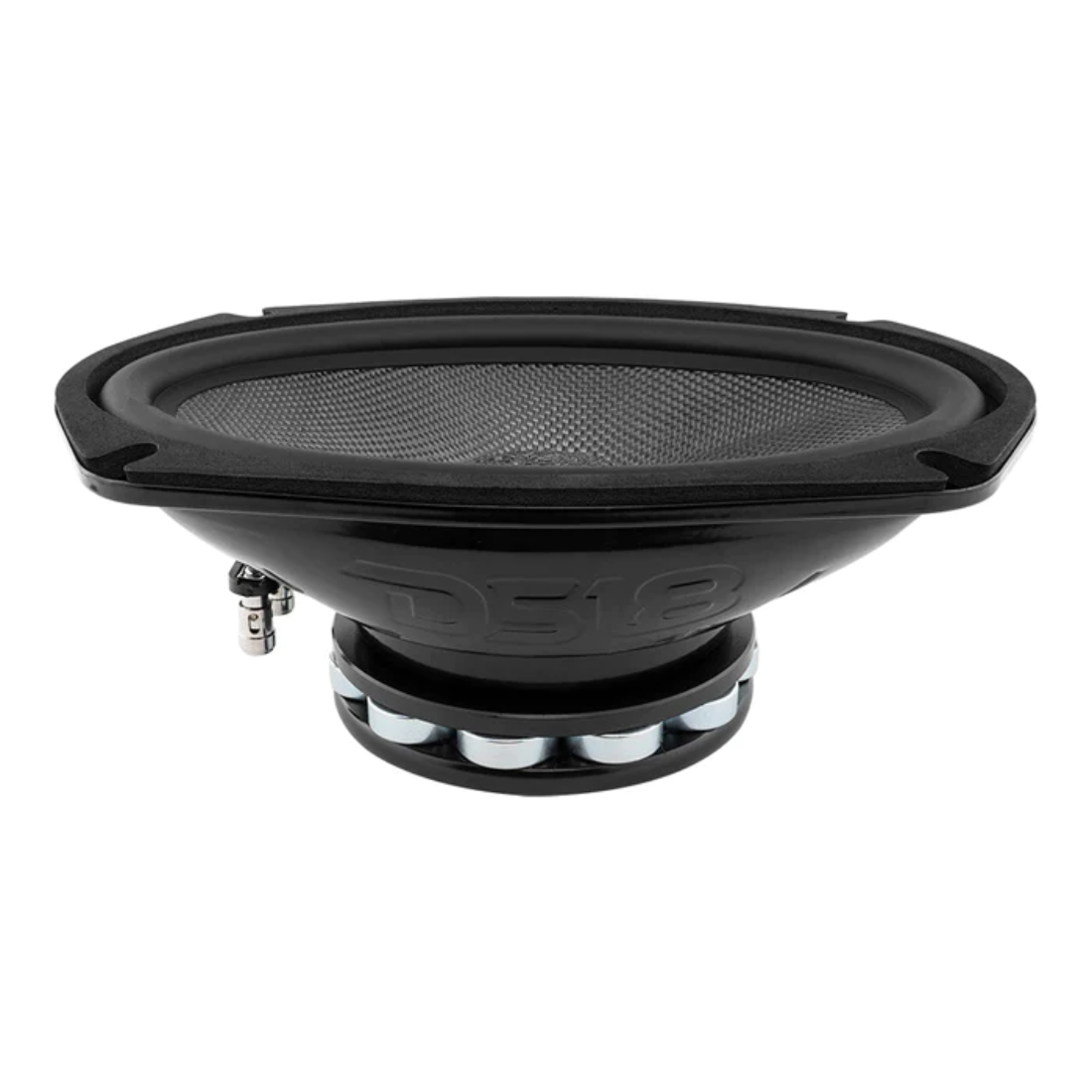

DS18 PRO-CF69.4NR 6" x 9" 600W Max Water-Resistant Carbon Fiber Mid-Bass Speaker

DS18 PRO-CF69.4NR 6" x 9" 600W Max Water-Resistant Carbon Fiber Mid-Bass Speaker

Regular price $209.95 USD
Regular price Sale price $209.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 PRO-CF69.4NR

6 x 9" 600W Max Water-Resistant Carbon Fiber Cone Mid-Bass Loudspeaker

Key Features:

  • 6X9" Mid-Bass w/Water Resistant Carbon Fiber Cone
  • MAX Power: 600 Watts
  • RMS Power: 300 Watts
  • Impedance: 4-Ohm
  • Neodymium Magnet
  • 95dB
Technical Specs:

  • SKU: PRO-CF69.4NR
  • Nominal Diameter: 6x9" / 152 x 228mm
  • Nominal Impedance: 4 OHMS
  • RMS Power Handling: 300 WATTS
  • Maximum Power Handling: 600 WATTS
  • Sensitivity (1w/1m): 95 dB
  • Frequency Response: 63Hz - 12KHz
  • Recommended Hi Pass Crossover: 80 Hz
  • Voice Coil Diameter: 2" / 50 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Basket Material: Steel
  • Magnet Weight: 0.3 Kg
Thiele & Small Parameters:

  • Vas: 12.75L / 0.45 ft3
  • Xmax: 2.5 mm
  • Fs: 83 Hz
  • Qms: 12.16
  • Qes: 0.69
  • Qts: 0.65
  • Re: 3.4 OHM
Measurements:

  • Overall Diameter: 6.48" x 9.29" / 164.5 x 236 mm
  • Front Mount Baffle Cutout: 5.94" x 8.58" / 151 x 218 mm
  • Mounting Depth: 3.25" / 82.5 mm
  • Overall Depth: 3.44" / 87.5 mm
  • Product Weight: 4.5 lbs
  • Product Dimensions: 10.75 x 8 x 4.5
  • M/C Weight: 18.5 lbs
  • M/C Dimensions: 16.5 x 11.25 x 10.5
  • M/C QTY: 4
  • Sold In: Piece
