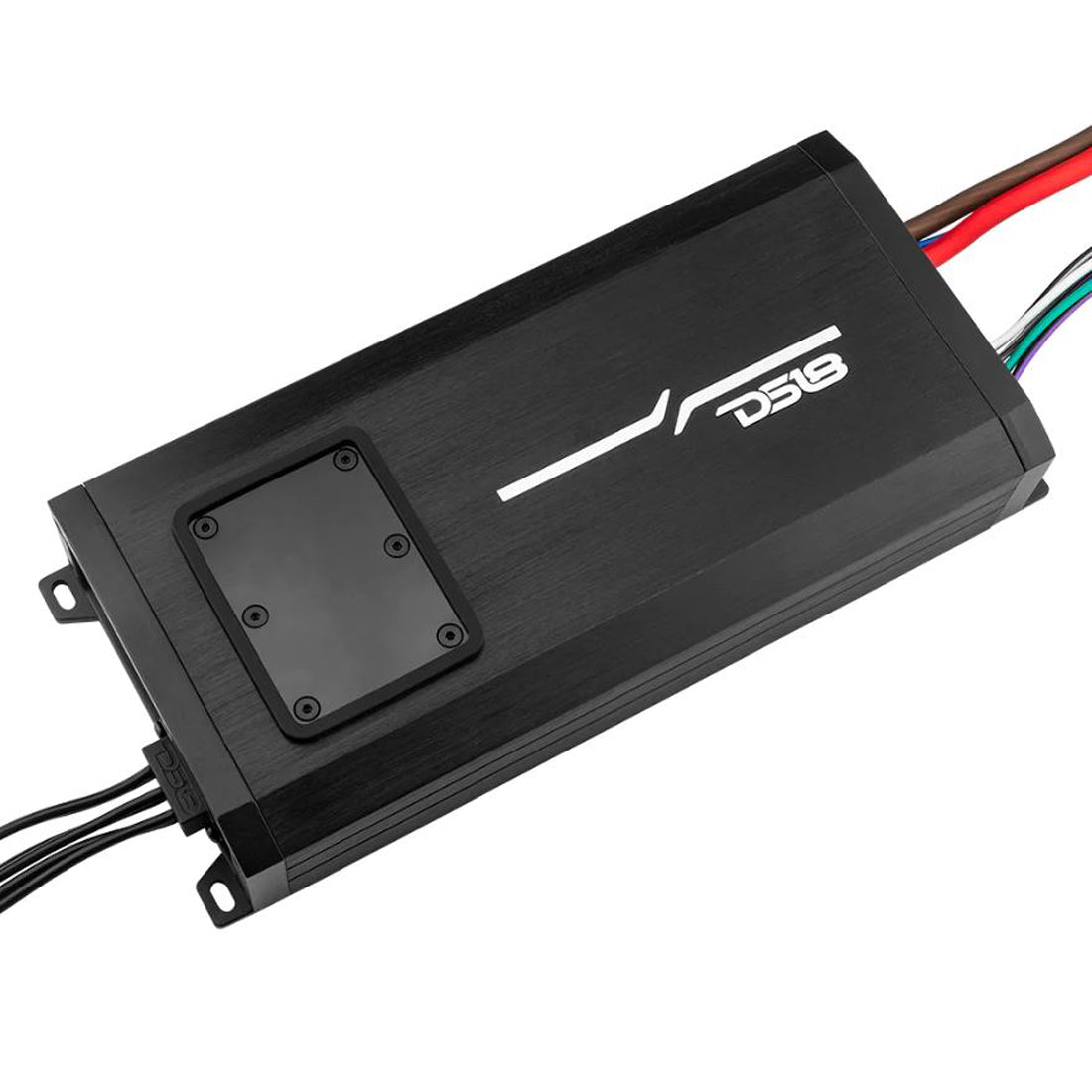

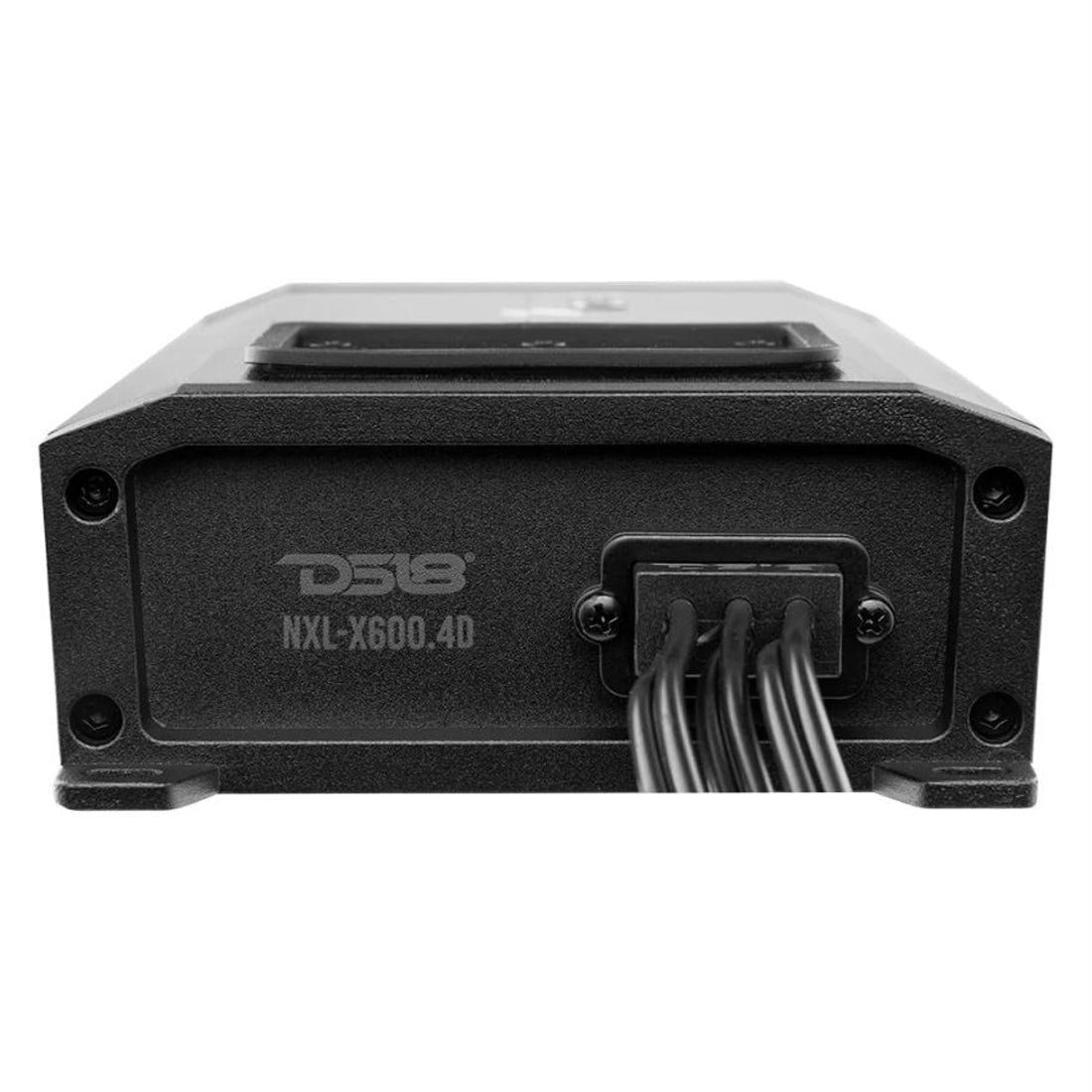

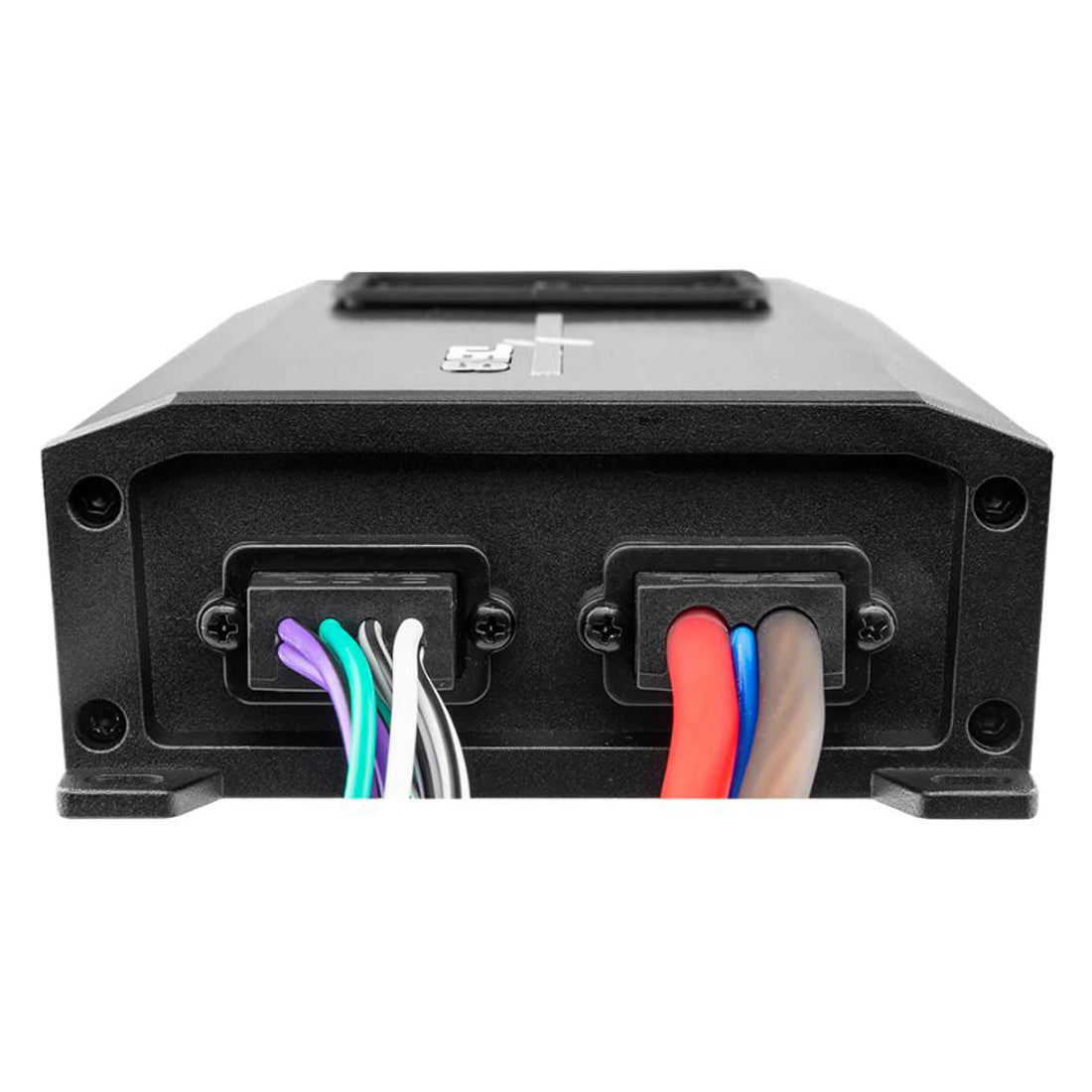

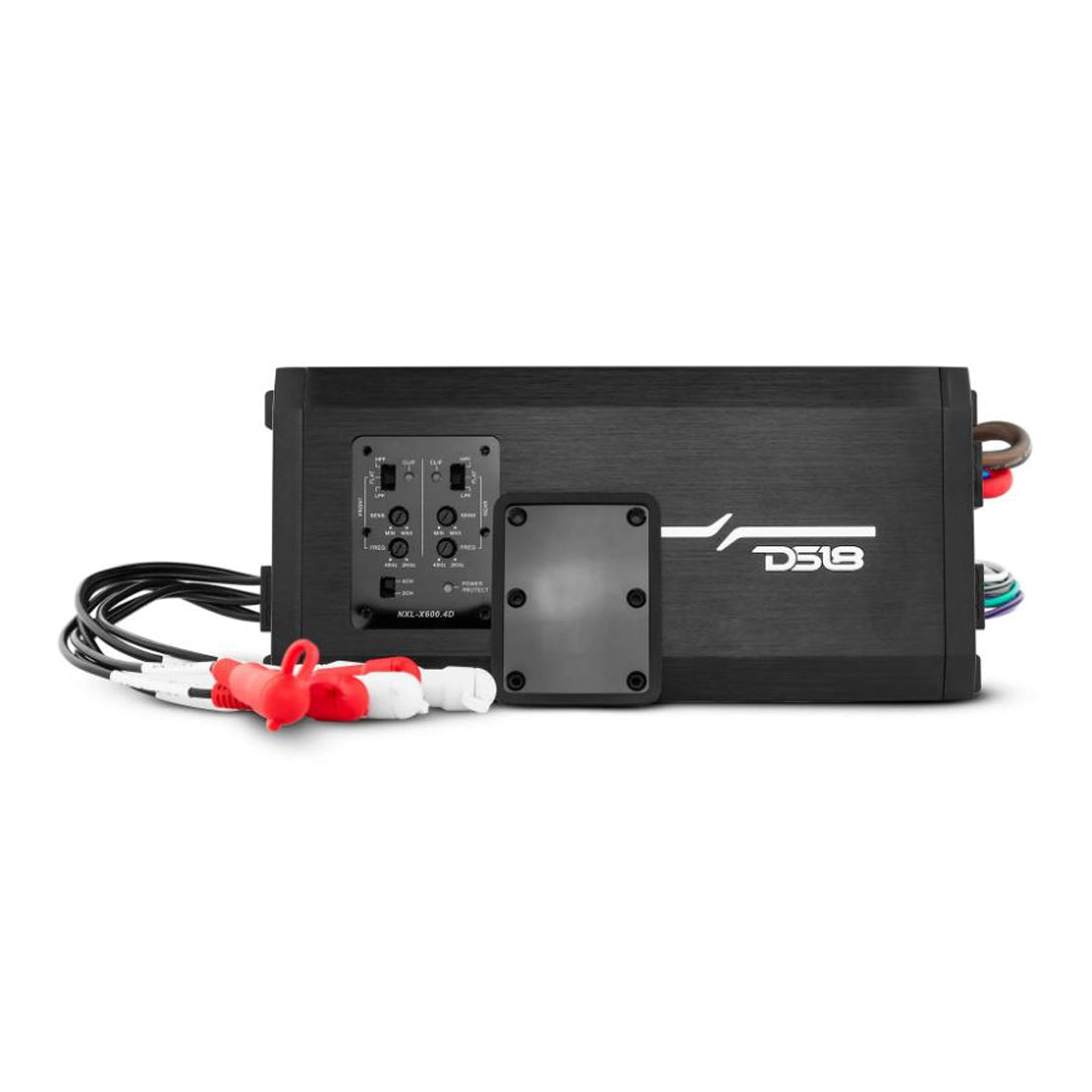

DS18 NXL-X600.4D 4-Channel 1600W Peak Class-D Full-Range Marine Audio Amplifier

Name: DS18 NXL-X600.4D 4-Channel 1600W Peak Class-D Full-Range Marine Audio Amplifier
Brand: DS18
SKU: NXL-X600.4D
Price: 499.95 USD
Availability: InStock

$499.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 NXL-X600.4D

4-Channel 1600W Peak Class-D Full-Range Marine Audio Amplifier

Key Features:

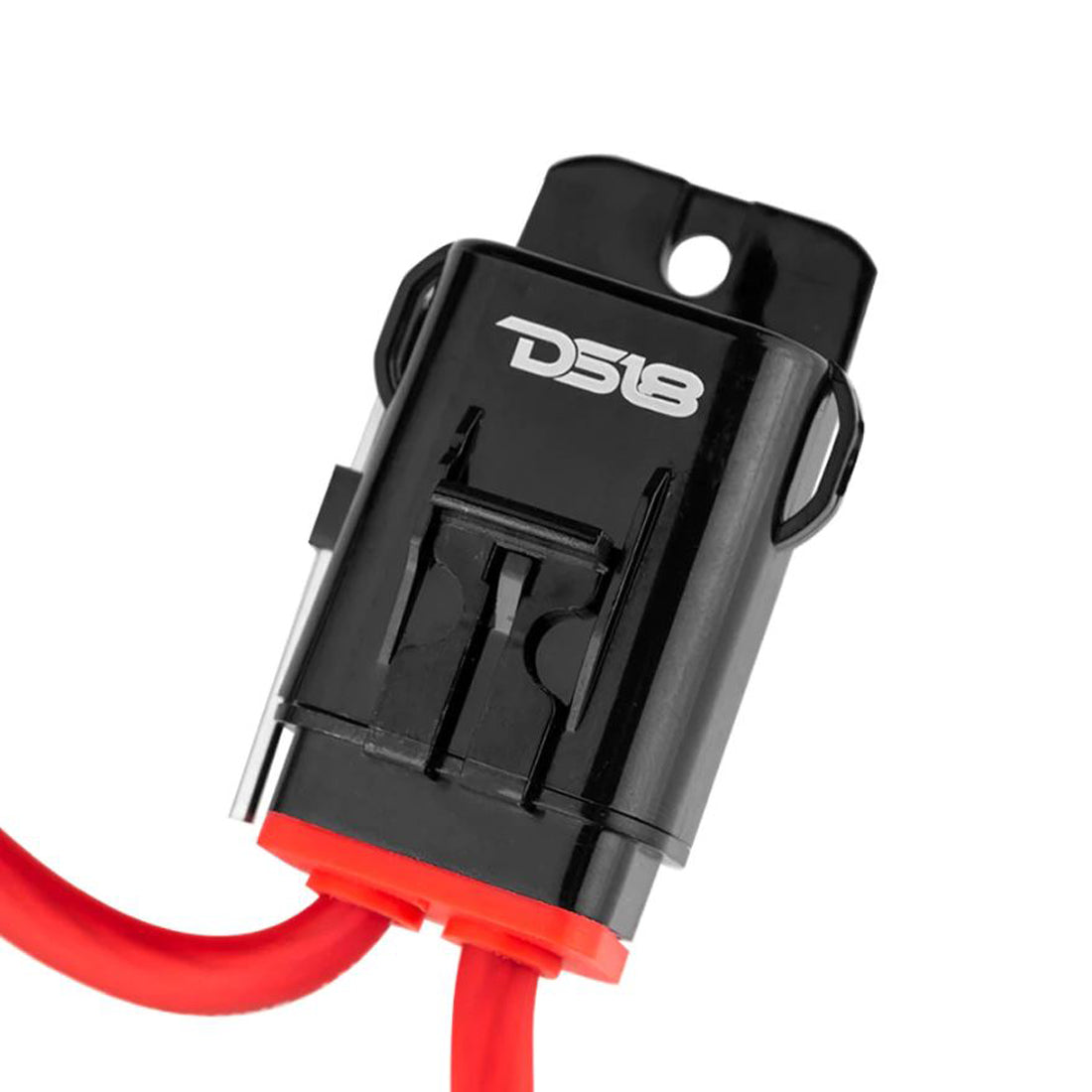

The included marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
2-channel or 4-channel input selector
IP67 Waterproof Rating
UV, Salt, and Fog Protection
Direct Power Harness Design with Marine Grade OFC Tinned Wires
Latest Digital Amplifier Design With SMC Technology
Great for Marine, Offroad, and DIY Projects

Specifications:

Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohm (Stereo) / 4 Ohm (Bridge)
Led Indicators: Power / Protection / Clip
Power Input Size: 8GA Tinned OFC
Fuse Size: 2 x 40A (80A)
Thermal Protection: Yes (75°C)
Over-Load Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes (7-16V)
Body Color / Finish: Black Brushed Aluminum
Total Watts (Peak): 1600W
RMS Power @ 4 ohm : 4 x 150W
RMS Power @ 2 ohm : 4 x 200W
RMS Power @ 1 ohm : -
RMS Power @ 4 ohm Bridge: 2 x 400W
Frequency Response: 10Hz-20KHz
Signal to Noise Ratio 1W@4Ω: >100dB
Efficiency @ 4ohm: 0.87
Input Impedance: 20KΩ
Channel Separation: >60dB
Total Harmonic Distortion (THD): < 0.05%
Low-Level Input Range: 200mV-5V
Selectable X-Over: Yes (HPF/Full/LPF)
X-Over Filter Range: 40Hz-2KHz
Bass Boost Range: N/A
Bass Boost Frequency: N/A
Infrasonic Filter: No
Phase Selector: No
Overall Length: 9.92" / 252mm
Overall Wide: 4.4" / 112mm
Overall Height: 1.77" / 45mm
Heatsink Length: 9.11" / 231.6mm
Gross Single Unit Weight: 1.8kg
