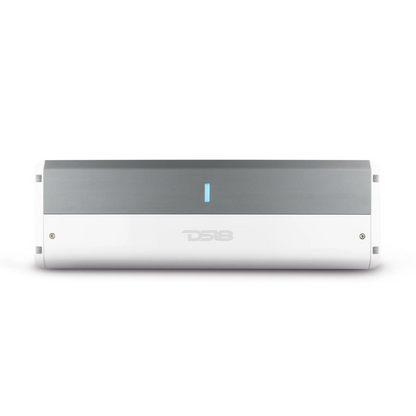

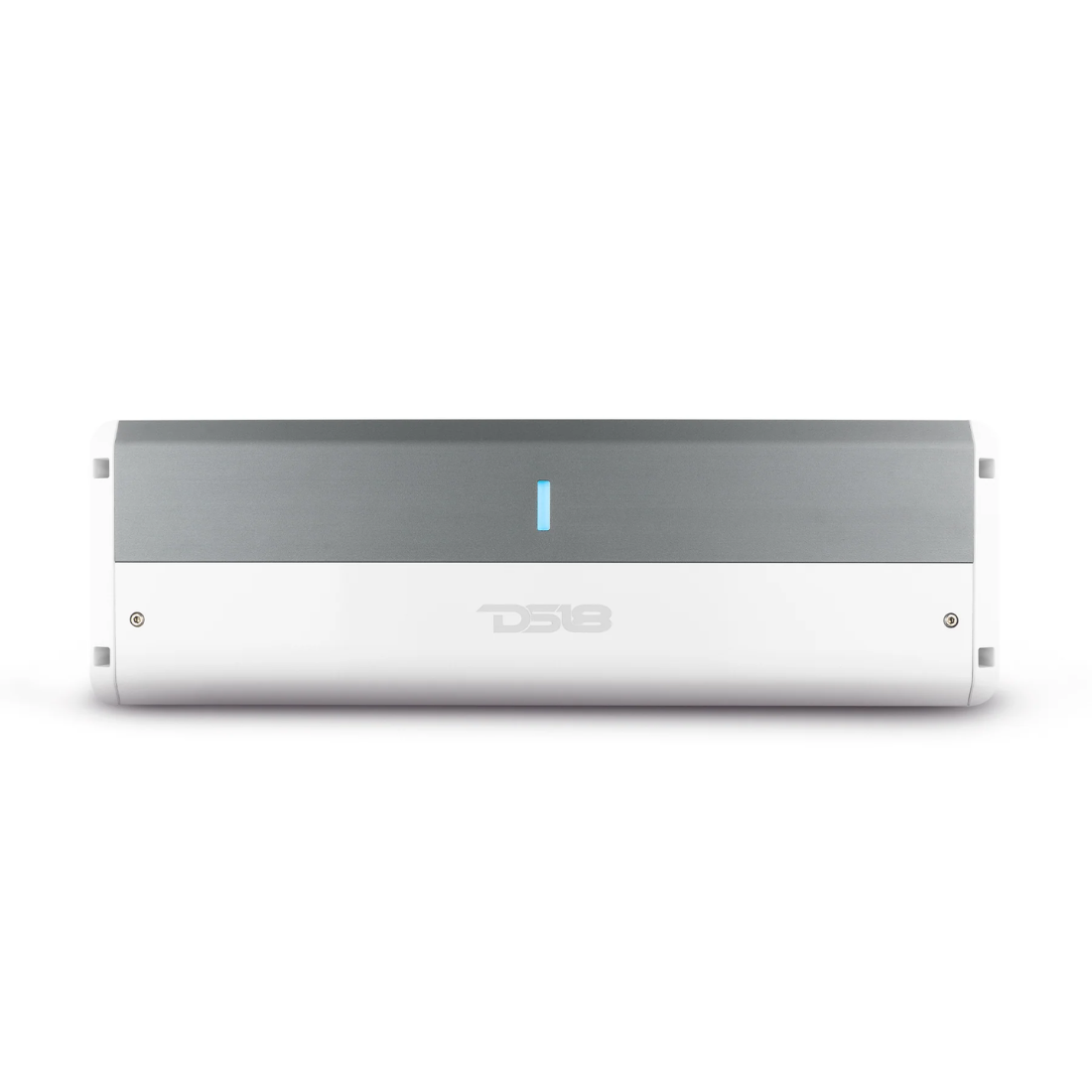

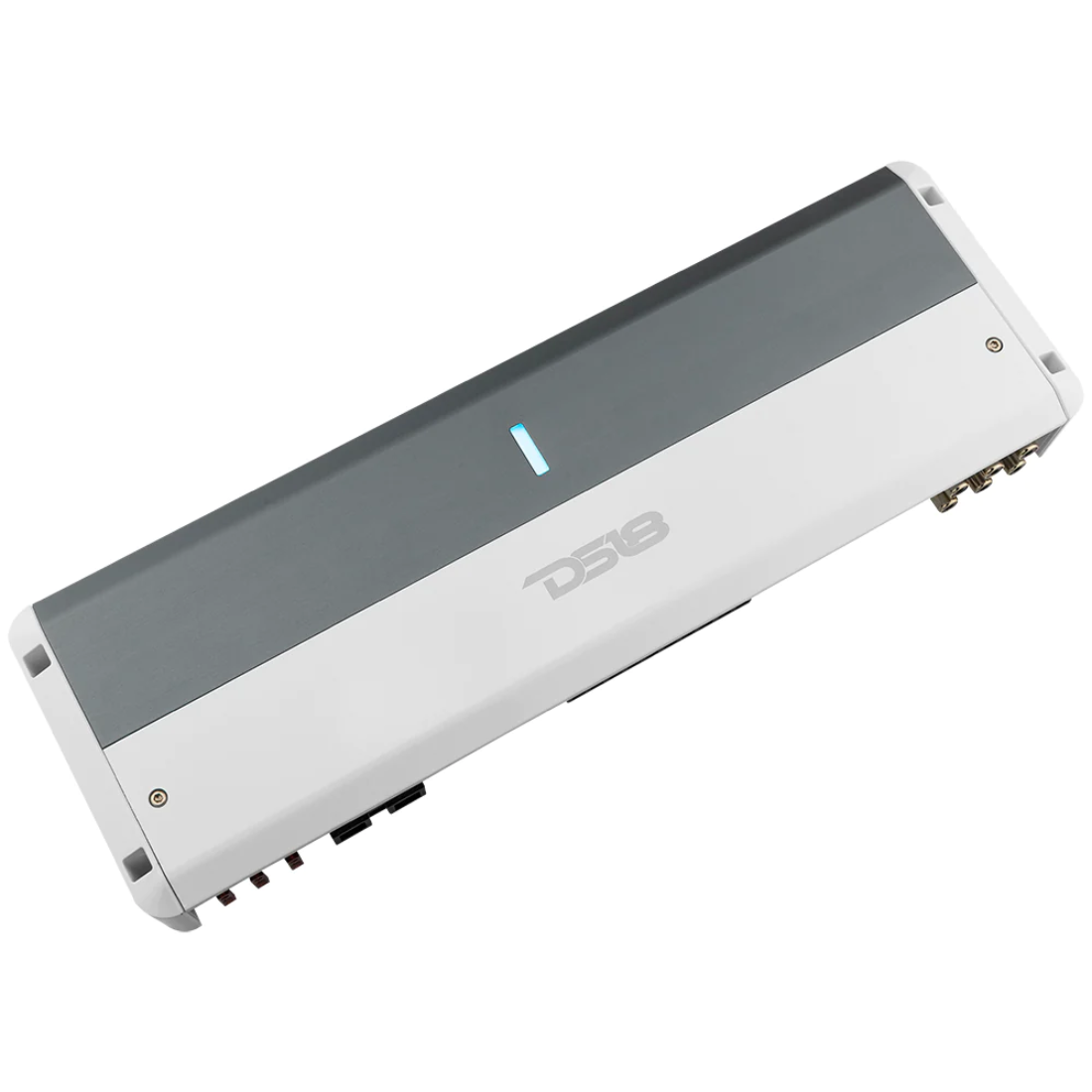

DS18 NXL-M5 3600W Max 5-Channel Full-Range Class-D Marine Powersports Amplifier
DS18 NXL-M5 3600W Max 5-Channel Full-Range Class-D Marine Powersports Amplifier
Regular price
$599.95 USD
Regular price
Sale price
$599.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 NXL-M5
5-Channel 3600 Watts Max Full-Range Class-D Marine Powersports Amplifier
Highlights:
- Hardware resistant to corrosion and UV protection
- Coated 4 Layers PCB to prevent corrosion
- Class D Circuit Design
- IPX5 Water resistant grade
- Front cover to keep the controls safe to the elements
- LED Clip Indicator to easier adjustment
- High-Quality Potentiometers with copper shaft
- Surface Mount Component Technology
- Audio Precision Quality Control Verification

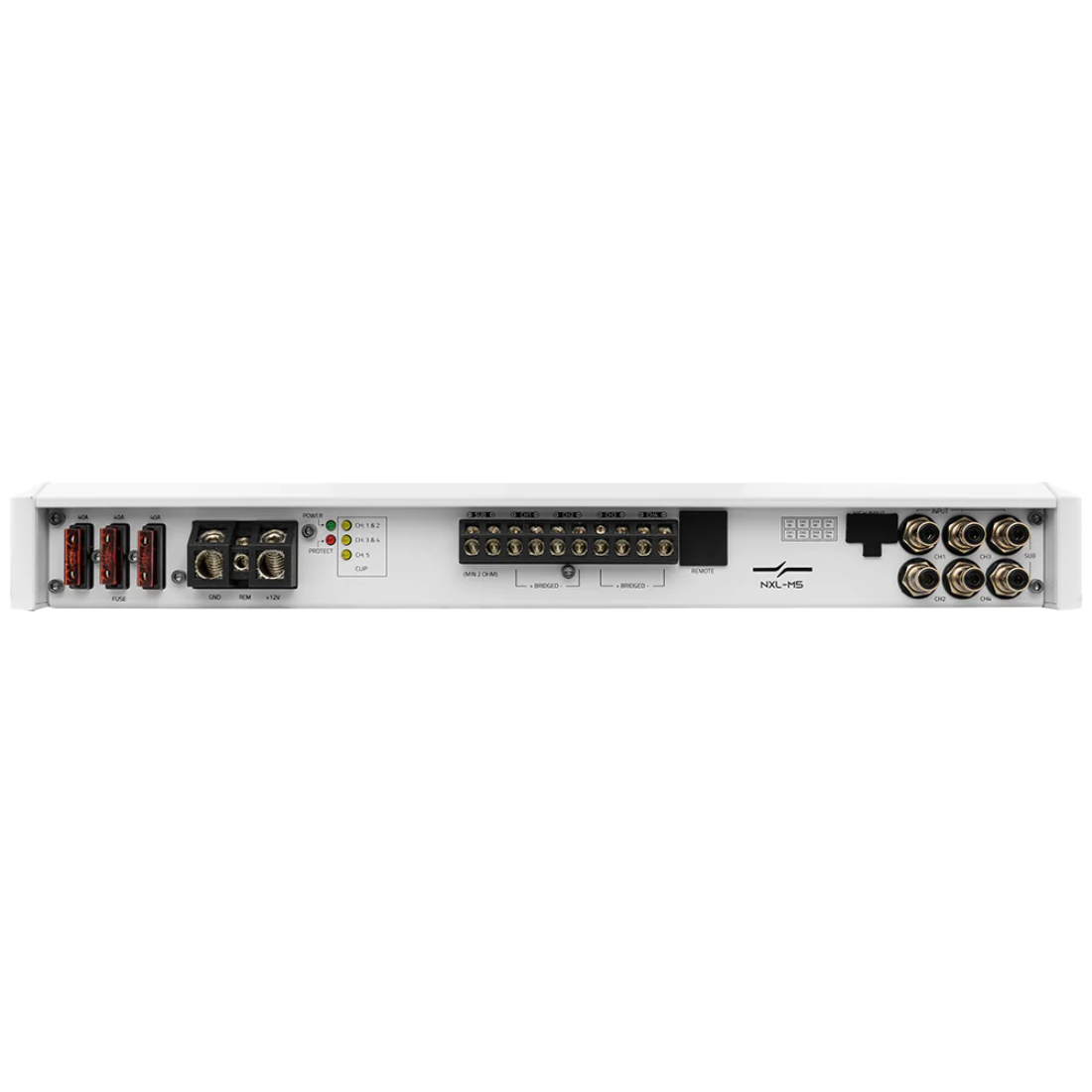

- Direct Insert Power and Speaker Terminals
- Short Circuit, Thermal, and Voltage Protection

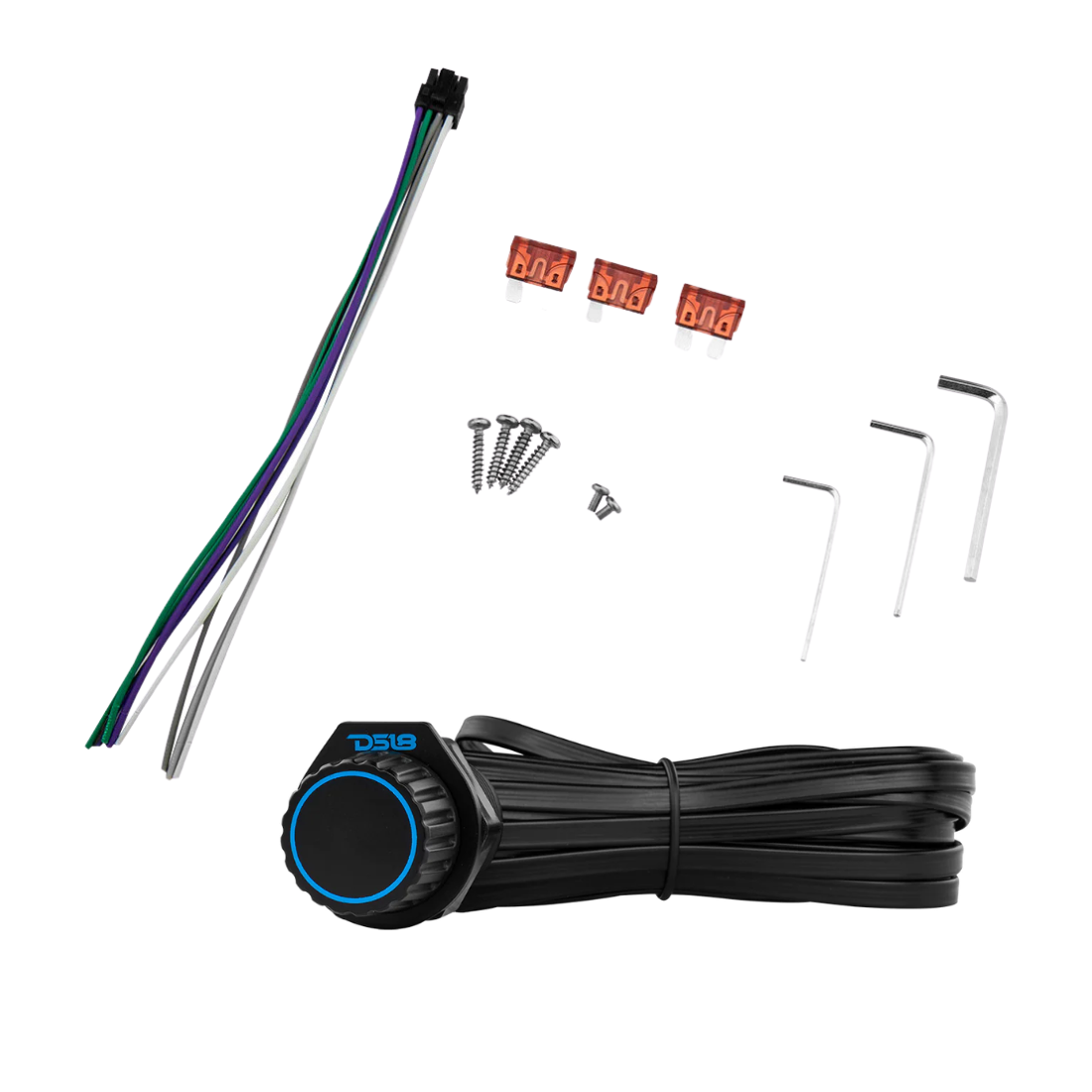

- Waterproof Remote level bass knob specially designed for easy installation on the panel's boat or wet areas.
- DS18 Quality You Can Trust
- Effortless Installation DS18 is Known For
- Unleash Unprecedented Power
Specifications:
Power
- Total Watts (Peak): 3600W
- RMS Power @ 4 ohm: 4 x 150W / SUB: 300W
- RMS Power @ 2 ohm: 4 x 230W / SUB: 600W
- RMS Power @ 4 ohm Bridge: 2 x 440W
Audio
- Frequency Response: 20Hz - 20KHz
- Signal to Noise Ratio: >90dB
- Efficiency @ 4ohm: >97%
- Channel Separation: >55dB
- Total Harmonic Distortion (THD): <0.15%
- Low-Level Input Range: 0.2V-6V
- High-Level Input: Yes: ≥5V

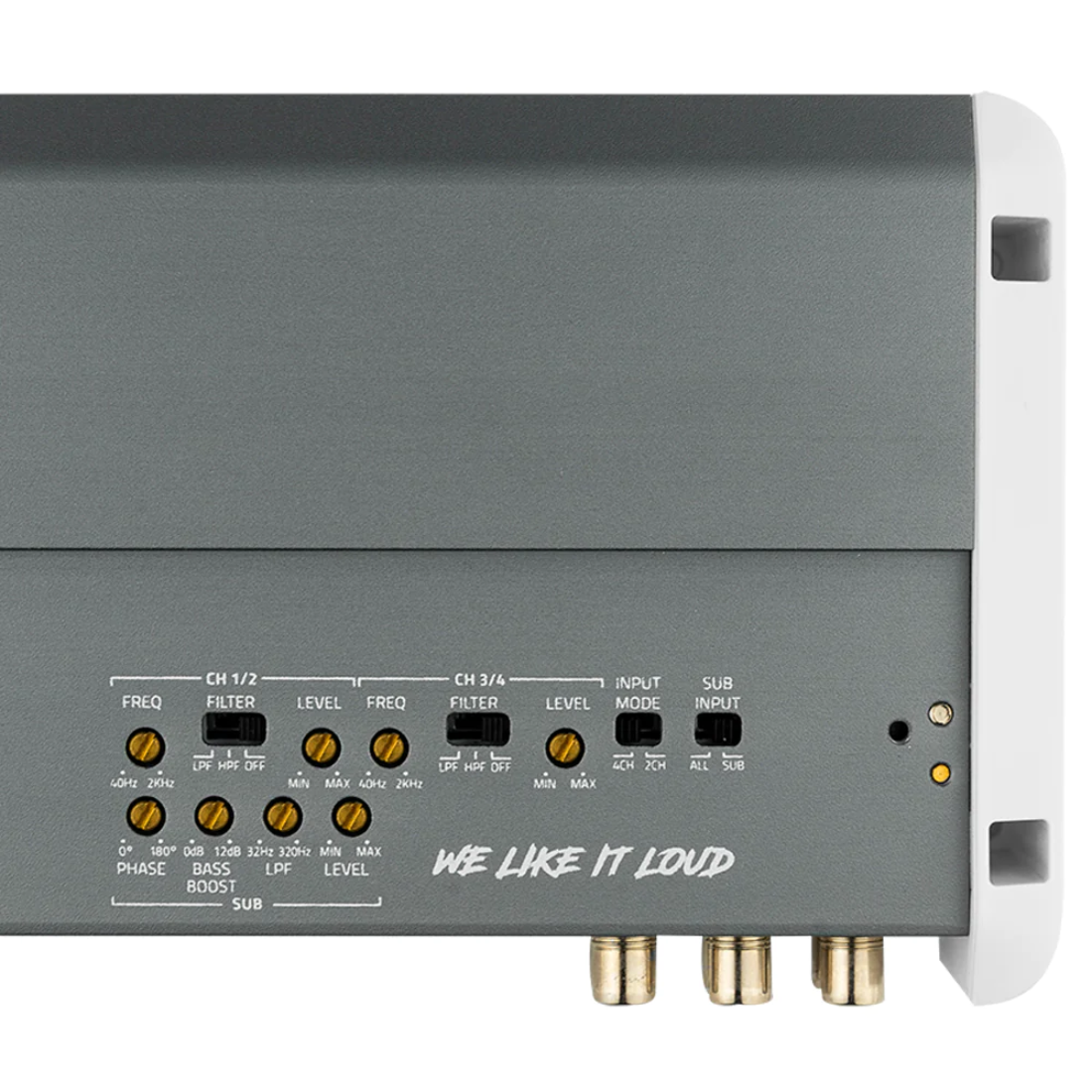

- Selectable X-Over: HPF/LPF/FULL / SW: Fixed LPF
- X-Over Filter Range: 40Hz - 2KHz / SW: 32Hz - 320Hz
- Bass Boost Range: 0-12dB (SW)
- Bass Boost Frequency: 45Hz ±5Hz
- Phase Selector: Yes 0~180° (SW)
Features
- Amplifier Class: Digital (D)
- Amplifier Type: Stereo Full Range
- Number of Channels: 5 Channels
- Minimum Impedance: 2ohm St / 4ohm Bridge / 2ohm SW
- Led Indicator: Clipping / Protect / Power
- Power Input Terminal Size: 4 Ga
- Fuse Size: 120A (3x40A)
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes
- Clipping Protection: Yes
- Body Color / Finish: Gray+White / Aluminum+ABS
Extra Features
- Water Resistant Rated: Yes, IPX5 (Water Splashing)
- PCB Layout Design: 4 Layers / Coated
- RCA Output: No
- UV Compliant: Yes, UV Protected and PCB Coated
- Input Sum Selector: Yes, 2/4/5 Ch Input Mode
- Tiffany Style RCA: Yes
- High-Level Input: Yes, 4ch Speaker level
- Stainless Steel Hardware: Yes, (Screws)
- Potentiometers: High-Quality Metal Knob
- Remote Level Control: Yes, Marine Grade (Waterproof)
Measurement
- Overall Length: 14.3" / 365mm
- Overall Wide: 4.5" / 116mm
- Overall Height: 1.7" / 43mm
- Heatsink Length: 13.3" / 340mm
