DS18

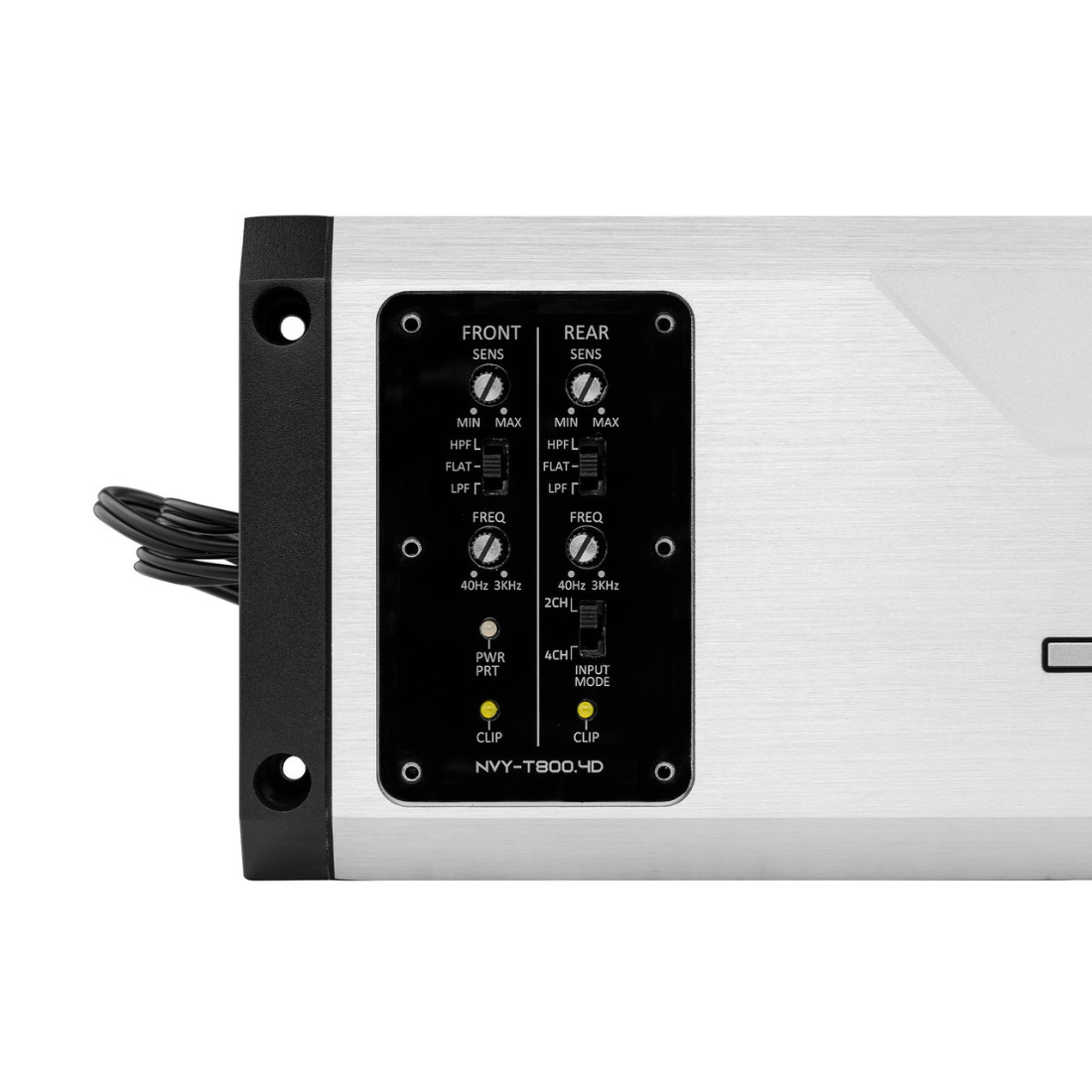

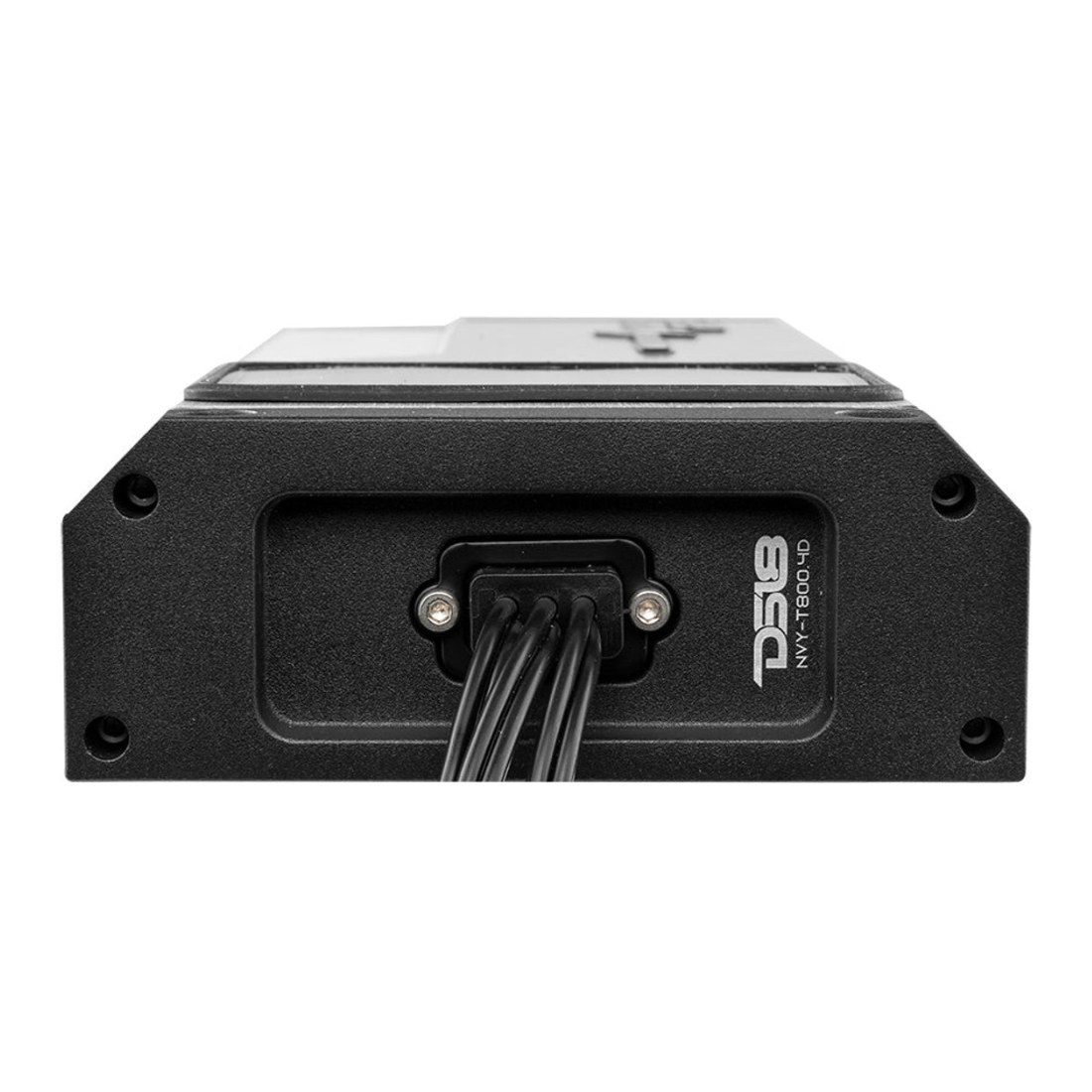

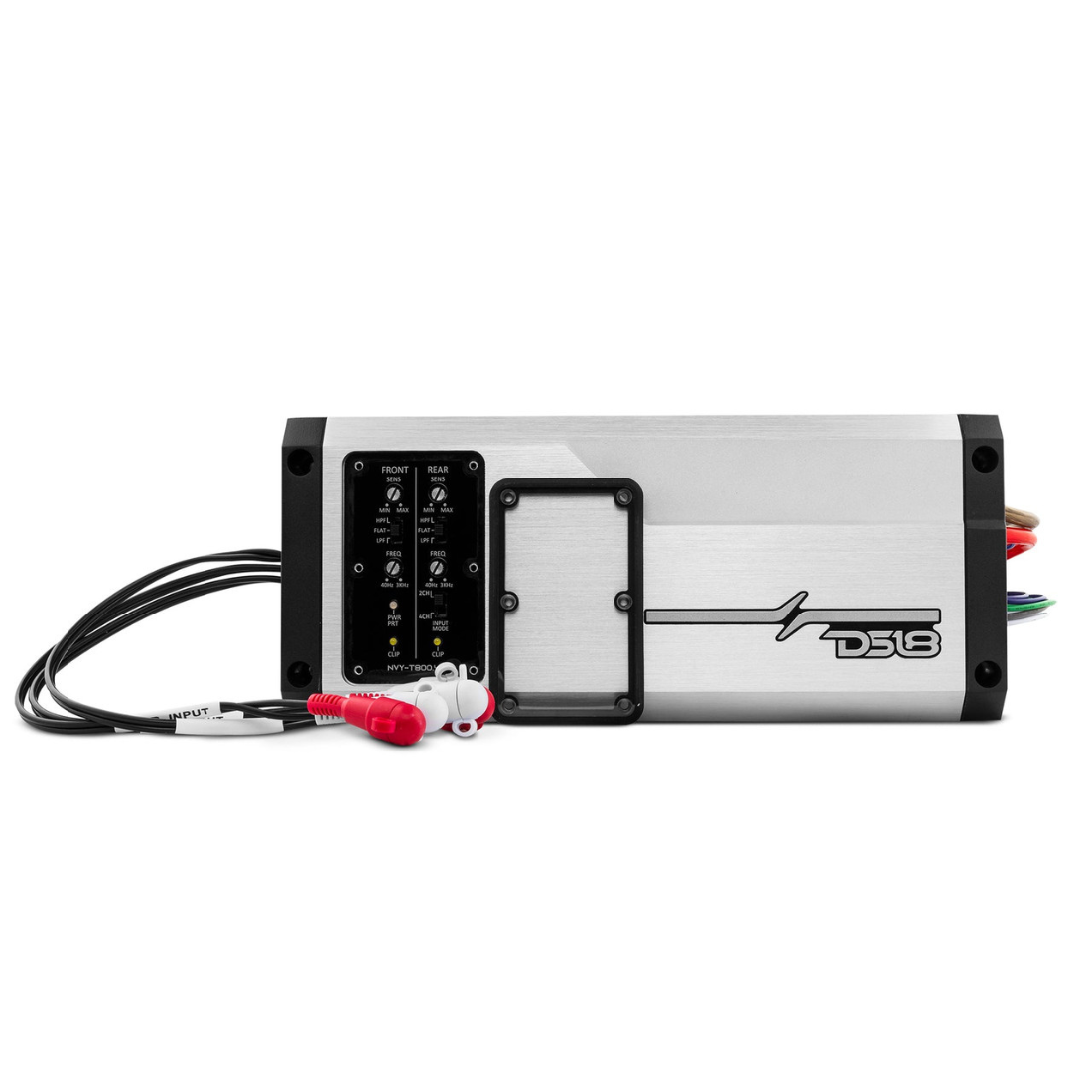

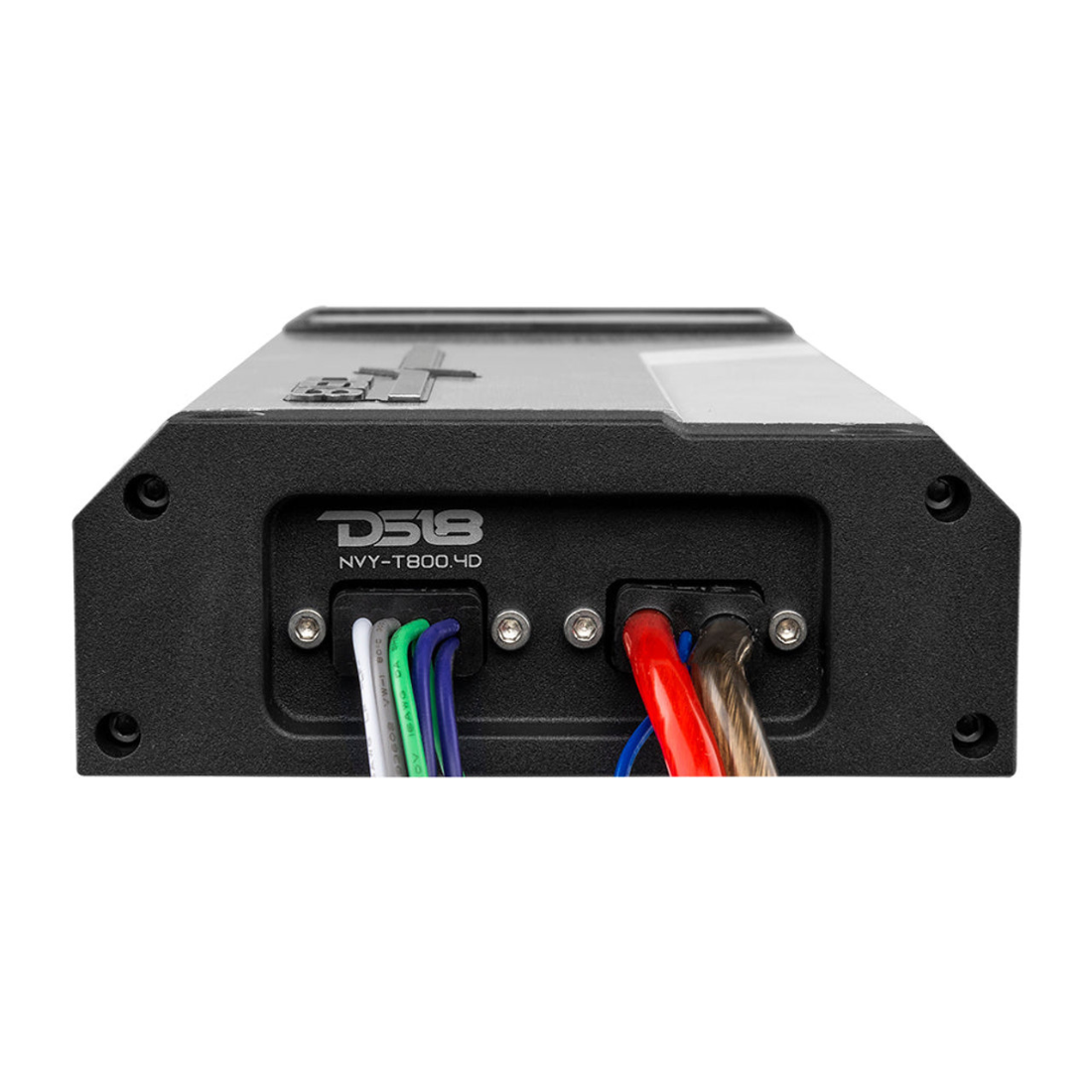

DS18 NVY-T800.4D 4-Channel 2400W Peak Class-D Full-Range IP67 Marine Amplifier

Name: DS18 NVY-T800.4D 4-Channel 2400W Peak Class-D Full-Range IP67 Marine Amplifier
Brand: DS18
SKU: NVY-T800.4D
Price: 649.95 USD
Availability: InStock

$649.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 NVY-T800.4D

4-Channel 2400 Watts Peak Class-D Full-Range IP67 Marine Amplifier

Key Features:

SKU: NVY-T800.4D
Total Watts (Peak): 2400W
RMS Power @ 4 ohm: 4 x 200W
RMS Power @ 2 ohm: 4 x 300W
RMS Power @ 4 ohm Bridge: 2 x 600W
Amplifier Class: Digital
Amplifier Type: Stereo Full Range
Number of Channels: 4
Minimum Impedance: 2 Ohms (Stereo) / 4 Ohm (Bridge)
Led Indicator: Power | Protection | Clip
Power Input Terminal Size: 8GA Tinned OFC
Recommended Fuse Size: 80A
Thermal Protection: Yes
Over-Load Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Body Color | Finish: Brushed Aluminum

Audio Features:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω: > 80dB
Efficiency @ 4 ohm: 85%
Input Impedance: 20K ohms
Channel Separation: >55dB
Total Harmonic Distortion (THD): < 0.05%
Low-Level Input Range: 200mV-5V
Selectable X-Over: HPF/Full/LPF
X-Over Filter Range: 40Hz-3KHz
Damping Factor: >55dB

Extra Features:

2Ch / 4Ch Input Selector: Yes
Waterproof Rating: IP67
UV / Salt Fog Protection: Yes
Power Direct Harness Design: Yes
Surface Mount Component Technology: Yes
Metal Knobs: Yes

Measurement:

Overall Length: 11.6" / 295mm
Overall Wide: 4.9" / 125mm
Heatsink Length: 10.2" / 261mm
Gross Single Unit Weight: 2.86Kg
Product Weight: 6.5 lbs
Product Dimensions: 14.5 x 6.75 x 4
