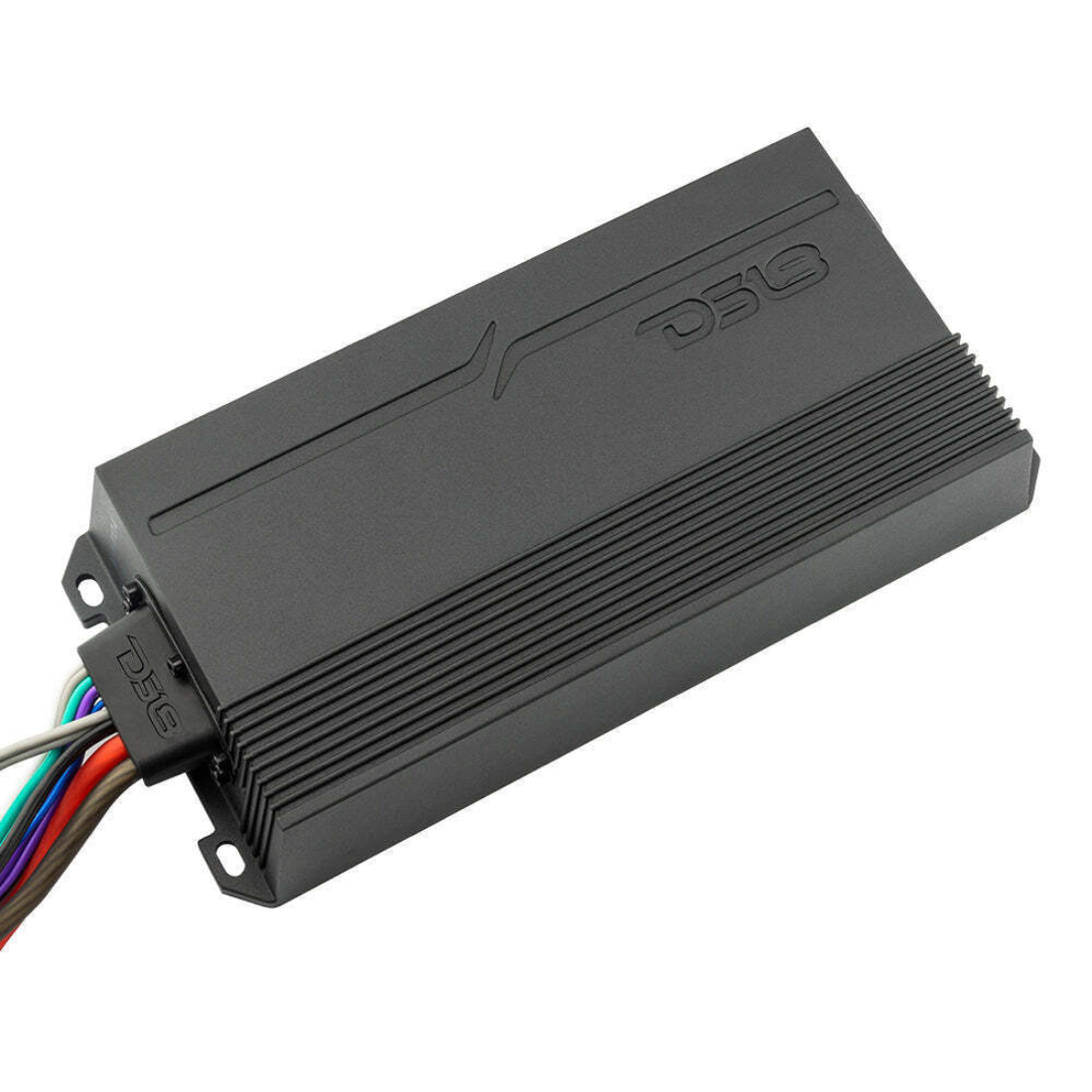

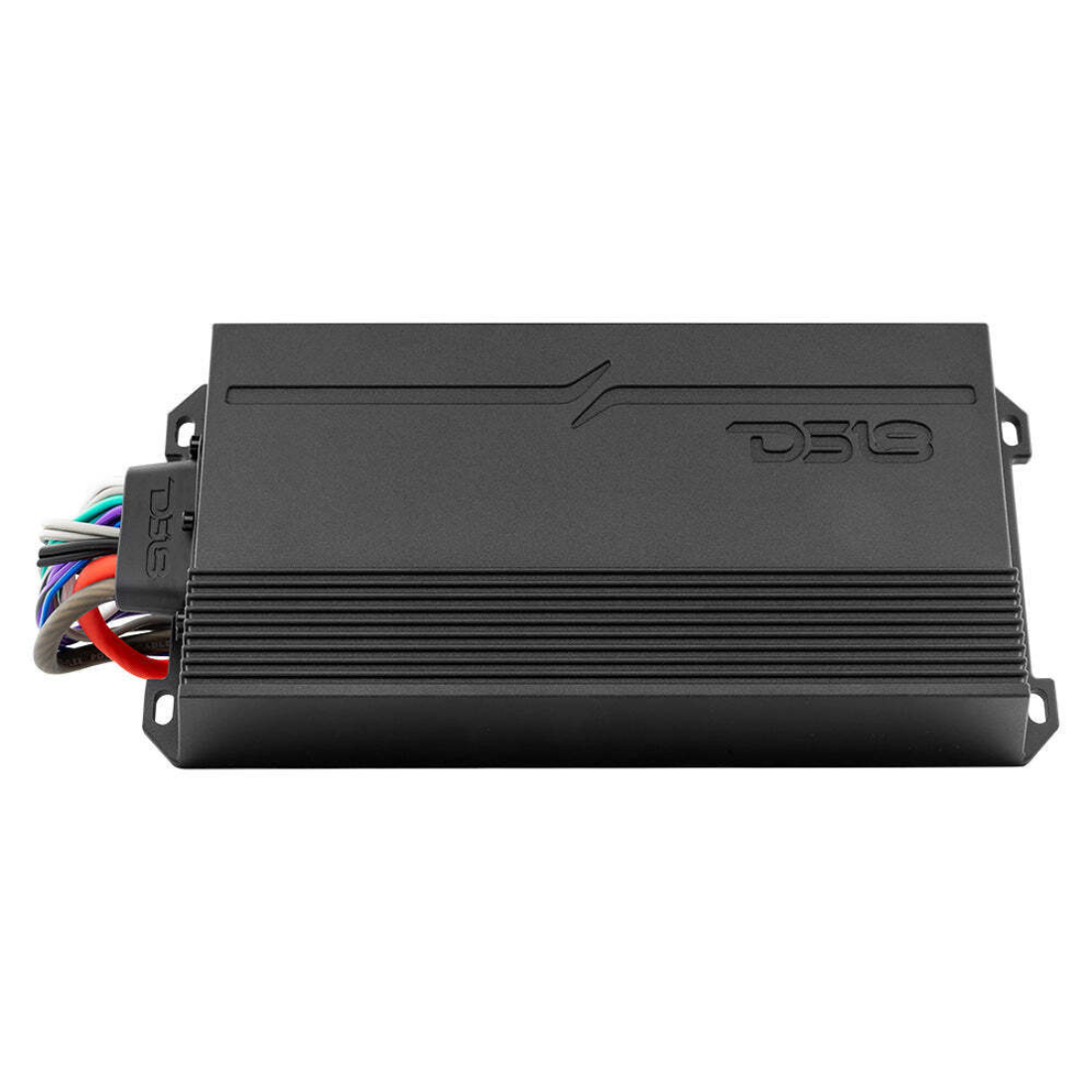

DS18 NVY-IPX7.4 4-Channel 1440W Peak Class-D Full-Range IPX7 Marine Amplifier
DS18 NVY-IPX7.4 4-Channel 1440W Peak Class-D Full-Range IPX7 Marine Amplifier
Regular price
$499.95 USD
Regular price
Sale price
$499.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 NVY-IPX7.4
4-Channel 1440 Watts Peak Class-D Full-Range IPX7 Marine Amplifier
Key Features:
- Marine Full Range
- 4 Channel
- 4 x 120 Watts @ 4 Ohm
- Built-in Crossover
- Class D
- Water Resistant
Specifications:
POWER
- Total Watts (Peak) 1440 Watts
- RMS Power @ 4 ohm 4 x 120 Watts
- RMS Power @ 2 ohm4 x 200 Watts
- RMS Power @ 4 ohm Bridge 2 x 350 Watts
AUDIO
- Frequency Response20Hz - 20KHz
- Signal to Noise Ratio 1W@4? >90 dB
- Efficiency @ 4 ohms 94%
- Input Impedance>20K?
- Channel Separation >-70 dB
- Total Harmonic Distortion (THD) <0.1 %
- Low-Level Input Range 270mV - 5.6V

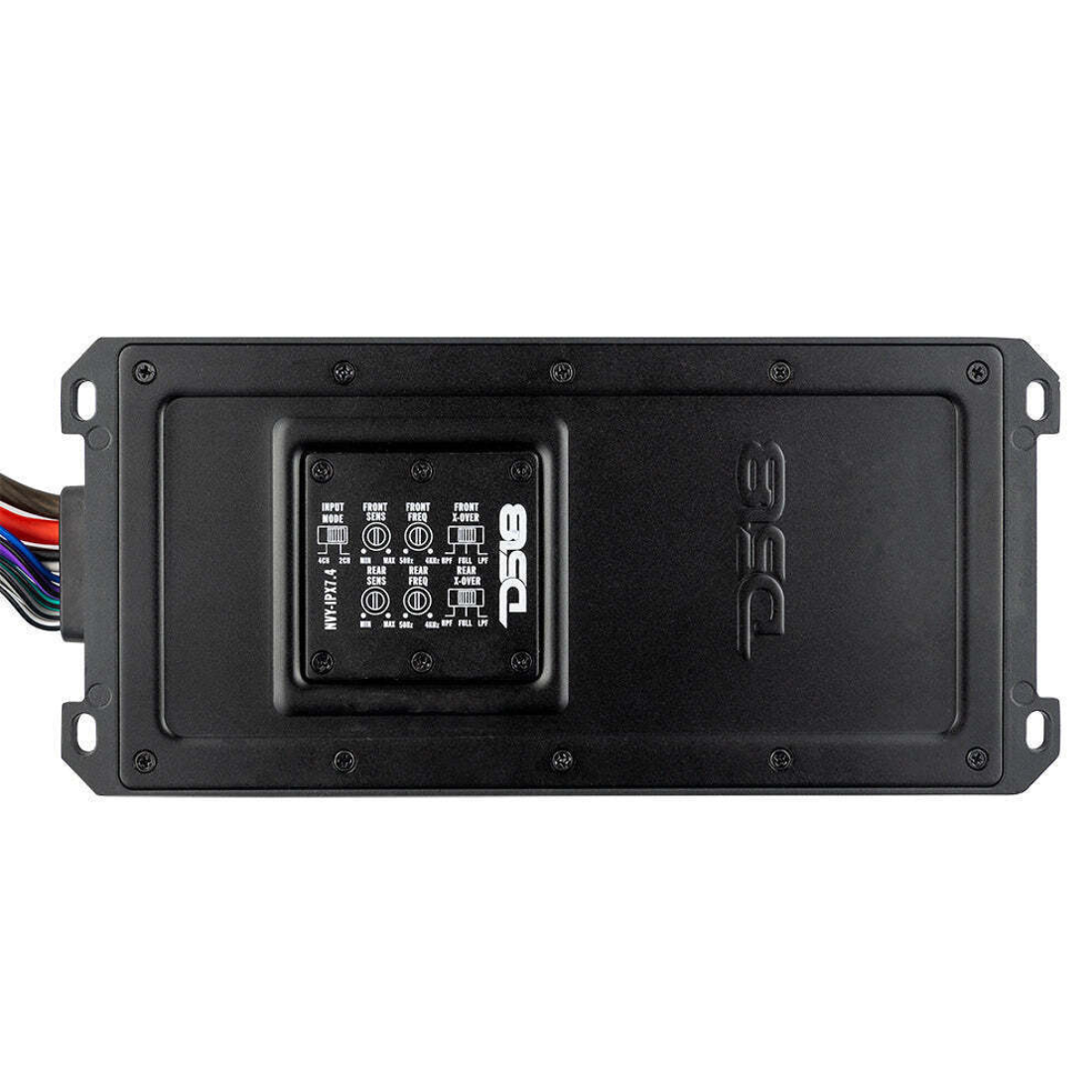

- Selectable X-Over HPF/FULL/LPF
- X-Over Filter Range50Hz-4KHz
FEATURES
- Amplifier Class Digital (D)
- Amplifier Type Full Range Digital Marine Amplifier
- Number of Channels4
- Minimum Impedance 2 OHM / Ch (4 OHM Bridge)
- LED Indicator Protection (Red) ' Power (Blue)
- Power Input Size8 Ga
- Fuse 2 x 40A
- Thermal Protection Yes
- Over-Load Protection Yes
- Short Circuit Output Protection Yes
- Voltage Input Protection Yes (9.5-16V)
- Body Color ' Finish Black Anodize
- 2CH ' 4CH Input Selector Yes
- Waterproof Rating IPX7
- UV / Salt Fog Protection Yes

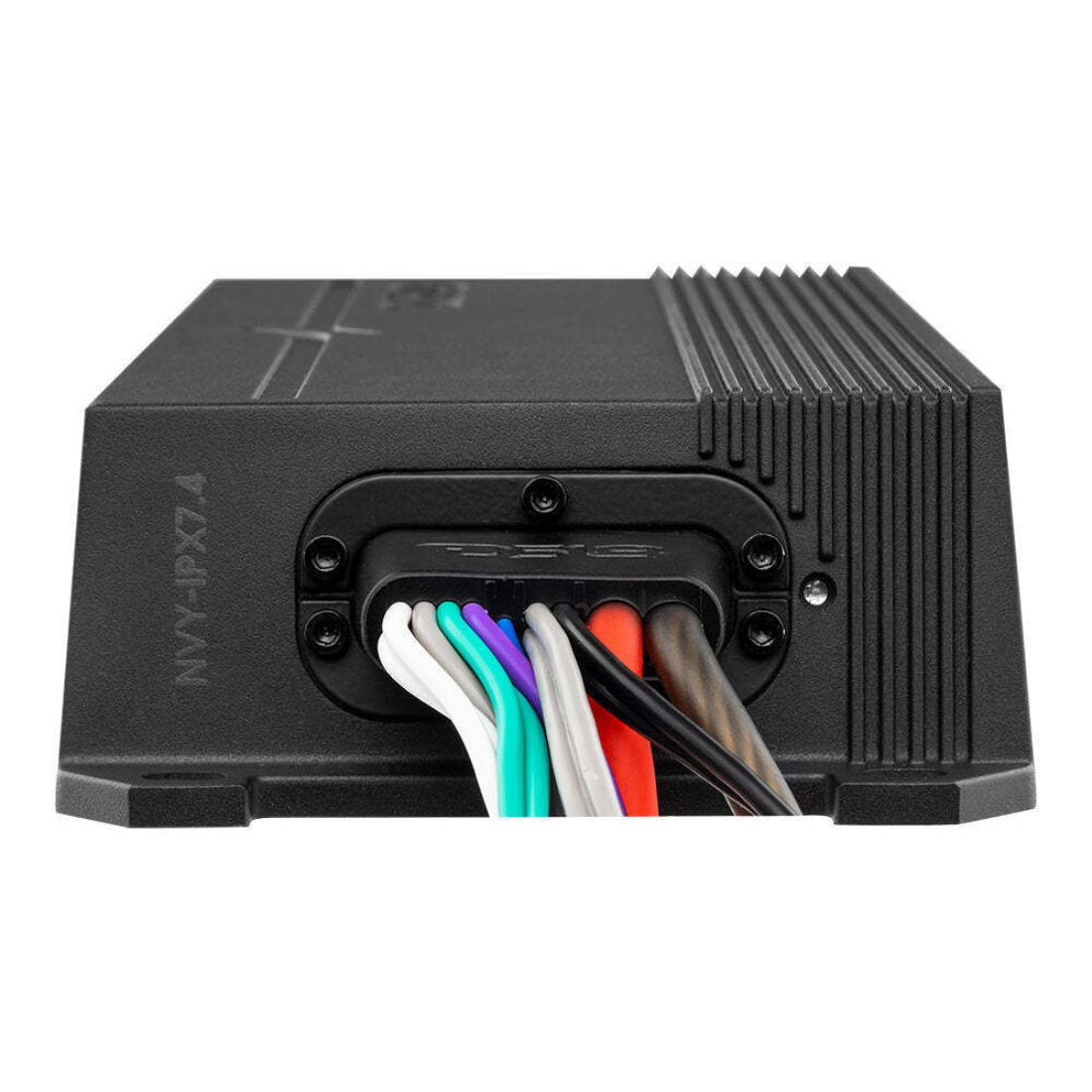

- Direct Power Harness Design Yes
- Surface Mount Component Technology Yes

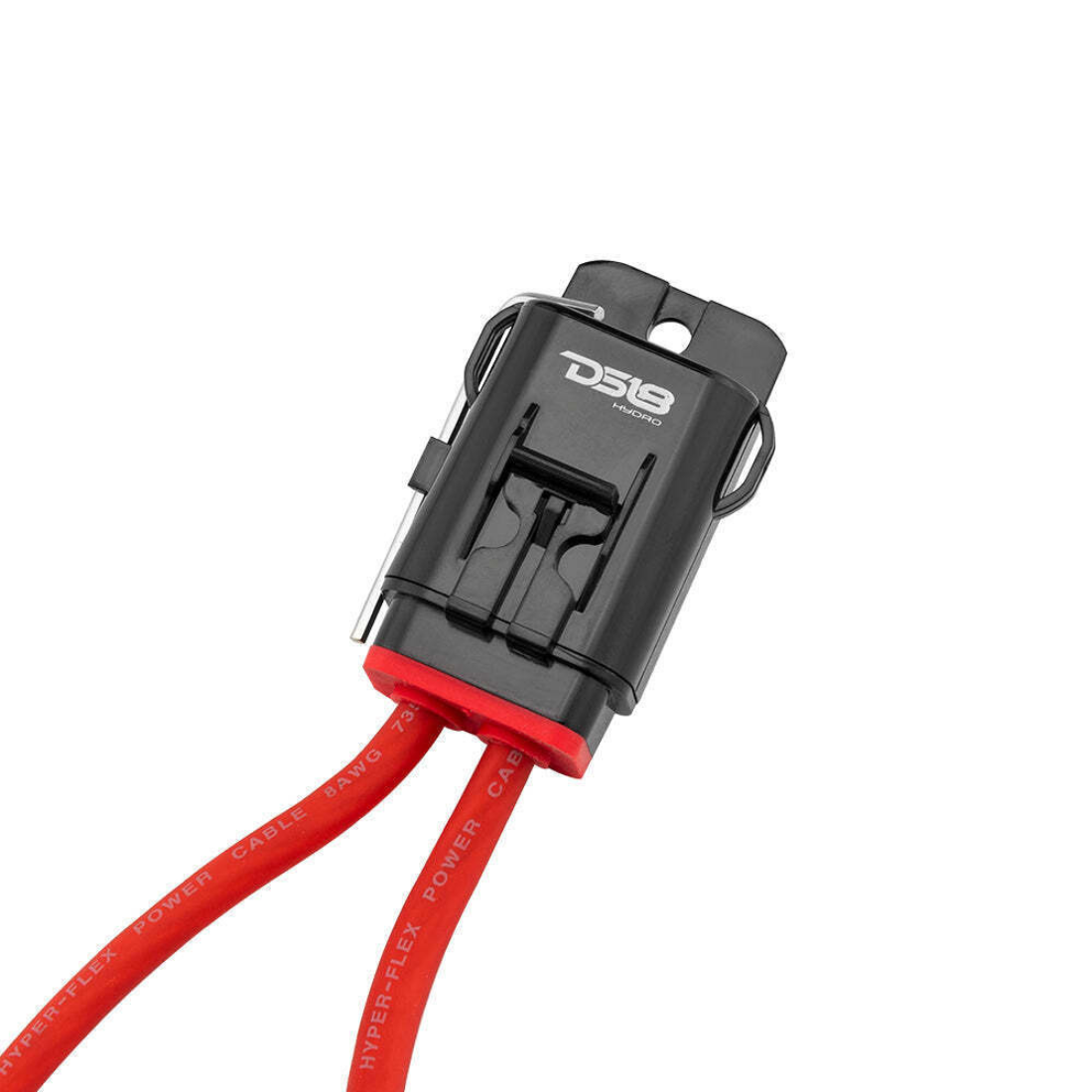

- Marine Grade Fuse Holder Yes
MEASUREMENTS
- Overall Length 10" / 253mm
- Overall Wide 4.5" / 116mm
- Overall Height 1.9" / 48.5mm
- Heatsink Length 8.5" / 216mm
- Gross Single Unit Weight 1.8Kg
