• DS18 G5.25Xi 5.25" 2-Way 135W Max 4-Ohm Car Audio Coaxial Speakers (Pair)
1 1

DS18

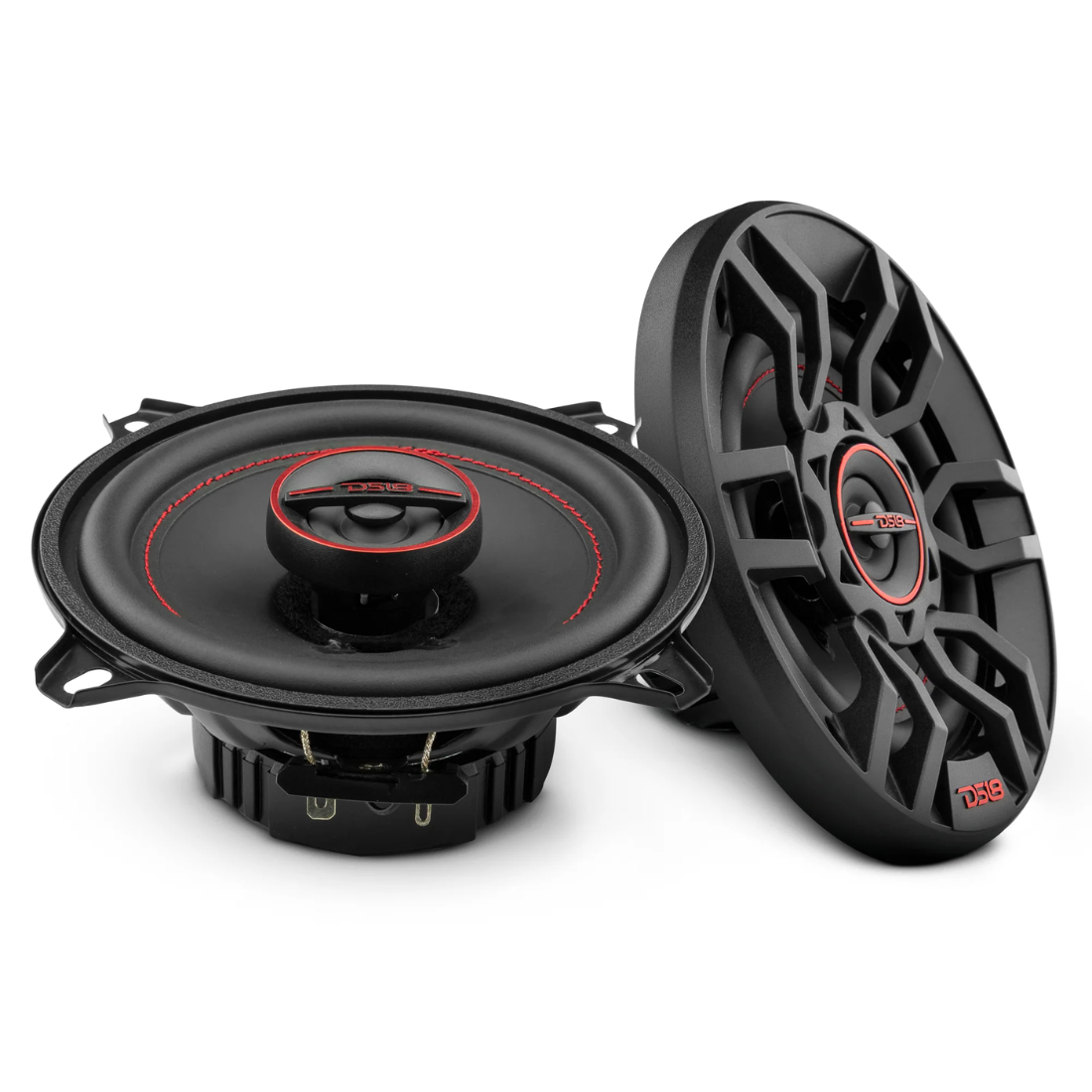

DS18 G5.25Xi 5.25" 2-Way 135W Max 4-Ohm Car Audio Coaxial Speakers (Pair)

DS18 G5.25Xi 5.25" 2-Way 135W Max 4-Ohm Car Audio Coaxial Speakers (Pair)

$41.95 USD
$41.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 G5.25Xi

5.25-inch 2-Way 135 Watts Max 4-Ohm Car Audio Coaxial Speakers (Pair)

The G5.25Xi is notable for its 2-way design consisting of a woofer, and a tweeter. The different drivers are each responsible for reproducing sounds within a specific frequency range, allowing for a more accurate and full-sounding audio experience.

Key Features:

  • 5.25" 2-Way Coaxial
  • MAX Power: 135 Watts
  • RMS Power: 45 Watts
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grills Included
Specifications

  • SKU: G5.25XI
  • Nominal Diameter: 5.25" / 133mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 45W
  • Maximum Power Handling: 135W
  • Sensitivity (1w/1m): 84dB
  • Frequency Response: 50Hz-20KHz
  • Recommended HI Pass Crossover: 80Hz
  • Number of ways: 2
  • Pair or single: Pair
  • Grill Included: Yes
Woofer Specifications:

  • Voice Coil Diameter: 1" / 25.5mm
  • Voice Coil Former Material: ASV
  • Winding Material: EISV
  • Cone Material: Paper
  • Surround Material: Rubber
  • Basket Material: Steel
  • Basket Color/Finish: Black Matte
  • Magnet Material: Barium Ferrite
  • Magnet Weight: 6.3Oz / 180g
Thiele & Small Parameters:

  • Equivalent Volume Vas: 3.66L / 0.129ft3
  • Excursion (one way) Xmax: 2.2mm
  • Free Air Resonance Fs: 86Hz
  • Mechanical Factor Qms: 3.5
  • Electrical Factor Qes: 1.63
  • Total Factor Qts: 1.1
  • Moving Mass Mms: 9.15g
  • Compliance Cms: 330mm/N
  • Bl Factor Bl: 3.4
  • Voice Coil Inductance Le: 151uH
  • Cone Area Sd: 84.5cm2
  • DC Resistance Re: 3.7 Ohms
  • Mechanical Mass w/o air Mmd: 8.3g
Tweeter Specifications:

  • Nominal Diameter: 1" / 25.5mm
  • Voice Coil Diameter: 0.5" / 13.25mm
  • Voice Coil Former Material: ASV
  • Winding Material: EISVM
  • Diaphragm Material: Mylar
  • Magnet Material: Neodymium
  • Magnet Weight: 1.8g
Measurements:

  • Overall Diameter: 5.13" / 130.4mm
  • Overall Depth: 2.47" / 62.8mm
  • Overall Diameter with Grill: 6.38" / 162mm
  • Overall Depth with Grill: 2.75" / 69.8mm
  • Front Mount Baffle Cutout: 4.52" / 115mm
  • Mounting Depth: 1.97" / 50mm
  • Motor Diameter: 3" / 76mm
  • Tweeter Protrusion: 0.5" / 12.8mm
  • Gross Single Unit Weight: 0.52 KG
