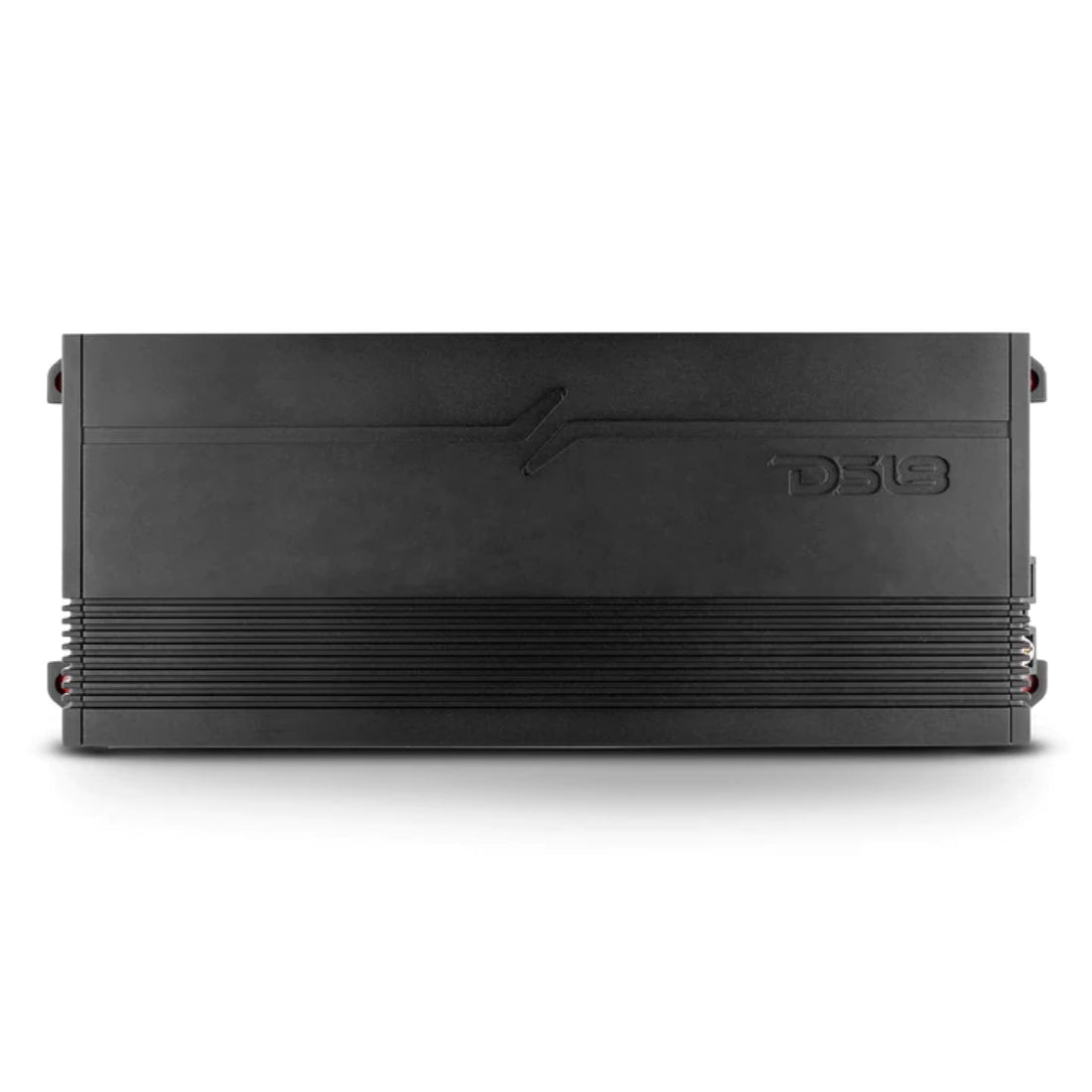

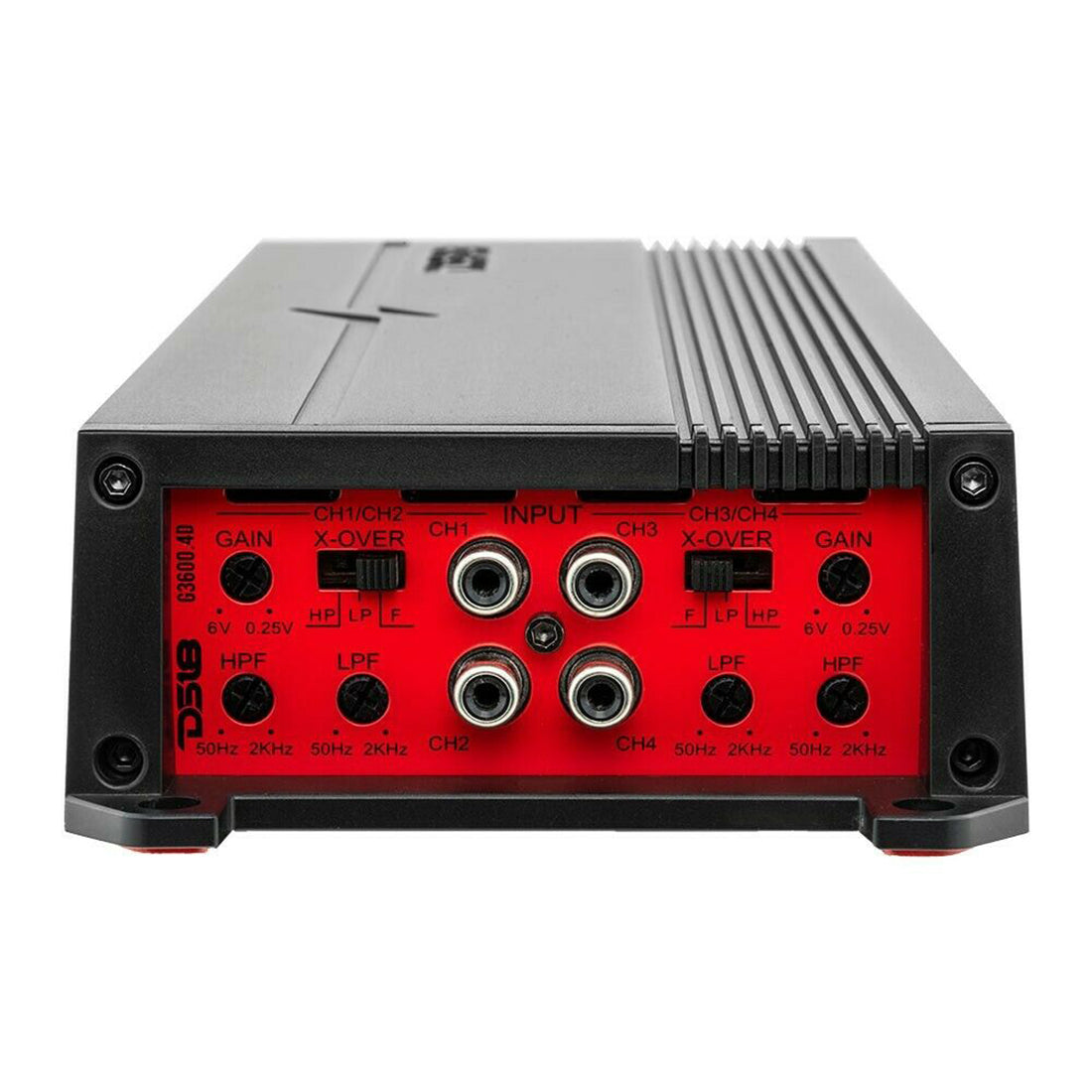

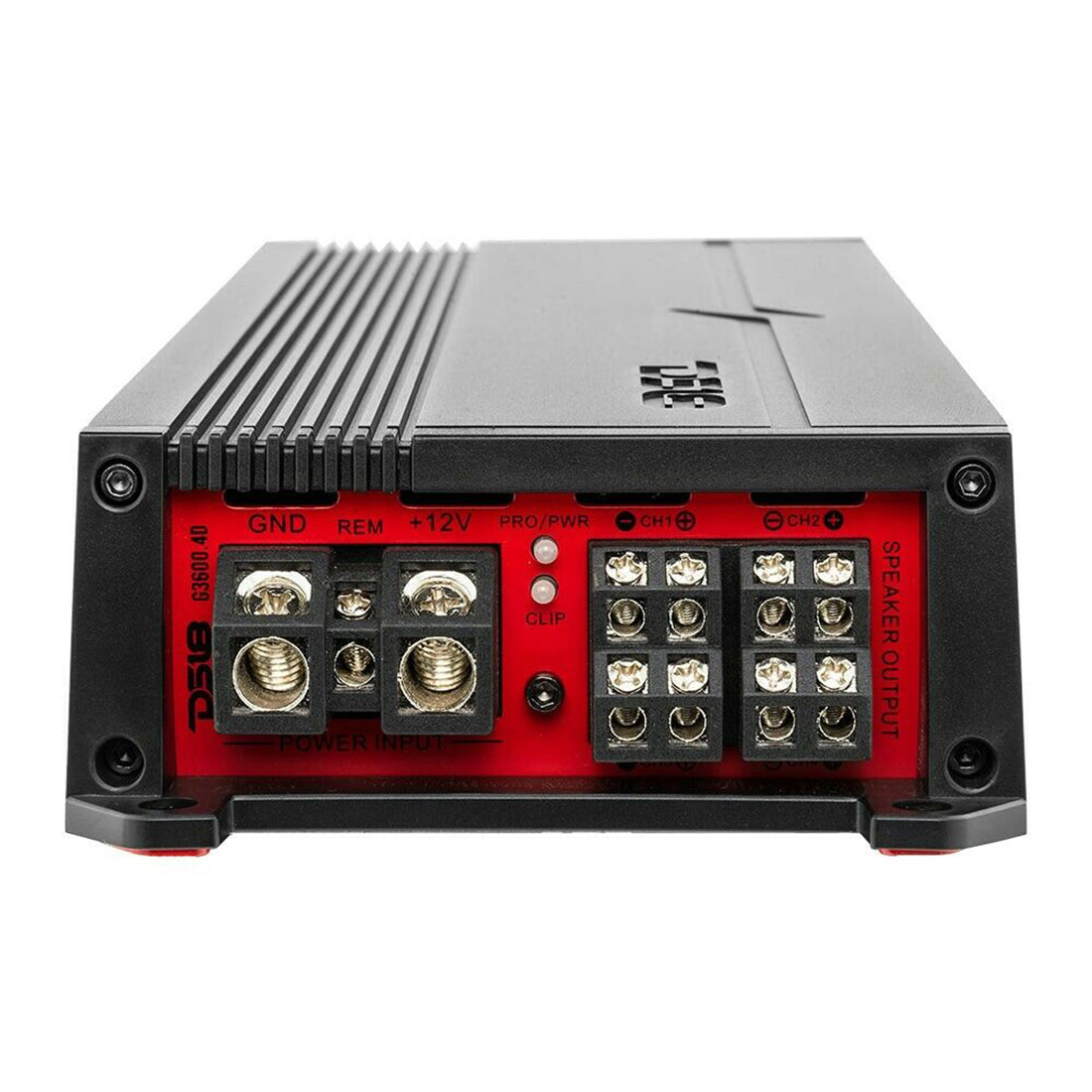

DS18 G3600.4D 3600W Max 4-Channel Class-D Stereo Full Range Car Audio Amplifier

Name: DS18 G3600.4D 3600W Max 4-Channel Class-D Stereo Full Range Car Audio Amplifier
Brand: DS18
SKU: G3600.4D
Price: 289.95 USD
Availability: InStock

$289.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 G3600.4D

3600 Watts Max 4 Channel Class D Car Stereo Full Range Amplifier

Key Features:

Digital Class D 4 Channel Amplifier
MAX Wattage: 3600w Peak
RMS Wattage: 2x740 Watts RMS @ 4 ohm bridge, 4x420 Watts RMS @ 2 ohms, 4x300 Watts RMS @ 4 ohms
Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >93dB
Efficiency at 4 ohms: 90%
Total Harmonic Distortion: 0.01%
Input Range: .25-6v
Selectable X-over: LPF, HPF. Flat
Phase: 0-180
Power and Ground Terminal: 4 GA
Minimum Impedance: 2 ohm

Specifications:

Amplifier Class: Digital (D)
Amplifier Type: 4CH Full Range
Number of Channels: 4CH
Minimum Impedance: 2 ohm St / 4 ohm Bridge
Led Indicator: Power / Protection / Clip
Power Input Terminal Size: 4ga
Fuse Size: 3 x 40A
Remote Level Control: NO
Cooling Fan: NO
Voltmeter: NO
Thermal Protection: YES
Over-Load Protection: YES
DC Output Protection: YES
Short Circuit Output Protection: YES
Voltage Input Protection: YES
Clipping Protection: YES
Body Color / Finish: Matte black

Power:

Total Watts (Peak): 3600W
RMS Power @ 4 ohm: 4 x 300W
RMS Power @ 2 ohm: 4 x 420W
RMS Power @ 4 ohm Bridge: 2 x 740W

Audio:

Frequency Response: 20Hz-20KHz
Signal to Noise Ratio: >93dB
Efficiency @ 4ohm: 80%
Damping Factor: 78
Input Impedance: 22K
Channel Separation: 70dB
Total Harmonic Distortion (THD): 0.01%
Low-Level Input Range: 0.25-6V
High-Level Input: NO
Selectable X-Over: LPF/FLAT/HPF
X-Over Filter Range: 50 - 250Hz
Bass Boost Range: N/A
Bass Boost Frequency: N/A
Infrasonic Filter: N/A
Phase Selector: NO

Measurement:

Overall Length: 12" / 305mm
Overall Wide: 4.72" / 120mm
Overall Height: 1.96" / 50mm
Heatsink Length : 10.15" / 258mm
Gross Single Unit Weight: 1.9KG
