DS18
Regular price
$549.95 USD
Regular price
Sale price
$549.95 USD
Unit price
/
per
Couldn't load pickup availability
BRAND NEW

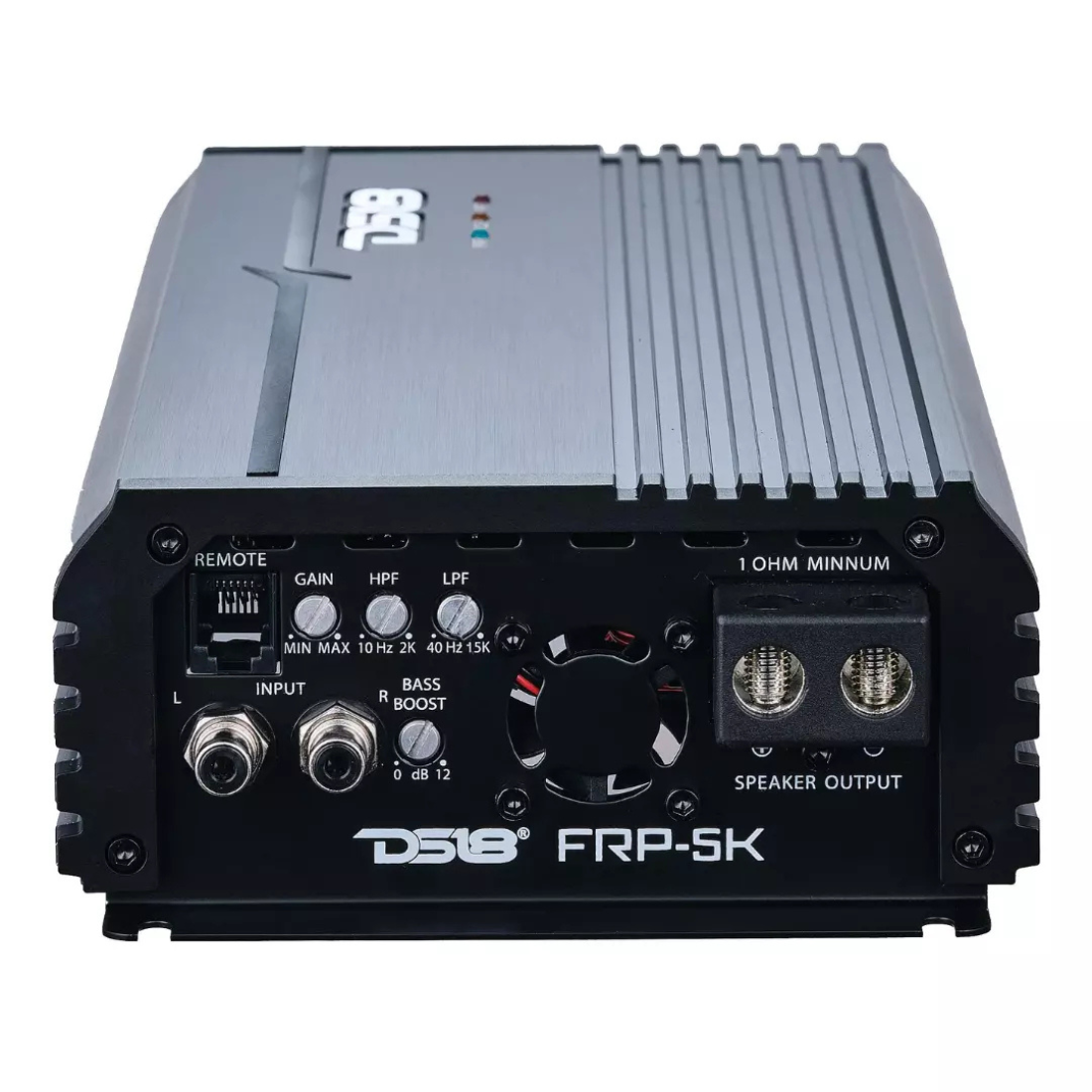

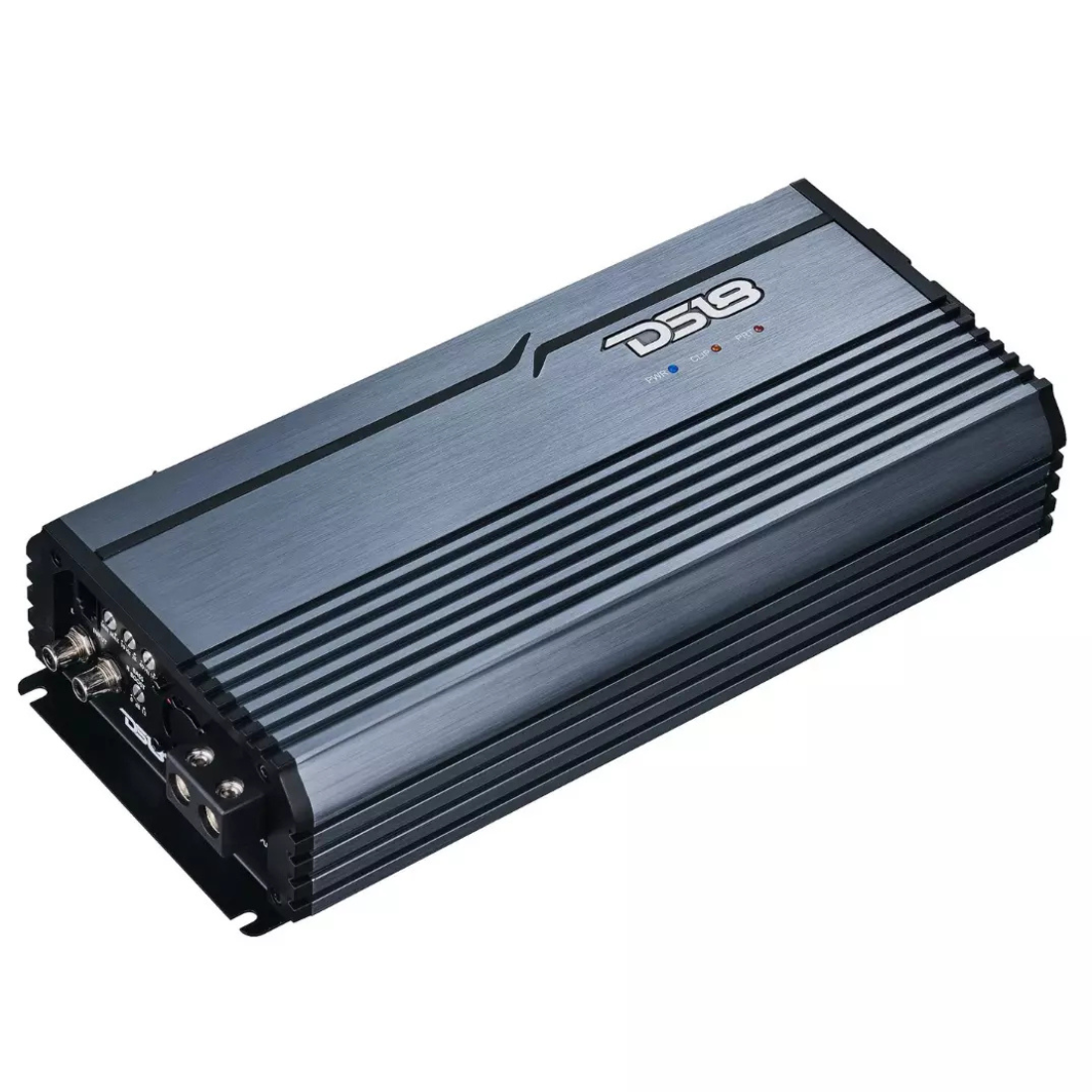

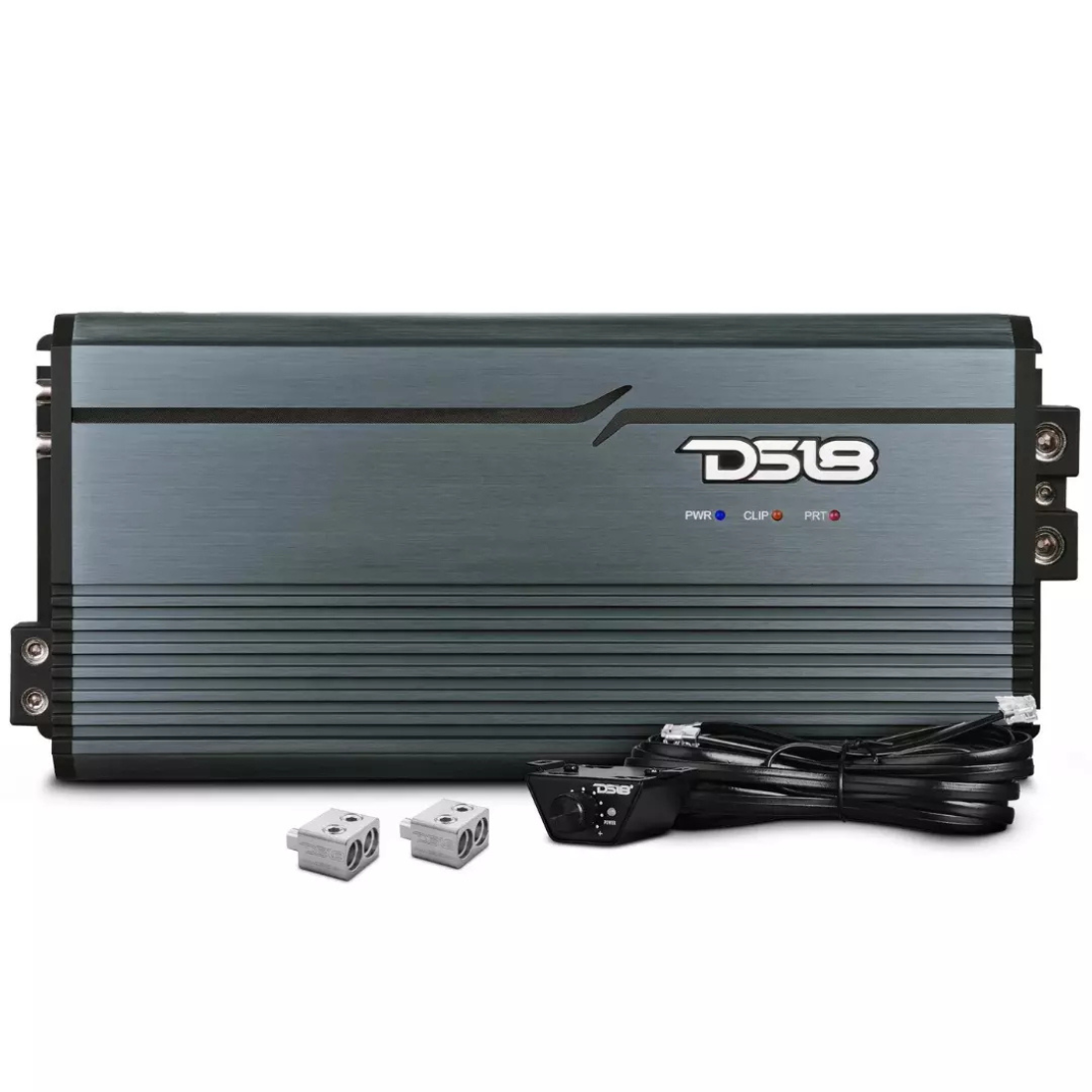

DS18 FRP-5K/TI
1-Channel 5000W RMS @ 1-Ohm Class-D Full-Range Amplifier (Titanium)
Key Features:
- SKU: FRP-5K/TI
- RMS Power @ 4 ohms: 1500W
- RMS Power @ 2 ohms: 2900W
- RMS Power @ 1 ohm: 5000W
- MAX Power @ 1 ohm (Burst): 5600W
- Amplifier Class: Digital
- Amplifier Type: Full-Range Monoblock
- Number of Channels: 1CH
- Minimum Impedance: 1Ω
- Led Indicator: Power / Protect / Clipping

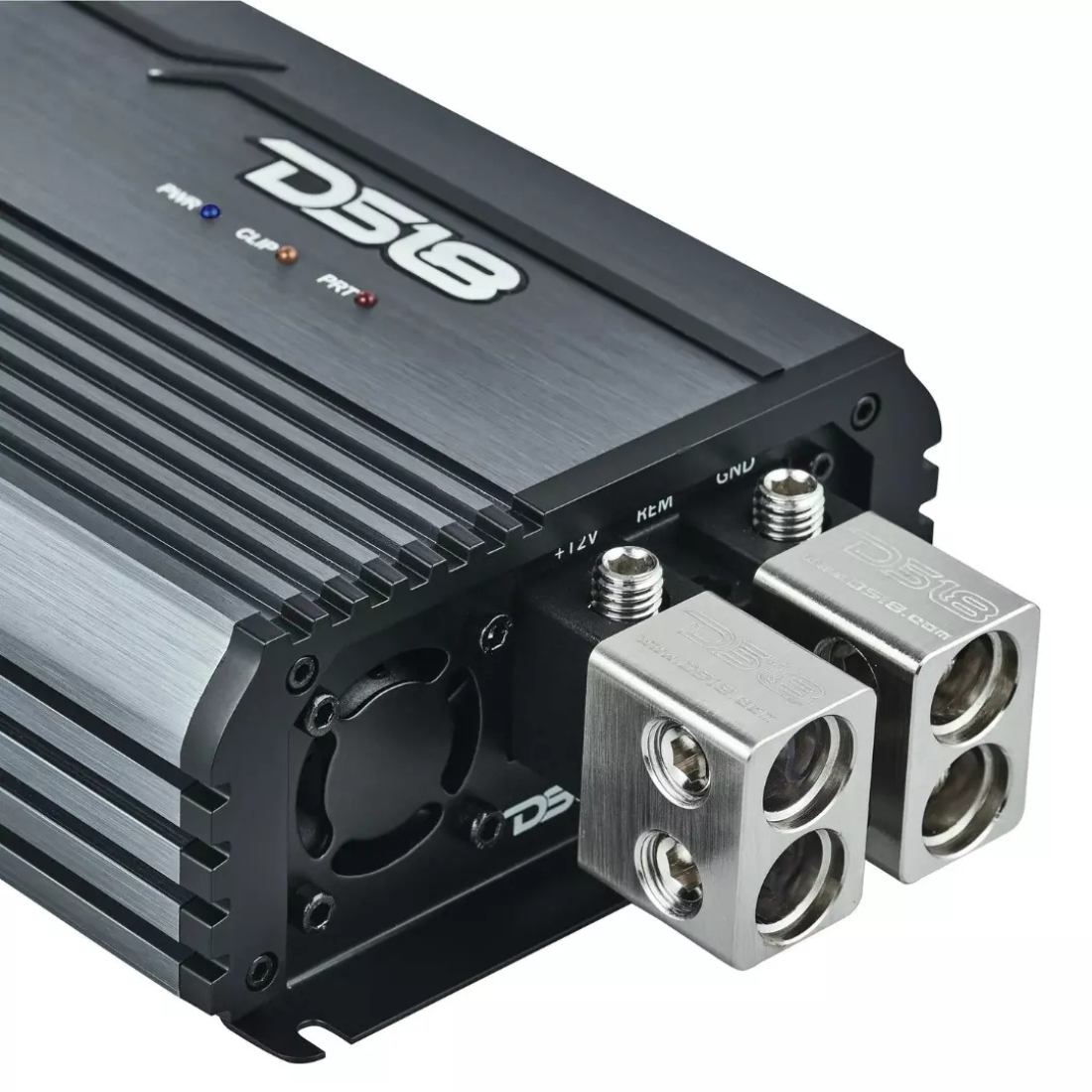

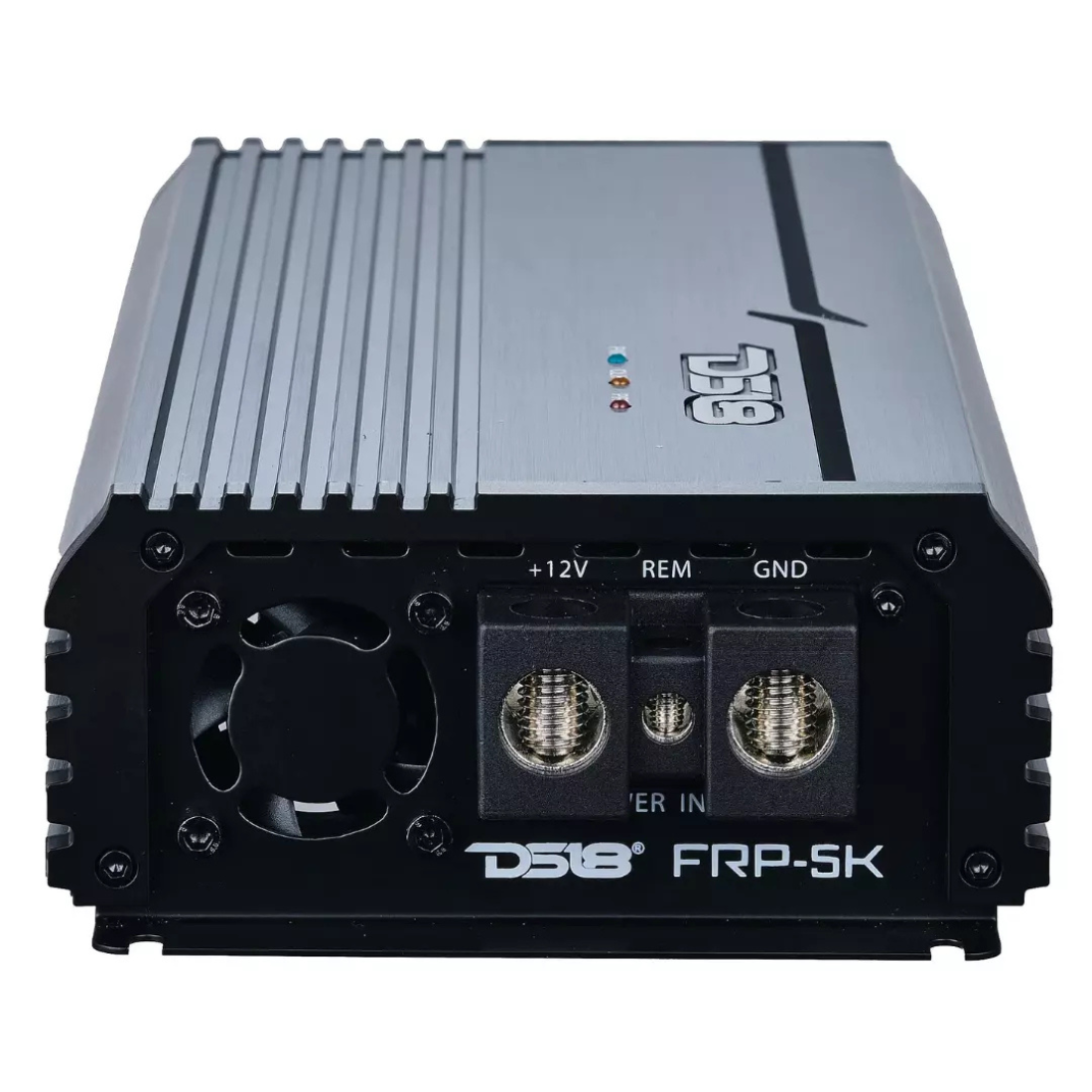

- Power Input Terminal Size: 0GA
- Fuse Size (Recommended): 500A
- Remote Level Control: Yes (Volmeter Optional)
- Cooling Fan: Yes (Smart Cooling x 2)
- Voltmeter: No
- Thermal Protection: Yes
- Over-Load Protection: Yes
- DC Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes
- Clipping Protection: Yes
- Body Color / Finish: Titanium
- Compact Size to Easy Installation for Any Applications: Yes

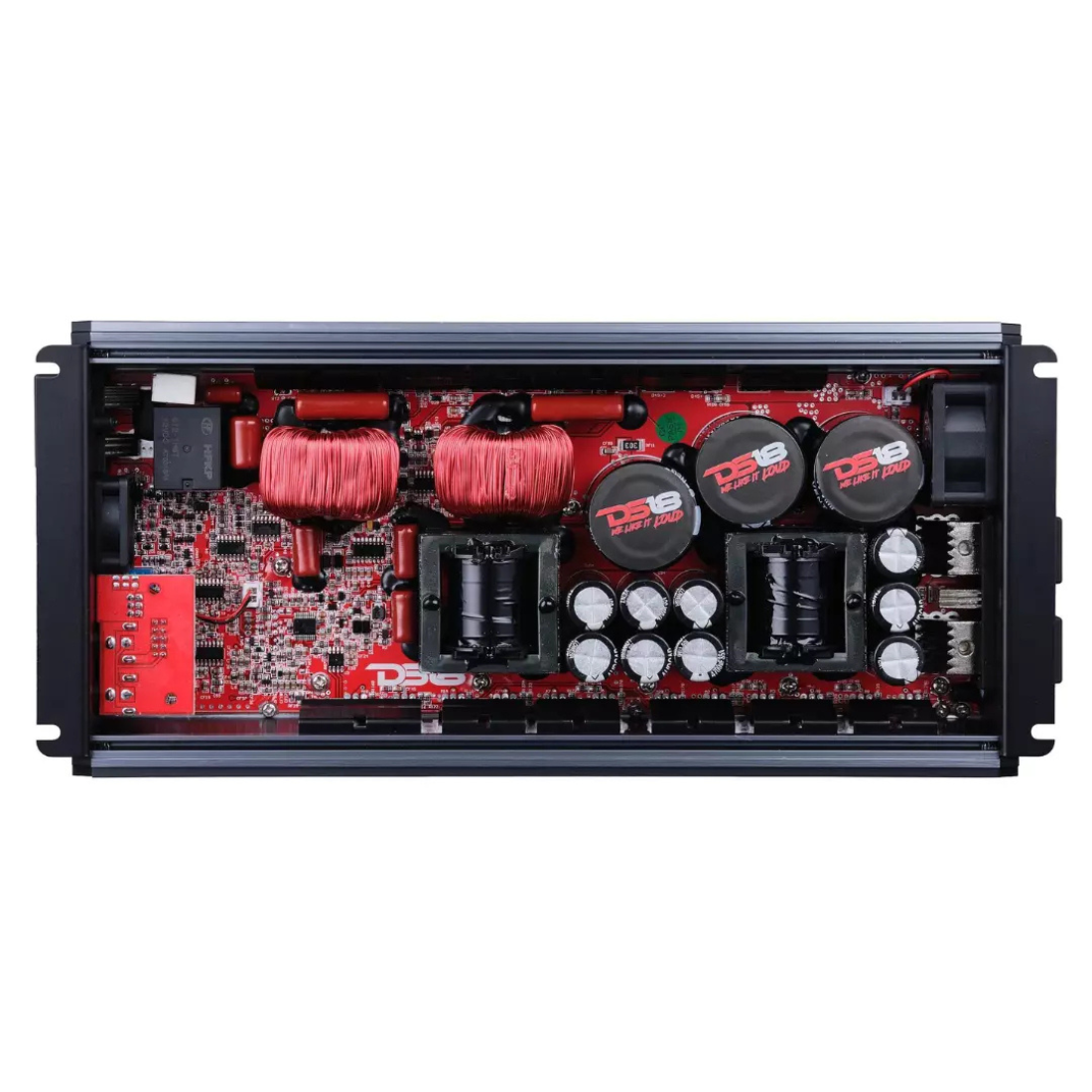

- Stable/Reliable Four Layers Traces PCB Design: Yes
- Surface Mount Component Technology: Yes
- Quality Control Verification using Audio Precision Instruments: Yes
- Tiffany RCA Terminal: Yes
- LED Clip Indicator: Yes
- Metal Knobs with Click Steps: Yes

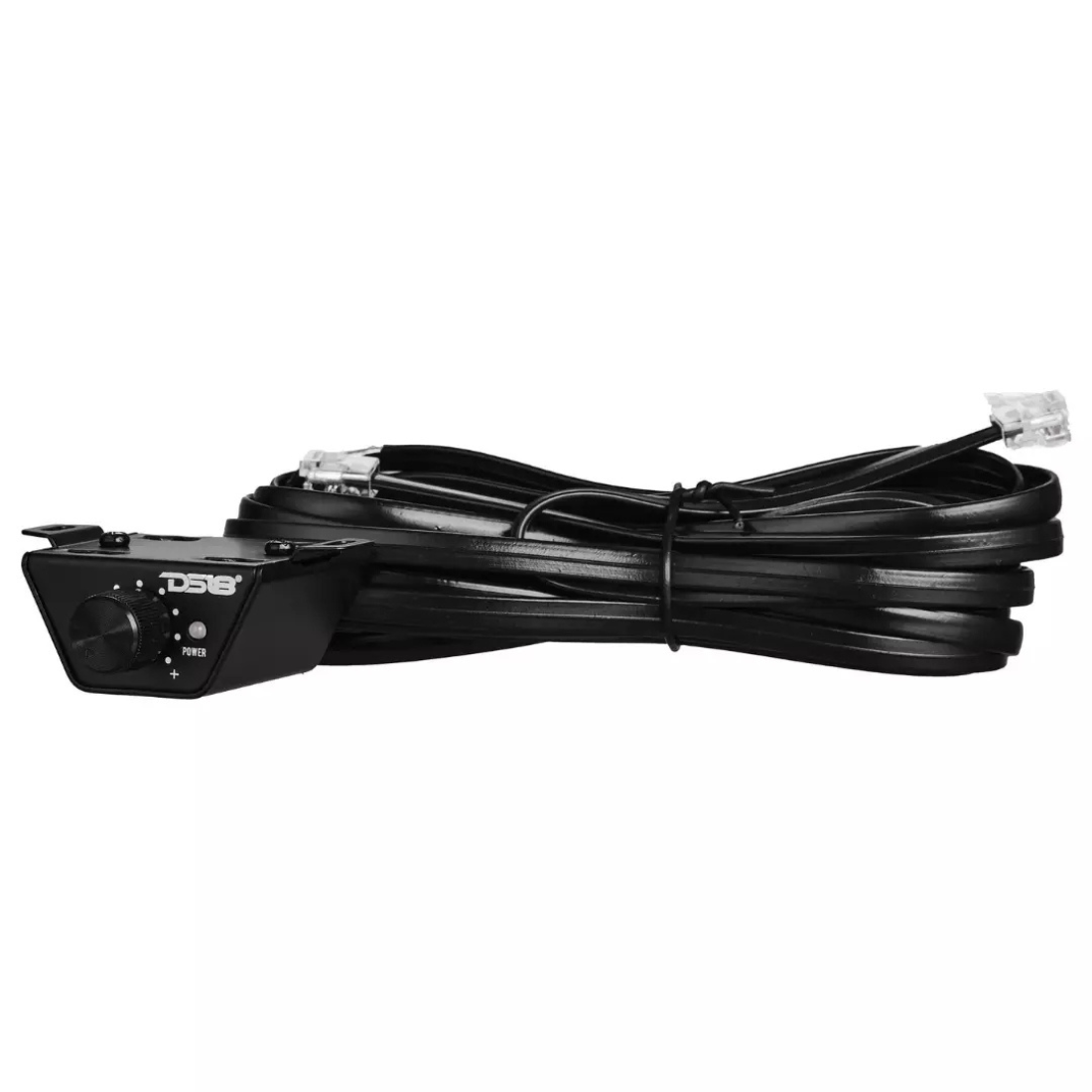

- Remote Level Control with Clip Indicator: Included
- Remote Level Control with Clip Indicator and Voltmeter: Optional
Audio Features:
- Frequency Response: 10Hz-15KHz
- Signal to Noise Ratio: 83dB
- Efficiency @ 4ohm: 92%
- Damping Factor: 90
- Input Impedance: 10KΩ
- Total Harmonic Distortion (THD): 0.5%
- Low-Level Input Range: 400mv-3.6V
- High-Level Input: No
- Selectable X-Over: Fixed Band-Pass
- X-Over Filter Range: HP: 10Hz-2KHz / LP: 40Hz-20KHz
- Bass Boost Range: 0-12dB
- Bass Boost Frequency: 50Hz
- Phase Selector: No
Measurement:
- Overall Length: 12.2" / 310mm
- Overall Width: 5.5" / 140mm
- Overall Height: 2.36" / 60mm
- Heatsink Length: 11" / 278mm
- Gross Single Unit Weight: 3.3kg
