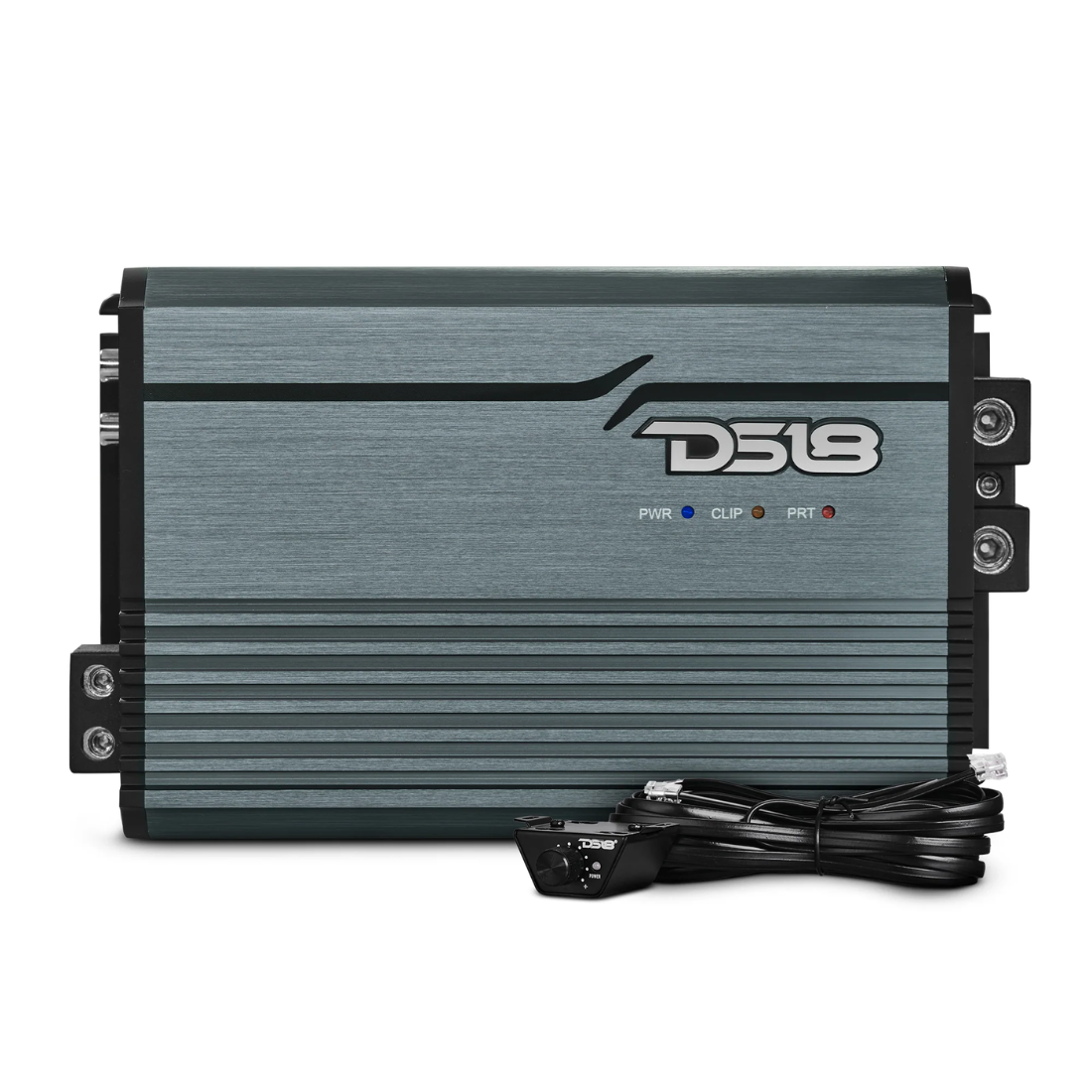

• DS18 FRP-2.5K/TI 1-CH 2500W RMS Class-D Compact Full-Range Amplifier TITANIUM
1 1

DS18

DS18 FRP-2.5K/TI 1-CH 2500W RMS Class-D Compact Full-Range Amplifier TITANIUM

DS18 FRP-2.5K/TI 1-CH 2500W RMS Class-D Compact Full-Range Amplifier TITANIUM

$299.95 USD
$299.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 FRP-2.5K/TI

1-Channel 2500W RMS @ 1-Ohm Class-D Compact Full-Range Amplifier (TITANIUM)

DS18’s FRP-2.5K was built for durability and performance. The protective coating on the PCB prevents moisture corrosion and bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.

Key Features:

  • SKU: FRP-2.5K/TI
  • RMS Power @ 4 ohms: 700W
  • RMS Power @ 2 ohms: 1300W
  • RMS Power @ 1 ohm: 2500W
  • MAX Power @ 1 ohm (Burst): 2800W
  • Amplifier Class: Digital
  • Amplifier Type: Full-Range Monoblock
  • Number of Channels: 1CH
  • Minimum Impedance: 1Ω
  • Led Indicator: Power / Protect / Clipping
  • Power Input Terminal Size: 0GA
  • Fuse Size (Recommended): 200A
  • Remote Level Control: Yes (Volmeter Optional)
  • Cooling Fan: Yes (Smart Cooling x 2)
  • Voltmeter: No
  • Thermal Protection: Yes
  • Over-Load Protection: Yes
  • DC Output Protection:
  • Short Circuit Output Protection: Yes
  • Voltage Input Protection: Yes
  • Clipping Protection: Yes
  • Body Color / Finish: Titanium
  • Compact Size to Easy Installation for Any Applications: Yes
  • Stable/Reliable Four Layers Traces PCB Design: Yes
  • Surface Mount Component Technology: Yes
  • Quality Control Verification using Audio Precision Instruments: Yes
  • Tiffany RCA Terminal: Yes
  • LED Clip Indicator: Yes
  • Metal Knobs with Click Steps: Yes
  • Remote Level Control with Clip Indicator: (Included)
  • Remote Level Control with Clip Indicator and Voltmeter: (Optional)
Audio Features:

  • Frequency Response: 10Hz-20KHz
  • Signal to Noise Ratio: 83dB
  • Efficiency @ 4ohm: 85.6%
  • Damping Factor: 90
  • Input Impedance: 10KΩ
  • Total Harmonic Distortion (THD): 0.5%
  • Low-Level Input Range: 400mv-3.6V
  • High-Level Input: No
  • Selectable X-Over: Fixed Band-Pass
  • X-Over Filter Range: HP: 10Hz-2KHz / LP: 40Hz-20KHz
  • Bass Boost Range: 0-12dB
  • Bass Boost Frequency: 50Hz
  • Phase Selector: No
Measurement:

  • Overall Length: 8.85" / 225mm
  • Overall Width: 5.5" / 140mm
  • Overall Height: 2.36" / 60mm
  • Heatsink Length: 7.6" / 193mm
  • Gross Single Unit Weight: 2.1kg
