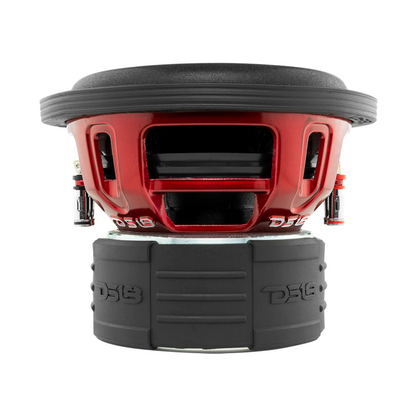

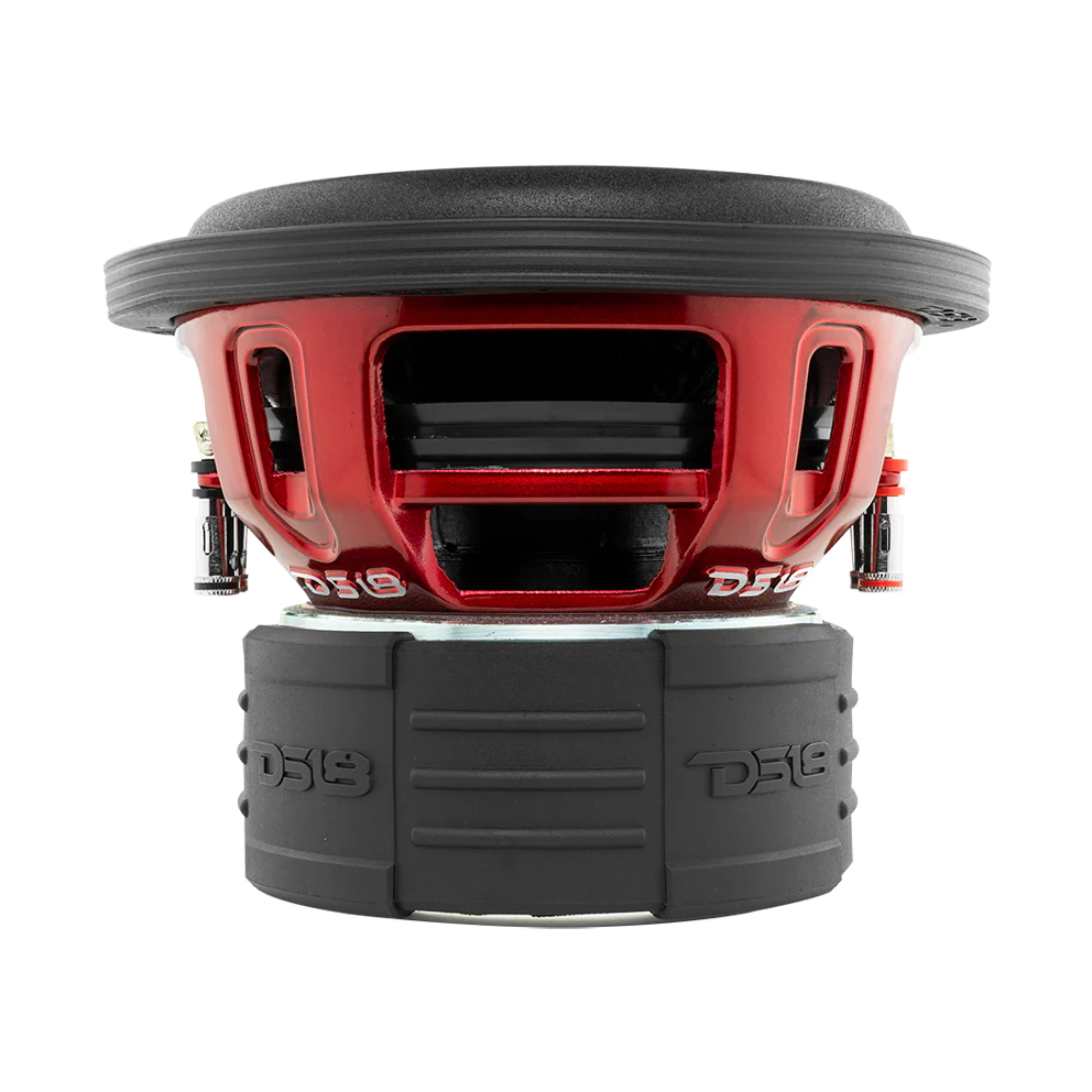

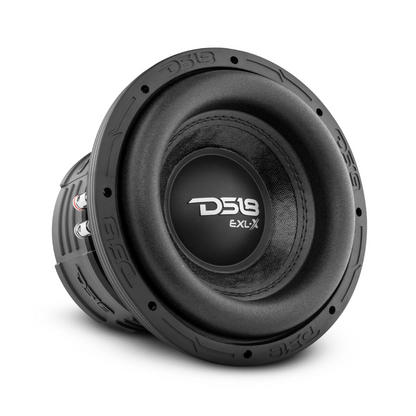

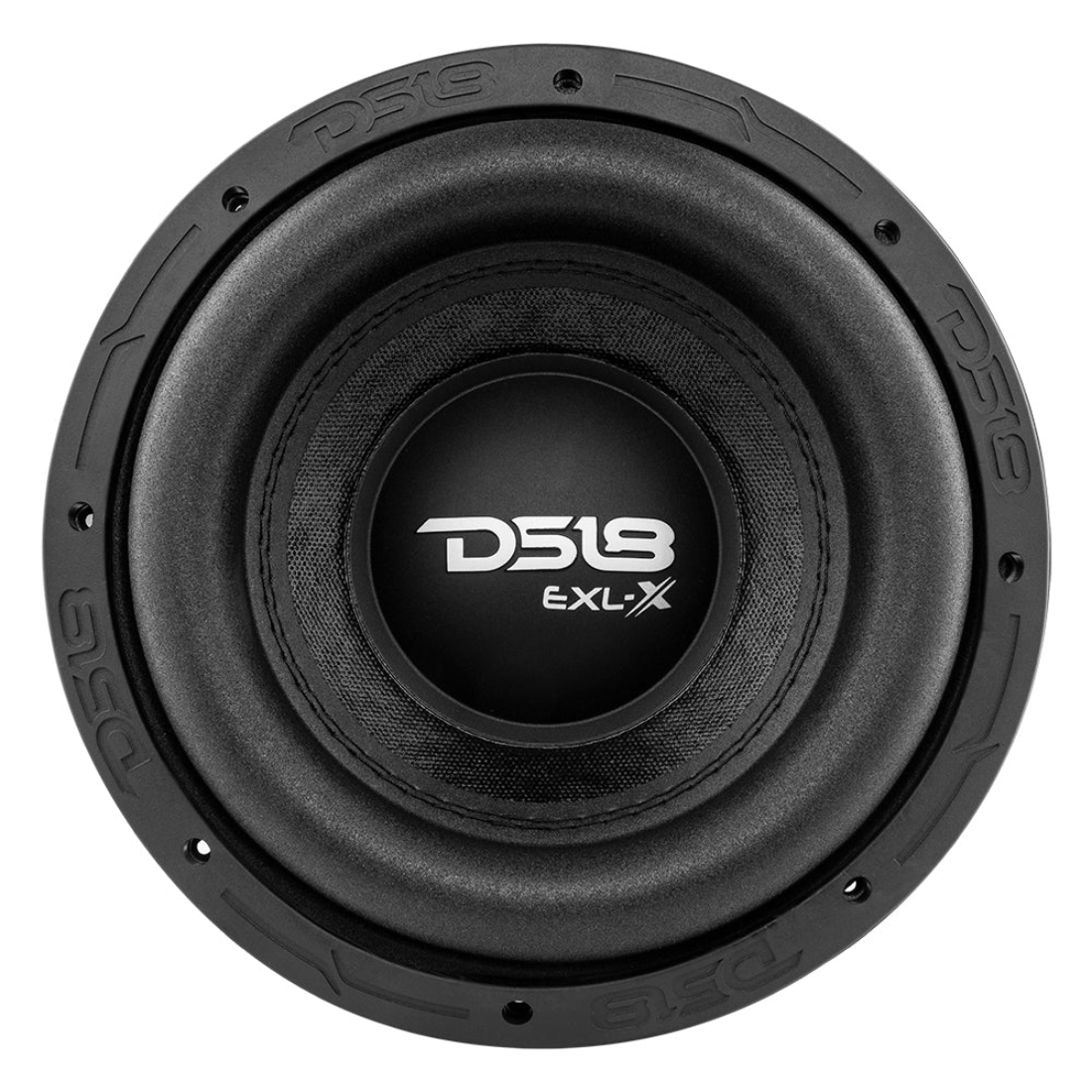

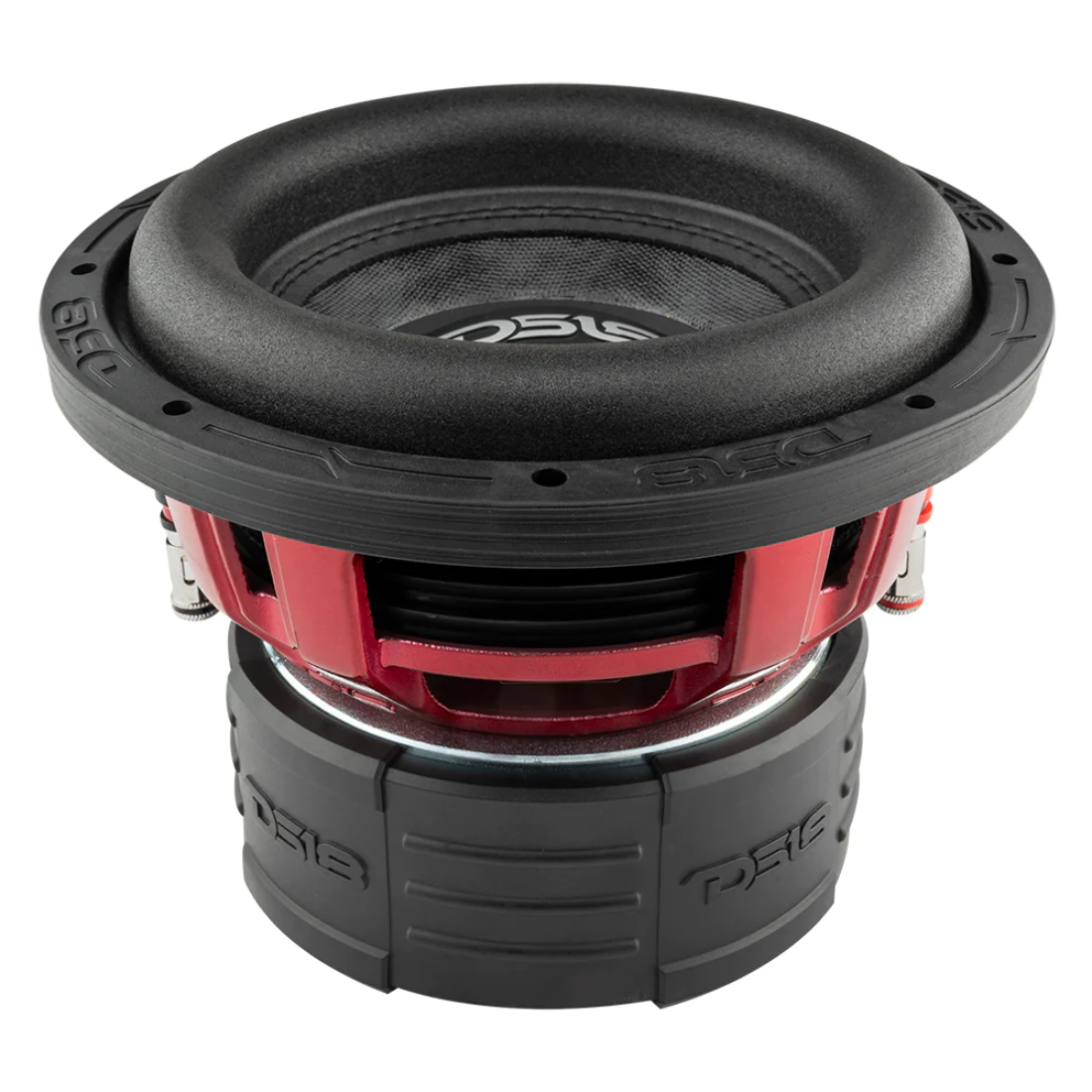

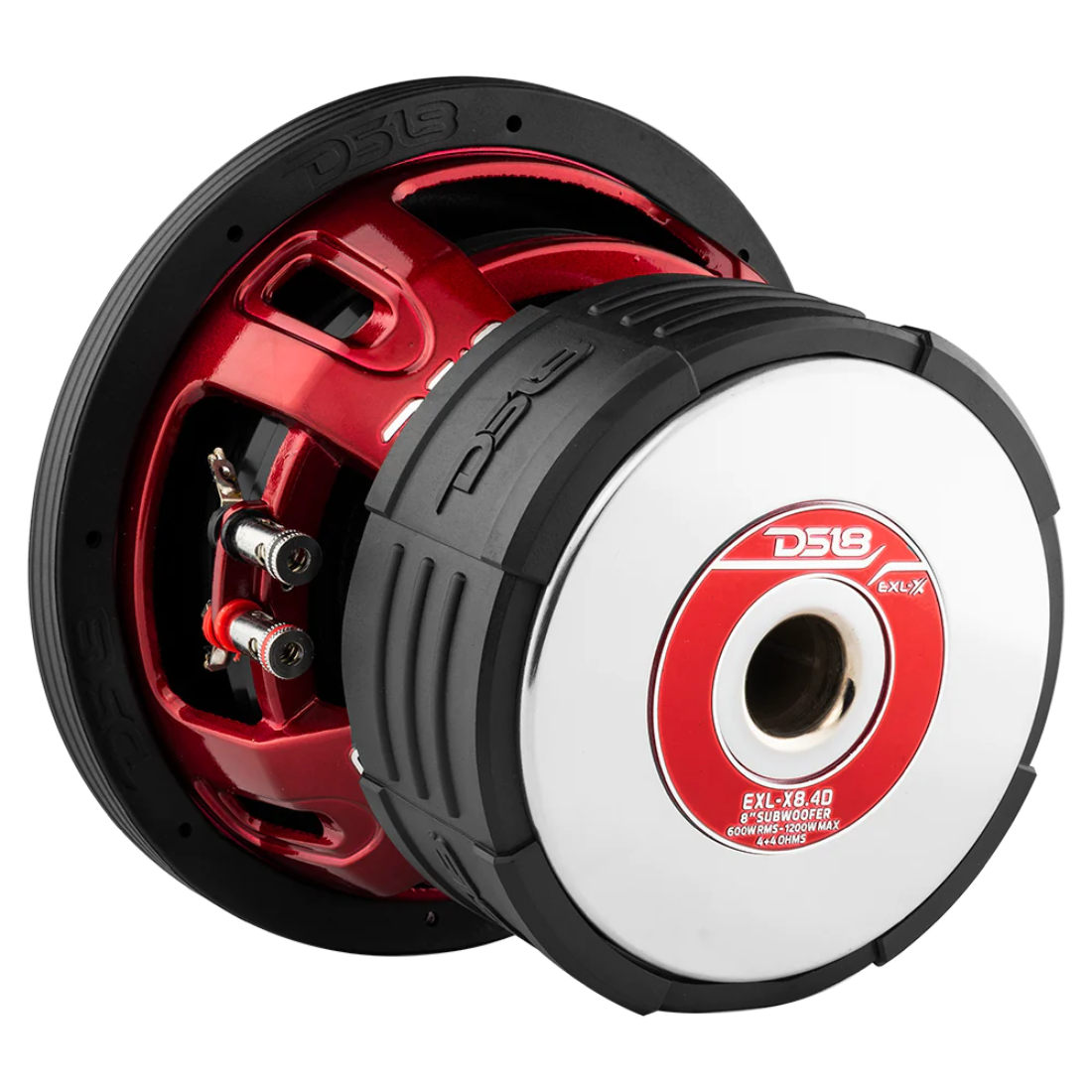

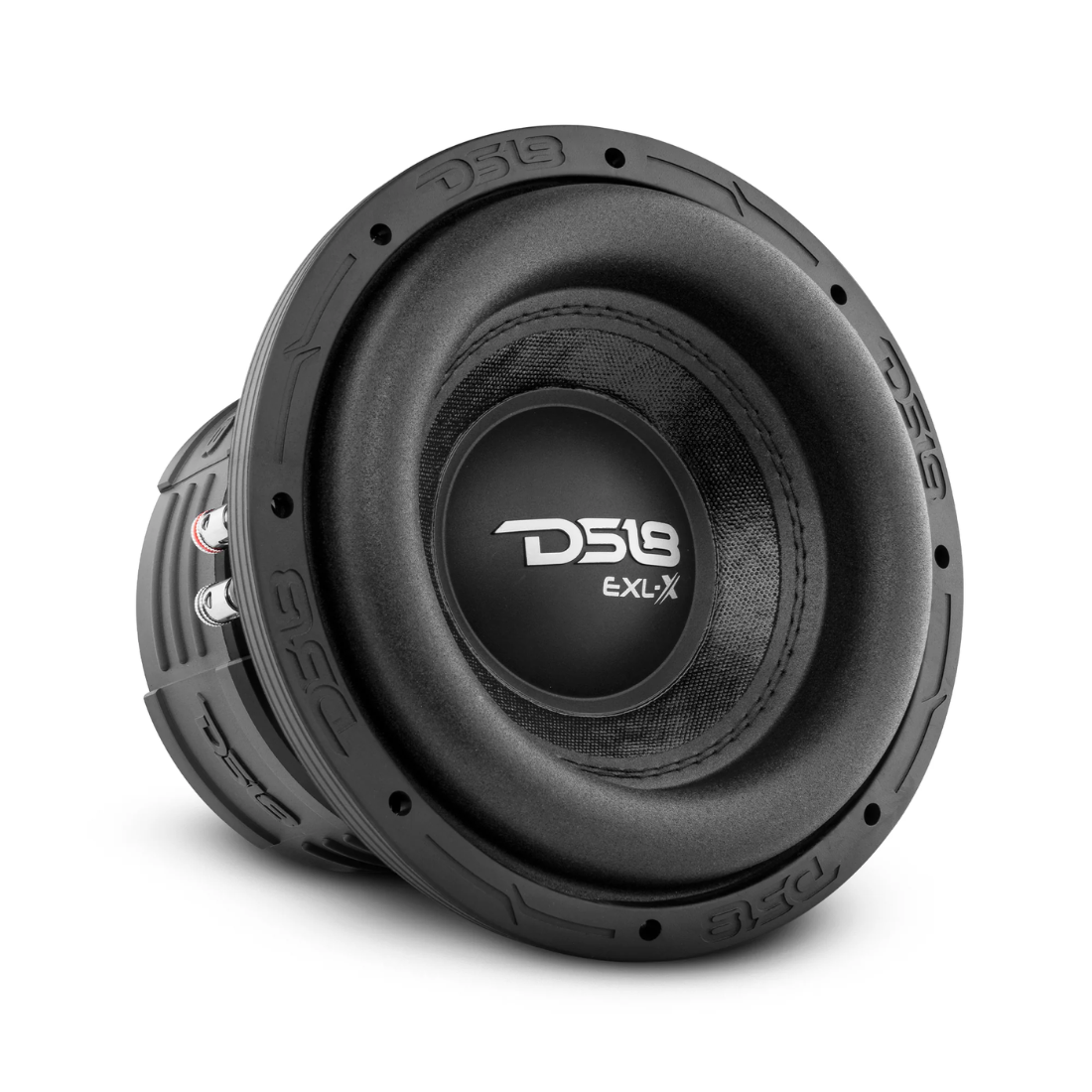

DS18 EXL-8.4D 8" 1200W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer

Name: DS18 EXL-8.4D 8" 1200W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer
Brand: DS18
SKU: EXL-8.4D
Price: 189.95 USD
Availability: InStock

$189.95 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DS18 EXL-8.4D

8-Inch 1200 Watts Max Dual 4-Ohm Voice Coil DVC Car Subwoofer

Specifications:

Nominal Diameter: 8" / 203.2mm
Nominal Impedance: 4+4 ohms
RMS Power Handling: 600W
Maximum Power Handling: 1200W
Sensitivity (1w/1m): 89dB
Frequency Response: 38Hz-1KHz
Recommended Lo Pass Crossover: 100Hz

Motor Features:

Voice Coil Diameter: 2.5" / 63.5mm
Voice Coil Former Material: Black Aluminum
Winding Material: SV
Cone Material: Non Pressed Paper + Glass fiber
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Aluminum
Basket Color/Finish: Glossy Red
Magnet Material: Ferrite
Magnet Weight: 130 oz
Displacement Volume: N/A

Thiele & Small Parameters:

Equivalent Volume: 2.8L / 0.098ft3
Free Air Resonance: 70Hz
Mechanical Factor: 5.206
Electrical Factor: 0.803
Total Factor: 0.696
Moving Mass: 103.36g
Compliance: 0.053mm/N
Bl Factor: 9.5
Voice Coil Inductance: 1.394mH
Diaphragm Area: 193.59cm2
DC Resistance: 3.2+3.2 ohm
Efficiency Bandwidth Product: 87.1

Recommended Enclosures:

Sealed Internal Volume: 0.3ft3
Sealed Box Output Response: 60Hz
Ported Internal Volume: 0.5ft3
Port Size *Square (W x H x Long): 1" x 8" x 10.56" / 25 x 203 x 268mm
Port Tuning Frequency: 55Hz
Ported Box Output Response: 42Hz

Measurement:

Overall Diameter: 8.58" / 218mm
Overall Depth: 6.61" / 168mm
Front Mount Baffle Cutout: 7.36" / 187mm
Mounting Depth: 5.51" / 140mm
Motor Diameter: 6.1" / 155mm
Gross Single Unit Weight (lb): 16.5
Dimensions W x L x H (Inches): 9.25 x 9.25 x 7.5
