DS18 DDX10.5CP 2-DIN Mechless Digital Multimedia Receiver w/ 10.5" Touchscreen

DS18 DDX10.5CP 2-DIN Mechless Digital Multimedia Receiver w/ 10.5" Touchscreen

$384.95 USD
$384.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18  DDX10.5CP

Double-DIN In-Dash Mech-less Digital Media Receiver with 10.5-Inch Touchscreen

Key Features:

  • 10.5-inch (16:9) 1080p (1024x600 pixels) Full HD double din touchscreen to maximize your viewing in a small space.

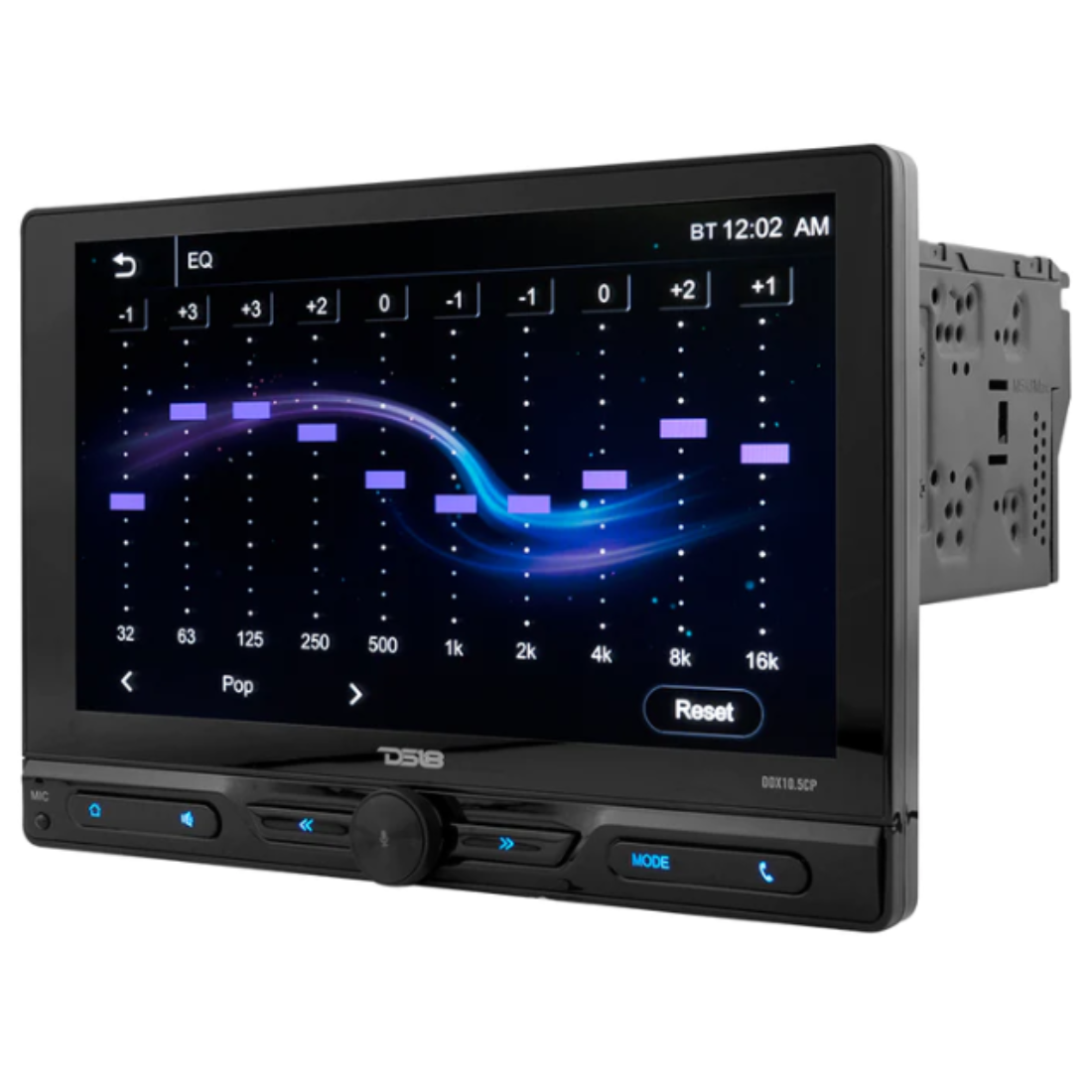

  • Full 10 Band EQ
  • 4v preamp outputs (SUB / FRONT / REAR)
  • Built-in Apple Car Play, Mirror Link, Wi-Fi, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)
  • Wireless remote control for easy operation.
  • RCA inputs so you can view external sources videos easily via source.
  • MIC in options for easy phone operation and built-in controls.
  • Camera Inputs are included so you can plug and play most types of backup cameras.
  • Apple and Android compatible.
Specifications:

  • Screen Size / Aspect Ratio: 10.5 inch / Wide 16:9
  • Pixels: 1280 x 720
  • Display Type: IPS / Full HD / Capacitive Touch Screen
  • Temperature Operation: -20°C to +60°C (14°F to 140°F)
  • Rated power source: 14.4V DC (10.8V to 15V operation)
  • Maximum Current Consumption: 15 Amp
  • Dimensions (W x H x D):
  • Chassis: 178mm x 100mm x 138mm
  • Bezel frame: 170mm x 96mm x 5mm
  • Weight: 1.80 Lb / 820 grams
Audio Features:

  • Maximum Power Output: 40W X 4 Ch / 4 ohm
  • Continuous Power Output: 15W x 4 Ch / 4 ohm
  • Pre-output Level: 4.5 Volts (Front, Rear, Subwoofer)
  • Equalizer: 10 bands (32hz, 63hz, 125hz, 250hz, 500hz, 1khz, 2khz, 4khz, 8khz, 16khz) Gain: +/- 6dB
  • Audio Control: Volume / Balance / Fader /Loudness
Tuner Features:

  • Frequency Range: FM - 87.5 ~ 107.9 KHz  AM: 530 ~ 1710 KHz
  • Presets Memory: 30 Stations (18 FM/12 AM)
  • Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
  • Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
  • RDS: Yes (Radio Data System)
USB / SD PLAYER:

  • Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
  • Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
  • Resolution Supported: 1080P Video
  • Memory Size Reader: Up to 64 Gb
  • Max Current Supply: 1.5 Amp (USB)
  • Number of USB Ports: 2 (1 x Front (Type-C), 1 x Rear)
Connectivity:

  • Bluetooth Version / Services: V5.1/ Audio Streaming / Hands Free calls
  • Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
  • Video Output: Dual RCA (1 Volt/75 ohm)
  • AV Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
  • Microphone: 3.5mm Jack external MIC Input
  • Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input
