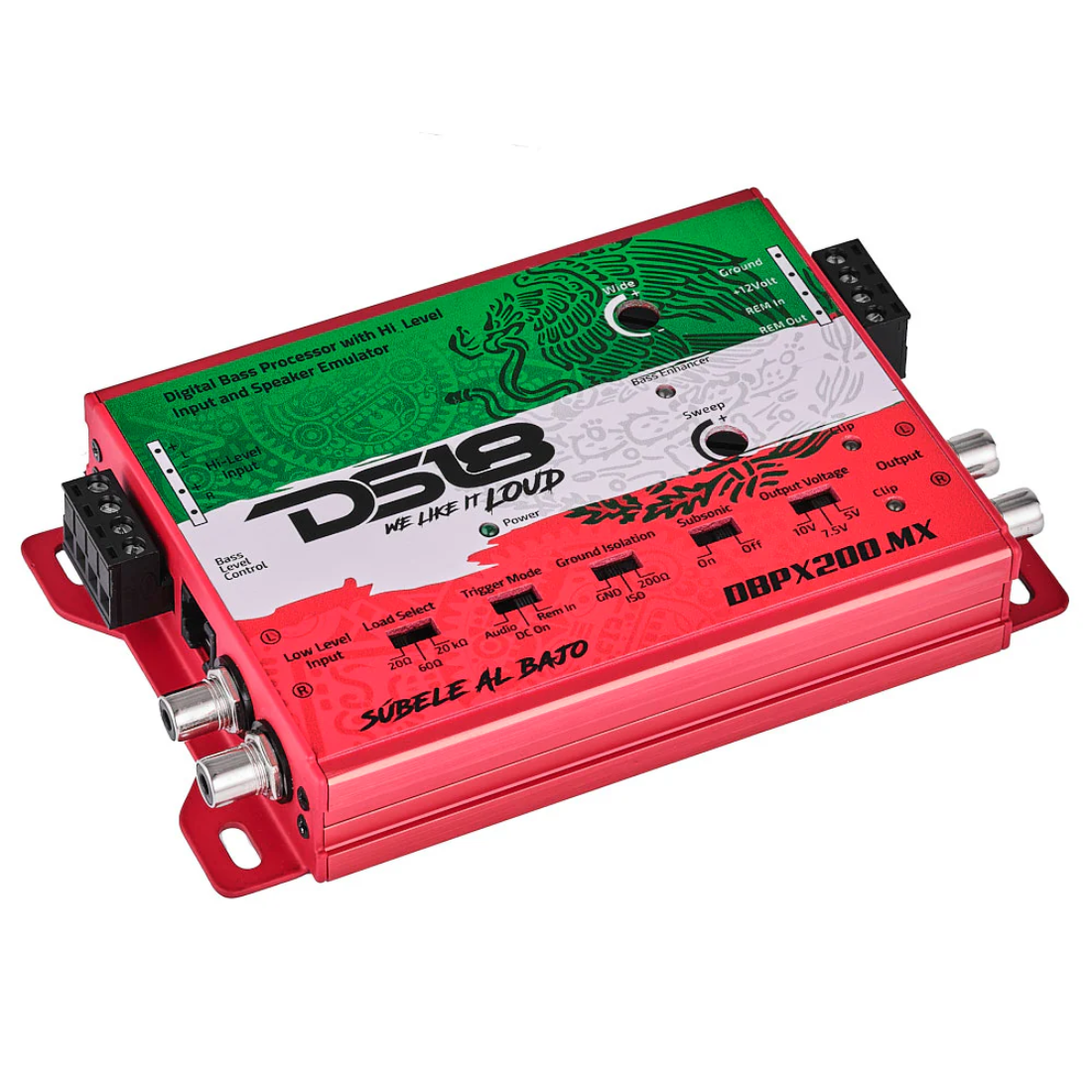

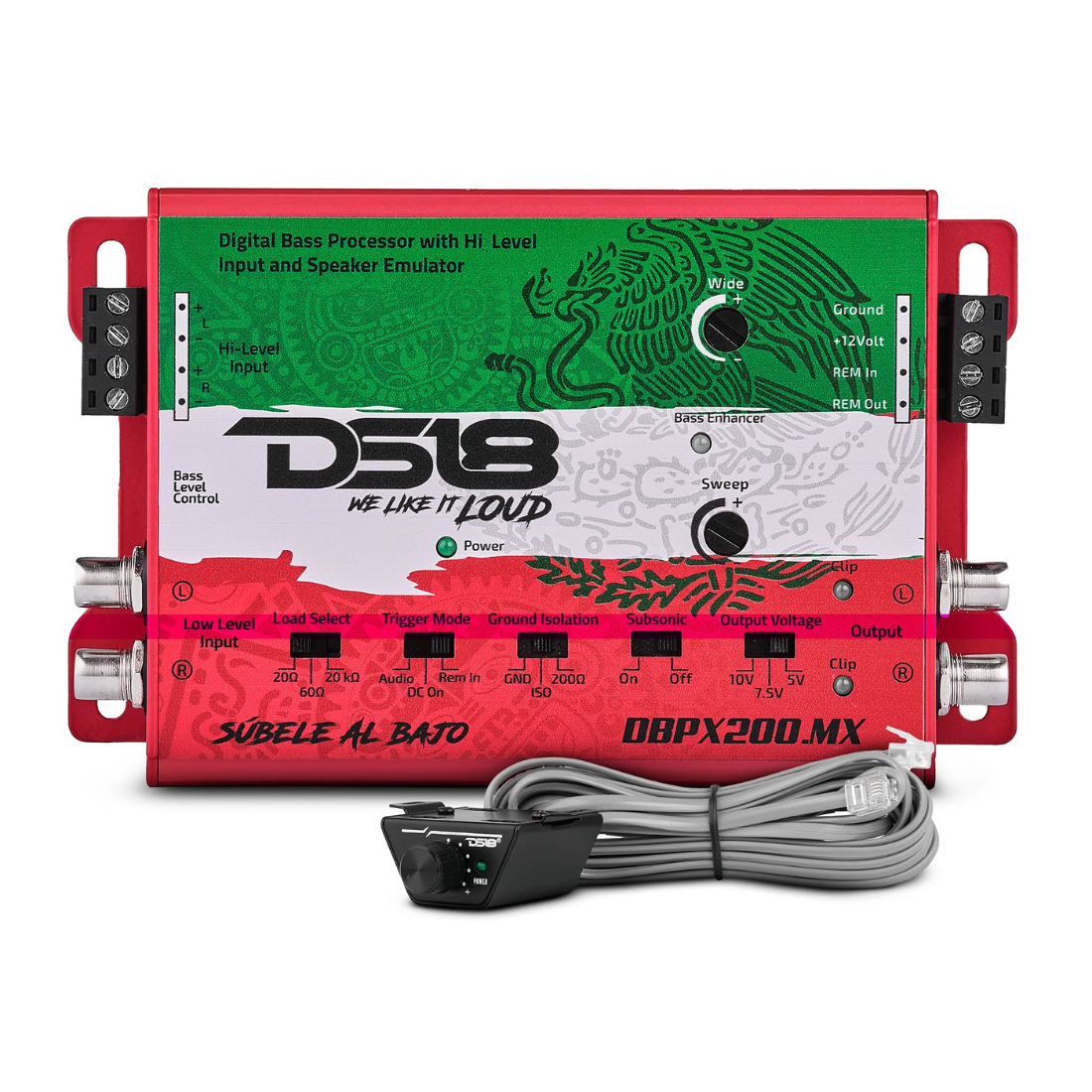

DS18 DBPX200.MX Digital Bass Processor Hi-Low Signal Converter Speaker Emulator

DS18 DBPX200.MX Digital Bass Processor Hi-Low Signal Converter Speaker Emulator

$199.95 USD
$199.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 DBPX200.MX (Mexico Design)

Digital Bass Processor with Hi To Low Signal Converter & Speaker Emulator

Key Features:

  • Digital Bass Restoration Processor W/ Mexico Design
  • Hi to Low Converter / Speaker Emulator
  • 2 Channel Preamp Input / Output
  • Output Volts / Subsonic / Ground ISO / Trigger / Load Selectors

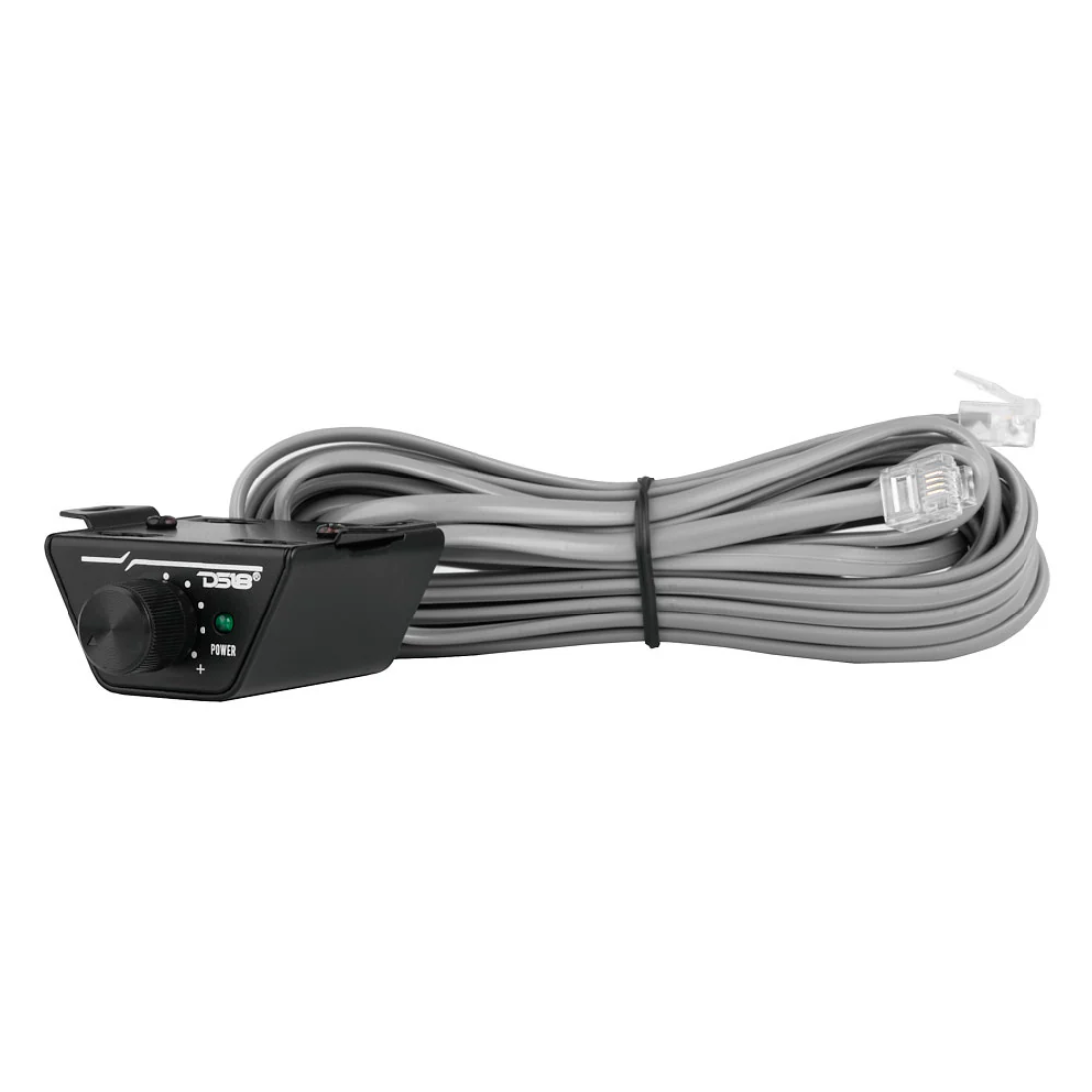

  • Remote Level Control w/ Bass and Level
  • Compact Design
General Specs:

  • SKU: DBPX200.MX
  • Operating Voltage: 9-16V
  • Power Consumption: 0.18A
  • Recommended Fuse Rating: 1A
  • Power Input Terminal Size: 16ga
  • LED Indicator: Power / Bass Enhancer
  • Ground Isolation Switch: Yes (GND/ISO/200?)
  • Hi-Level Speaker Input: Yes (2 Channels)
  • Auto Turn-on Function: Yes (Audio/DC)
  • Remote Turn-on (Input / Output): Yes
  • Remote Level Control: Yes (Bass Enhancer/Level)
  • RCA Connector Type: Tiffany (Silver)
  • Housing Material: Aluminum
  • Body Color / Finish: Red / Green / White (Mexico Theme)
Audio Specs:

  • Frequency Response: 10Hz-20kHz
  • S/N Ratio: 95dB
  • THD: 0.05%
  • Input Sensitivity (Low-Level): <8.8V
  • Input Sensitivity (Hi-Level): >15V
  • Input Impedance: 20Kohms
  • Output Voltage: Selectable (5V/7.5V/10V)
  • Output Impedance: 110ohms
  • Balanced Input Noise Rejection: >45dB
  • Stereo Separation: >50dB
Crossover Section:

  • Subwoofer LPF Frequency Cut-off: No (Full Range Signal)
  • Subwoofer Infrasonic Frequency Cut-off: Selectable (Off/50Hz)
Bass Processor Section:

  • Gain: 0~8.8V
  • Center Frequency (Sweep): 75Hz~120Hz
  • Q Factor (Wide): 1~4
Extra  Features:

  • Compact Size to easy Installation for Any Applications: Yes
  • Surface Mount Component Technology: Yes
  • Quality Control Verification using Audio Precision Instruments: Yes
  • Remote Level Control with Clip Indicator: Yes
Measurements:

  • Overall Length: 6" / 153mm
  • Overall Width: 3.7" / 95mm
  • Overall Height: 1.1" / 28mm
