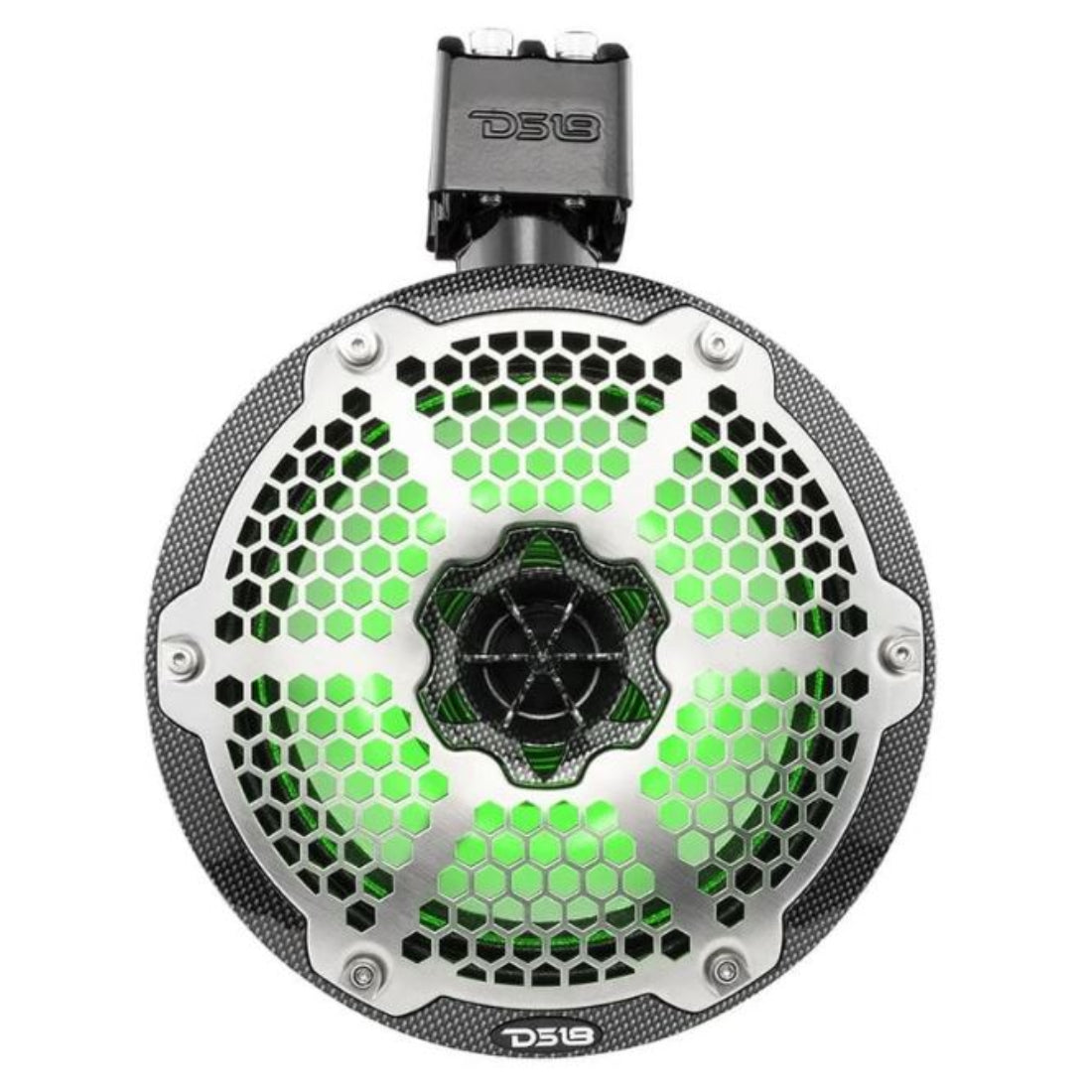

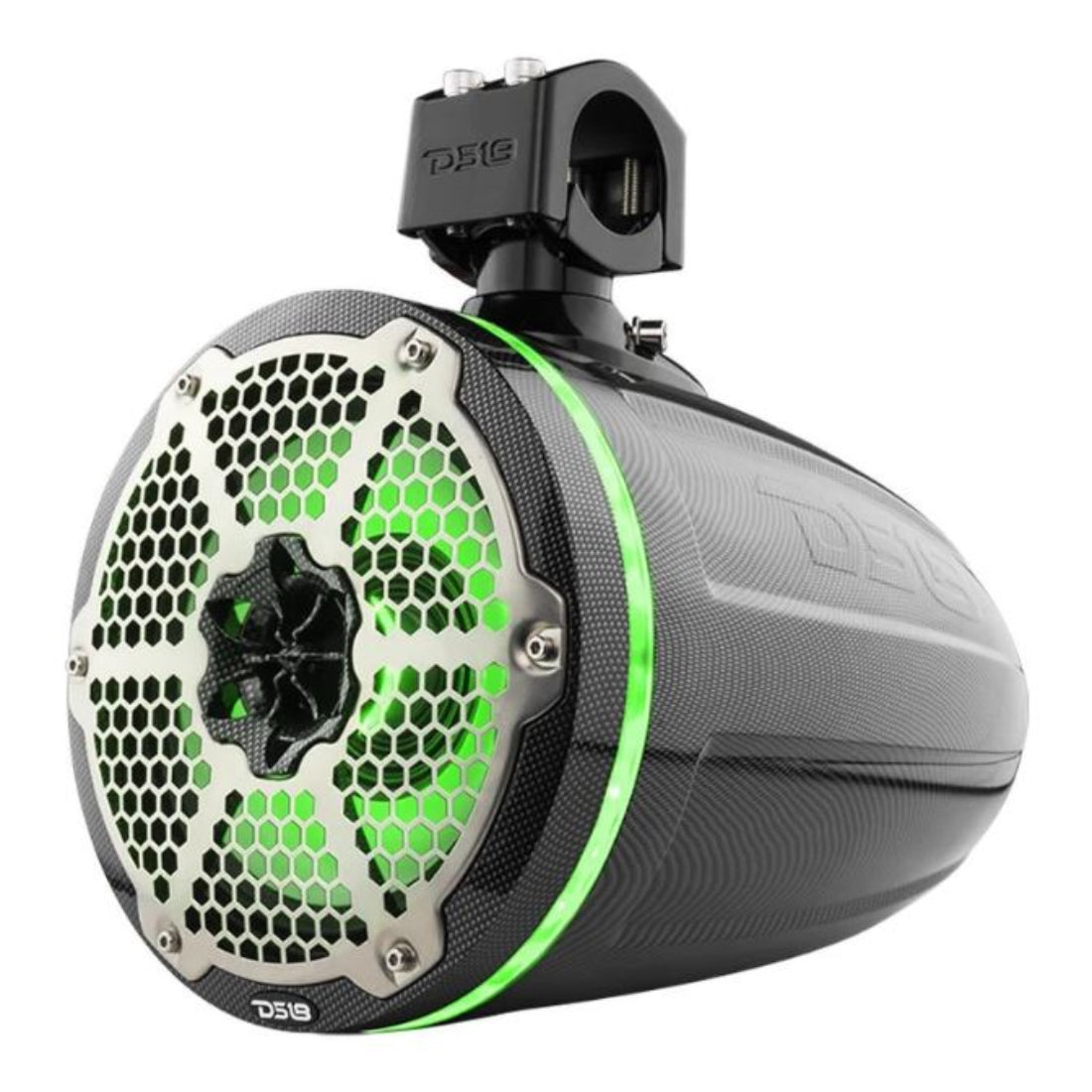

DS18 CF-X8TPNEO 540 Watt 8" Carbon Fiber Marine Tower Speakers
DS18 CF-X8TPNEO 540 Watt 8" Carbon Fiber Marine Tower Speakers
Regular price
$1,049.95 USD
Regular price
Sale price
$1,049.95 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DS18 CF-X8TPNEO
8-Inch 540 Watt Max Carbon Fiber Marine Tower Speakers
Key Features:
- Nominal Diameter: 8"
- Nominal Impedance: 4 ohm
- RMS Power Handling: 180W
- MAX Power Handling: 540W
- Sensitivity (1w/1m): 95dB
- Frequency Response: 60Hz-21Khz
Body / Features:
- Enclosure Material: Injection PC+ABS
- Marine Grade Type: IP65 + UV Stable
- RGB LED: Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker
- Grill Type: ABS+3/16 Stainless Metal Mesh
- Clamps: Die-Cast adjustable (1" ~ 2") 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
- Front Logo: Yes, Can be Rotated For Correct Angle Display
Woofer Specifications:
- Voice Coil Diameter: 2"
- Cone Material: Waterproof Compress Paper + Carbon Fiber
- Surround Material: Soft PC Damping Glued
- Basket Material: PC Injection Molded Composite
- Magnet Material: Neodymium
- Magnet Grade: N40H
- Passive Radiator: 4" With LED RGB Light
Tweeter Specifications:
- Voice Coil Diameter: 1"
- Type: Compression Driver with CNC Solid Aluminum Horn
- Diaphragm Material: PEN
- Magnet Material: Neodymium
- Crossover: 12dB with Over Power Protection
Thiele & Small Parameters:
- Equivalent Volume: Vas - 17.5L
- Excursion (one way): Xmax - 3mm
- Free Air Resonance: Fs- 62Hz
- Total Factor: Qts - 0.756
Speaker Measurements:
- Overall Diameter: 8.59"
- Overall Depth: 13.89"
- Overall Height: 12.37"
- Package Dimensions: 23 x 23 x 9 inches
- Item Weight: 26 pounds/416 Ounces
