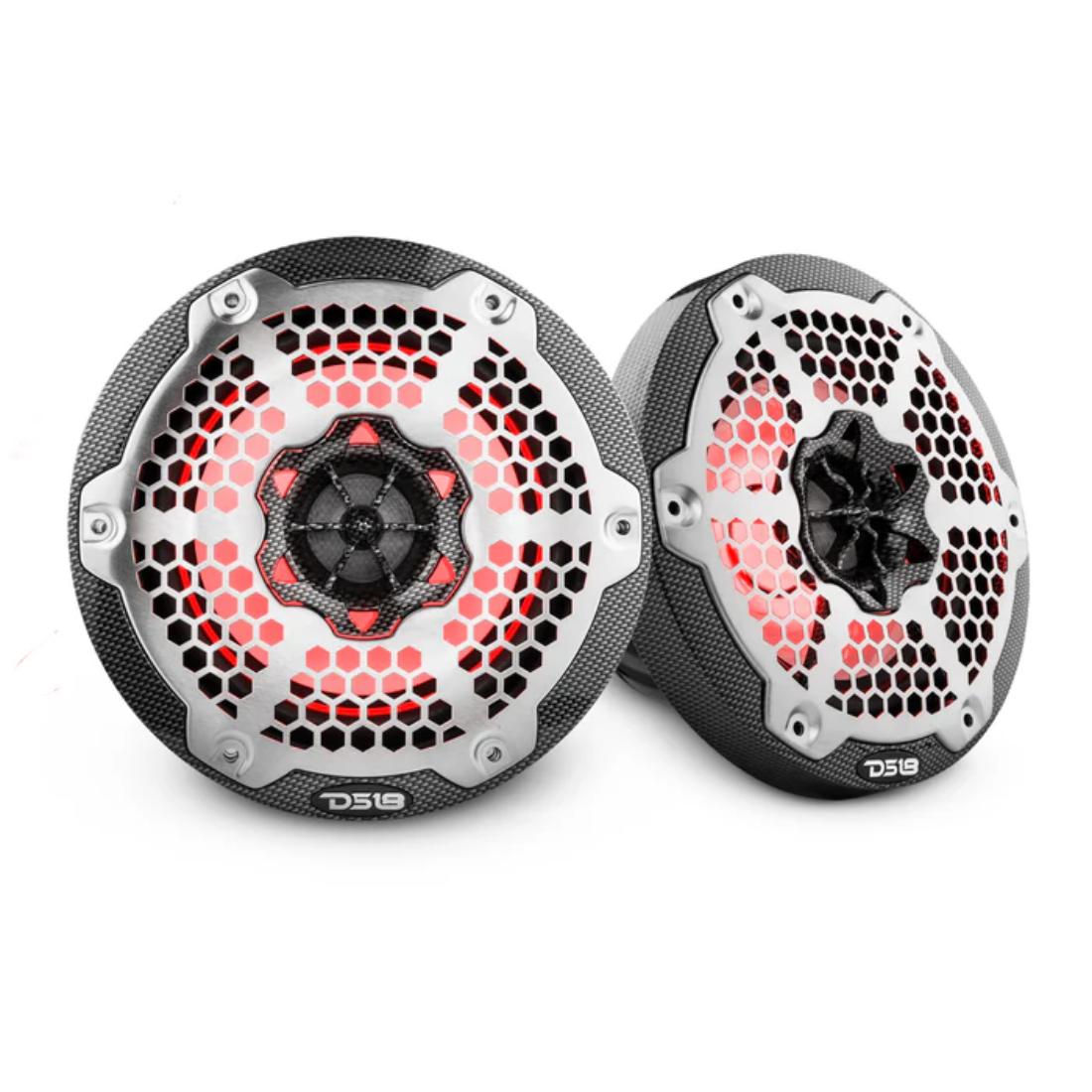

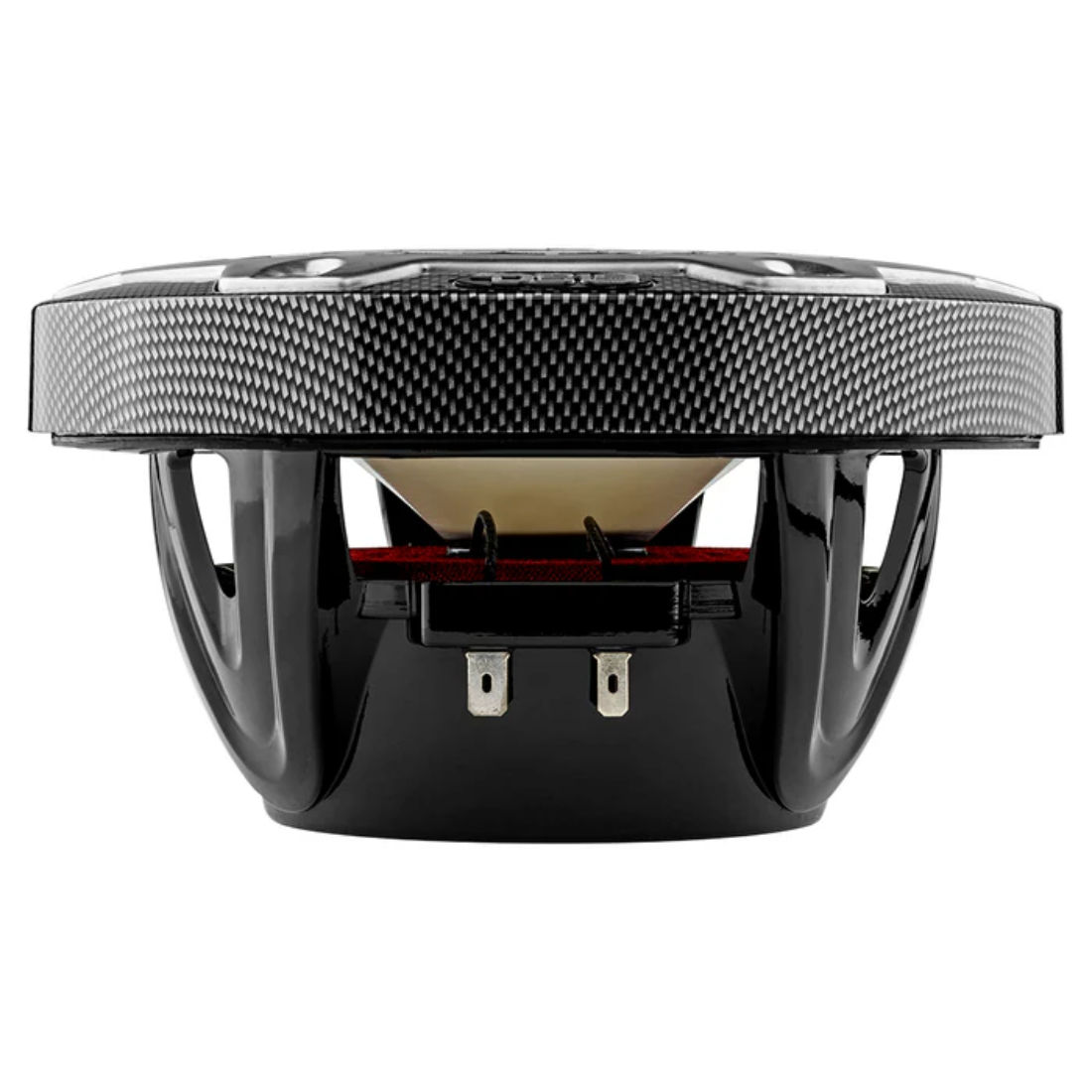

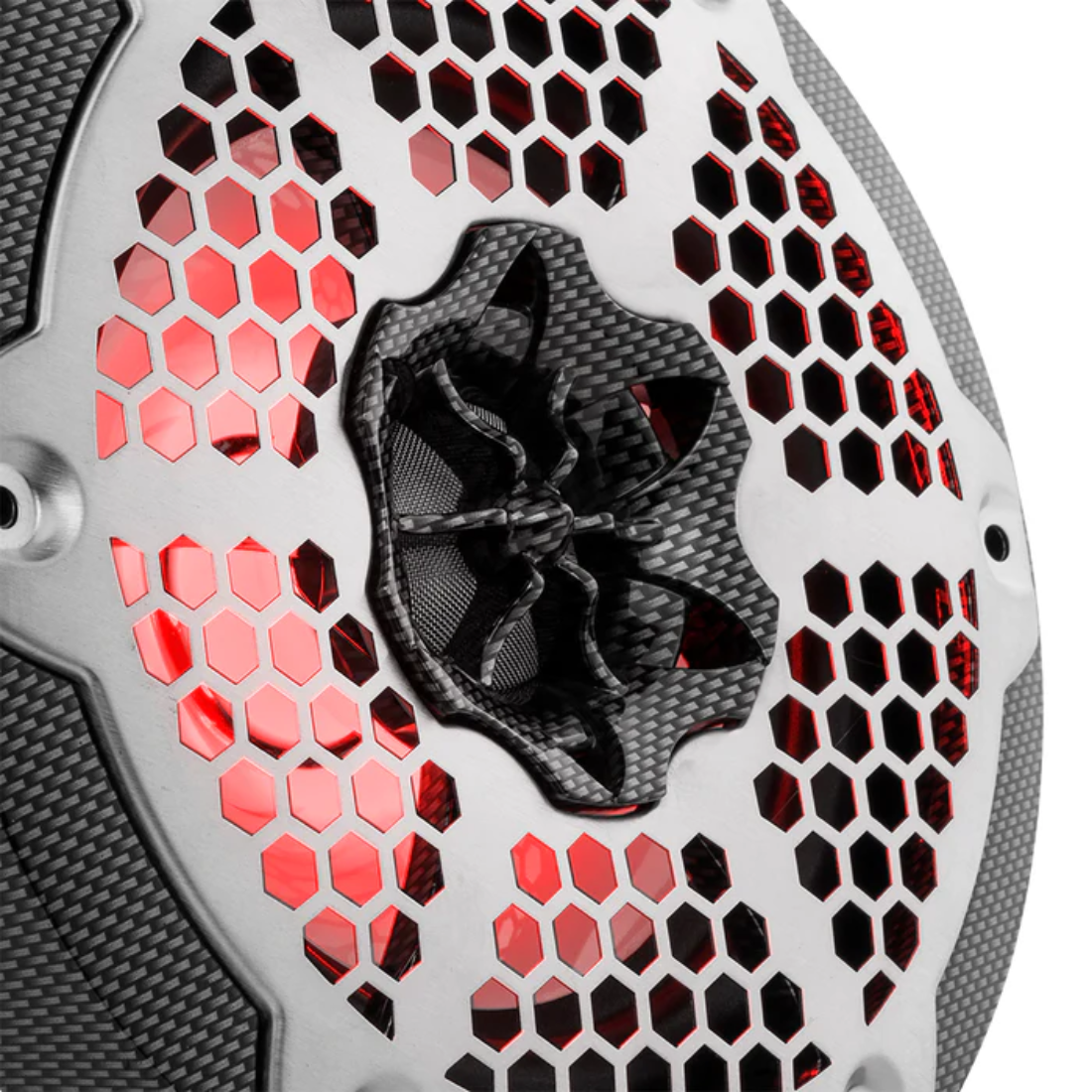

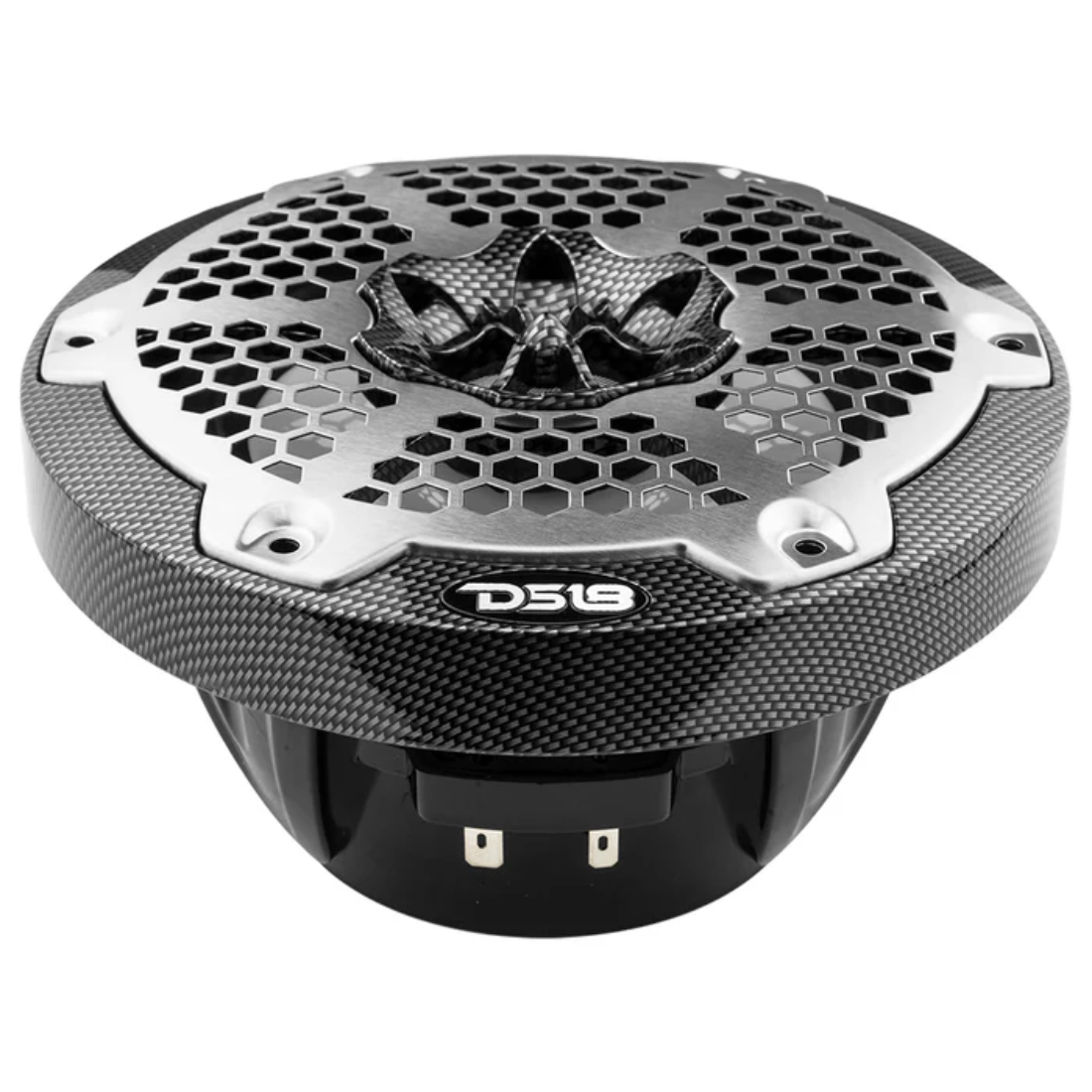

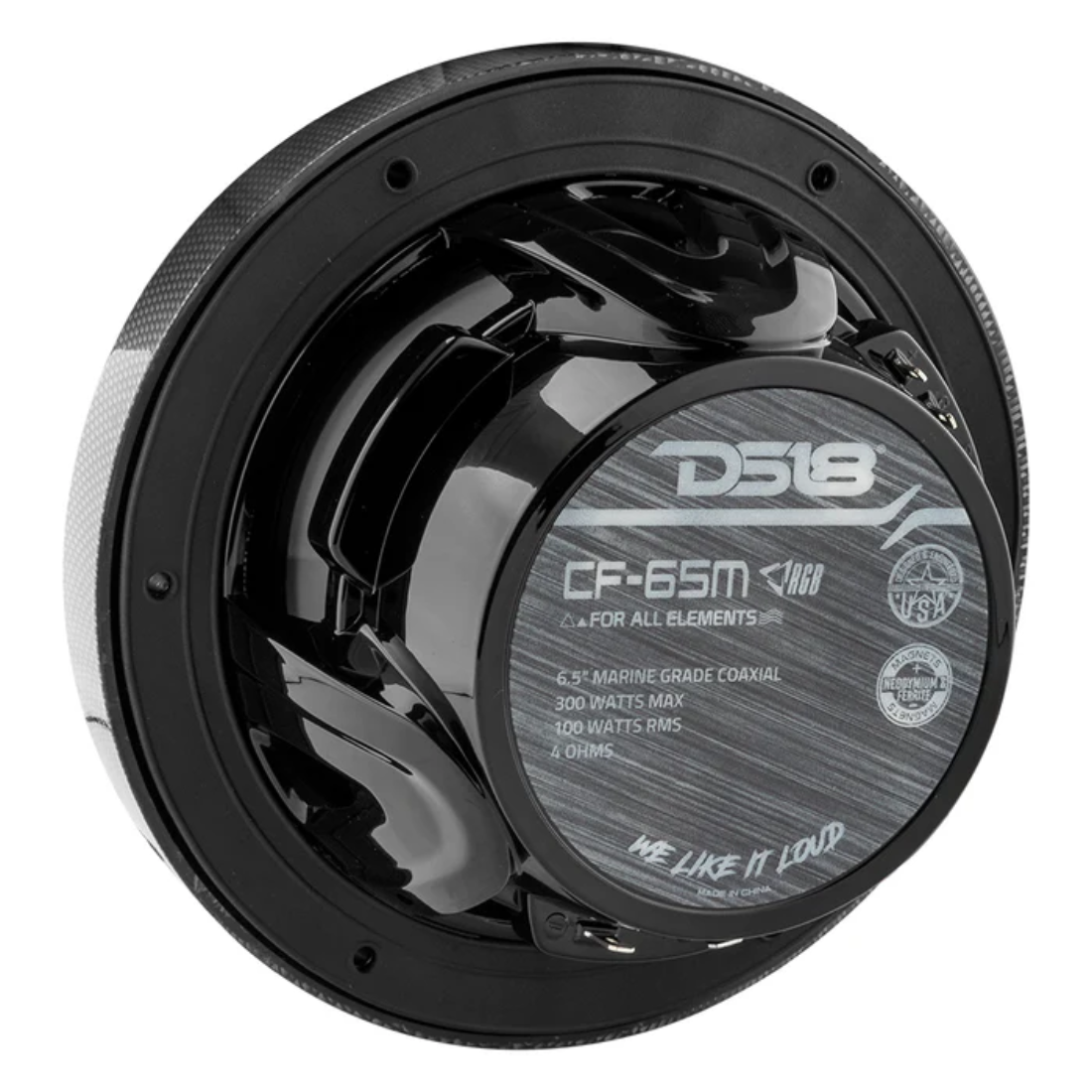

DS18 CF-65M 6.5" 2-Way 300W Max 4-Ohm Coaxial Marine Speakers w/ RGB LED Lights

DS18 CF-65M 6.5" 2-Way 300W Max 4-Ohm Coaxial Marine Speakers w/ RGB LED Lights

$189.95 USD
$189.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 CF-65M

6.5-inch 2-Way 300 Watts Max 4-Ohm Coaxial Marine Speakers w/ RGB LED Lights

Key Features:

  • 6.5" 2-Way Marine Speaker
  • RMS Power: 100 Watts
  • Impedance: 4 Ohm
  • Ferrite & Neodymium Magnet
  • RGB LED Light ~  Metal Mesh Grill
  • Water Resistant IP65
General Specs:

  • SKU: CF-65M
  • Nominal Diameter: 6.5" / 165mm
  • Nominal Impedance: 4 ohms
  • RMS Power Handling: 100W
  • MAX Power Handling: 300W
  • Sensitivity (1w/1m): 91dB
  • Frequency Response: 45Hz-23KHz
  • Recommended HI Pass Crossover: 65 Hz
Body / Features:

  • UV Compliant: Yes, 100% Stable
  • Marine Grade Type: IP65
  • RGB LED: Yes, RGB integrated
  • Grill Type: Injection Molded Composite (ASA) with 316 Stainless Steel mesh
  • Pair: Yes
  • Color / Finish: Carbon Fiber Texture / Gloss
Woofer Specifications:

  • Voice Coil Diameter: 1.2" / 30.5mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Injection Molded Polypropylene + UV Compliant
  • Surround Material: Butyl (Rubber)
  • Basket Material: High Temp Injection Molded Composite (ASA) with UV Protection coating
  • Magnet Material: Ferrite (Y35) + Neodymium (N35)
  • Magnet Weight: 14oz+0.32oz
Tweeter Specifications:

  • Voice Coil Diameter: 1" / 25.4mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: PEI
  • Magnet Material: NEODYMIUM(N38H)
  • Magnet Weight: 0.54oz
Thiele & Small Parameters:

  • Equivalent Volume Vas: 20L / 0.708ft3
  • Excursion (one way) Xmax: 8.5 mm
  • Free Air Resonance Fs: 75Hz
  • Mechanical Factor Qms: 7.823
  • Electrical Factor Qes: 1.057
  • Total Factor Qts: 0.931
  • Moving Mass Mms: 4.122g
  • Compliance Cms: 1.081mm/N
  • Bl Factor Bl: 2.41
  • Voice Coil Inductance Le: 0.543mH
  • Cone Area Sd: 114.99cm2
  • DC Resistance Re: 3.14 ohms
  • Efficiency Bandwidth Product EBP: 70.9
Speaker Measurement:

  • Overall Diameter: 6.94" / 176mm
  • Overall Depth: 3.72" / 94.4mm
  • Front Mount Baffle Cutout: 5.31" / 135mm
  • Mounting Depth: 2.5" / 63.5mm
  • Motor Diameter: 3.54" / 90mm
  • Gross Single Unit Weight (lb): 7.5
  • Single Unit Box Dimensions W x L x H (Inches): 16.75 x 8.75 x 4.75
