BRAND NEW

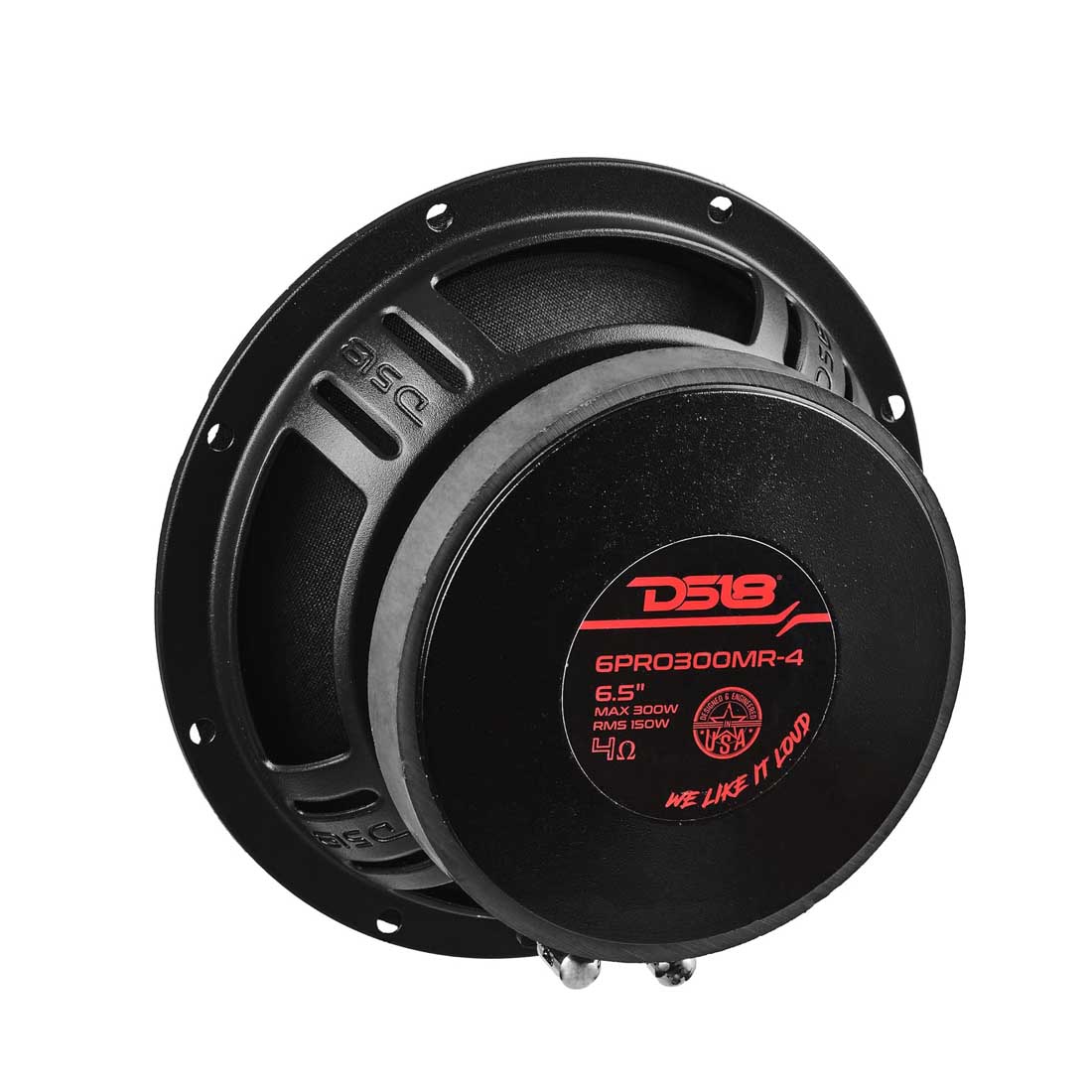

DS18 6PRO300MR-4

6.5-Inch 300 Watts Max 4-Ohm Car Mid-Range Loudspeaker

With its 6.5" nominal diameter and 4 OHMS nominal impedance, the 6PRO300MR-4 delivers exceptional performance and clarity. The RMS power handling of 150W and MAX power handling of 300W, guarantee powerful sound reproduction.

General Specs:

  • SKU: 6PRO300MR-4
  • Nominal Diameter: 6.5" / 165mm
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 150W
  • MAX Power Handling: 300W
  • Sensitivity (1w/1m): 102dB
  • Frequency Response: 100Hz-12.5KHz
  • Recommended HI Pass Crossover: 160Hz
  • Sold in Pair or Single: Single
  • Grill Included: No
Features:

  • Interleaved Sandwich Voice coil (ISV): No
  • Demodulating Rings: Copper Ring
  • Improved Heat Dissipation: No
  • Cone Shape: Curvilinear
  • Speaker Terminals: Push 8ga
Motor:

  • Voice Coil Diameter: 1.25" / 31.7mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Cone Material: Paper
  • Dust Cap Material: Paper
  • Bullet Material: N/A
  • Bullet Color/Finish: N/A
  • Surround Material: Cloth
  • Spider Diameter: 4" / 102mm
  • Leads Connection Type: Spider Crossed
  • Basket Material: Steel
  • Basket Color/Finish: Black
  • Magnet Material: Ferrite
  • Magnet Weight: 25 Oz
  • Displacement Volume: 0.28L / 0.01ft3
Thiele & Small Parameters:

  • Equivalent Volume Vas: 8.85L / 0.312ft3
  • Excursion (one way) Xmax: 0.95mm
  • Free Air Resonance Fs: 118Hz
  • Mechanical Factor Qms: 4.73
  • Electrical Factor Qes: 0.64
  • Total Factor Qts: 0.57
  • Mechanical Mass Mms: 7.36g
  • Mechanical Compliance Cms: 0.25mm/N
  • BL Factor BL: 5.31
  • Voice Coil Inductance Le: 0.03mH
  • Cone Area Sd: 158.37cm2
  • DC Resistance Re: 3.3ohms
  • Mechanical Mass w/o air Mmd: 7.1g
Measurement:

  • Overall Diameter: 6.7" / 170mm
  • Overall Depth: 3" / 78mm
  • Front Mount Baffle Cutout: 5.87" / 149mm
  • Mounting Depth: 2.83" / 72mm
  • Motor Diameter: 4.72" / 120mm
