DS18

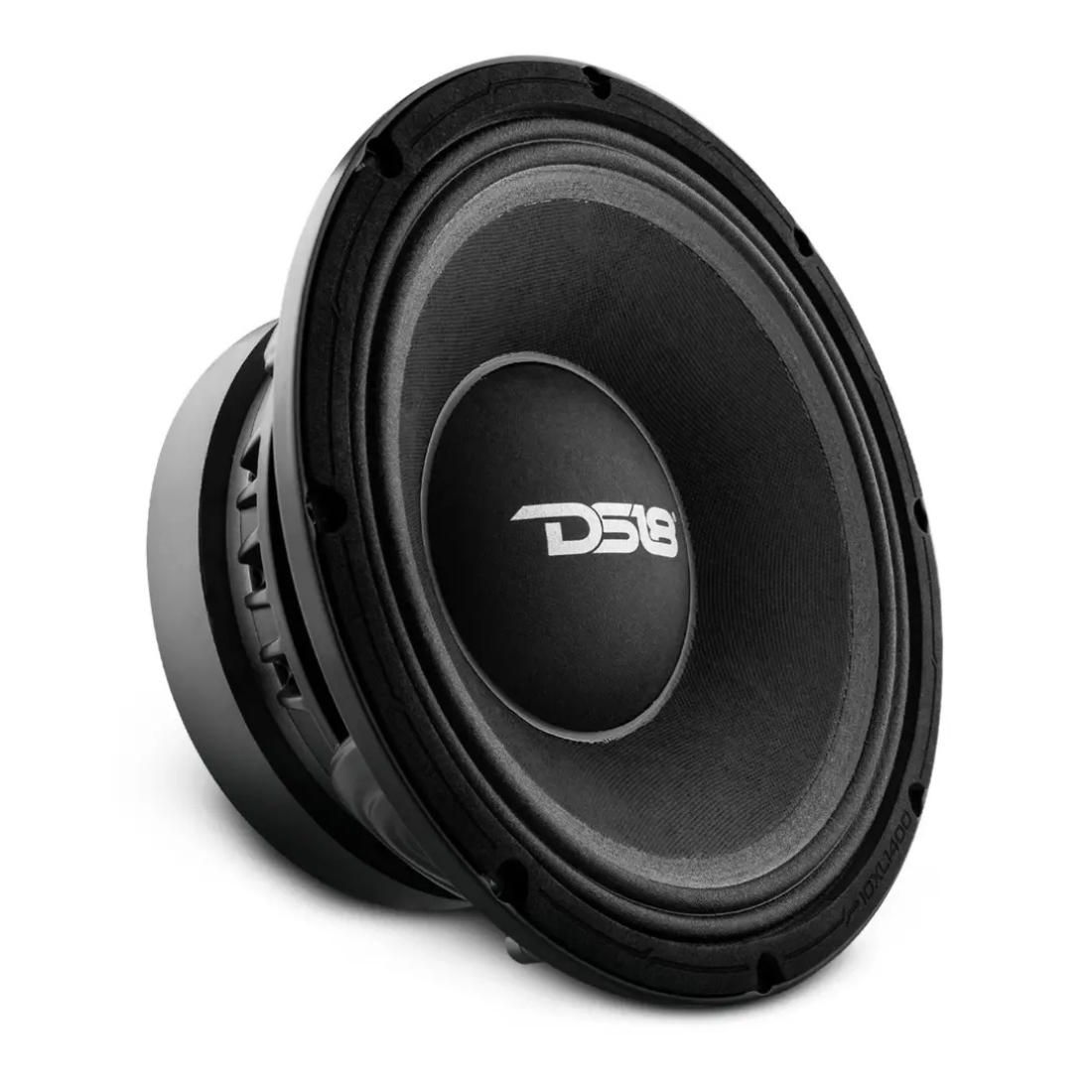

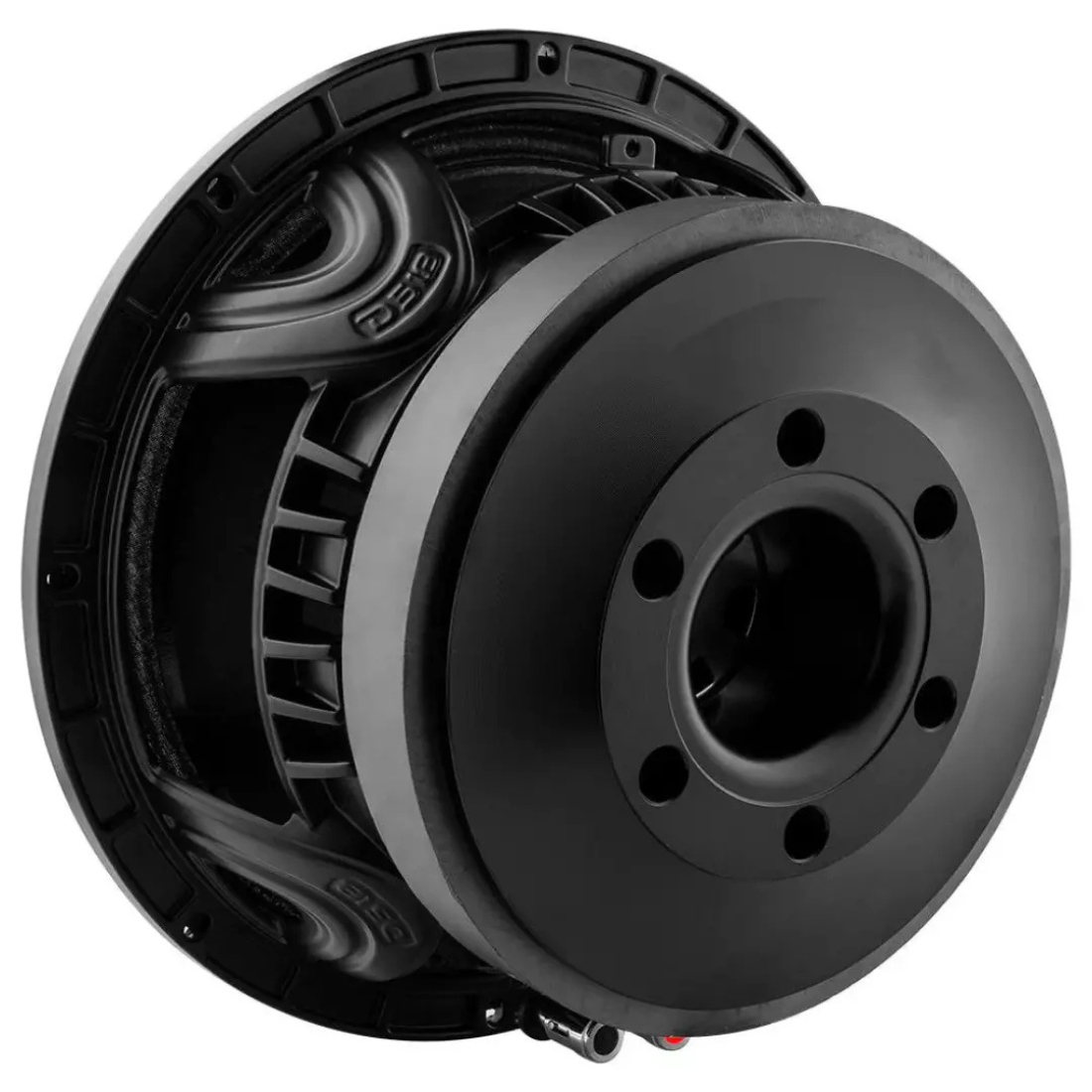

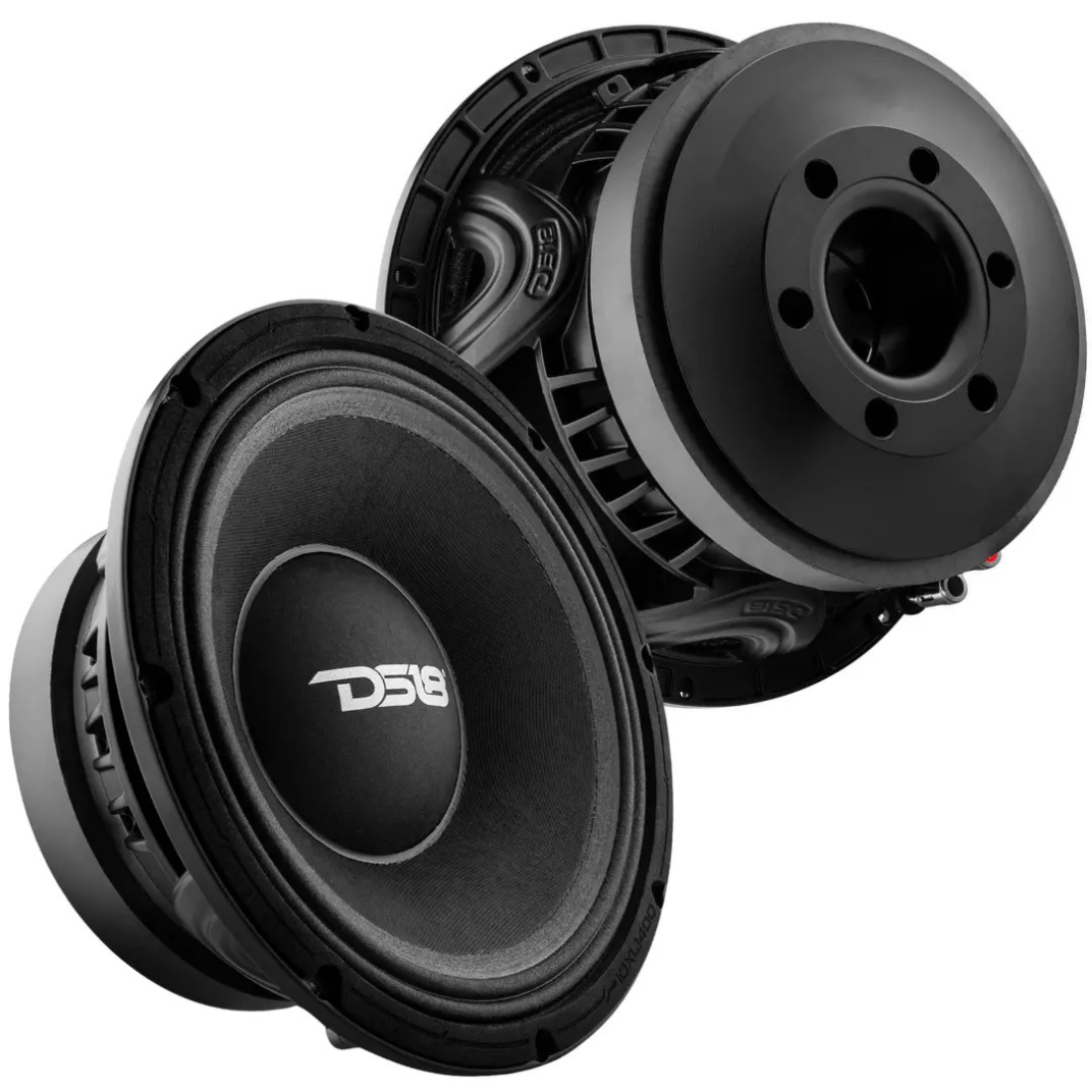

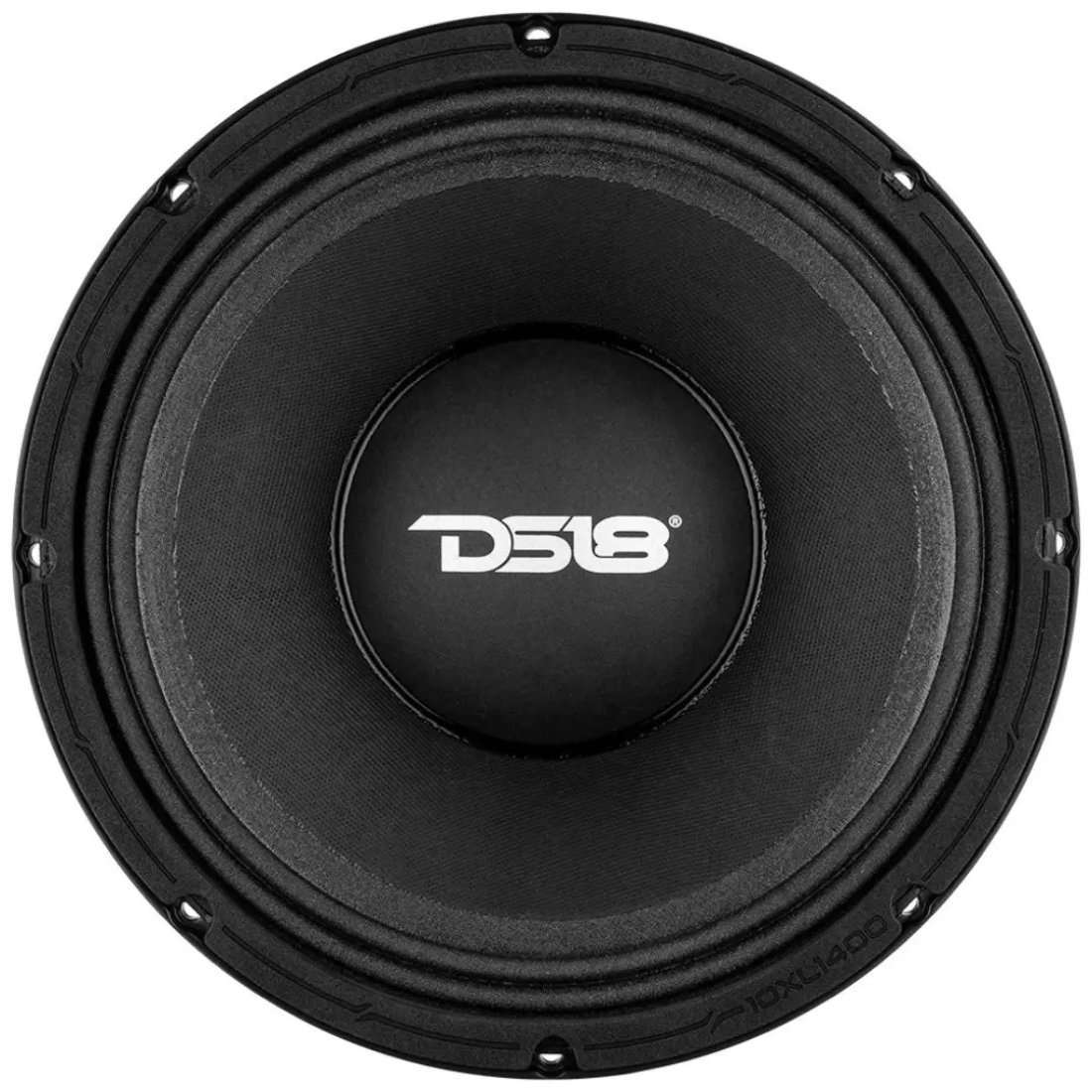

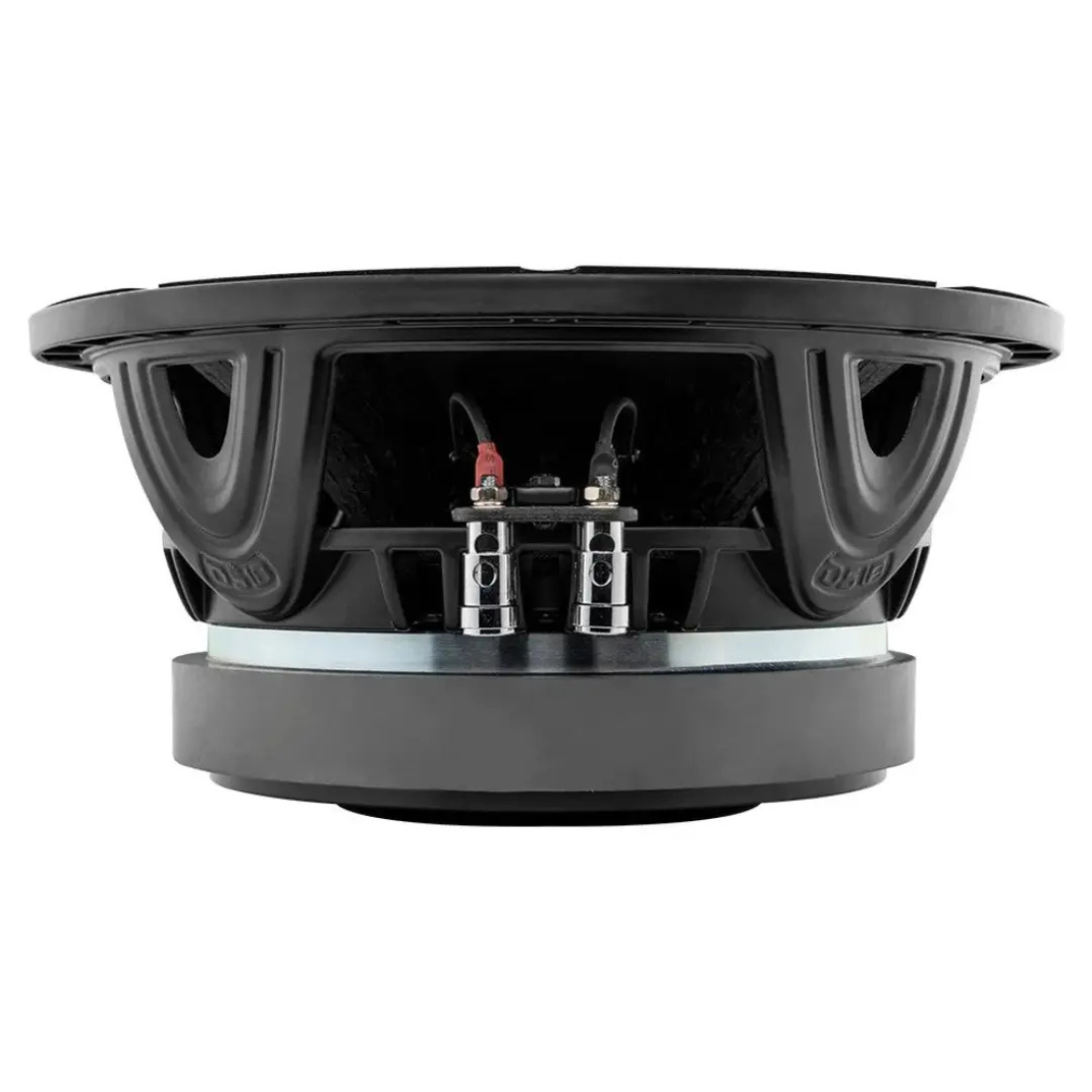

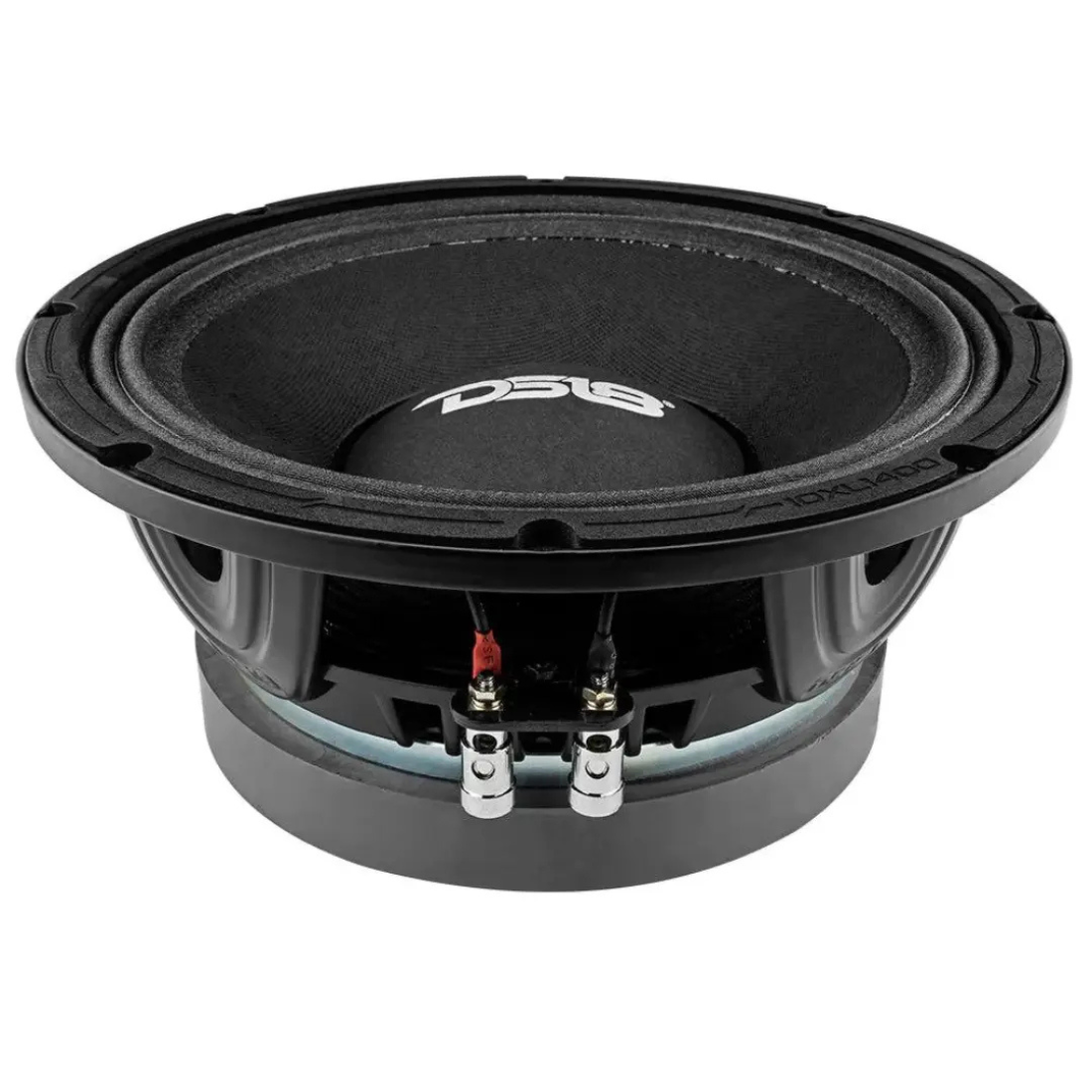

DS18 10XL1400MB-4 10" 1400 Watts Max 4-Ohm Car Audio Mid-Bass Loudspeaker

DS18 10XL1400MB-4 10" 1400 Watts Max 4-Ohm Car Audio Mid-Bass Loudspeaker

Regular price $199.95 USD
Regular price Sale price $199.95 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DS18 10XL1400MB-4

10-inch 1400 Watts Max 4-Ohm Car Audio Mid-Bass Loudspeaker

DS18’s 10XL1400MB-4 stands head and shoulders above the midbass competition. This 10-inch loudspeaker comes in 4-ohm and 8-ohm impedance ensuring compatibility with a wide range of audio systems, for seamless integration into any setup. Crafted with precision, DS18’s 10XL1400MB-4 features a 3.5" Kapton voice coil and a non-pressed paper cone for enhanced durability and optimal sound reproduction. The satin black aluminum basket not only enhances the speaker's aesthetics but also provides structural integrity. The ferrite magnet weighing in at a whopping 93 ounces ensures powerful and accurate bass responses that will leave you amazed.

Key Features:

  • 10" Mid-Bass
  • MAX Power: 1400 Watts
  • RMS Power: 700 Watts
  • Impedance: 4-Ohm
  • Ferrite Magnet
  • 98dB
Specifications:

  • Nominal Diameter: 10" / 254mm
  • Nominal Impedance: 4 Ohm
  • RMS Power Handling: 700 watts
  • MAX Power Handling: 1400 watts
  • Sensitivity (1w/1m): 98dB
  • Frequency Response: 40Hz-5KHz
  • Recommended HI Pass Crossover: 80Hz
  • Sold in Pair or Single: Single
  • Grill Included: No
Motor Features:

  • Voice Coil Diameter: 3.5" / 89mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW (2 Layers IN/OUT)
  • Cone Material: Non-pressed Paper
  • Dust Cap Material: Paper
  • Bullet Material: N/A
  • Bullet Color/Finish: N/A
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Satin Black
  • Magnet Material: Ferrite
  • Magnet Weight: 93 Oz
  • Displacement Volume: 1.44L / 0.051ft3
Thiele & Small Parameters:

  • Equivalent Volume Vas: 17.1L / 0.603ft3
  • Excursion (one way) Xmax: 4mm
  • Free Air Resonance Fs: 70Hz
  • Mechanical Factor Qms: 3.136
  • Electrical Factor Qes: 0.327
  • Total Factor: 0.296
  • Mechanical Mass Mms: 50.047g
  • Mechanical Compliance Cms: 0.089mm/N
  • BL Factor BL: 16.135
  • Voice Coil Inductance Le: 0.39mH
  • Cone Area Sd: 363cm2
  • DC Resistance Re: 3.6 ohm
  • Mechanical Mass w/o air Mmd: 50g
Measurement:

  • Overall Diameter: 10.3" / 261.5mm
  • Overall Depth: 4.93" / 125mm
  • Front Mount Baffle Cutout: 9.2" / 233mm
  • Mounting Depth: 4.4" / 114mm
  • Motor Diameter: 7.48" / 190mm
