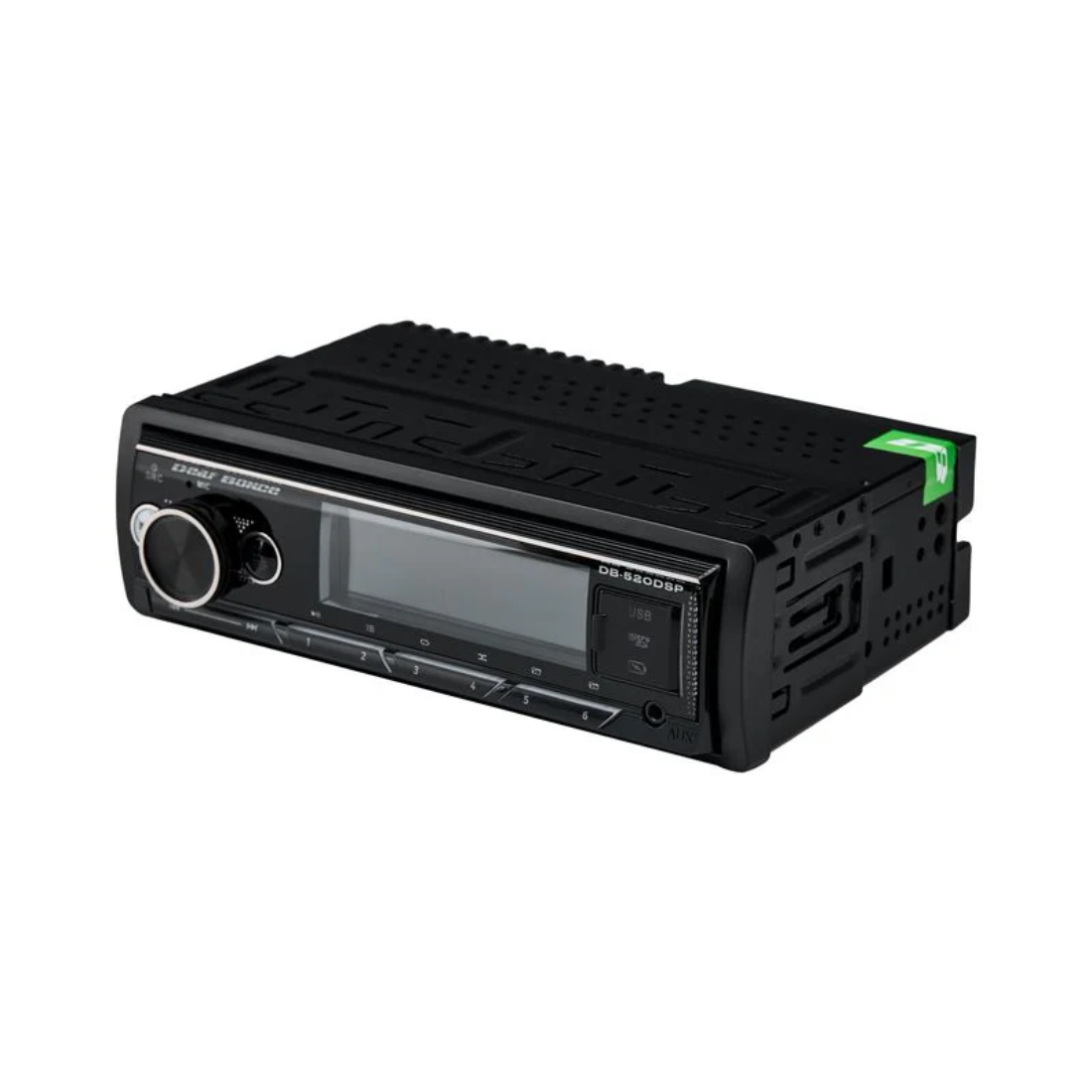

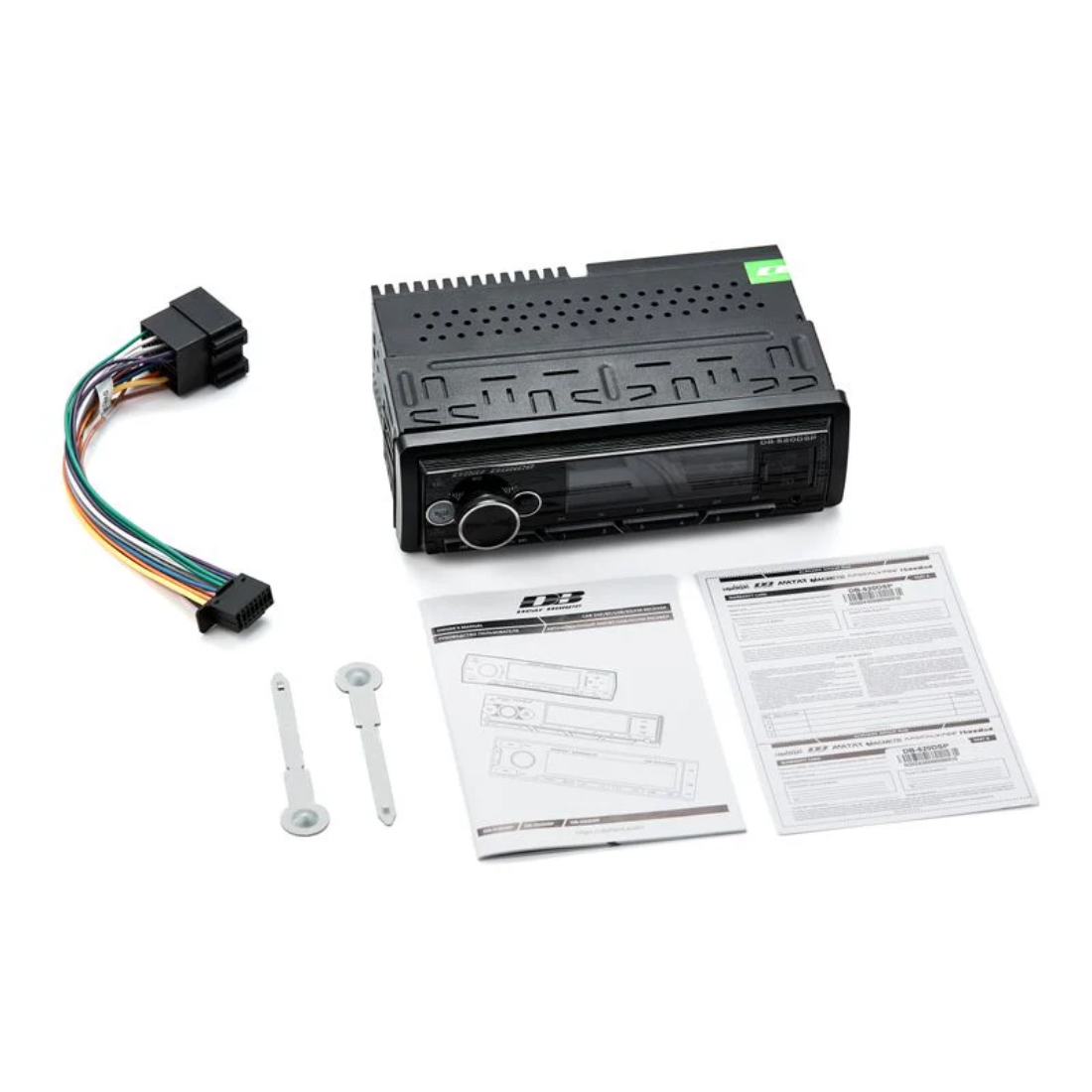

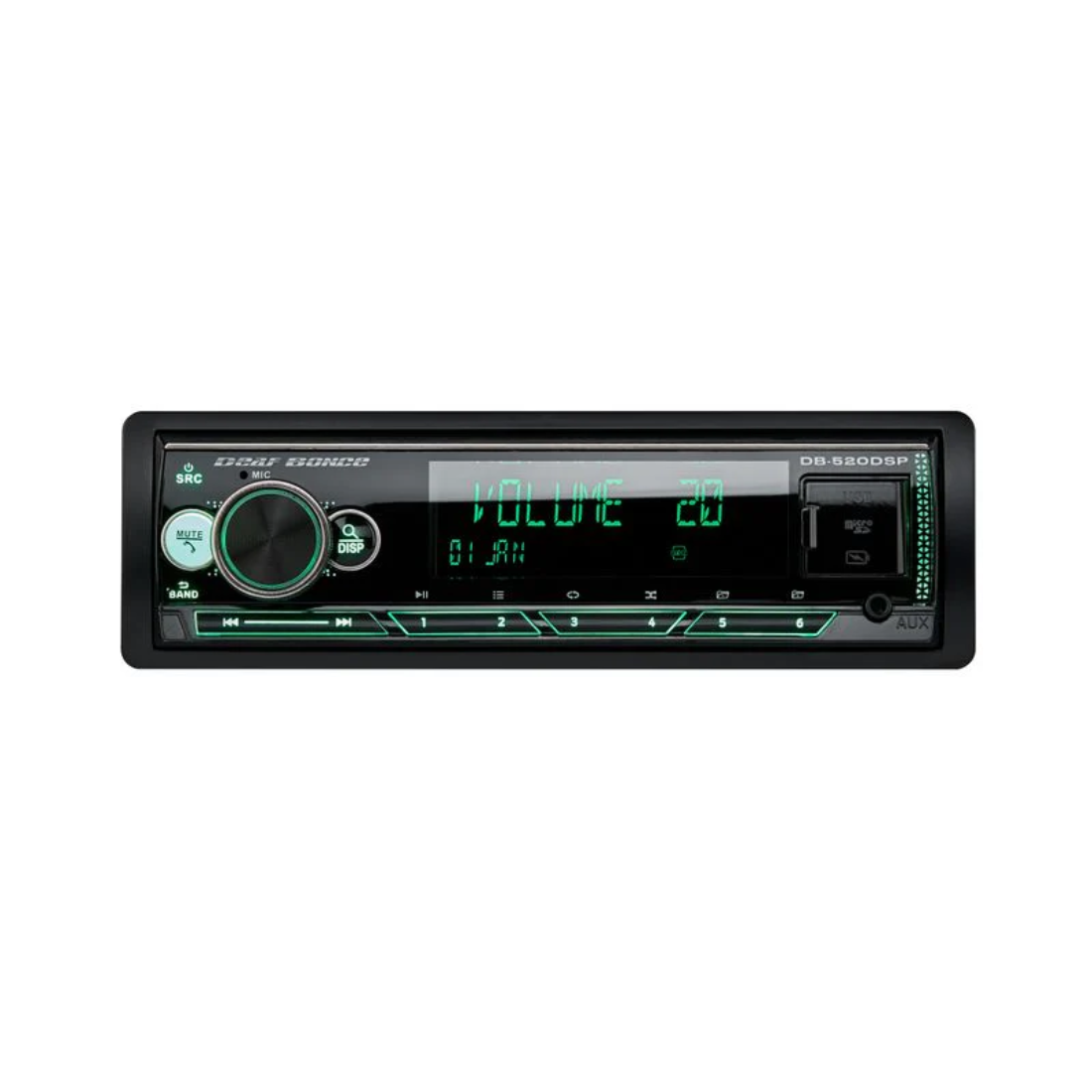

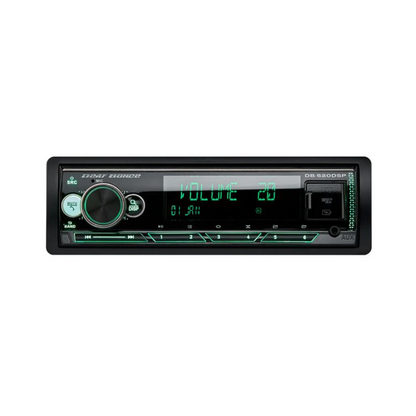

Deaf Bonce DB-520DSP 1-DIN MP3/USB/AUX/AM/FM Bluetooth Car Stereo Receiver

Deaf Bonce DB-520DSP 1-DIN MP3/USB/AUX/AM/FM Bluetooth Car Stereo Receiver

$179.90 USD
$179.90 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

DEAF BONCE DB-520DSP

Single-DIN In-Dash MP3/USB/AUX/AM/FM Bluetooth Car Stereo Receiver

KEY FEATURES:

  • Power RMS (4 Ohm): 4x25 W
  • Radio tuner type: AM, FM, RDS
  • Number of RCA outputs: 8
  • Number of radio stations: 18 FM, 12 AM
  • AUX input: 3.5 mm mini-jack
  • Card reader: ME. 20, Only for models DB 510DSP and DB520DSP
  • USB ports: USB Type-A + USB charging port (5V, 1A)
  • Supported audio playback formats: MP3, WMA, AAC, FLAC, WAV
  • Head Unit steering wheel control buttons learning (SWC): Yes
  • Hands-Free support: Yes

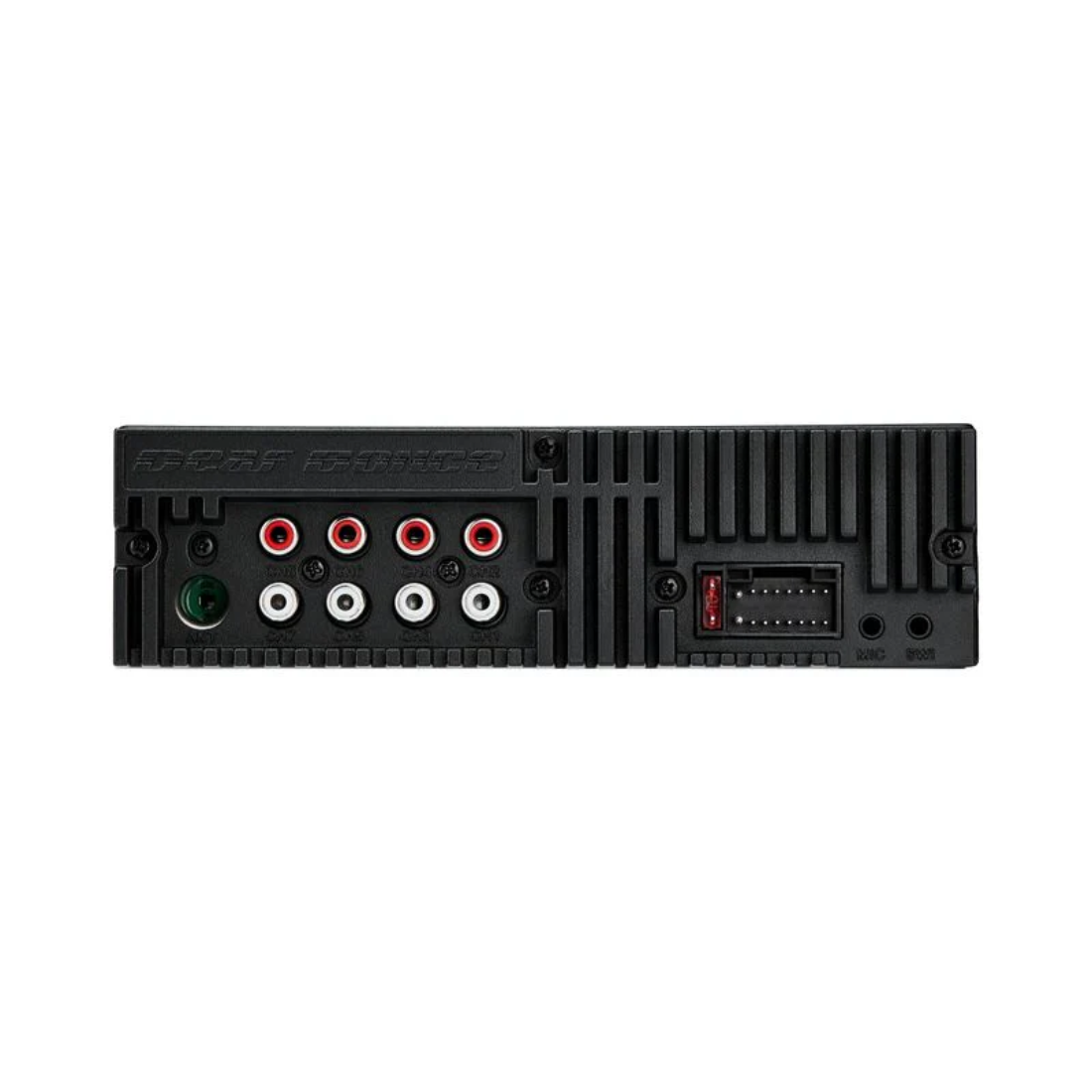

CONNECTION:

  • Working voltage: 10-17 V
  • Input terminal connection: 16 AWG
  • Output terminal connection: 20 AWG
  • Automatic turn on/off: ACC
  • Front panel backlight type: ARGB, 7 colors
  • Quantity of backlight zones: 2
  • Information screen type: VA LCD
  • Integrated fuse: 15A
AUDIO:

  • Built-in amplifier class: AB
  • Number of RCA outputs: 8
  • Number of full-range RCA outputs: 6
  • Number of subwoofer RCA outputs: 2
  • RCA output voltage: up to 4.5 V
  • Bluetooth profile: A2DP
  • Frequency response for full range channels: 20 Hz - 20 kHz
  • Frequency response for subwoofer channels: 20 Hz - 800 Hz
  • Signal-to-noise ratio: ≥80 dB
  • Minimum permissible load impedance on the single channel: 4 Ohm
CROSSOVER:

  • Filter types for full range channels: LPF, HPF
  • Filter types for subwoofer channels: LPF, HPF
  • Crossover frequency for full range channels: 30 Hz - 12.5 kHz
  • Crossover frequency for subwoofer channels: 20 Hz - 800 Hz
  • Filter slope for full range channels: 6-24 dB/Oct
  • Filter slope for subwoofer channels: 6-24 dB/Oct
TIME ALIGNMENT:

  • Time alignment, distance: 0 - 642 cm / 0 - 240 inch
  • Time alignment, delay: 0 - 18 ms
  • Time alignment, step: 0.1 ms, 3 cm, 1 inch
SIZE:

  • Size (L x W x H): 188 x 58 x 138 mm
  • Size (L x W x H): 7.4 x 2.28 x 5.43 inch
