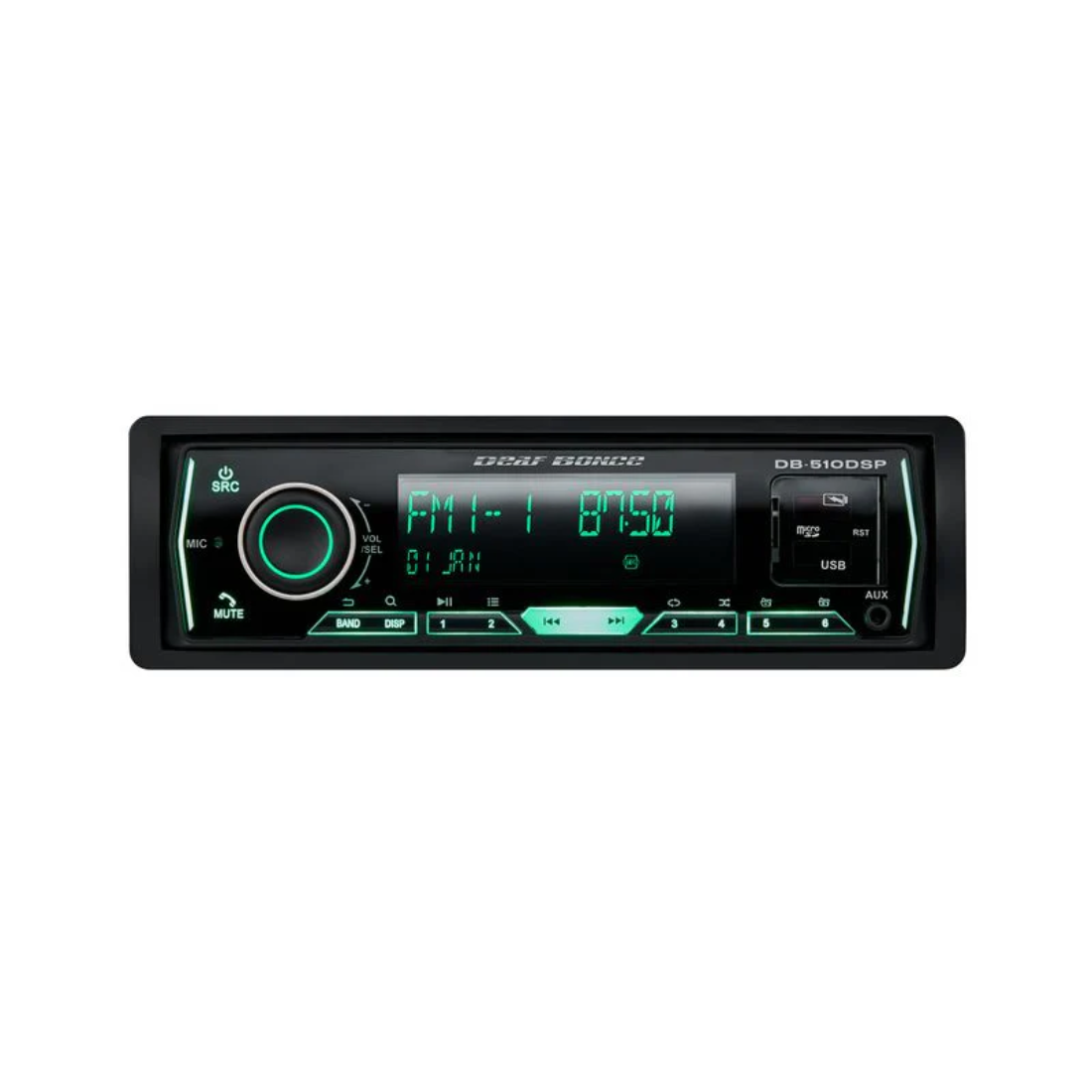

Deaf Bonce DB-510DSP 1-DIN Car Stereo MP3/WMA/USB/AM/FM Head Unit Receiver

Name: Deaf Bonce DB-510DSP 1-DIN Car Stereo MP3/WMA/USB/AM/FM Head Unit Receiver
Brand: Deaf Bonce
SKU: DB-510DSP
Price: 179.9 USD
Availability: OutOfStock

$179.90 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

BRAND NEW

DEAF BONCE DB-510DSP

Single DIN Car Stereo MP3/WMA/USB/AM/FM head Unit Receiver

Key Features:

Power RMS (4 Ohm): 4x25 W
Radio Tuner Type: AM, FM, RDS
Number of RCA Outputs: 8
Number of Radio Stations: 18 FM, 12 AM
AUX Input: 3.5 mm mini-jack
Card Reader: ME. 20, only for models DB 510DSP
USB Ports: USB Type-A + USB charging port (5V, 1A)
Supported Audio Playback Formats: MP3, WMA, AAC, FLAC, WAV
Head Unit Steering Wheel Control (SWC): Yes
Hands-Free Support: Yes

Connection:

Working Voltage: 10-17 V
Input Terminal Connection: 16 AWG
Output Terminal Connection: 20 AWG
Automatic Turn On/Off: ACC
Front Panel Backlight Type: ARGB, 7 colors
Quantity of Backlight Zones: 2
Information Screen Type: VA LCD
Integrated Fuse: 15A

Audio:

Built-in Amplifier Class: AB
Number of RCA Outputs: 8
Number of Full Range RCA Outputs: 6
Number of Subwoofer RCA Outputs: 2
RCA Output Voltage: Up to 4.5 V
Bluetooth Profile: A2DP
Frequency Response for Full Range Channels: 20 Hz - 20 kHz
Frequency Response for Subwoofer Channels: 20 Hz - 800 Hz
Signal to Noise Ratio: ≥80 dB
Minimum Permissible Load Impedance on Single Channel: 4 Ohm

Crossover:

Filter Types for Full Range Channels: LPF, HPF
Filter Types for Subwoofer Channels: LPF, HPF
Crossover Frequency for Full Range Channels: 30 Hz - 12.5 kHz
Crossover Frequency for Subwoofer Channels: 20 Hz - 800 Hz
Filter Slope for Full Range Channels: 6-24 dB/Oct
Filter Slope for Subwoofer Channels: 6-24 dB/Oct
Time Alignment:
Time Alignment Distance: 0 - 642 cm / 0 - 240 inches
Time Alignment Delay: 0 - 18 ms
Time Alignment Step: 0.1 ms, 3 cm, 1 inch

Size:

Size (LxWxH): 188 x 58 x 138 mm
Size (LxWxH): 7.4 x 2.28 x 5.43 inches
