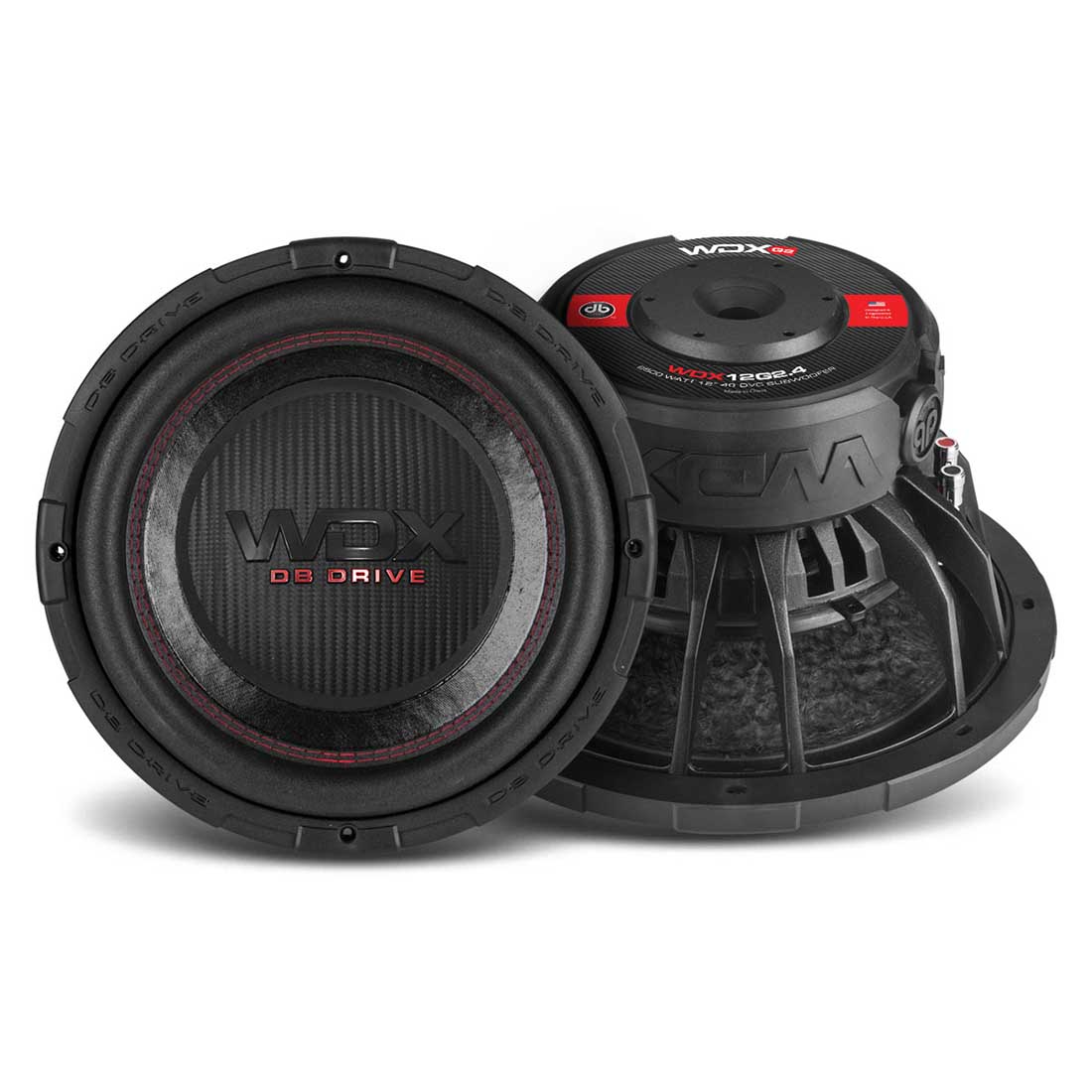

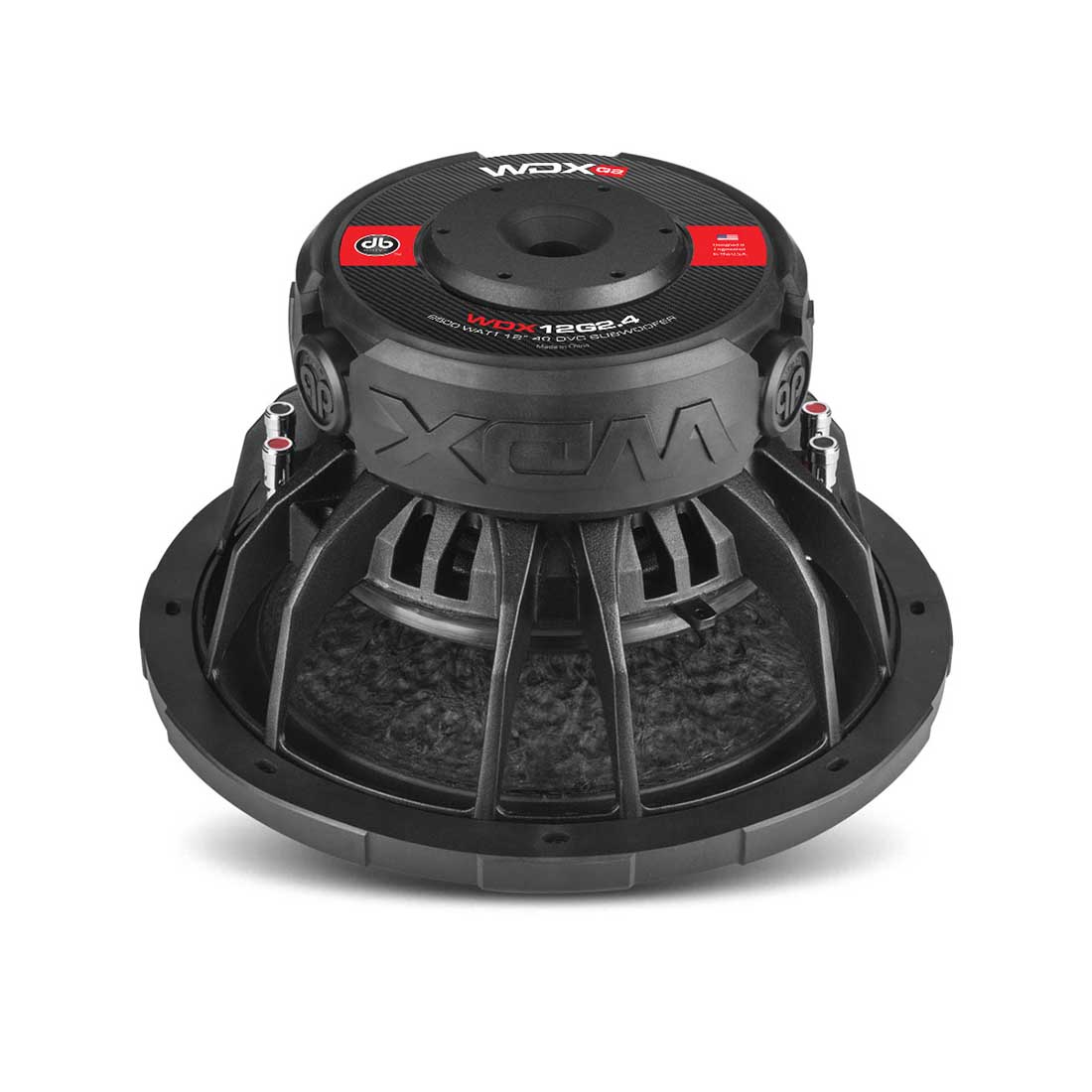

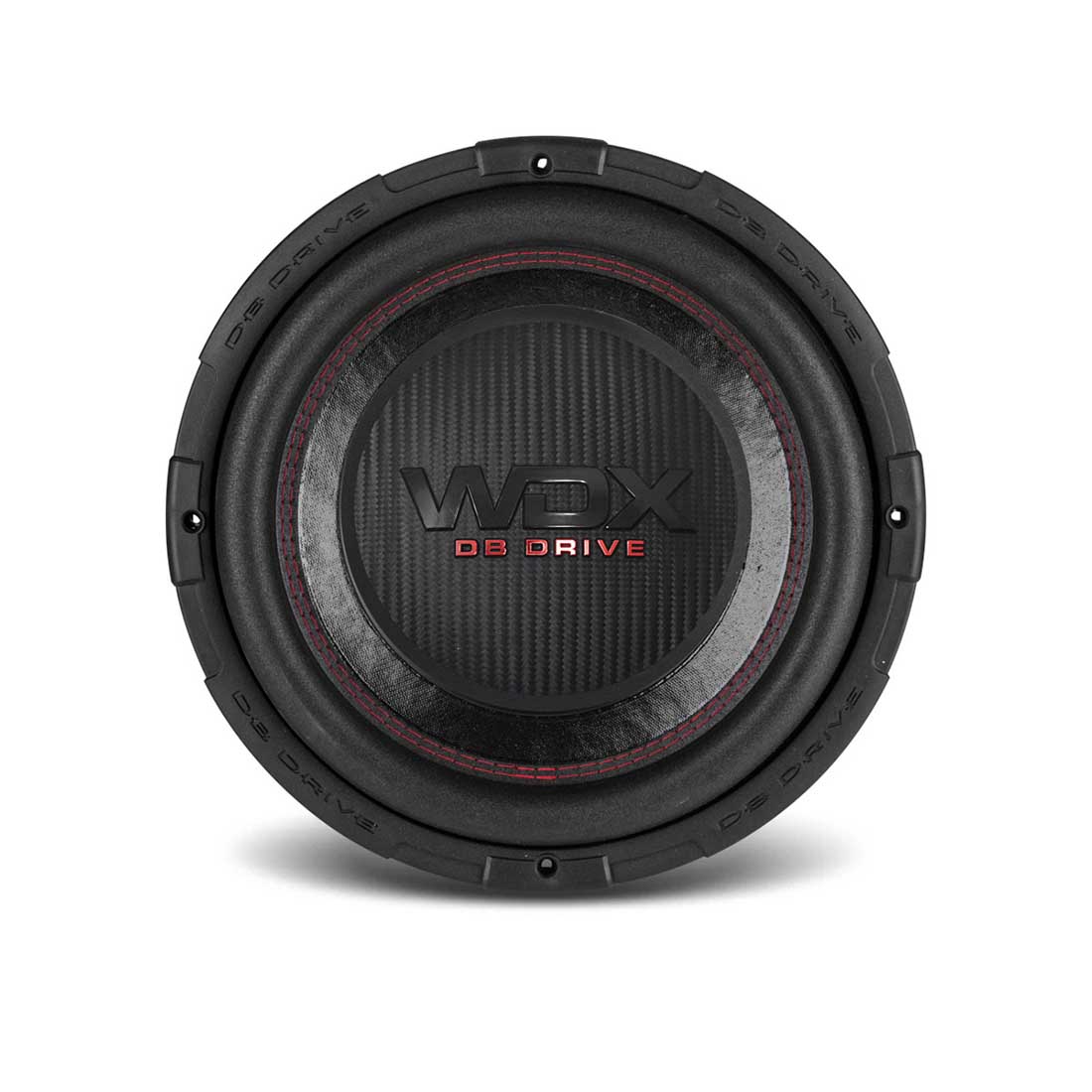

DB Drive WDX12G2.4 12" 2500W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer
DB Drive WDX12G2.4 12" 2500W Max Dual 4-Ohm Voice Coil DVC Car Audio Subwoofer
Regular price
$349.99 USD
Regular price
Sale price
$349.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND NEW
DB DRIVE WDX12G2.4
12-inch 2500 Watts Max Dual 4-Ohm Voice Coil DVC Car Subwoofer
DB Drive designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
Key Features:
- 3.0" Anodized aluminum high-temperature voice coil
- Non-Pressed paper cone
- Double-stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications:
- Structure: 12" (30.48cm) Woofer
- Dynamic Power Handling: 2500 Watts
- Nominal Power Handling: 1250 Watts
- Impedance: Dual 4Ω Voice Coil
Parameters:
- Resonant Frequency (fs): 41.5Hz
- D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
- Mechanical Quality Factor (Qms): 3.96
- Electrical Quality Factor (Qes): 0.55
- Total Quality Factor (Qts): 0.48
- Equivalent Air Volume to Cms (Vas): 23 L
- Mass of Diaphragm/Coil (Mms): 252.3 g
- Force Factor (Bl): 27.7
- Sound Pressure Level (SPL): 86.6dB
Dimensions:
- Outside Diameter: 12.95" (329mm)
- Cutout Diameter: 11.34" (288mm)
- Mounting Depth: 6.75" (171mm)
