• DB Drive NEO4V2 4-Channel 1250 Watts Class-D Full Range Marine Amplifier
  • DB Drive NEO4V2 4-Channel 1250 Watts Class-D Full Range Marine Amplifier
1 2

DB DRIVE

DB Drive NEO4V2 4-Channel 1250 Watts Class-D Full Range Marine Amplifier

DB Drive NEO4V2 4-Channel 1250 Watts Class-D Full Range Marine Amplifier

$174.41 USD
$174.41 USD
Sale Sold out
Shipping calculated at checkout.
REFURBISHED

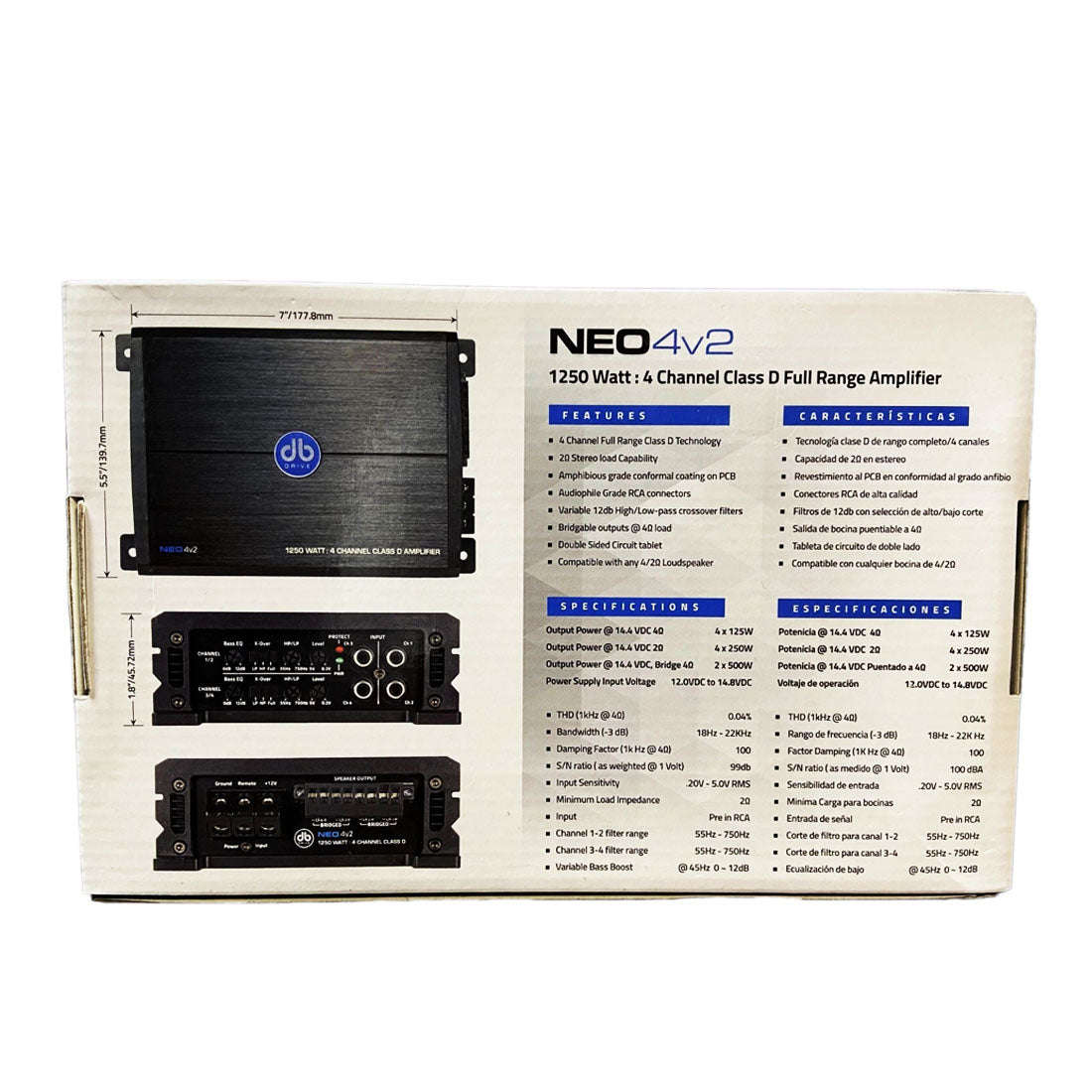

DB DRIVE NEO4V2

4-Channel 1250W Class-D Full Range Marine Audio Amplifier

Key Features:

  • 4 Channel Full Range Class D Technology
  • 2Ω Mono load Capability
  • Amphibious grade conformal coating on PCB
  • Audiophile Grade RCA connectors
  • Variable 12dB High/Low-Pass Crossover Filters
  • Bridgeable Outputs @ 4Ω Load
  • Double Sided Circuit tablet
  • Compatible with any 4/2Ω Loudspeaker
General Specs:

  • Rated Power @ 14.4 Volts:
  •  - 4 x 125 Watts @ 4Ω
  •  - 4 x 250 Watts @ 2Ω
  •  - 2 x 500 Watts @ 4Ω Bridged
Parameters:

  • THD (100Hz @ 1Ω): 0.04%
  • Bandwidth (-3 dB): 18Hz ~ 22KHz
  • Damping Factor (1KHz @ 4Ω): 100
  • S/N ratio (as weighted @ 1 Volt): 99db
  • Input Sensitivity: 0.20V ~ 5.0V RMS
  • Minimum Load Impedance: 2Ω
  • Input: Pre in RCA
  • Channel 1-2 filter Range: 55Hz ~ 750Hz
  • Channel 3-4 filter Range: 55Hz ~ 750Hz
View full details
