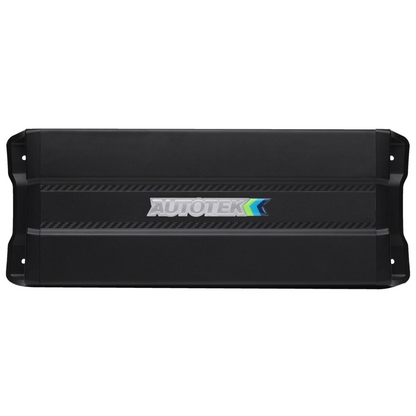

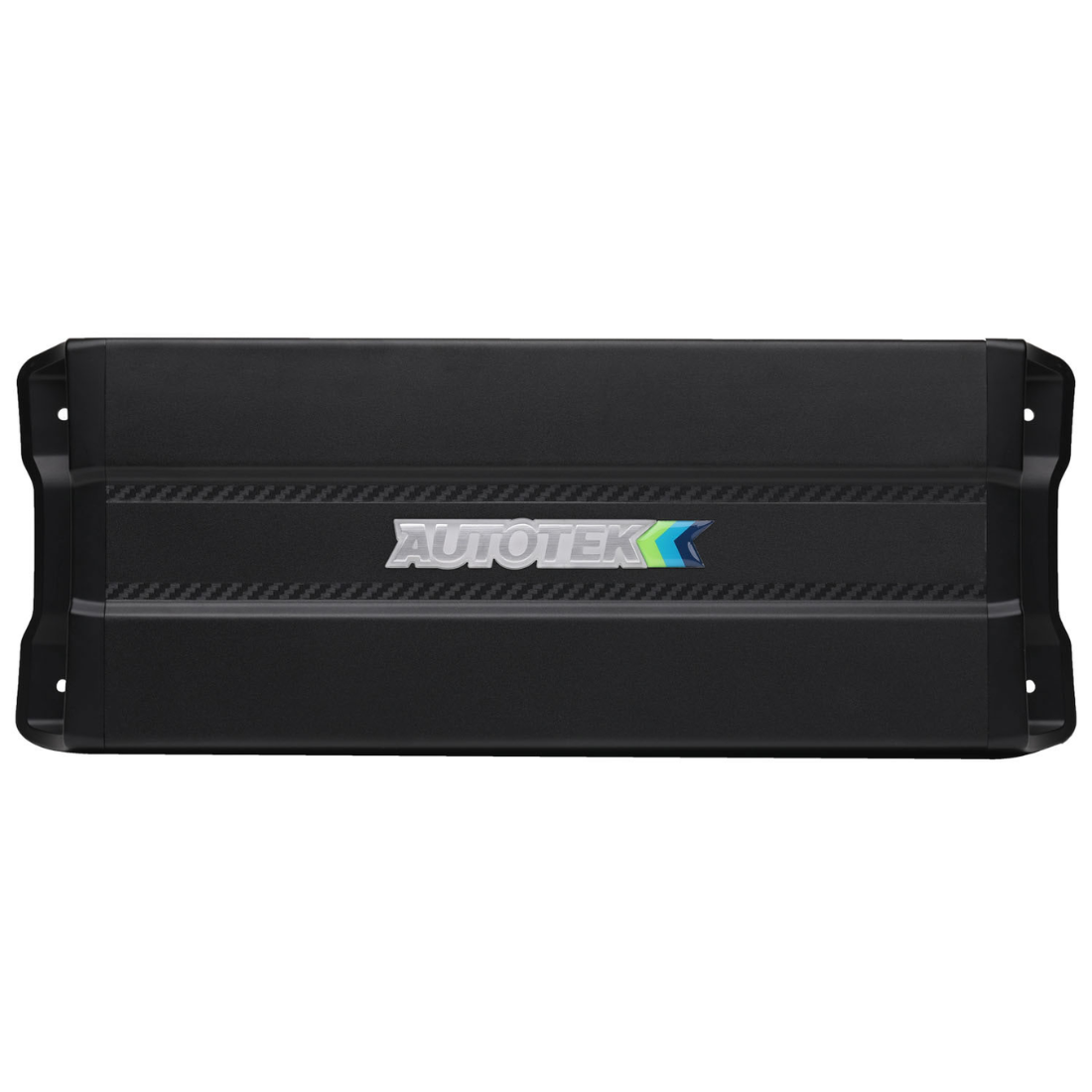

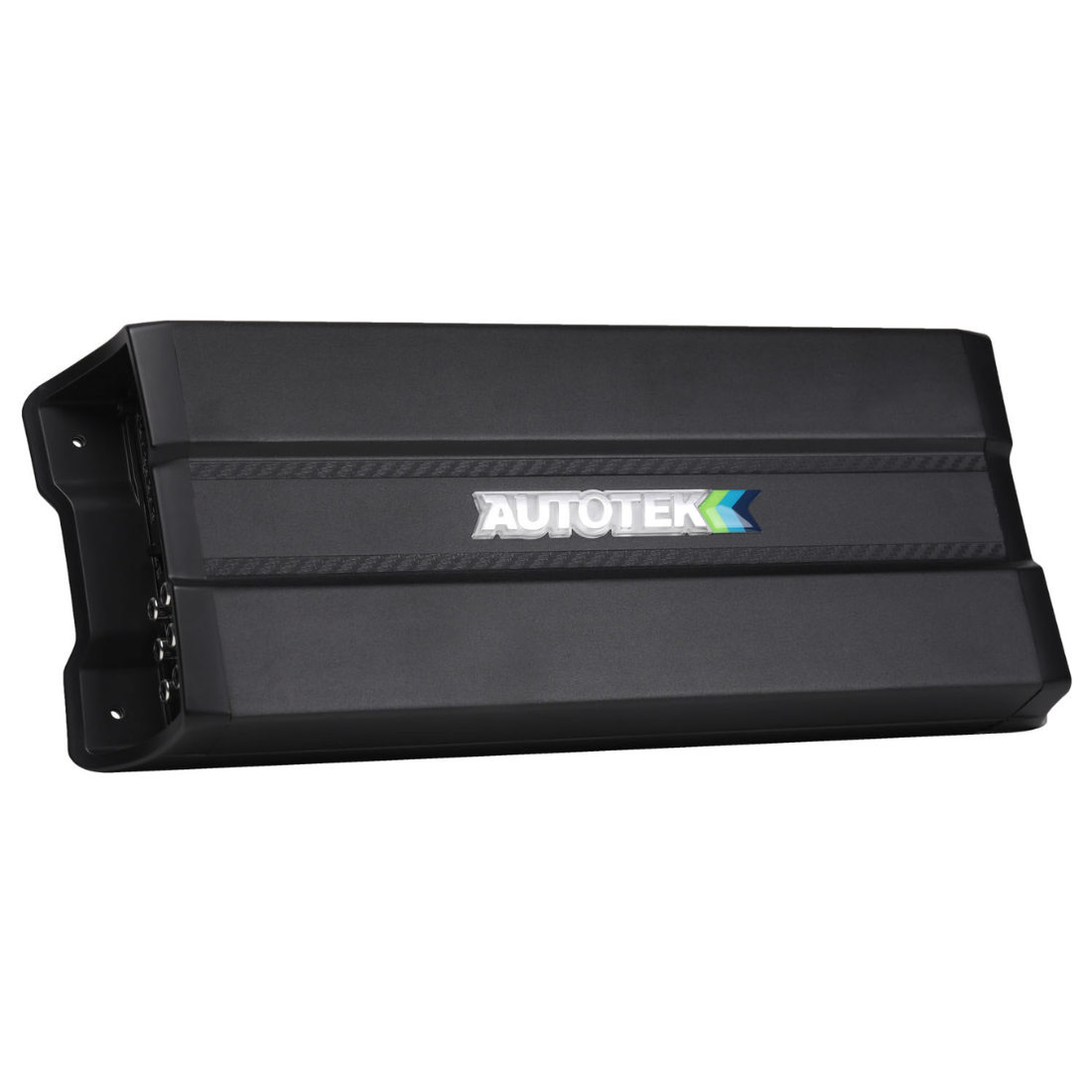

Autotek MM-1525.5D 1500W Max 5-Channel Class-D Car Audio Compact Amplifier

Autotek MM-1525.5D 1500W Max 5-Channel Class-D Car Audio Compact Amplifier

$198.85 USD
$198.85 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

AUTOTEK MM-1525.5D

MEAN MACHINE | 1500 Watts Max 5-Channel Class-D Compact Amplifier

Key Features:

  • Low Noise Preamplifier Circuit: Delivers minimal distortion through the amplification process.

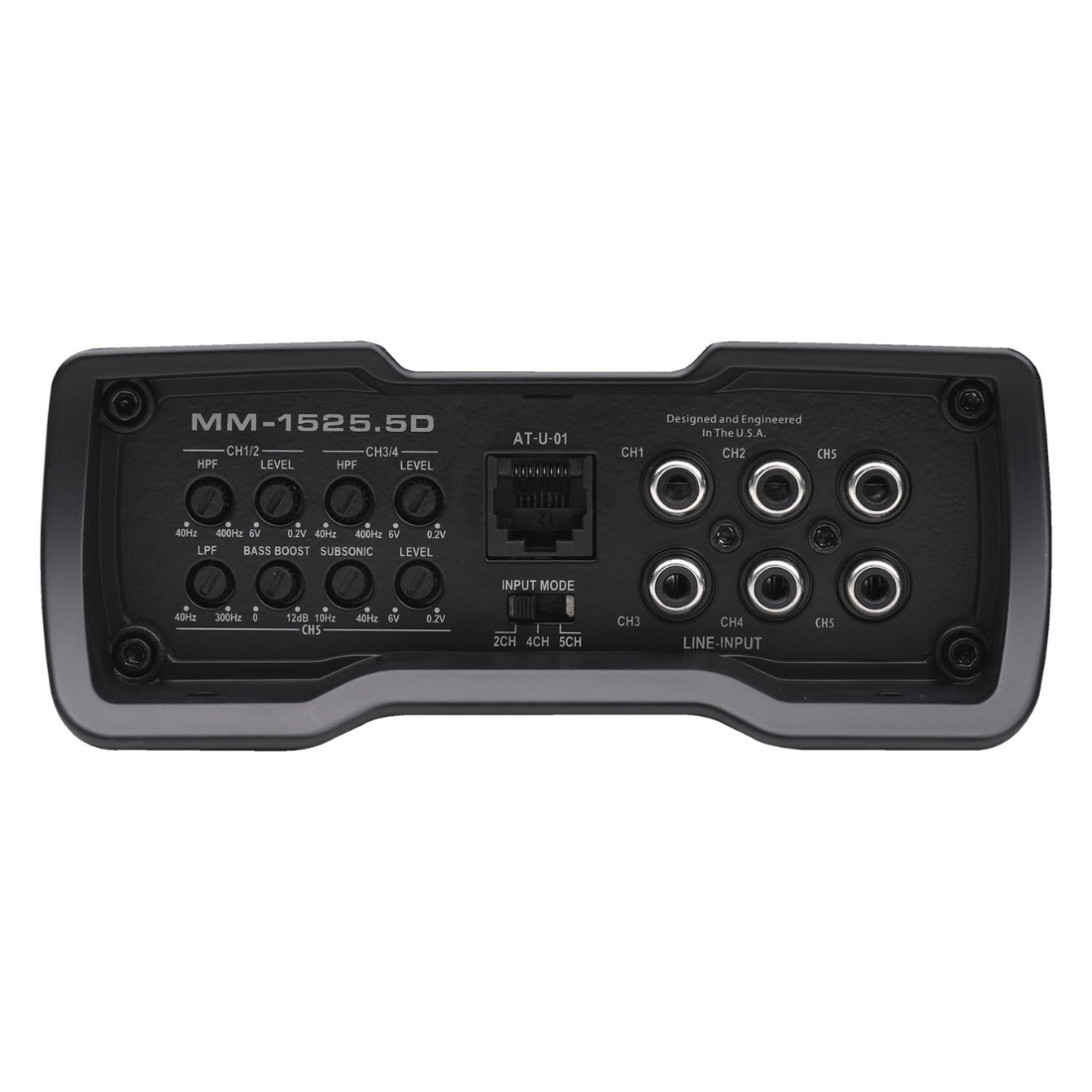

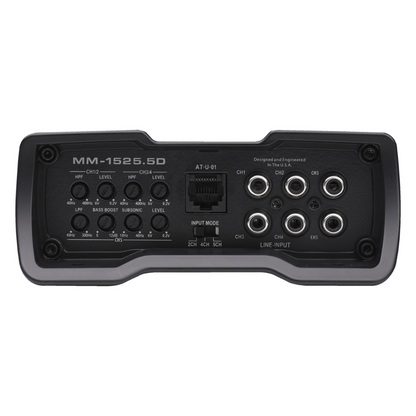

  • RCA Inputs: Provide the highest sound quality connection.
  • Operation Mode: Four Channel, Full Range, Bridgeable. Can run in four-channel or bridged mono mode.
  • Crossover Type: Onboard electronic crossover.
  • Electronic Equalizer: Provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.
  • Class / Topology: Very efficient D-Class to drive additional power while remaining a small footprint.
  • Output Device Technology: MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High-Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
  • Heat Sink: Heavy-duty aluminum alloy heatsink with an illuminated logo adds a vibrant display and showcase for every car audio installation.
  • Power Supply: High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact.

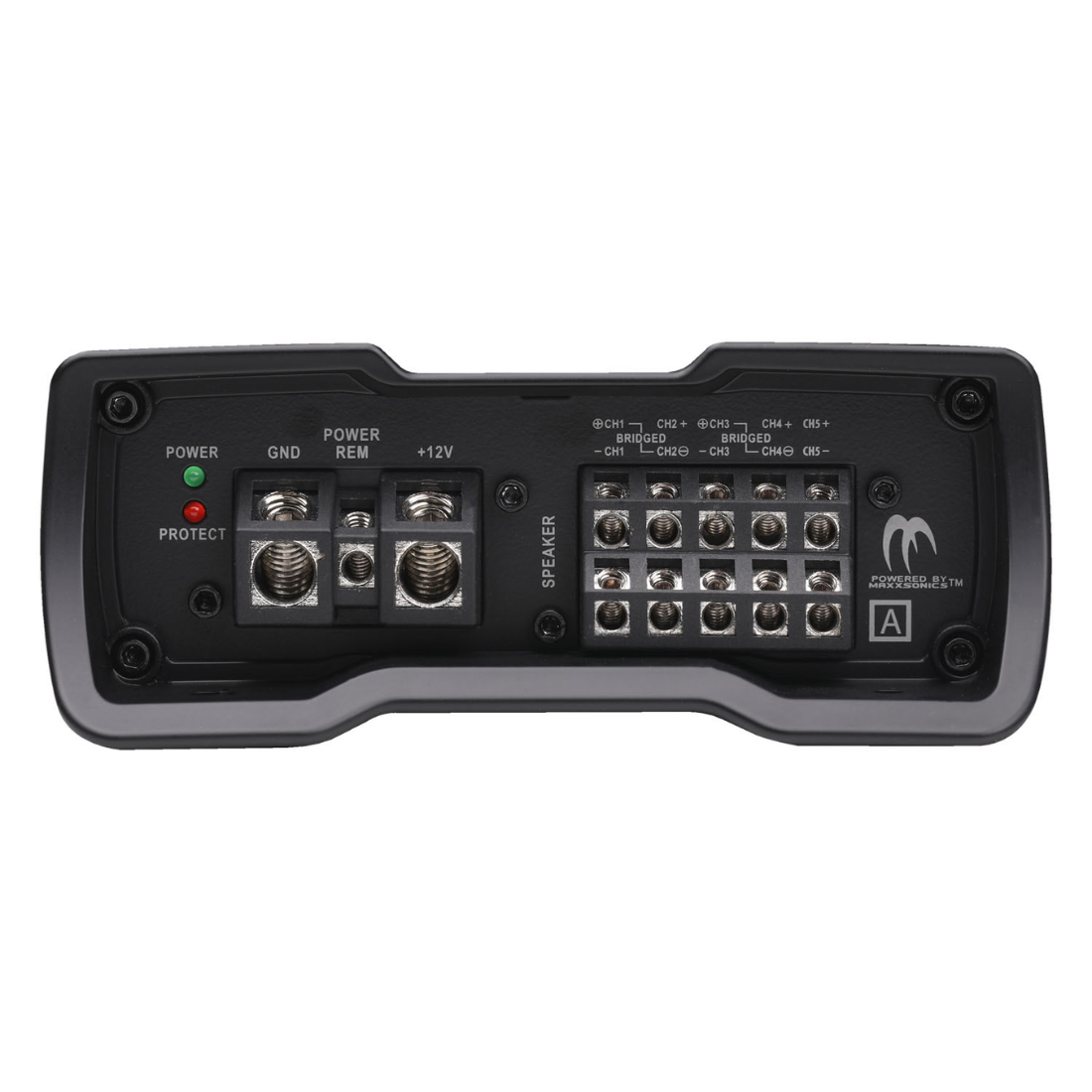

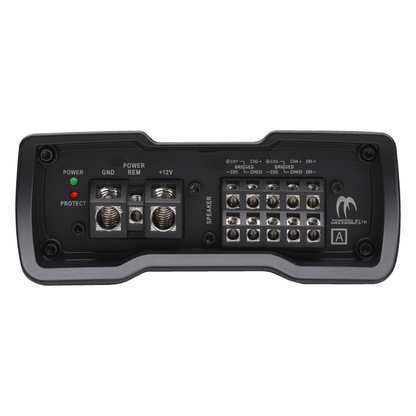

  • Output Connections: Nickel-plated brass connection with hex set screw terminals allow for secure connection and resist erosion.
  • Connection Type: Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection.
  • Full-Range RCA Outputs for Signal Pass-Through: Allows additional amplifiers to be run from the "output" RCA connections which minimizes the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
  • LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
  • Bass Remote Included: Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle.
Specifications:

  • Weight: 7.35 lbs
  • Dimensions: 18 × 7 × 3.25 in
  • Type: Amplifier
  • Brand: Autotek
  • Series: Compact MEAN MACHINE
  • Category: Mobile
  • Condition: New
  • Color: Black
  • Compatible Vehicles: Universal
  • Amp Class: Class D
  • Amp Total Channels: 5
  • Amp Max Power (watts): 1500
  • Amp Power @ 1 Ohm (ch x watts): 1 x 800 Sub Only
  • Amp Power @ 2 Ohms (ch x watts): 4 x 150 + 1 x 400
  • Amp Power @ 4 Ohms (ch x watts): 4 x 75 + 1 x 200
  • Amp Crossover: Variable Electronic 12dB Per Octave
  • Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
  • Amp Tone Control / Parametric EQ: Built-in Bass Control
  • Amp Bass Boost: 0-12dB
  • Amp Subsonic Filter: 10Hz-40Hz
  • Amp Variable Voltage: 0.2-6V
  • Amp Frequency Response: 10Hz-22kHz
  • Amp Total Harmonic Distortion (THD): < 0.1%
  • Amp Speaker Level Audio Inputs: RCA
  • Pre-amp Audio Outputs: RCA
  • Amp Power Terminal 12v/GND: 4 AWG
  • Amp Speaker Terminal Wire Gauge: 12 AWG
  • Amp Fusing: External 100A
