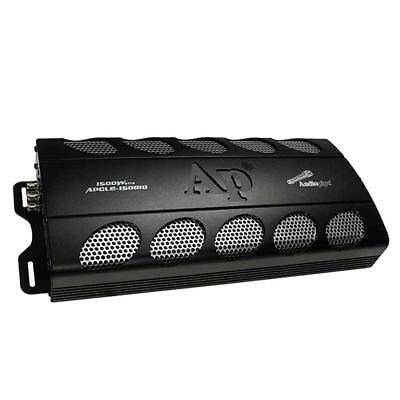

Audiopipe APCLE-15001D 1500 W Max Monoblock Class D 1-Ohm Car Stereo Amplifier

Audiopipe APCLE-15001D 1500 W Max Monoblock Class D 1-Ohm Car Stereo Amplifier

$191.99 USD
$191.99 USD
Sale Sold out
Shipping calculated at checkout.
BRAND NEW

AUDIOPIPE APCLE-15001D

1500 Watts Peak Power 1-Channel Monoblock Class D 1-Ohm Stable Stereo Car Audio Amplifier

Key Features:

  • 1500 Watts Max Power
  • RMS Power Rating:
  •    - 4 ohms: 600 watts x 1 channels
  •    - 2 ohms: 950 watts x 1 channels
  •    - 1 ohms: 1500 watts x 1 channel
  • Pulse Width Modulated MOSFET Power supply
  • Double side FR-4 PCB with high quality SMD components
  • Oversized toroids for excellent current and voltage control
  • 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
  • 1-ohm stable
  • Amplifier is strap-able so that you can connect and bridge with another for additional power output (2 ohm - 4 ohm load only)
  • Variable Low Pass filters allow you to adjust the playback frequencies from 40Hz to 180Hz at 12dB per octave
  • 2 channel RCA inputs accepts up to 5 volt input signals
  • 0° and 180° phase control
  • Variable Bass boost controls: 0 - +12dB at 30Hz - 80Hz
  • Variable subsonic filter: 24dB 10Hz - 15Hz
  • Gold plated terminals for all connections
  • Accepts up to 16 volts DC input for maximum sound output
  • Frequency Response: 8Hz to 180 Hz
  • Total Harmonic Distortion (4 Ω): < 0.15% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >70dB
  • Dimensions: 14-1/16" (W) x 2-1/8" (H) x 7" (D)
  • Minimum 2 Gauge power wire with 100 amp fuse
  • Weight: 10.5lbs
